Key Features

Speaker Design

Large 10-inch in-ceiling loudspeaker designed for high output
Flush-mount installation for a clean, integrated ceiling look
Slim profile that blends with modern interiors

Drivers & Sound

10-inch woofer for deep and impactful low frequencies
Dedicated tweeter for clear and detailed high frequencies
2-way crossover network for smooth frequency transition
Designed for balanced and natural sound reproduction

Audio Performance

Wide frequency response for full-range music and movie playback
Good sensitivity for efficient performance with a variety of amplifiers
Strong bass extension directly from the ceiling speaker
Clear midrange and highs suitable for vocals, instruments, and effects

Build & Reliability

Robust construction to reduce resonance and distortion
Quality internal components for reliable, long-term performance
Durable design suited for permanent ceiling installation

Installation & Placement

Flush-mount ceiling design for unobtrusive integration
Ideal for large rooms and main audio zones
Suitable for stereo pairs or multi-channel surround sound systems

Compatibility

Works well with standard AV receivers and amplifiers
Can be paired with subwoofers to extend low-frequency response
Compatible with distributed audio setups and custom installations

Ideal Use

Excellent choice for living rooms, media rooms, and large open spaces
Designed for users who want deep bass and full-range sound without visible speakers
Suitable for music, home theater, and multi-zone audio

Description

Monitor Audio C3L-A – 10 Inches In-Ceiling Speaker (Each)

Monitor Audio C3L-A In-Ceiling Speaker (Pc)

100% brand new original products
Official manufacturer’s warranty valid in India
Price includes GST & Shipping
Check for EMI & Pay on Delivery Options

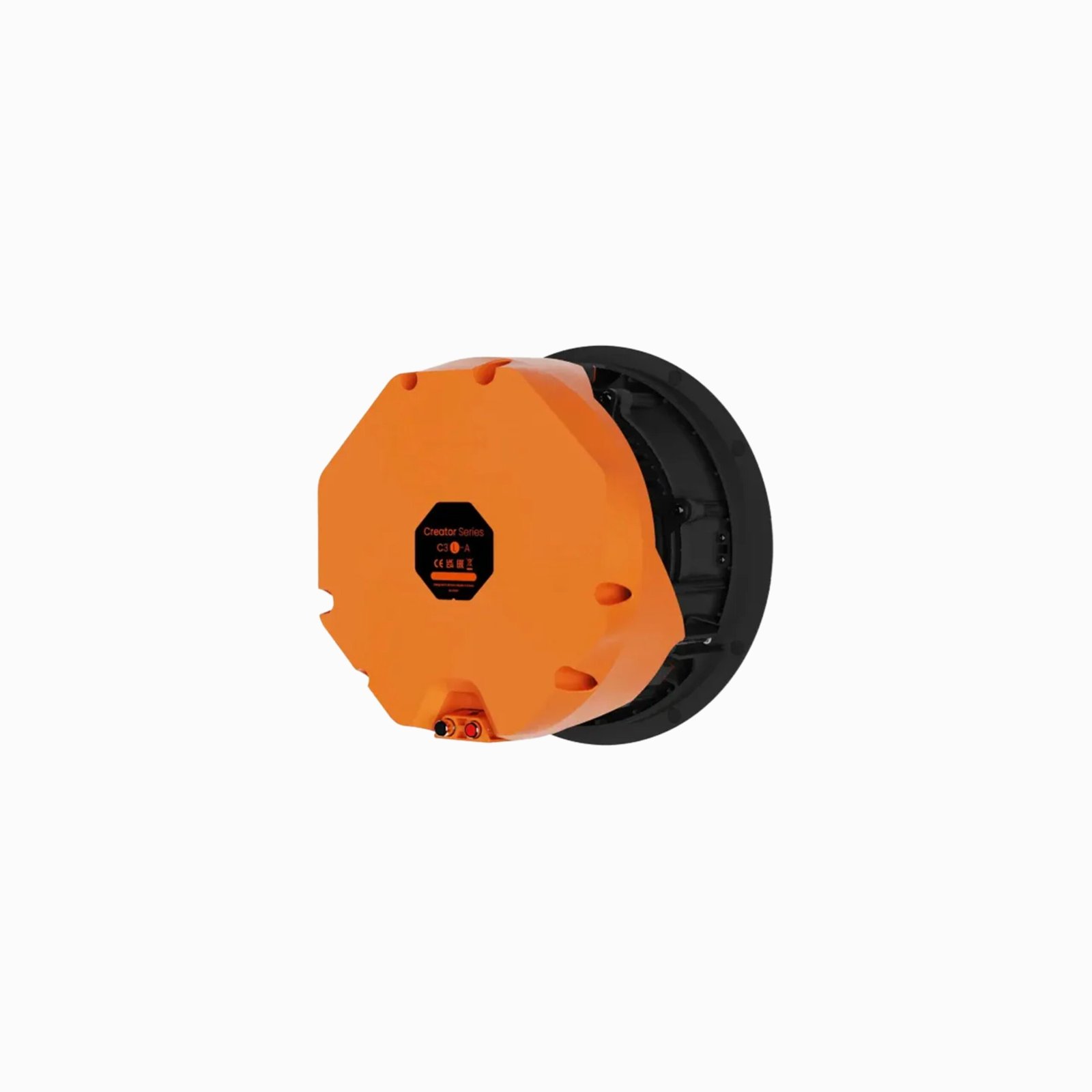

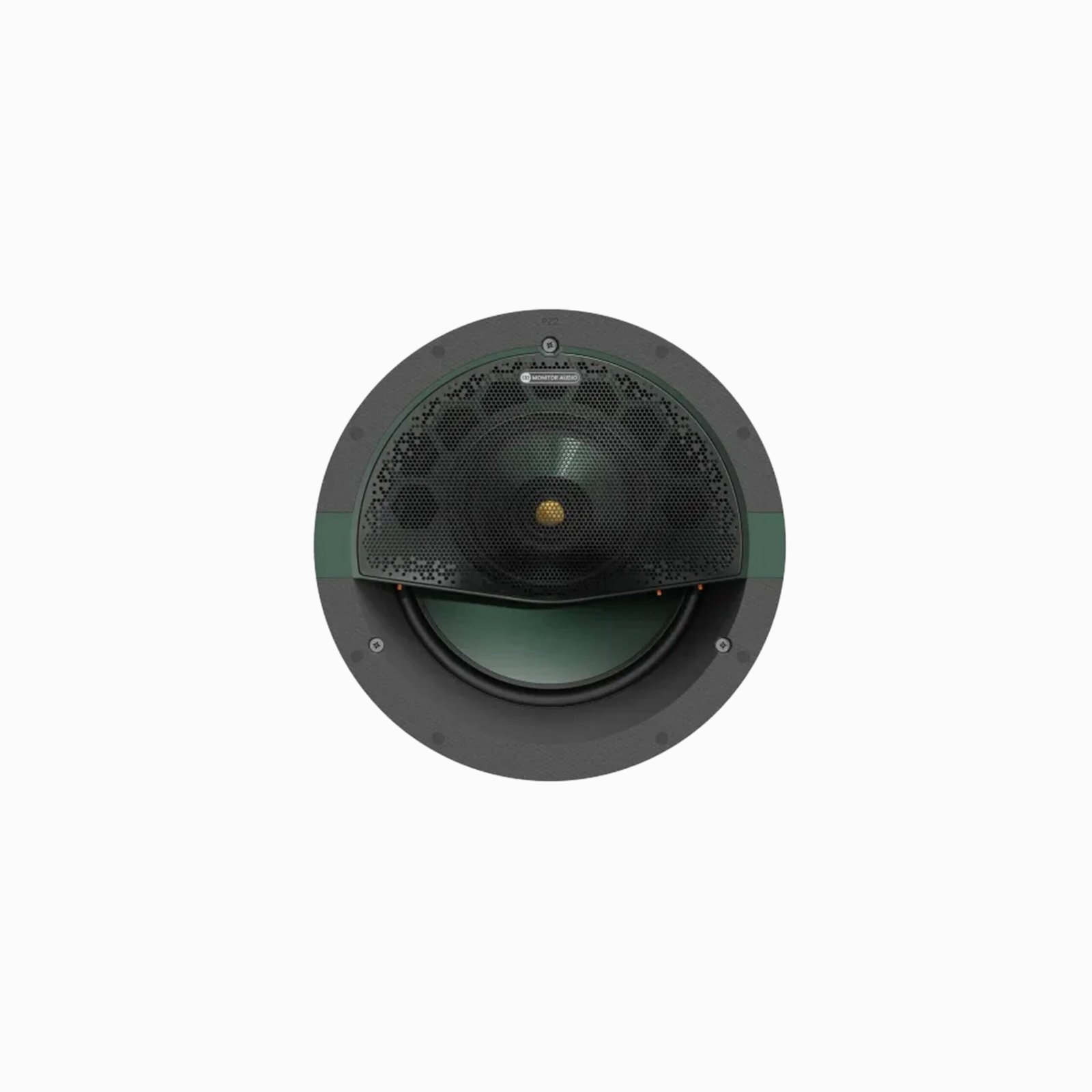

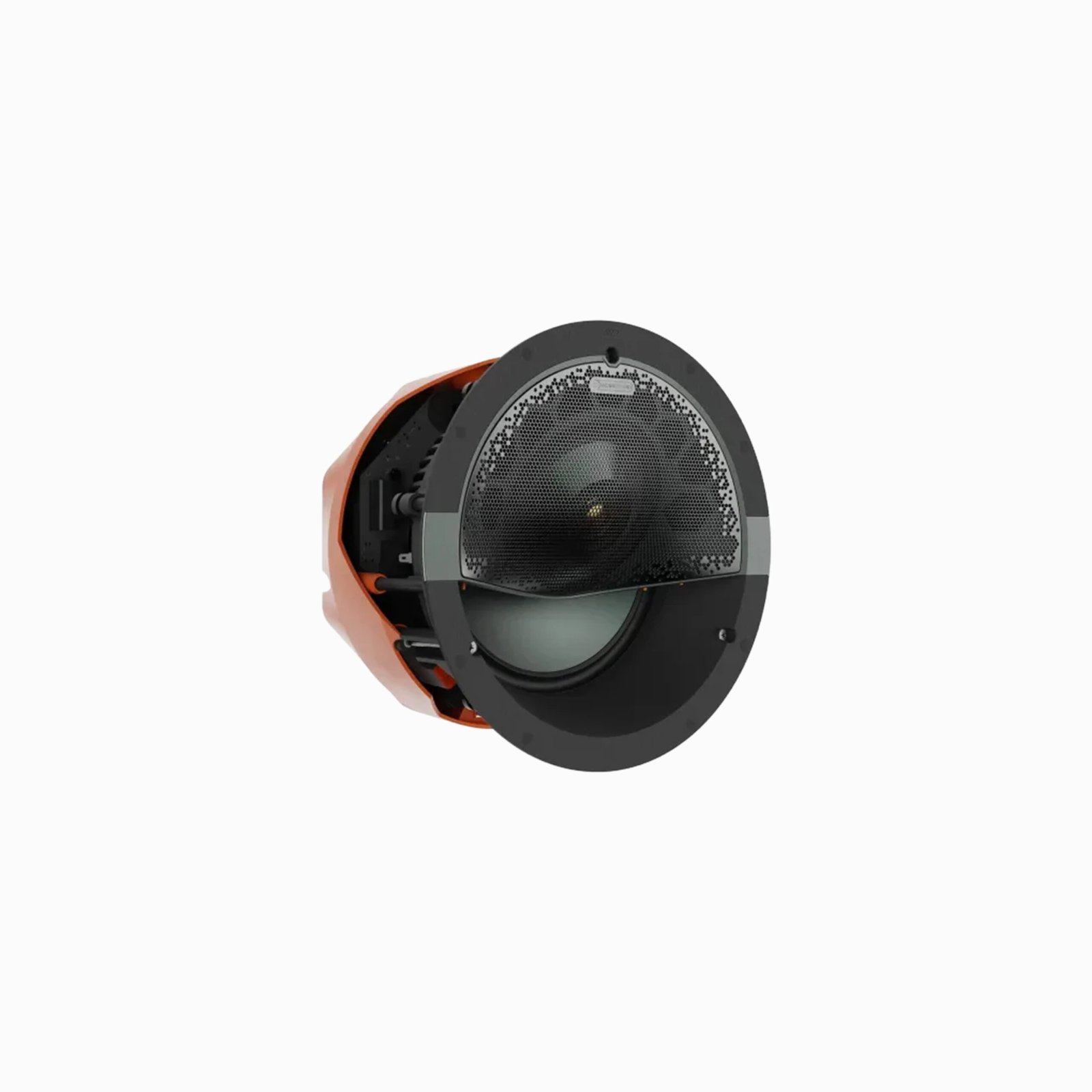

Monitor Audio C3L-A

C3L-A is a new and invaluable addition to the Creator Series. ‘A’ stands for ‘Angle’, and the speaker consists of a fixed-angle IDC II that delivers a ‘spotlight’ effect that focuses and directs the mid-range and high-frequency sound into the listening area for improved intelligibility and clarity.
The completely redesigned IDC II is set at 25 degrees and delivers focused sound across the full frequency range into the listening area, making it an ideal in-ceiling LCR speaker – where In-wall speakers aren’t possible.
Supported with the lightweight, pistonic RDT III cone and an extensive motor system to drive it, the soundstage and dynamic range are highly impressive. C3L-A is ideal for creating a discreet home theatre and multi-channel music solution that offers high-fidelity performance, detail, clarity and deep, controlled bass.
Monitor Audio C3L-A has a cut-out diameter of 248 mm and uses the patented Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also evolved for simple, reliable and strong fitment.

Key Features

Ideal for installations where high-performance acoustics are desired
Angled IDC II projects sound into the room for pinpoint accuracy
Three-way design
Mid-frequency ‘mid-pod array’
1 x 1″ (25 mm) IDC II tweeter with UD Waveguide II for lifelike sound
1 x 9″ (229 mm) RDT III bass driver
1 x 4″ (102 mm) IDC II mid-range driver
Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
Tri-Grip II for easy and secure fitment

Specifications

System Format	3–Way
Channels	1
Frequency Response, Installed (-6dB)	45 Hz – 35 kHz
Nominal Impedance	6 ohm
Minimum Impedance (20Hz to 20kHz)	4.6 Ohm @ 2 kHz
Sensitivity (2.83Vrms@1m, Installed)	89 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)	119 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)	150 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)	60 – 225 W
Drive Unit Complement	1 x 9″ (229 mm) RDT III bass driver 1 x 4″ (102 mm) IDC II midrange driver 1 x 1″ (25 mm) IDC II tweeter
Crossover Frequency	LF/MF: 700 Hz MF/HF: 3 kHz
Mounting Depth	157 mm (6^3/16“)
Cut-Out Hole Diameter	248 mm (9^3/4“)
External Dimensions (Including Grille (H x W x D))	278 x 278 x 161 mm (10^15/16 x 10^15/16 x 6^5/16“)
Weight	5.6 kg (12 lb 5 oz)
Pre-Construction Bracket	CL-B
Cabinet Finish	Matt black & Orange & Green
Sold As	Single Unit
Corner Switch	On/Off
HF Switch	– /0/ +
MF Switch	– /0/ +
