Mogami 3082 Neglex OFC CoAxial Speaker Cable Speakon TS & XLR

Key Features & Specifications — Mogami 3082 Speaker Cable

Coaxial Design with Matching Conductors
The cable uses a coaxial layout: one central conductor and one outer conductor (shield), both made of oxygen-free copper (OFC), providing a balanced, low-loss path for speaker-level signals.
2.0 mm² (approx. 14 AWG) Conductor Cross-Section
Each conductor (inner + outer) has a cross-section of around 2.0 mm² — adequate for most home-audio, hi-fi, or modest PA speaker loads, delivering reliable current and reasonable resistance for short to medium runs.
Low DC Resistance & Good Power Transfer
With proper gauge and material, the cable supports efficient power transfer from amplifier to speaker — minimizing loss and preserving signal strength and dynamic range.
Balanced Transfer & Shield-Style Return Path
The outer conductor serves as the return path (instead of a separate return wire), which can simplify wiring and maintain symmetry — especially useful in installations where a more compact cable layout is preferred.
Flexible PVC Jacket & Manageable Size
The cable is relatively thin and manageable, making it easier to route, bend, or run through conduits or restricted spaces compared to bulky speaker cables.
Suitable for Multiple Terminations
Can be terminated with Speakon, ¼″ TS, XLR (for speakers/amplifiers that use those), bare-wire, banana plugs, or other preferred speaker connectors — offering flexibility depending on your equipment.
Good for Home Hi-Fi, PA, Studio Monitors, and Medium-Power Speakers
Well-suited for stereo systems, bookshelf or floor standing speakers, small-to-medium powered PA or monitor speakers — where heavy-duty cable isn’t necessary but reliable performance matters.
Custom Lengths and Flexible Installations
As the cable can be supplied per metre / unterminated, you can cut the exact length you need — useful for wall-mount setups, home theatre wiring, or custom installations where neat routing and correct length are important.

Description

Mogami 3082 Neglex OFC CoAxial Speaker Cable Speakon, TS & XLR

Probably the best and most popular pro audio Speaker cable in the world, designed to meet 1/4 phono plug, TS Speakon and XLR audio connectors. Its Coaxial Design is used to provide as large a conductor size as possible, which results in the following features:

Manufactured in Japan using Neglex ofc copper of size 2.0mm² ( #14AWG), this Speaker Cable is designed to mate with XLR/TS and SpeakOn Connectors

The 3082 offers a more dynamic representation of the conventional cables due to its construction and orientation
- Mogami is by far the world’s most sought-after studio cable brand; most major recording studios and leading sound engineers in the world use Mogami cabling due to the legendary performance of these cables. You are buying the best when you buy Mogami. All Mogami cables are made in Japan using the best materials and technological know-how that comes from decades of research and development.
- All our custom-made cables are professionally soldered with a Proprietary 4% Silver solder blend.

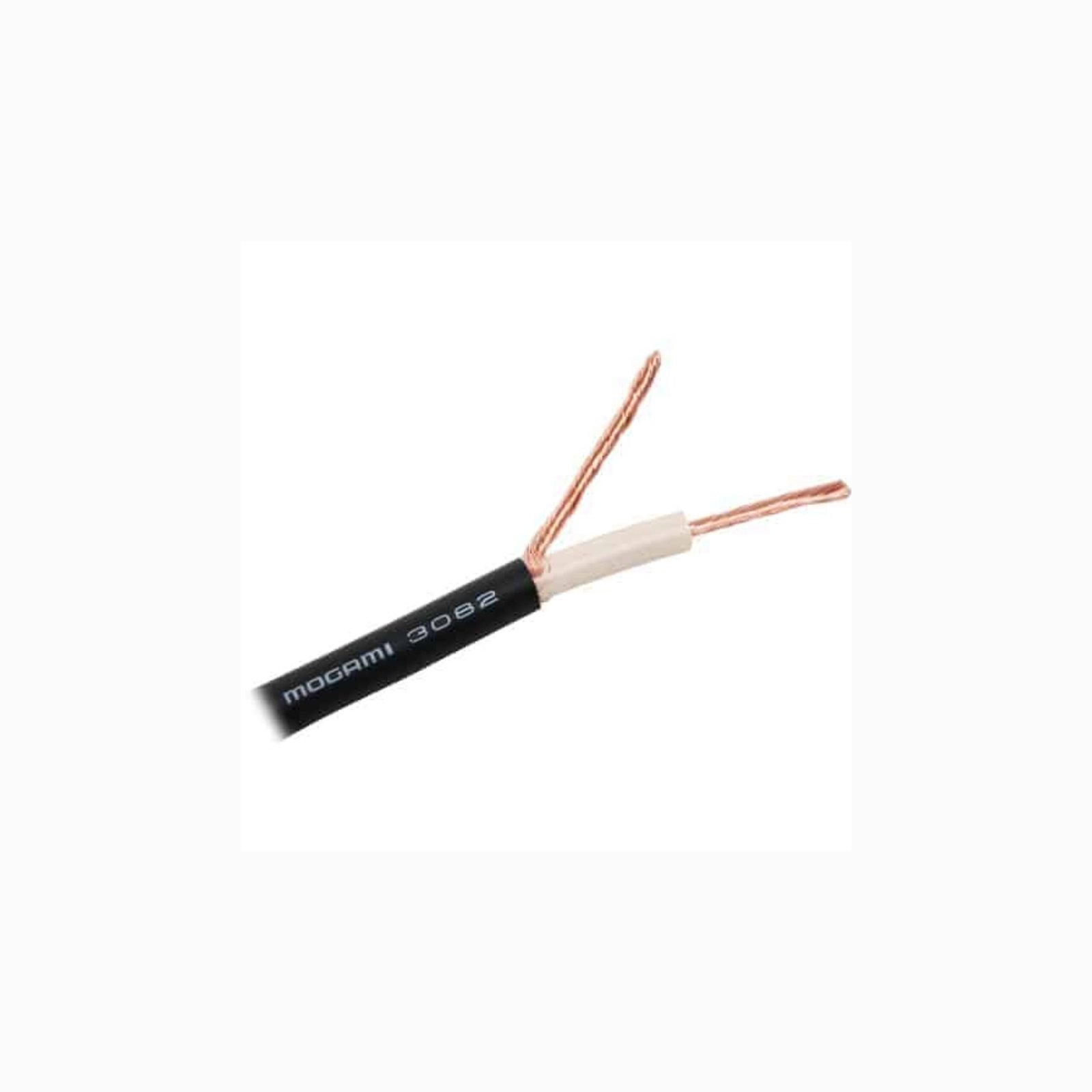

- Mogami 3082 features a coaxial design (shield and central conductor) to provide a large conductor size and to optimise noise rejection and to minimise the possibility of emission of noise to the surroundings (due to induction). This coaxial design offers better quality signal transmission compared to standard Figure-8 and Twisted-Pair speaker cable. The shield, as well as the centre conductor, is 2mm square each (between 14 and 15 AWG). Mogami has managed to make the 3082 cable ultra-flexible and keep the overall diameter at 6.5mm, despite the large conductor size. Hooking up your home audio system will be a breeze with these cables.

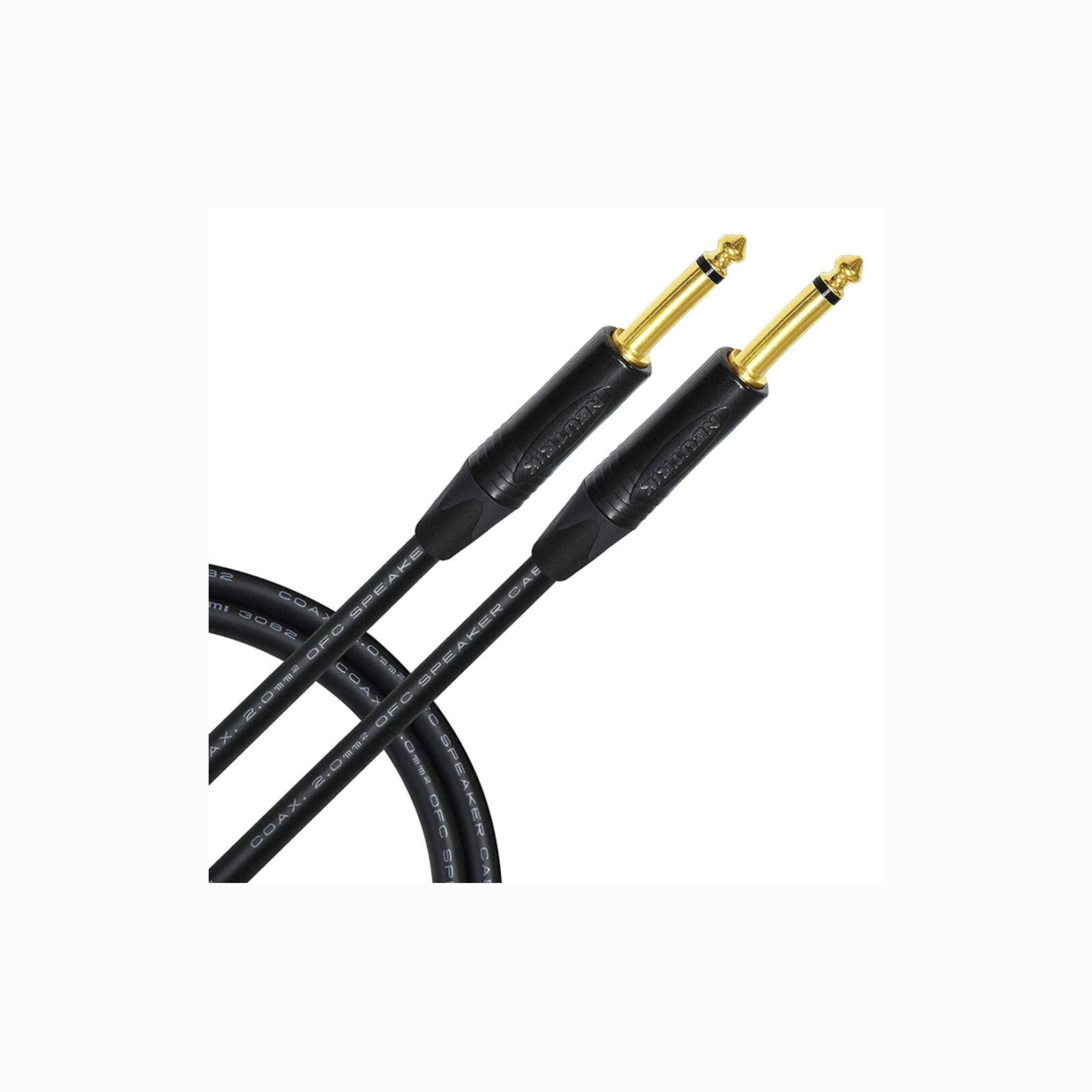

- The Neutrik NP2X-B (Made in Liechtenstein) ¼ ¼-inch gold-plated TS connectors are the latest and the highest-end ¼ Inch TS offering by Neutrik AG, the world’s leading brand for professional audio connectors. The PX series offers the thinnest available A-gauge 1/4″ plug with unique Neutrik chuck-type strain relief on the market. Neutrik NP2X-B’s slimline shell with a width of 14.5mm allows you to cram in more plugs per square unit in your jack field. The precisely machined one-piece tip contact without riveting makes it possible to avoid hooking up inside the socket or breaking off at the tip.
Features
- Large conductor size of 2.0mm (close to #14AWG) despite small OD of 6.5mm (0.256″). (Same conductor size for both internal and external (shield) conductors.)
- Better SQ than Quad-core or parallel configuration
- Extremely low induction from outside and affection to outside.
- Neglex copper ofc conductors
Customer Review

“I was stunned by how dramatically the coaxial 3082 speaker cable affected the sound of my NS-10Ms. I was using good wire before, but the improvement the 3082 made was not subtle. The speakers sounded noticeably louder, and the response more natural and extended. I had no idea speaker cable could be so significant. Thanks so much for a great solution and
a wonderful improvement on my monitoring!”

Note –
To use in conventional 2-core mode with banana plugs, the coax cable must be stripped with the outer layer forming one core ( black ) and the inner centre forming the second core

Heatshrink needs to be used to insulate each core

Tech Specs: https://www.mogamicable.com/category/bulk/speaker_cable/pure_sound/

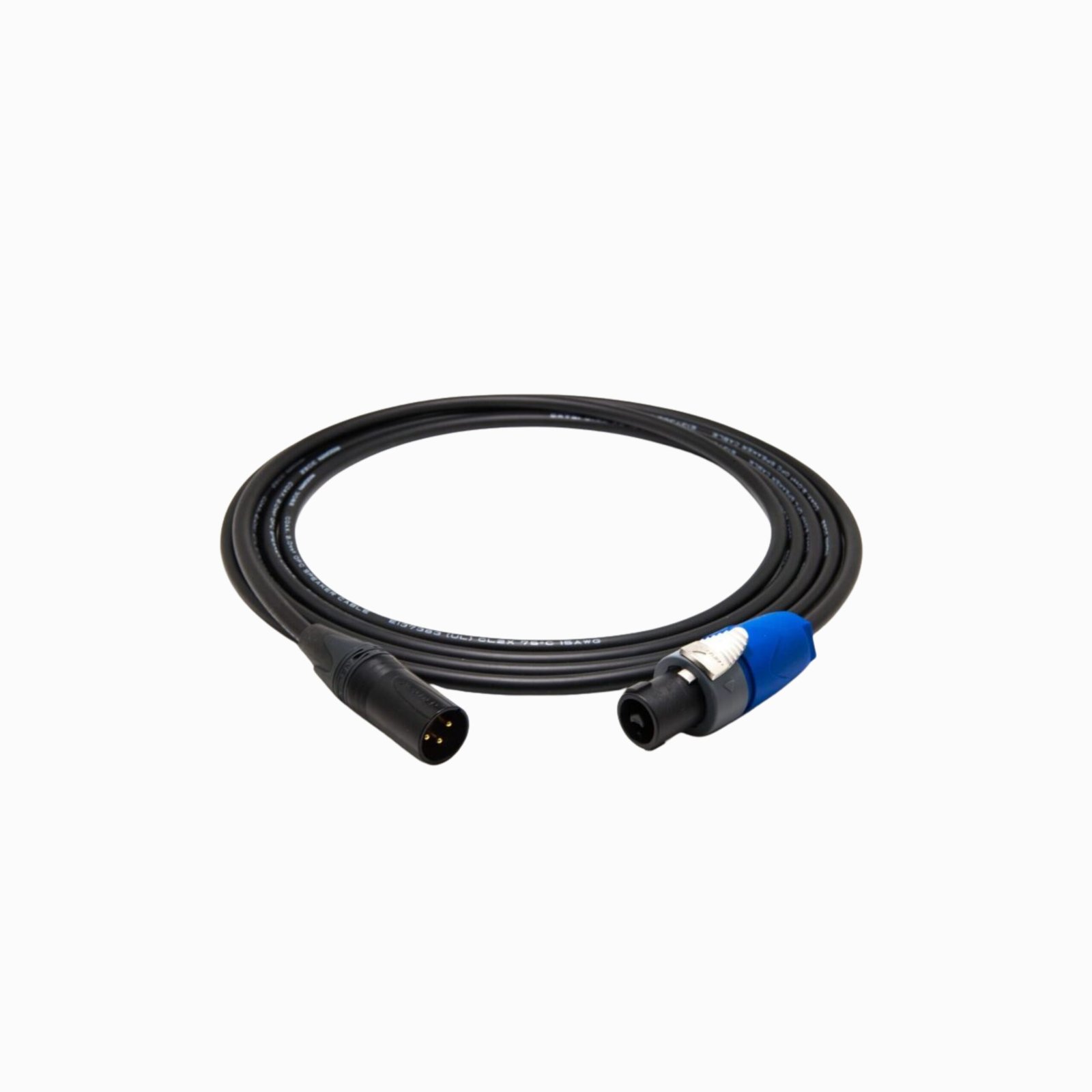

Offered Untterminated or Terminated using the industry’s best Neutrik Speakon or XLR, or TS Gold termination on both ends as needed be

.

Note:

·         We offer custom termination for this cable using our patented 24k real gold 3-micron gold-plated TS connectors, XLR or SpeakON connectors. This termination gives the best flexibility to the user and ensures oxidation of copper, which tends to take place in case of using bare wire

·         All our custom-made cables are professionally soldered with a Proprietary 4% Silver solder blend. We also use a specially developed, Proprietary Nitrogen-Assisted soldering process that is unique to us, which exceeds the highest industry standards. The overall integrity of the solder joints is greatly improved in comparison to traditional soldering processes.

·         The cable is a CO AXIAL configuration and hence is not like a regular 2-core cable; hence, when bananas are used, the heat shrink needs to be used to cover one core

Offered Untterminated or Terminated using the industry’s best Neutrik Speakon or XLR, or TS Gold termination on both ends as needed be

WHY MOGAMI?
There’s a reason why Mogami is called “The Cable of the Pros.” Virtually every major recording facility is wired with Mogami, which means that just about any music you listen to has passed through Mogami somewhere in the recording chain—from Fleetwood Mac to Foo Fighters, from Prince to Pearl Jam, and countless others.

Why do so many discriminating artists and studios choose Mogami over other cable brands? It’s simple. Mogami is unmatched for accuracy, extremely low noise, ease of installation, flexibility, and superior quality. Professionals and enthusiasts alike rave about the amazing clarity and silent background of Mogami—technicians swear by it, not at it.

MOGAMI QUALITY
Mogami has always had a relentless devotion to quality, integrity and ethical business practices. Every foot of Mogami cable is made in Nagano, Japan, under the direct supervision of the company founder, who continues to work every day. Comprised of true craftsmen, Mogami refuses to compromise quality for cost savings and never copies the work of others. In today’s global economy, it’s often difficult to track who really makes a branded cable or other products. Unlike such brands, Mogami completely controls its design and manufacturing process and will never use a “silent partner” factory. Each product is certified to meet very rigid specifications, which are published and verifiable. There are no “secret ingredients” or mysticism attached to the performance of our products. Mogami is also dedicated to responsible manufacturing and was the first cable factory to meet RoHS requirements for everything they make.

·         Mogami uses only pure OFC (Oxygen Free Copper) for the best signal transmission, as well as XLPE (cross-linked polyethene) insulation for high dielectric strength and dimensional stability.

·         We could fill a book with specs, but in the end, it comes down to the purist philosophy that runs through every Mogami cable. It’s why Mogami is a top choice for studio professionals and touring bands everywhere.

·         Every foot of Mogami cable is proudly manufactured in Nagano, Japan.
