Mogami 2697 Balanced Console and Lavalier Audio Cable – Diameter

Key Features: Mogami 2697

1. Ultra-Slim Diameter – 2.5 mm

Extremely compact cable designed for lavalier microphones, bodypacks, and discreet audio routing.

2. Balanced 2-Conductor Design

Uses two 28 AWG conductors, allowing for true balanced audio transmission even in a miniature form.

3. Spiral (Served) Shielding

High-quality bare-copper spiral shield provides excellent protection from electromagnetic and RF interference.
Ensures clean, low-noise audio performance.

4. Super-Flexible PVC Jacket

Soft, pliable outer jacket makes the cable comfortable for wearable use.
Easily concealed under clothing for film, TV, events, and stage applications.

5. Low Capacitance & Low Noise

Engineered for clarity and low signal loss.
Suitable for high-quality lavalier microphone performance and sensitive audio equipment.

6. Lightweight & Durable

Designed for rugged, everyday use on set or in the studio.
Maintains integrity through repeated handling and flexing.

7. Easy to Terminate

Fine conductors and compact construction make it ideal for custom mic cables, adapters, and miniature audio setups.

8. Professional Use-Case

Widely used for lavalier microphones, wireless packs, compact balanced patching, and broadcast audio.

Description

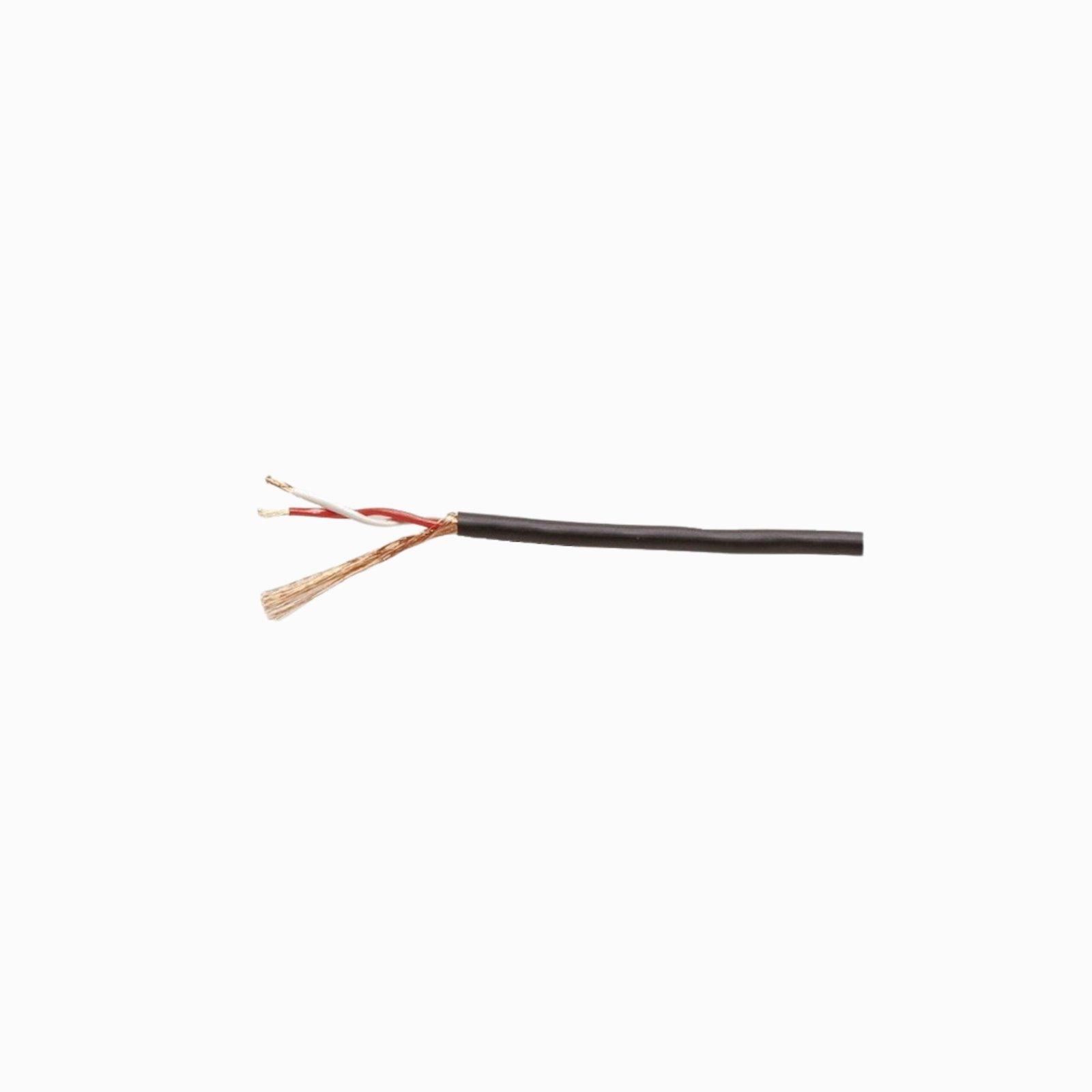

Mogami 2697 Balanced Console and Lavalier Audio Cable – Diameter – 2.5 mm

Shielded, Balanced, low noise, Lavaliere Type. Black. 2 Conductors x .098″ O.D. x 28 AWG. With an overall diameter of 2.5 mm

These miniature microphone cables feature necessary mechanical strength (tensile strength and long flex life) and flexibility for lavalier microphones and other
applications.

All balanced configuration. W2697 cable is constructed with a served (spiral) shield.

Tech Specs – https://mogamicable.com/category/bulk/microphone/lavalier/

Miniature microphone cable featuring good strength and flexibility.
Copper cores are easy to strip and solder
Designed with high tensile strength, long flex life and flexibility for lavalier microphones and other applications.
Spiral (served) shield
Cores 16/0.08 mm, screen 60/0.08 mm
Overall diameter 2.5mm
Colour Black

Note: Due to the small diameter of this cable, Mogami is not able to print their brand or part number on the jacket of this cable – please note this formally.
