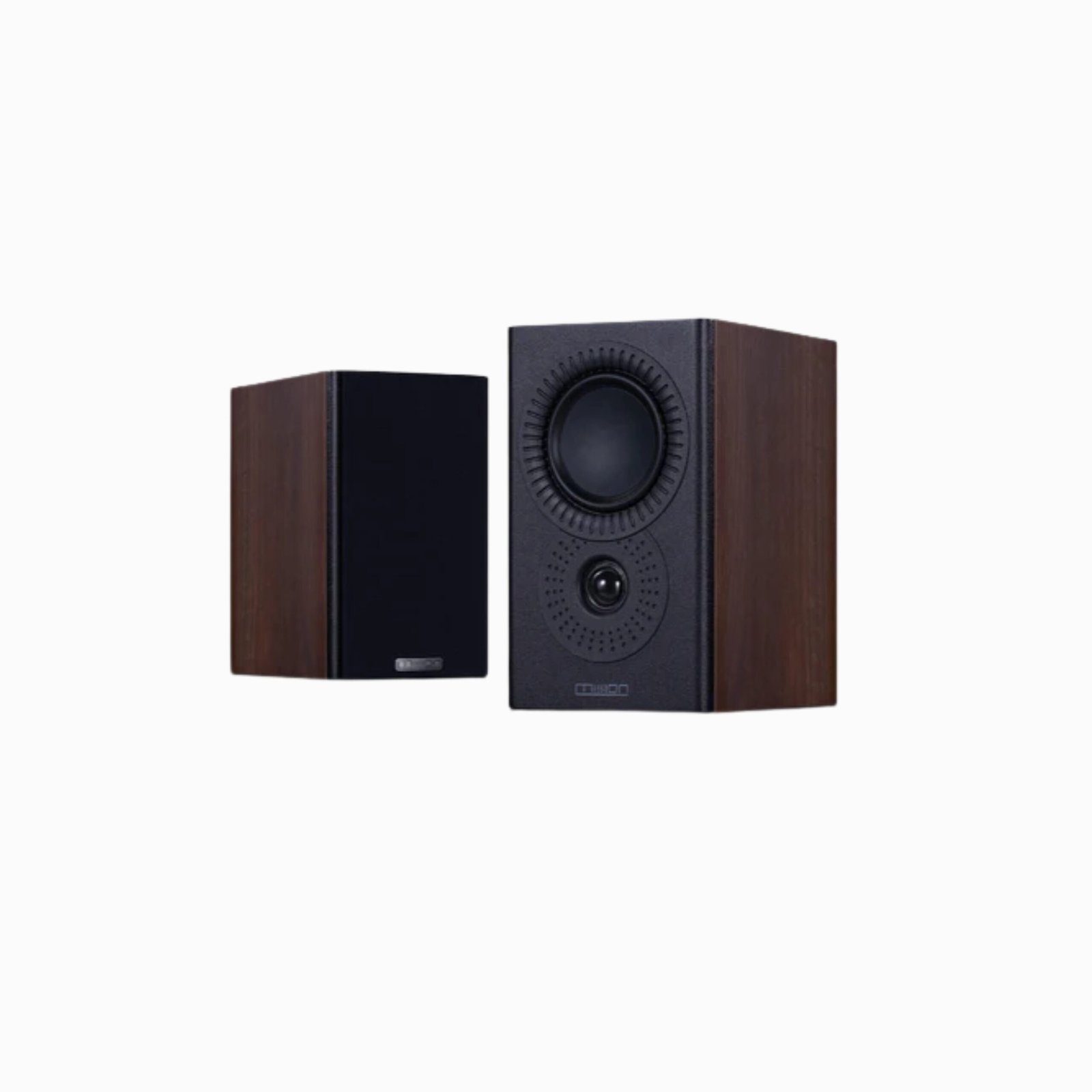

Mission LX-3 MKII - Bookshelf Speaker - Pair

    • Key Features & Specifications

      From the manufacturer’s specification sheet:

      • It’s a 2-way stand-mount / bookshelf loudspeaker in the LX MKII series from Mission. Mission+1

      • Driver complement: 1 × 6.5″ (≈ 165 mm) composite fibre bass driver + 1 × 25 mm micro-fibre dome tweeter. Mission+1

      • Sensitivity: 88 dB (2.83 V/1 m) nominal. Mission+1

      • Nominal impedance: 8 Ω compatible; minimum impedance ~4.1 Ω. Mission+1

      • Frequency response (+/-3 dB): approx 45 Hz to 20 kHz. Bass extension (-6 dB) down to ~40 Hz. audiosoundmusic.com

      • Recommended amplifier power: 20-120 W. Mission Hifi Canada+1

      • Physical dimensions: Height ~345 mm (on plinth), Width ~226 mm, Depth ~(300 + 8) mm including terminals; weight ~8.42 kg each. Mission+1

      • Finishes: Walnut Pearl, Lux Black, Lux White. Mission+1

Description

LX-3 MKII is a 2-way standmount loudspeaker with a 6.5″ bass driver and a 1″ softdome treble unit.

The LX MKII Series is the latest in a long line of distinguished Mission loudspeakers, joining the multi-award-winning speakers from the mid-level QX Series and the flagship ZX Series. LX MKII maintains the Mission trademark ‘Inverted Driver Geometry’ design, which means the path length between the drivers is optimised. Unique at this price point, this arrangement allows the precision-tuned crossover to yield improved transient attack and astonishing detail.

Perfected over hundreds of hours of critical listening by Mission’s lead acoustic designer, Peter Comeau, Mission LX MKII utilises trickle-down innovations from the revered ZX series. Improvements in the famous Mission DiaDrive bass unit offer superior control of the low-frequency diaphragm, while a refined high-frequency performance and a re-engineered cabinet bracing system further help create a loudspeaker system that outperforms its price class.

Features:

  • Features a 6.5-inch composite bass driver.
  • 25 mm microfibre dome tweeter.
  • Inverted driver geometry
  • Internally damped cabinet for reduced colouration and better bass response.
  • Advanced New Driver Surrounds and Crossover.

Continuous Innovation
From over 40 years of British Hi-Fi heritage and experience, LX MKII is a representation of Mission’s non-stop pursuit of improvement and excellence

Advanced New Driver Surrounds and Crossover

One of the critical areas highlighted by the development of Mission ZX and QX models was the use of serrations in the driver surrounds to help scatter interfering reflections from localised surfaces to the dome and cone

LX MKII now incorporates these serrations into the driver surrounds, adding further finesse to the drive unit outputs and providing a smoother frequency response

With minor perturbations in the driver response ironed out, the crossover for each model has been optimised to take advantage of the improved performance

The result is that the LX MKII builds on the winning formula of the LX, both enhancing the clarity of
midrange and treble detail, and improving the micro-dynamics of the musical performance for an even more thrilling listener experience

Inverted Geometry Drive Design
Mission’s classic IDG (Inverted Driver Geometry) driver format positions the high frequency below the bass/midrange driver, meaning the length of the path is equalised so the sound waves coincide at the listener’s head height. A proprietary principle that improves ‘time alignment’ and thus transient performance in Mission speakers

A New Start, With a New Finish
Standout new finish options follow the Mission mantra of fusing Hi-Fi heritage with contemporary design. LX MKII is beautifully finished in a choice of walnut pearl and the latest Lux Black and Lux White matte finishes.

LX MKII is the epitome of affordable high-end audio, harnessing materials, techniques, and technologies that you would only expect to find in other speakers costing many times the price

Whatever your choice of music, LX MKII will reproduce it with outstanding accuracy, detail, and realism, embodying Mission’s traditional adage since the 1970s

Technical Specifications:

General description 2-way bookshelf speaker
Enclosure type bass reflex
Transducer complement 2-way
Bass driver 6.5″(165mm) composite fibre
Treble driver 25mm microfibre dome
AV shield No
Sensitivity (2.83V @ 1m) 88dB
Recommended amplifier power 20-120W
Peak SPL 105dB
Nominal impedance 8Ω Compatible
Minimum impedance 4.1Ω
Frequency response (+/-3dB) 45Hz ~ 20kHz
Bass extension(-6dB) 40Hz
Crossover frequency 3.2kHz
Cabinet Volume (in litres) 13.2L
Height (on plinth) 345mm
Width 226mm
Depth (with terminals) (300+8)mm
Carton size 590 x 400 x 450mm
Net weight 8.42kgs
