Description

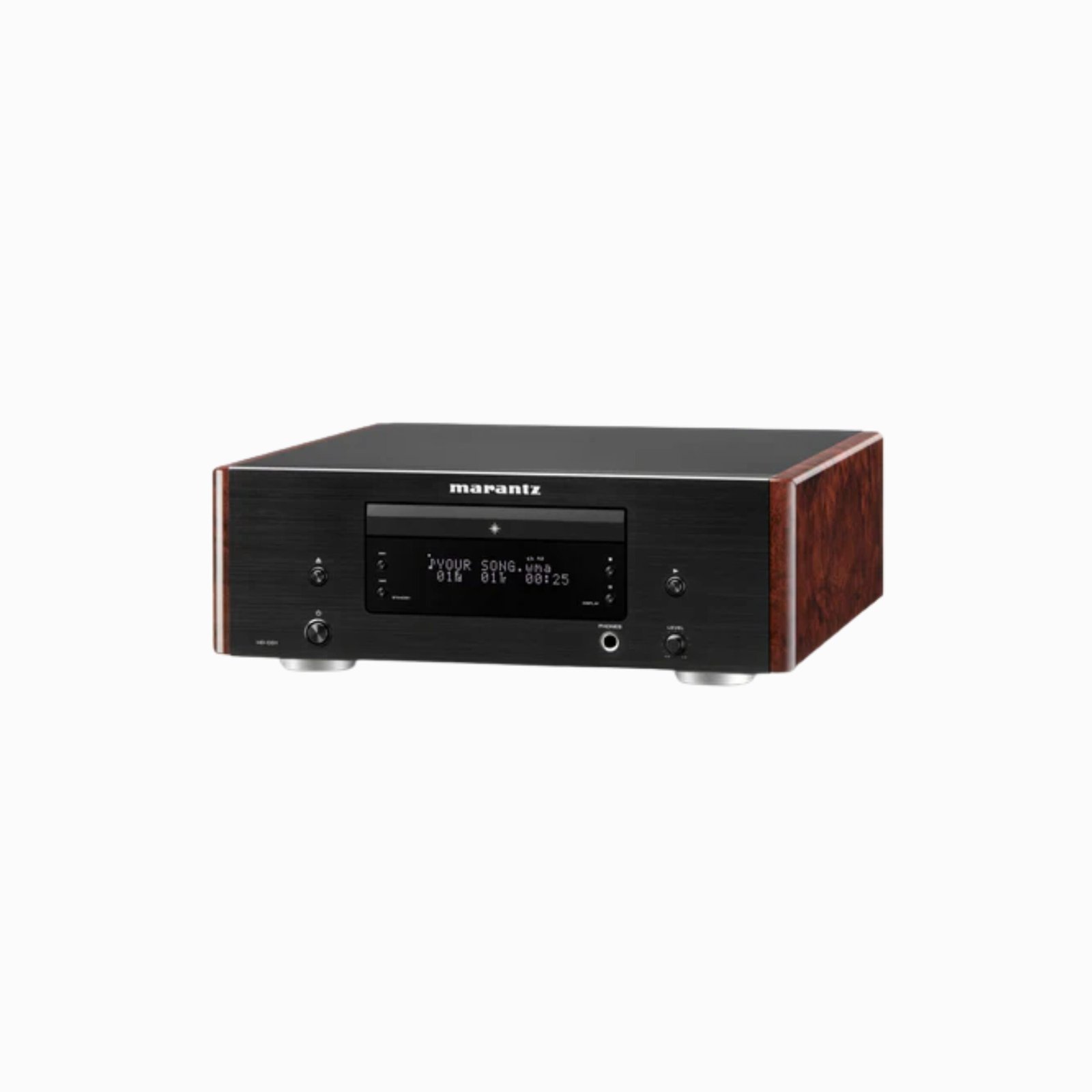

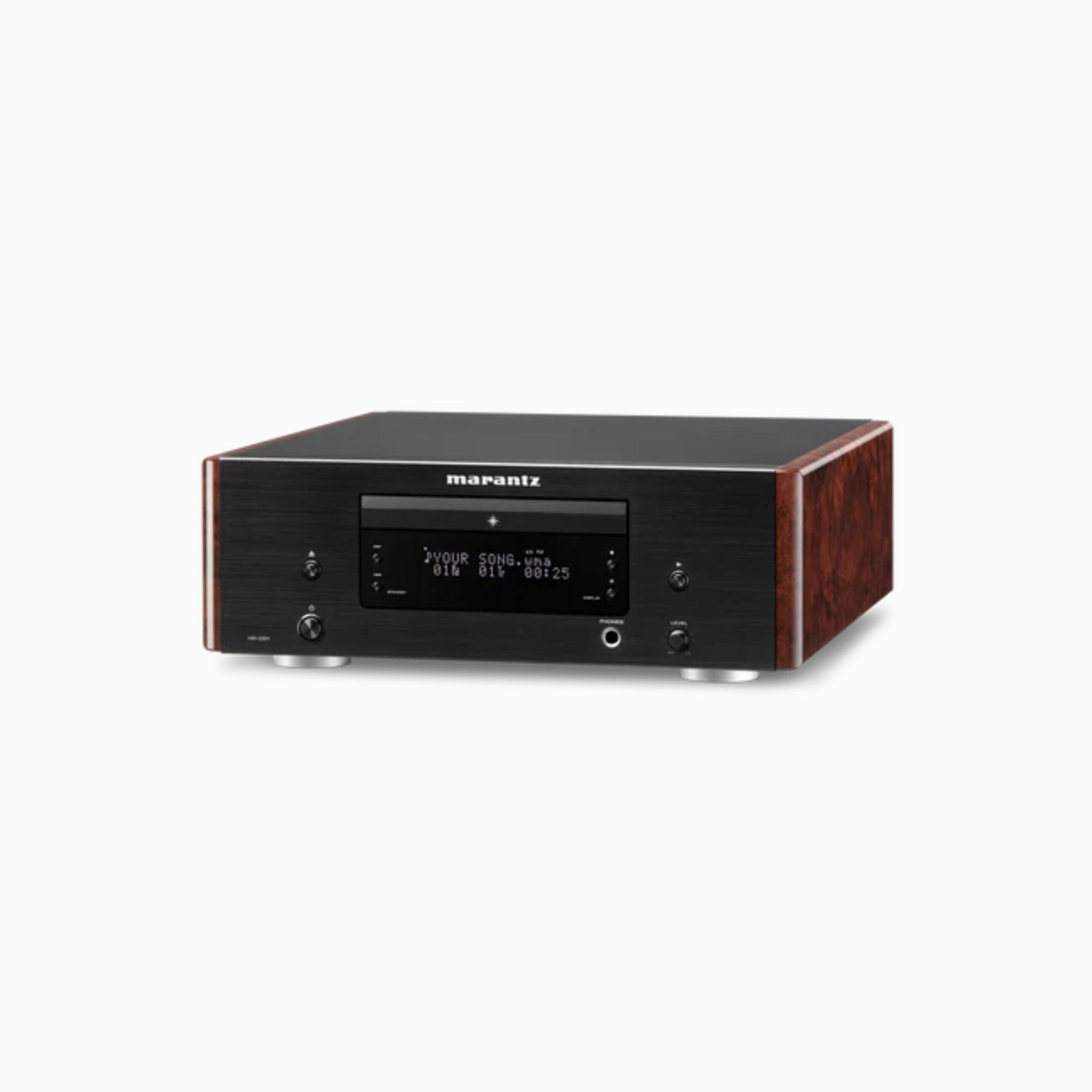

The latest addition to the new Marantz MusicLink series is the HD-CD1, a high-quality CD player in the same compact form as the HD-AMP1 amplifier, for which it is the perfect match. Combining more than 30 years of Marantz expertise in compact disc playback with the latest developments in digital audio technology, it’s ideal for use as a CD transport when used with the HD-AMP1, or as a CD player in any situation where a compact form-factor is required without any compromise on sound quality.
Small it may be, but it makes use of state-of-the-art Marantz technology carried over from our Award-winning CD players, including a high-resolution 192kHz/24-bit digital-to-analogue converter from Cirrus Logic, a high-accuracy system clock, and the famous Marantz HDAM-SA2 amplifier modules, as found in our flagship Reference Series CD players and amplifiers. Selected components are also used throughout the audio signal path for the very best reproduction of your music.
A centralised CD mechanism, able to play MP3, WMA and AAC files as well as standard CDs, is also used for ultra-accurate disc-reading and, along with its analogue audio outputs, optical and coaxial digital connections are provided, allowing the HD-CD1 to be connected directly to the HD-AMP1’s ultra-high-quality digital-to-analogue conversion.

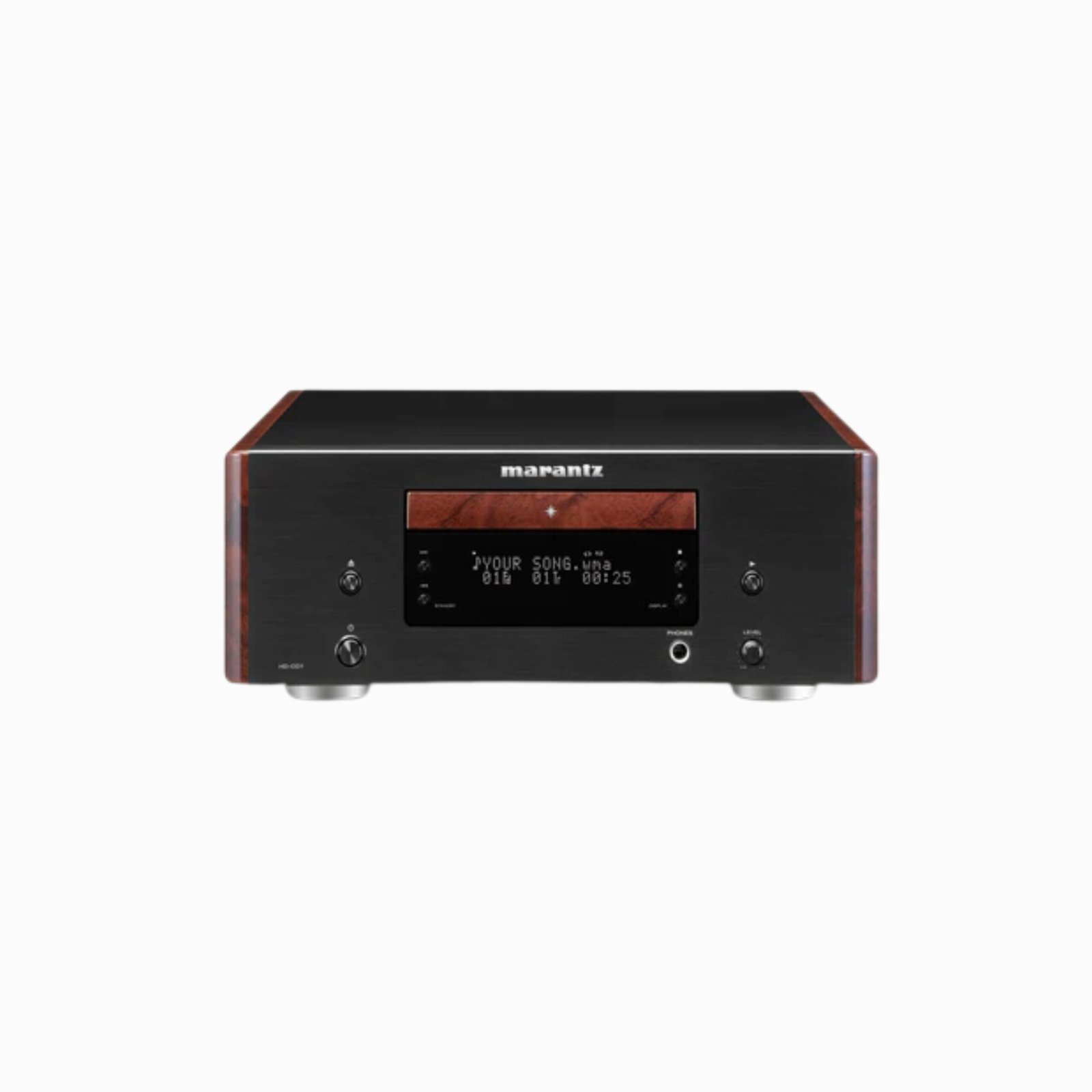

The HD-CD1 also features the stylish MusicLink design, with a solid aluminium front panel, double-layer chassis for vibration isolation, and retro-style side panels, and also includes a high-quality integral headphone amplifier with adjustable gain to drive high-end headphones for personal listening and comes complete with remote control for all its functions, also able to ‘drive’ a complete system of HD-CD1 and HD-AMP1. It’s a superb Marantz CD player – in miniature!
Warranty:
1-year manufacturer’s warranty
Marantz HD-CD 1 Features:
- Award-winning Marantz CD drive technology
- High-quality playback from CD, CD R/RW
- Support of MP3, AAC, and WMA file playback
- Plays most popular digital media files
- Intensively sound-tuned with carefully selected components
- Unique Marantz audio experience
- High-quality 192kHz/24bit D/A conversion (CS4398) and accurate system clock
- Best sound quality from CD and digital media files
- Marantz’s proprietary HDAM-SA2 circuits
- Wider dynamic range with lower distortion for the output stage
- Full discrete headphone amplifier with HDAM-SA2 and gain control
- High-quality sound even from demanding headphones
- Double-layered bottom plate and rigid feet eliminate interference for pthe urity of sound
- Gold Plated L/R/Coax Outputs
- System remote to control the CD-Player and Amplifier for total ease-of-use
Marantz HDAM for Superb Audio Performance
Compact the HD-CD1 maybe, but at its heart is all the technology that’s made Marantz a leader in top-quality CD playback. And central to that is the use of the Marantz-designed HDAM Hyper-Dynamic Amplifier Modules: in place of the all-in-one ‘chip amplifiers’ used elsewhere, these miniature amplifiers are built from separate, optimised components for the very best sound quality, and are found in Marantz products all the way up to the Reference series players and amplifiers. In the HD-CD1, the latest-generation HDAM-SA2 version of this technology is used to provide a wide dynamic range and wide frequency response with the lowest distortion – in other words, to get you closer to the music. HDAM technology is also used in the headphone section, which has its own dedicated amplification.
Reference-Quality Digital-to-Analogue Conversion
Central to the sound quality of the HD-CD1 is a high-quality CD transport mechanism, designed for ultra-accurate disc-reading, and this sends data to the player’s high-resolution digital-to-analogue converter, which is the same Cirrus Logic CS4398 device found in top-flight digital hardware. This is used together with a crystal oscillator master clock designed for ultra-low phase noise, and a low impedance capacitor, also designed for low noise, ensuring digital data is converted into an analogue sound with lifelike dynamics and timbre, breathtaking presence and sheer musicality.
Dedicated Headphone Amplifier with Volume Control and Adjustable Gain
Whether you want to use the HD-CD1 on your desk for full-time headphone listening, or just occasionally want to connect a pair of ‘phones for a private music session, the dedicated headphone section in the player will delight you. To make the most of personal listening, it has its own volume control and a dedicated HDAM-SA2 amplifier, complete with the adjustable gain settings – low, medium and high – to enable it to drive even highly-demanding audiophile headphones.
Analogue and Digital Outputs
As well as its own high-quality analogue outputs, enabling it to be used with any amplifier, including the matching HD-AMP1, the HD-CD1 has both optical and coaxial digital outputs, meaning it can be used as a CD transport straight into the digital input on the HD-AMP1 and allowing it to be used with the superb ESS Sabre DAC built into the amplifier. Like the analogue outputs, the coaxial digital connection uses a high-quality gold-plated RCA socket, and a digital cable is supplied with the player.
High-current Power Supply and Vibration-suppressing Chassis
Noise is the enemy of great sound, and the HD-CD1 has extensive measures to suppress both electrical and mechanical interference. A high-current power supply with high-capacity storage capacitors is used to ensure the player is able to deliver the dynamics of music, along with high-speed Schottky Barrier Diodes. The player also has auto-standby and very low power consumption when in standby mode. The HD-CD1 is built on a double-layer base-plate for rigidity and vibration suppression, aided by the use of compliant feet, a solid aluminium fascia and a rigid top-plate, and is finished with retro-style side-cheeks for that ‘classic Marantz’ look, whether in Silver, Gold or Black.
System Remote Control
The remote control handset supplied with the HD-CD1 controls all the functions of the player, and can also ‘drive’ the matching HD-AMP1, for simple system integration and convenience.
Marantz HD-CD 1 Technical Specifications:
| Features | CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC o / o / – / o / o / –
CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data o / – / o / o / o HDAM version: SA2 Power Transformer: Toroidal / El: – / o High Grade Audio Components: o Customised Components: o Symmetric circuit layout: o Digital out off / Audio EX Mode: o / – Headphone: Standard / Buffer / Current feedback: – / o (HDAM-SA2) / – |
| Others | Separated rectifier circuit for analogue and digital circuitry: o
Display: Dimmer / Off: o / o |
| Inputs/Outputs | Analogue Out (Cinch): 2ch
Balanced Out: – Digital Optical In / Out: – / 1 Digital Coaxial In / Out: – / 1 Sample Rate digital In: – Gold Plated Cinch: o D-Bus: o Headphone Out: o Headphone Volume Control: o |
| Specifications | Mechanism: CJDKT690
D/A Conversion: Multi-bit, Delta-Sigma DAC IC: CS4398 Digital Filter: CS4398 Noise Shaper: CS4398 Low Pass Filter stage: HDAM Output Buffer: HDAM SA2 Headphone amp: HDAM-SA2+Buffer Frequency Response: 20 Hz – 20 kHz Dynamic Range: 100 dB Signal to Noise Ratio: 110 dB Total Harmonic Distortion: 0.00% Channel Separation: 98 dB |
| General | Metal Front Panel: o
Remote Control: RC003HD Power Consumption in W: 14 Watts Standby Consumption in W: 0.35 Watts Auto Power-off: o Detachable Power Cable: o Maximum Dimensions (W x D x H): 304 x 312 x 109 mm Weight: 6 kg |
