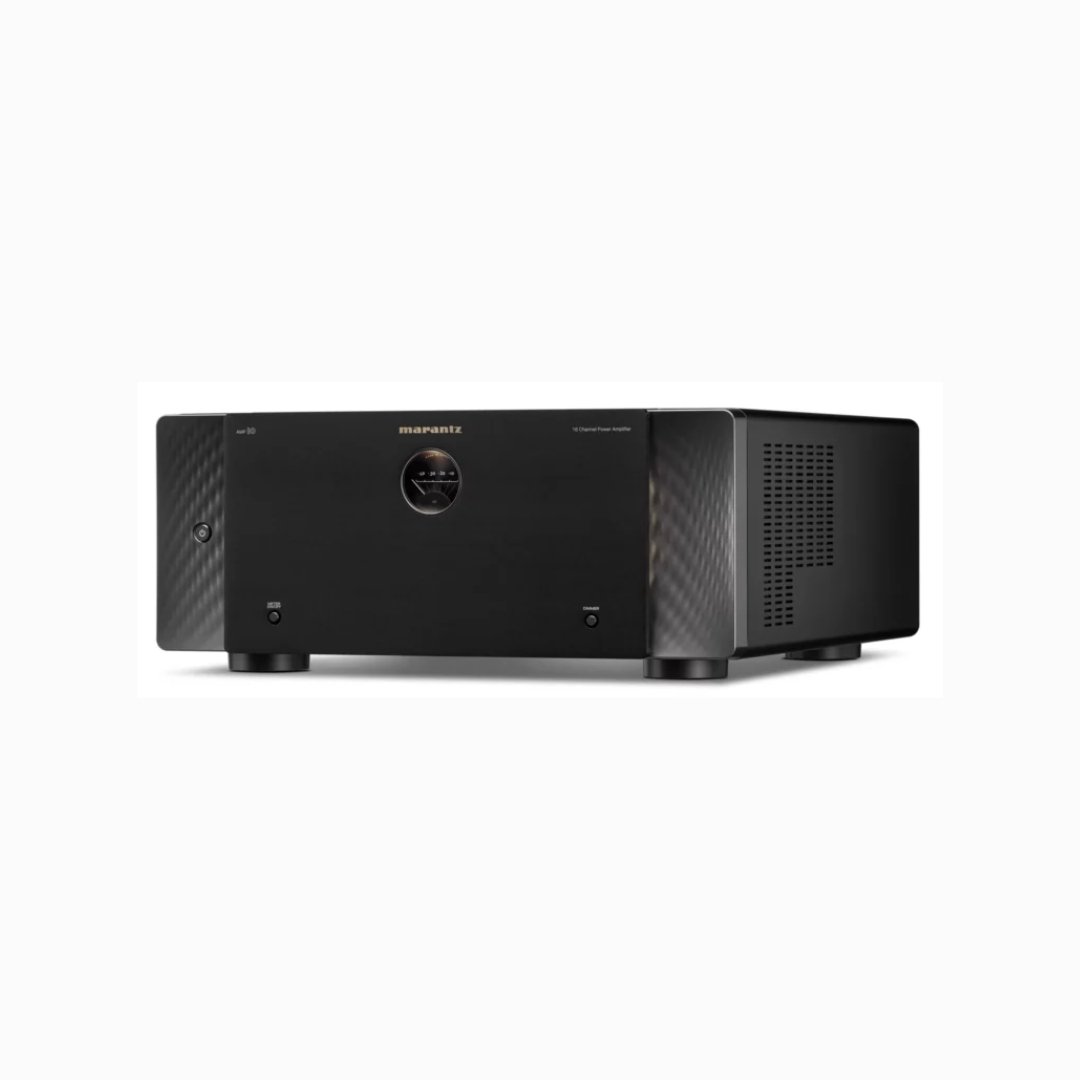

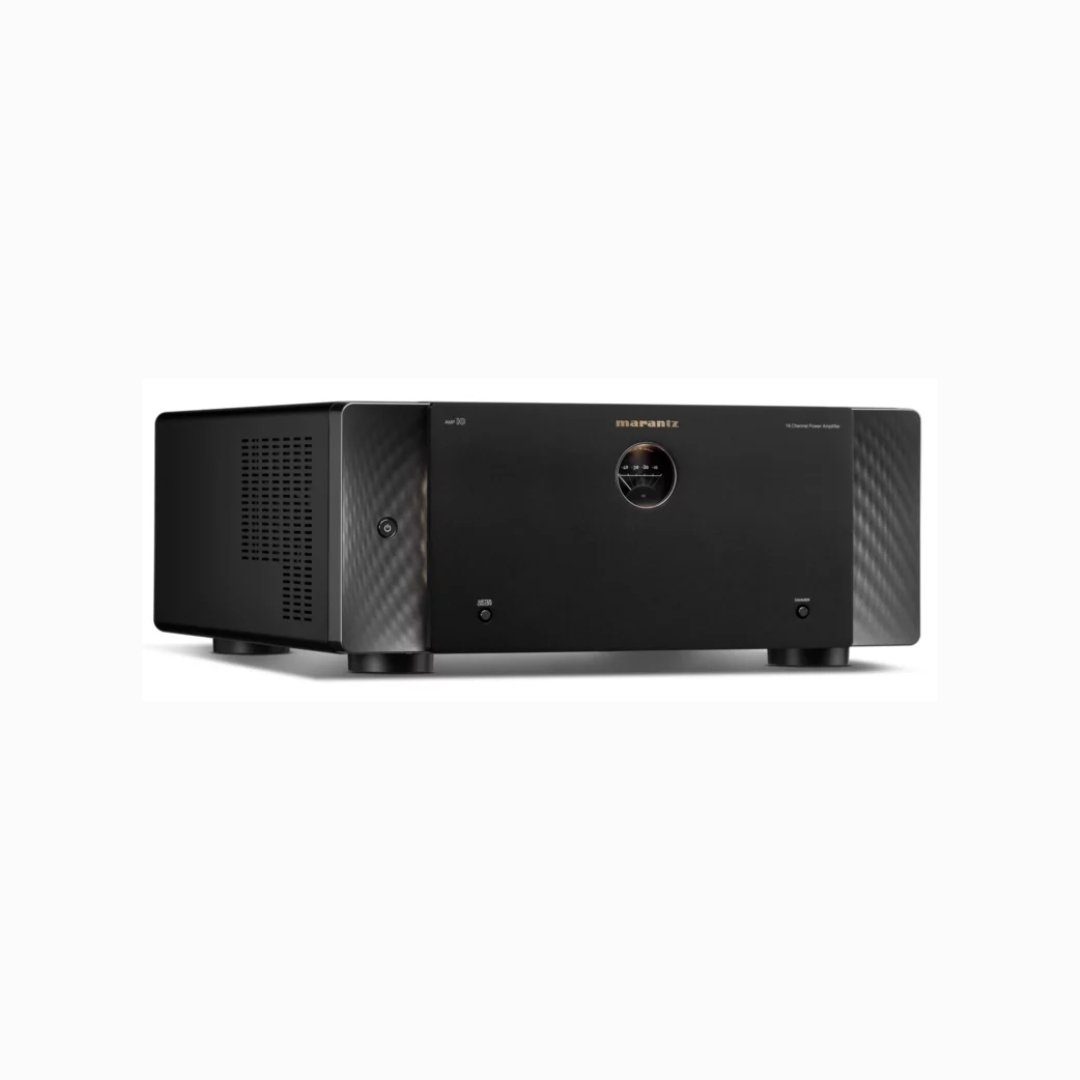

Marantz AMP 10 Power Amplifier

Features:

Premium 16-channel power amplifier designed for high-end home theatre and audiophile setups
Delivers up to 200 watts per channel (8 ohms) and 400 watts per channel (4 ohms) for powerful, dynamic performance
Built with Marantz HDAM-SA2 and Class D amplification technology for exceptional sound purity and efficiency
Features balanced and unbalanced inputs for flexible system integration
Designed to pair seamlessly with the Marantz AV 10 preamplifier for optimal performance
Crafted with precision components and a robust chassis for stability and reduced vibration
Provides clean, detailed, and immersive sound with low distortion and high signal integrity
Ideal for driving premium speaker systems in both stereo and multi-channel configurations

Description

Marantz AMP 10 16 Channel Power Amplifier

Marantz AMP 10 Power Amplifier is engineered with best-in-class technologies. AMP 10 cleverly combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance.

Main features of the Marantz AMP 10

Crafted in Shirakawa, Japan
16 Channels
200 Watts per Channel
Custom HDAM
Custom Switching Amplifiers
Selectable Output Modes

REFERENCE 16-CHANNEL 200-WATT-PER-CHANNEL AMPLIFIER
Reference 16-channel 200-watt-per-channel amplifier. Pair with AV 10 to create an elite-level home theatre. Marantz HDAM, Current Feedback Amplification, and balanced line level input.

Excellence Only Begins with Performance
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, the Marantz CINEMA Series is the foundation of the world’s most demanding home theatres.

Key Features

Peerless Performance
Immersive spaciousness, warm and rich tone, extraordinary detail, and lifelike dynamics are legendary hallmarks of Marantz sound.

Technology Leader
AMP 10 is engineered using best-in-class technologies to enable extraordinary power output, high channel count, and the dynamic, rich, warm sound for which Marantz is highly renowned.

Exquisite Design

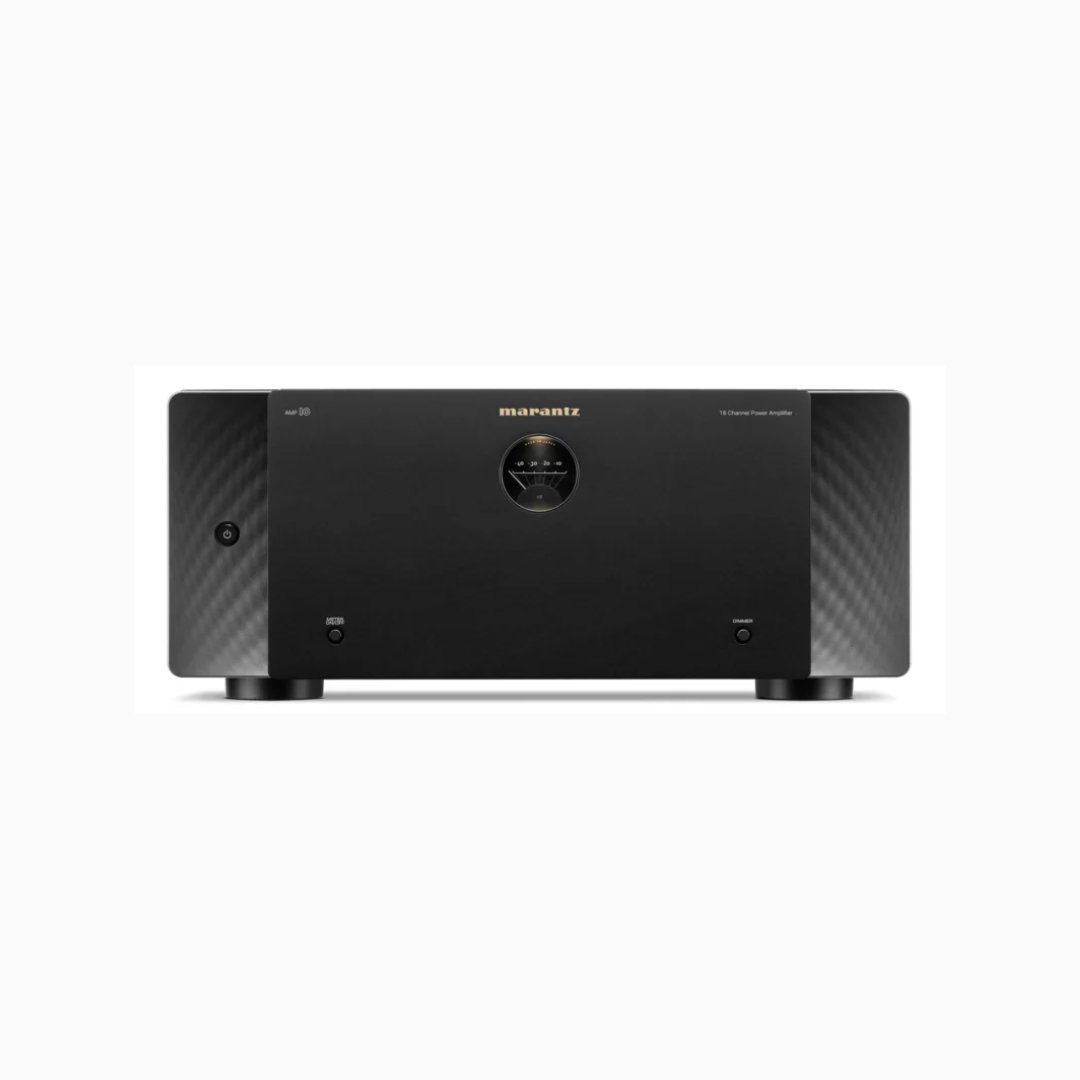

A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.

AMP 10 Multi-Room / CI
IP Control / RS232 Control / Web Control / App Control	No / Yes / No / No
IR Flasher In	Yes
Marantz Remote Bus	Yes
DC Trigger Input/Output	1/1
Others
Front Display	Level Meter
Firmware Update by Network / USB / RS232C	No / No / Yes
Auto Power off	Yes

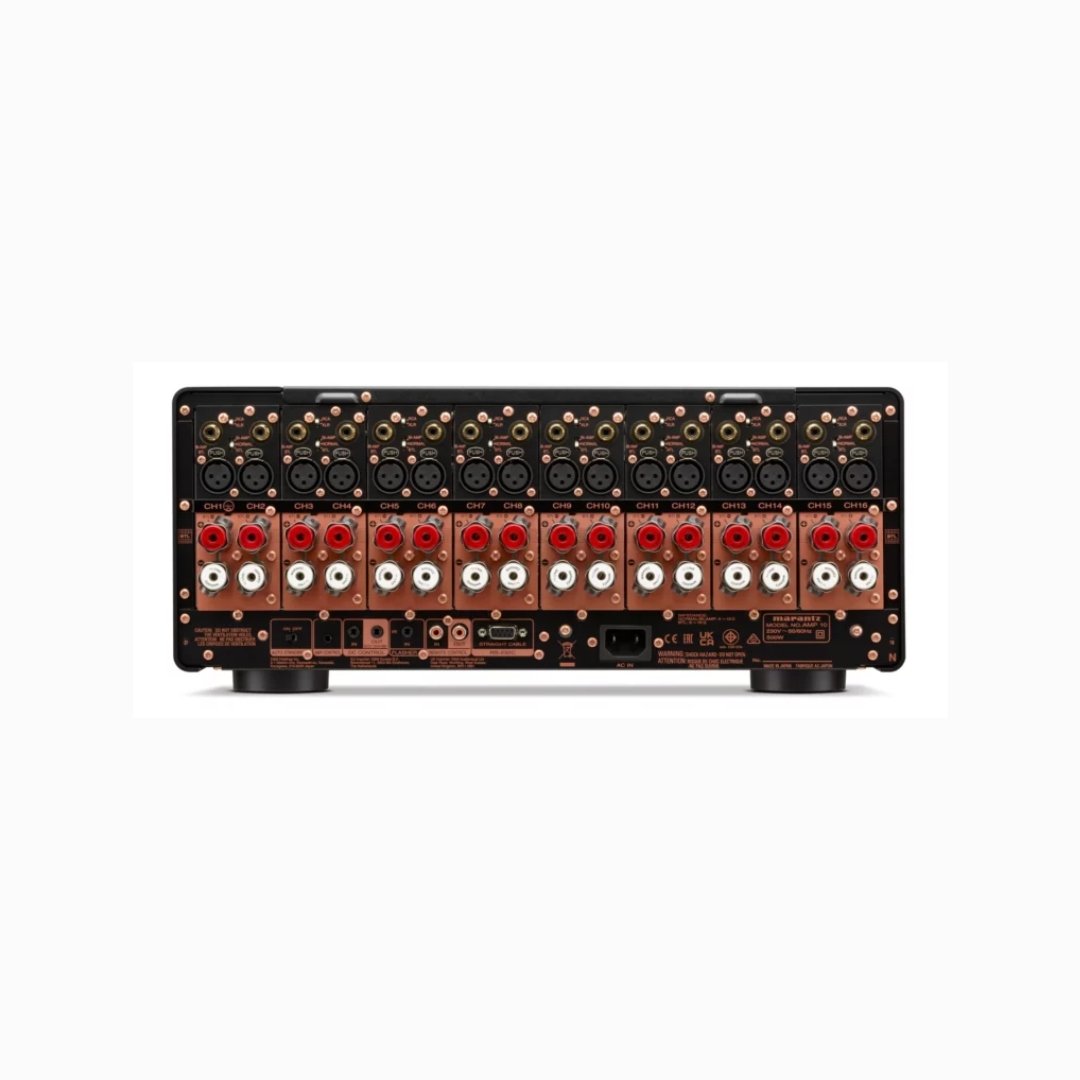

Inputs / Outputs
Main Amplifier in	Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
Speaker Terminal: Gold plated screw / regular screw	Brass type (same as MODEL 40n)
Number of Speaker Terminals	16
Bi-Amp Drive/BTL Drive	Yes / Yes
Level Meter	Yes
Chassis	Copper Plated
Specifications
Number of poweramps	16
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL	200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal	400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal	200W
70% Guarantee (Normal/Bi-Amp/BTL)	Yes (w/Yes JP)
100% Guarantee(Normal/Bi-Amp)	Yes
General
Metal Front Panel	Yes
Pre-Programmed / Learnable / LCD Display	No / No / No
Power Consumption in W	500W
Power Consumption No-Sound (ECO on/off) in W	No / 140W
Standby Consumption in W	0.2
Maximum Dimensions	W/o Antenna (W x D x H) in mm: 17.4 x 19.2 x 7.4
Weight in lbs.	43.7
What’s in the box	Main unit, quick start guide, AC cord, Amp control cable, Remote control cable, SP terminal wrench
