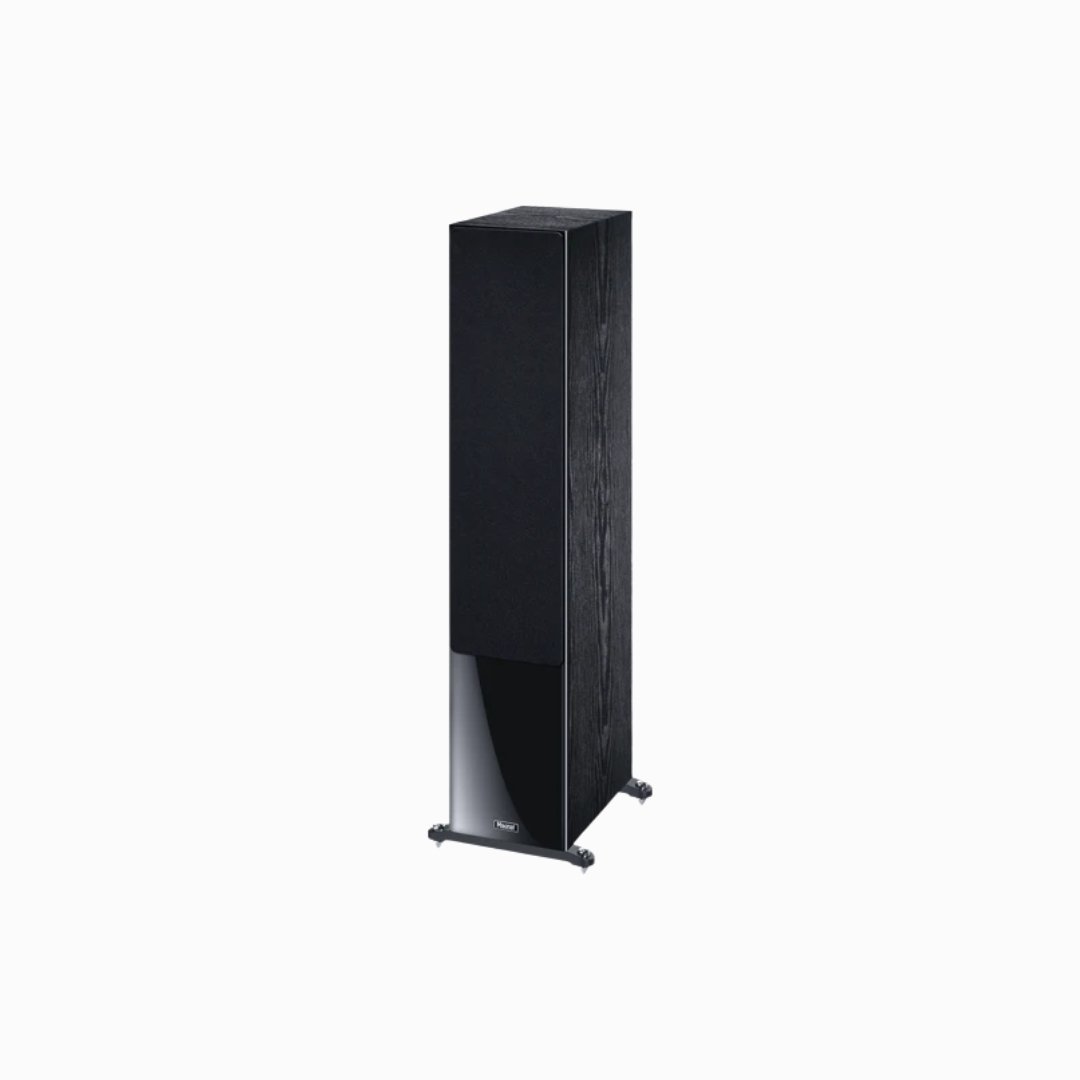

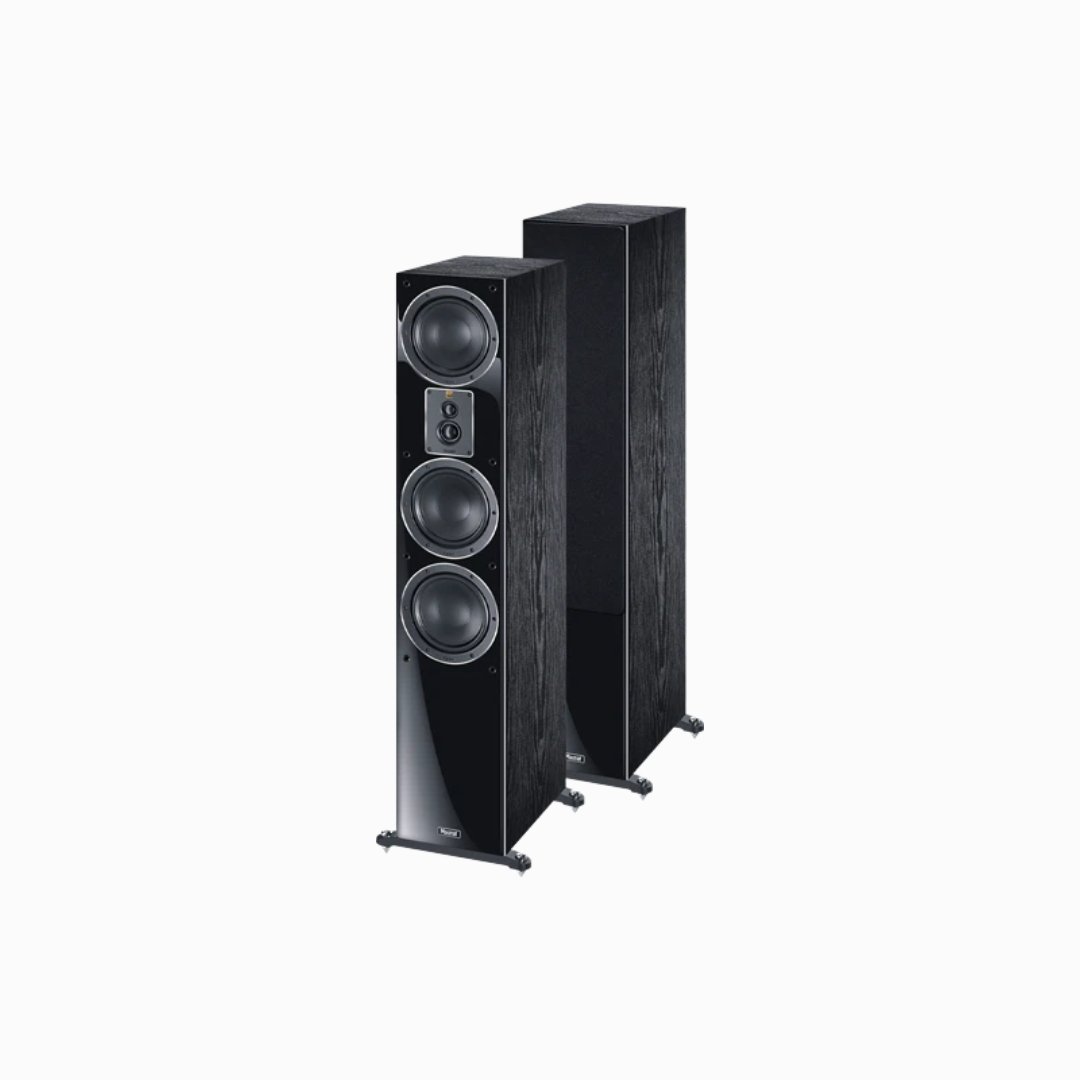

Magnat Signature 507 Floorstanding Speaker (pair)

The Magnat Signature 507 is the flagship floor-standing speaker from Magnat’s Signature 500 lineup, combining refined German engineering with serious acoustic performance. It’s a 4-way, double-bass, bass-reflex design that houses dual 6.5-inch woofers plus a dedicated 6.5-inch midrange driver, a 1.2-inch dome tweeter, and a 0.75-inch super-tweeter for extended high-frequency reproduction. With a frequency response that spans approximately 23 Hz to 53,000 Hz, the Signature 507 is capable of deep, powerful bass as well as crystal-clear detail in the highs. It’s fairly efficient with a sensitivity of 92 dB (2.8V/1m), and requires modest power from an amplifier (>30W) to perform well. The cabinet is well-built, using low-resonance E1-MDF, with stiff construction, dual Airflex ports for smoother air flow, and options for bi-wiring or bi-amping to further optimize performance. Aesthetically, finishes include high-gloss piano black or satin lacquered Mocca fronts, combined with ash-decor cabinets, removable cloth grilles, metal spikes, and solid terminals—making it both an auditory and visual centerpiece in a high-end stereo or home theater system.

Description

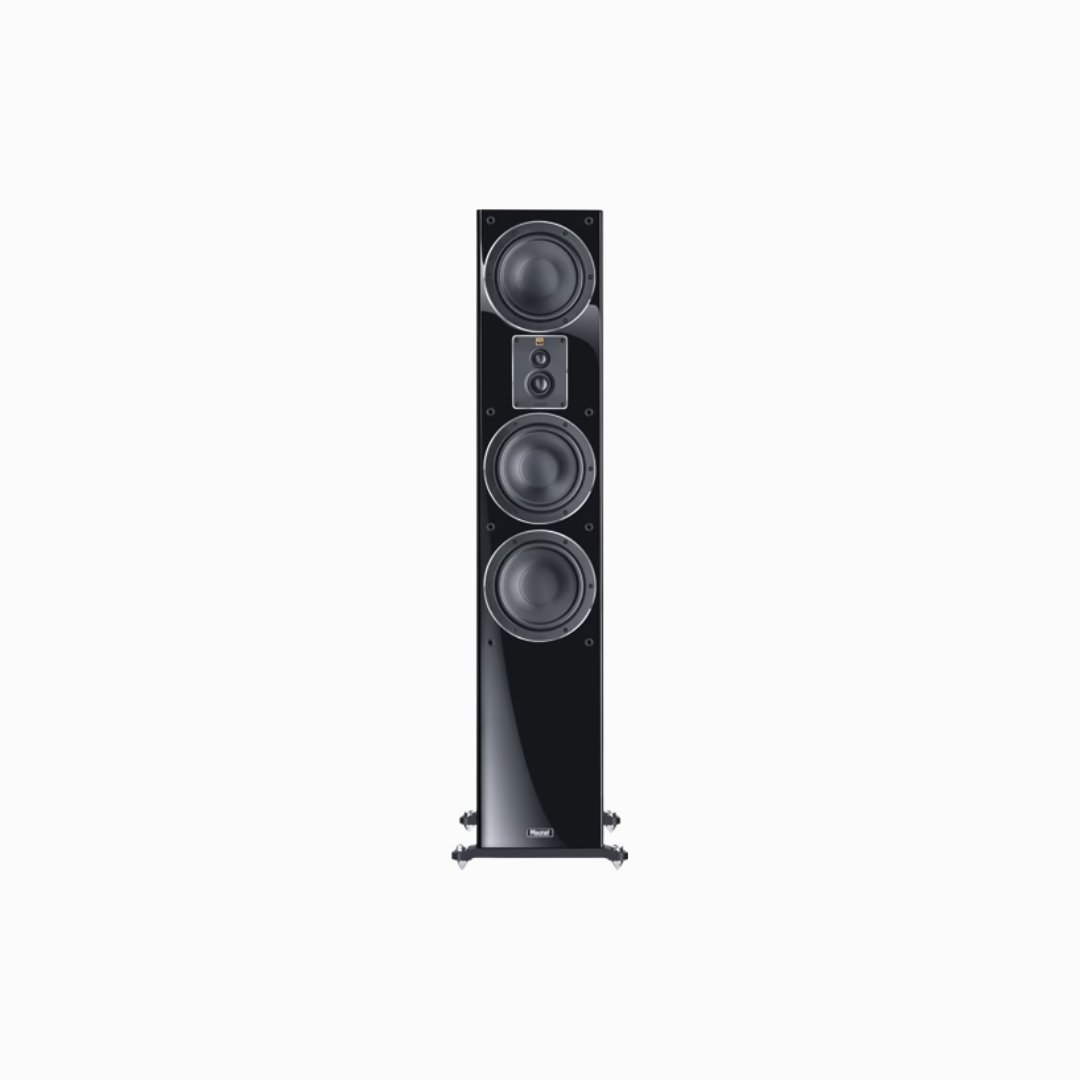

The Signature 507 is just as slim as the 505, but a bit higher at 1030 mm. The increased size is due to the dual woofer used, with the result that the 507 has a 170 mm bass-midrange unit as well as woofers of the same size, enabling it to reproduce correspondingly lower frequencies. It does, of course, also have the Hi-Res certified dual tweeter module with 2 fmax domes. The front panel with its integrated wave guides also optimizes the dispersion characteristics. Like all the speakers in the Signature 500 range, the sturdiest possible connection terminals are used, which allows the best cables to be used, as well as facilitating bi-wiring or bi-amping operation. It goes without saying that the 507 is suitable both as a stereo speaker and as a front channel in a home cinema system.

Warranty:

1-year manufacturer’s warranty

Features:

Hi-Res certified dual tweeter module with two fmax domes
4-way speaker with bass reflex technology
Klippel-optimized bass-midrange unit and subwoofer
Ventilated voice-coil unit for maximum resilience and dynamics
Spikes for secure positioning and acoustic decoupling

SIGNATURE 500 – ENTRY INTO THE SIGNATURE CLASS
The Magnat Signature 500 is the entry level to the world of audiophile hi-fi. Here, elaborate chassis with the latest technologies are combined with production quality that is second to none in this class. And all of this with a system, because, from the audiophile stereo set-up to the ambitious, perfectly sounding home cinema with active subwoofer, everything can be combined entirely to your liking in the Signature entry-level class.

ELABORATE CHASSIS TECHNOLOGY

The heart of the fabulous high-frequency reproduction is our new hi-res module with two, yes two fmax tweeters.

CAN BE COMBINED IN A VARIETY OF WAYS
The Signature 500 is available in various versions. This means that fans of pure stereo playback can combine different setups, while home cinema enthusiasts can also choose the perfect combination.

EXCEPTIONAL PRODUCTION QUALITY

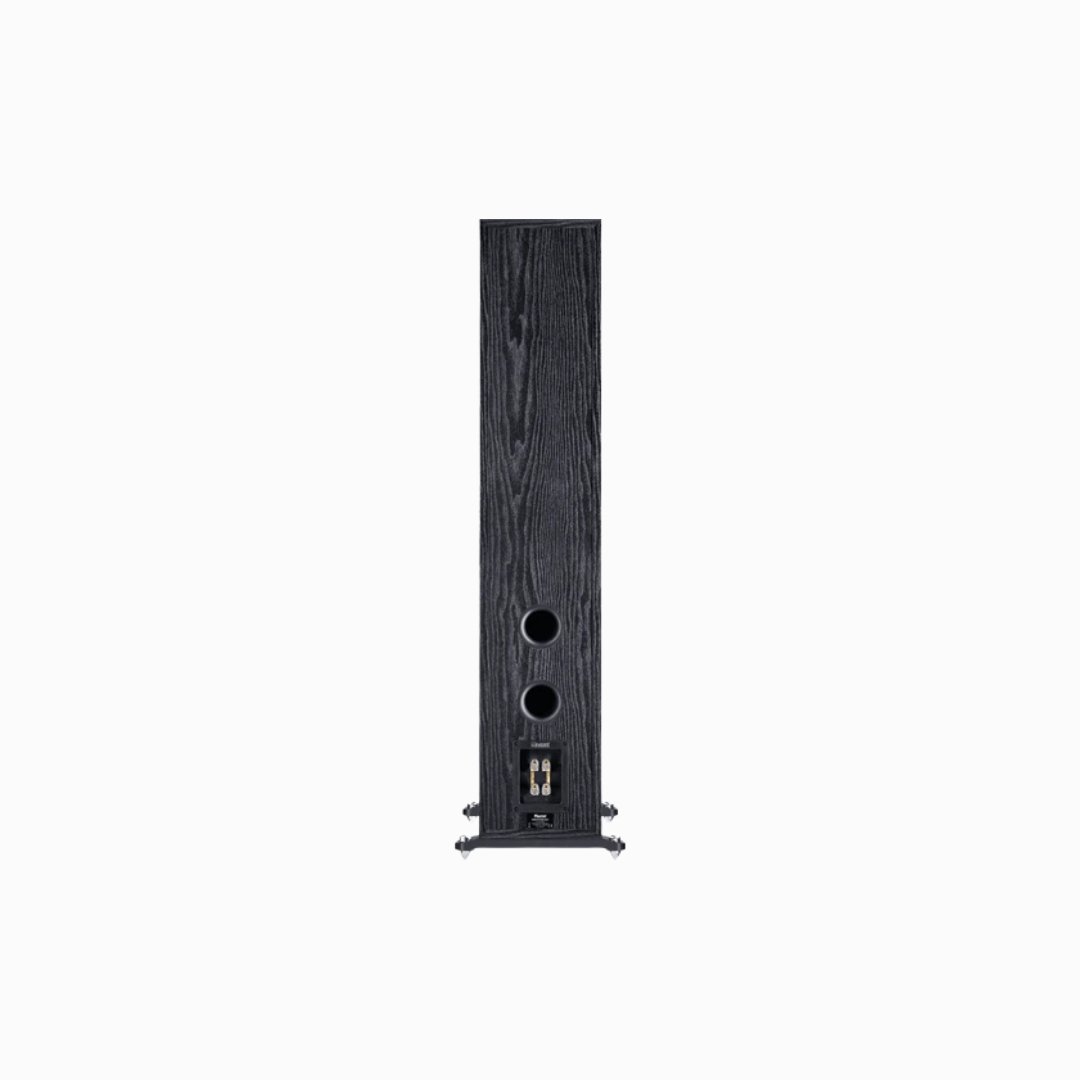

Amply dimensioned terminals not only allow use of the highest-quality cables, they also facilitate bi-wiring and bi-amping, i.e., the use of different cables or amplifiers for bass and treble ranges.

Technical Specifications:

SIGNATURE 507	4-way, double bass, bass reflex
DRIVERS	2 x 6.5“ woofer, 6.5” midrange, 1.2” dome-tweeter, 0.75” super-tweeter
POWER HANDLING (RMS/MAX)	200 / 350 watts
IMPEDANCE	4 – 8 ohms
FREQUENCY RESPONSE	23 – 53000 Hz
CROSSOVER FREQUENCIES	400 Hz/2800 Hz/17500 Hz
RECOMMENDED AMPLIFIER OUTPUT	> 30 watts
SENSITIVITY	92 dB
CABINET SURFACE	Front: Piano black / Cabinet: Ash decor black
CABINET SURFACE	Front: Anthracite satin / Cabinet: Ash decor mocca
DIMENSIONS (WxHxD)	Cabinet: 205 x 1030 x 332 mm
DIMENSIONS (WxHxD)	Cabinet incl. feet and terminal: 286 x 1070 x 332 mm
WEIGHT	18.8 kg
