Category: Speaker

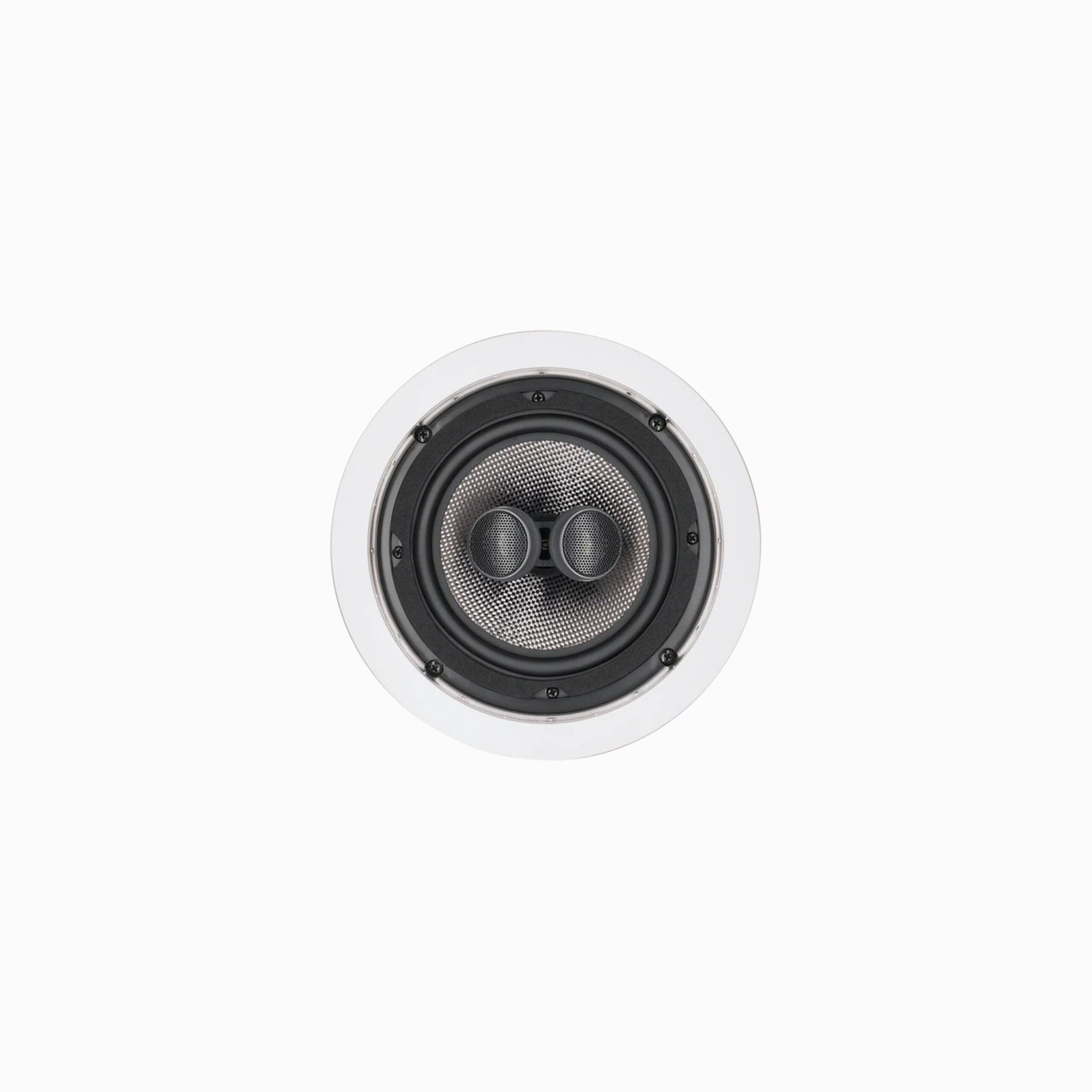

Magnat IC 62 - 2-Way Recessed Ceiling Speaker (Each)

  • Key Features

    • 2-way recessed ceiling speaker design for discreet audio installation in ceilings.

    • Dedicated woofer and tweeter drivers for clear separation of mid/bass and high frequencies.

    • Balanced sound reproduction suitable for background music, multi-room systems, or main audio in smaller rooms.

    • Rigid, low-resonance housing to help reduce distortion and improve sound clarity.

    • Wide frequency response for well-rounded audio performance across music and spoken content.

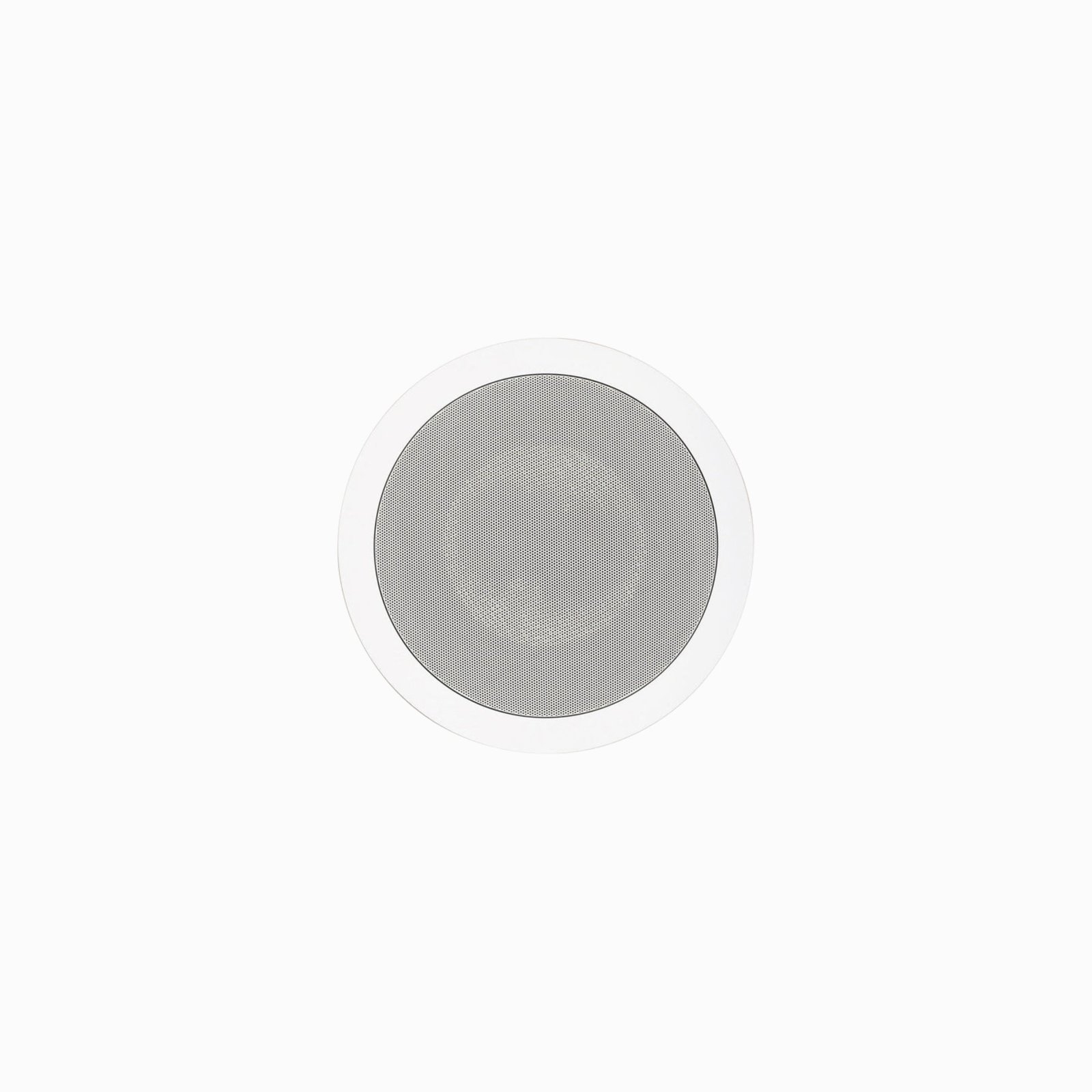

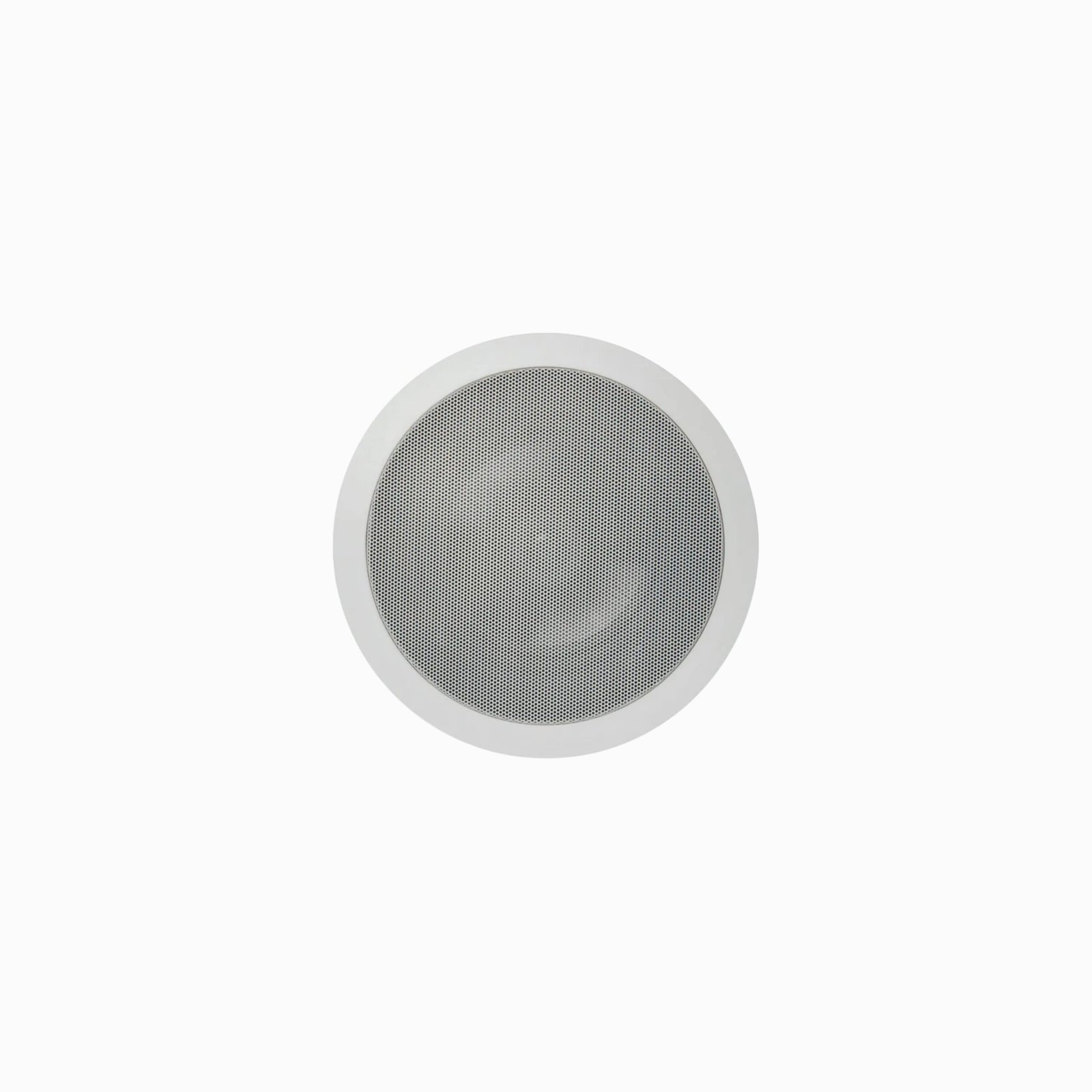

    • Slim, flush-mount grille that can be painted to match the ceiling for a clean, integrated appearance.

    • Easy installation with mounting hardware for secure fit into standard ceiling cut-outs.

    • Each speaker sold individually to allow flexible placement and system design.

Description

Magnat IC 62 – 2-Way Recessed Ceiling Speaker

Interior IC 62

2-WAY RECESSED CEILING SPEAKER

  • Multi-directivity circuit for optimum adaptation to room acoustics
  • High-quality crossover with phase and amplitude correction
  • Two 19 mm aluminium tweeters with neodymium drivers, specially arranged for optimum dispersion characteristics
  • A specially developed securing system with a clamping mechanism for easy fitting
  • 160 mm carbon/fibreglass woofer for tight bass reproduction

2-way recessed ceiling speaker

The IC 62 is the smaller of two strong-sounding built-in ceiling loudspeakers in the Interior series. As with all models in the series, the bass/mid-range cone has been manufactured from a carbon-glass-fibre mix, which guarantees extremely high stability and a very clear and dynamic sound.

The two built-in coaxial tweeters make two circuit versions possible – sound directed over a wide area or at specific points. A sophisticated fastening system allows the loudspeaker to be quickly installed with extreme ease.

Powerful drive and convenient mounting

Powerful drive of the carbon-fibreglass membrane via a well-dimensioned ferrite magnet is a must, of course. The crossover is located behind the plastic frame and is very cleanly designed. The easy-to-use clamping mechanism for the Interior in-wall speaker is connected to the frame.



Specifications

PRINCIPLE
2-way in-wall/in-ceiling loudspeaker
DRIVERS
2 x 19 mm tweeter 160 mm woofer
POWER HANDLING (RMS/MAX.)
75 / 140 watts
SENSITIVITY (2.8V/1M)
90 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
35 – 35000 Hz
CROSSOVER FREQUENCIES
3500 Hz
RECOMMENDED AMPLIFIER OUTPUT
20 – 140 Watts
OUTER DIMENSIONS Ø
228 mm
CUTTING OUT Ø
195 mm
MOUNTING DEPTH
80 mm
