Lyngdorf TDAI 1120 - Integrated Amplifier Streamer

Key Features

Integrated Amplification & Streaming

Full-featured integrated amplifier with built-in high-resolution network streaming
Combines power amplification, digital conversion, and streaming in one compact unit
Supports major streaming services and network audio playback

Power & Performance

Class-D amplification with efficient, low-heat operation
Clean, dynamic power delivery capable of driving a wide range of speaker loads
Designed for musical accuracy and low distortion across the frequency spectrum

High-Resolution & Digital Audio

Advanced digital-to-analog conversion for detailed, high-resolution audio playback
Supports PCM and DSD formats at high sample rates for refined digital performance
Digital room correction (if equipped with Lyngdorf RoomPerfect) for optimized in-room sound balance

Connectivity & Inputs

Network streaming via Ethernet and Wi-Fi
USB, optical, coaxial digital inputs for versatile source connection
Analog inputs (including RCA) for traditional audio sources
Pre-amp outputs for use with external power amplifiers or subwoofers

Control & Integration

Intuitive front-panel display with simple navigation and settings control
App control for streaming, input selection, volume, and settings
Compatible with common control systems for modern AV integration

Room Calibration & DSP

Built-in digital signal processing (DSP) for advanced tuning
Room correction technology (RoomPerfect on supported models) to tailor performance to your space
Tone controls and filters for customizable sound shaping

User Experience

Large, clear display shows sample rate, input, volume, and network details
Minimalist industrial design that fits modern hi-fi environments
Remote control and network app for ease of daily use

Ideal Use Cases

All-in-one solution for high-resolution music streaming and power amplification
Great choice for audiophiles seeking simplified system integration
Suitable for stereo hi-fi systems and modern music environments

Description

Lyngdorf TDAI-1120 provides the ultimate in flexibility. Its small design footprint allows it to be easily placed anywhere in the home, and the vast feature set offers a great variety of streaming options.

Connect the TDAI-1120 to your WiFi and enjoy all the integrated streaming services.

Chromecast built-in

Spotify® Connect

Roon Ready

AirPlay2

Bluetooth connectivity

Internet Radio (vTuner)

Network/local file playback

The TDAI-1120 accepts all your media interfaces and holds itself an advanced media player of the highest quality. Through the network or via the USB connectors, you can access your library of music through the DLNA/ UPnP enabled player. All can intuitively be controlled with your smart phone, tablet, or computer.

The TDAI-1120 ships complete with RoomPerfect™, providing the ultimate listening experience. With RoomPerfect™, the TDAI-1120 delivers a perfect musical experience in all living rooms. Without the need for extensive acoustic treatment, you get a sound system with optimal frequency response, seamless level alignment, and bass management that perfectly integrates the speakers and subwoofers.

Specifications:

Description: 2-channel streaming amplifier
Power rating: 2 x 120 W RMS @ 4Ohm / 2 x 60 W RMS @ 8Ohm
Digital inputs (Asynchronous): 2 x Coaxial (≤192kHz/24bit) 2 x Optical (≤96 kHz/24bit) 1 x HDMI (TV ARC)
Analog inputs: 1 x Phono Single Ended RCA (RIAA / 47kOhm 100pF), 1 x Analog Single Ended RCA (Max level: 4.0V = 0dBFS) 1 x Microphone input (XLR) for RoomPerfect™ calibration
Analog output: 1 x Stereo Analog RCA (75ohm-Max output level 4 Vrms)
Audio specifications: Frequency Response: ±0,5dB from 20 to 20,000 Hz, Total Harmonic Distortion: 0.05% max from 20 to 20,000 Hz, THD-N 1w/8ohm 0,04%, THD-N 1w/4ohm 0,04%
Media player: Internet Radio (vTuner), Spotify Connect, Roon ready, Chromecast built-in, DLNA Support (uPnP), AirPlay2, Bluetooth, Local file playback (USB)
Wireless connections: Bluetooth connectivity, Wi-Fi (802.11 n/ac)

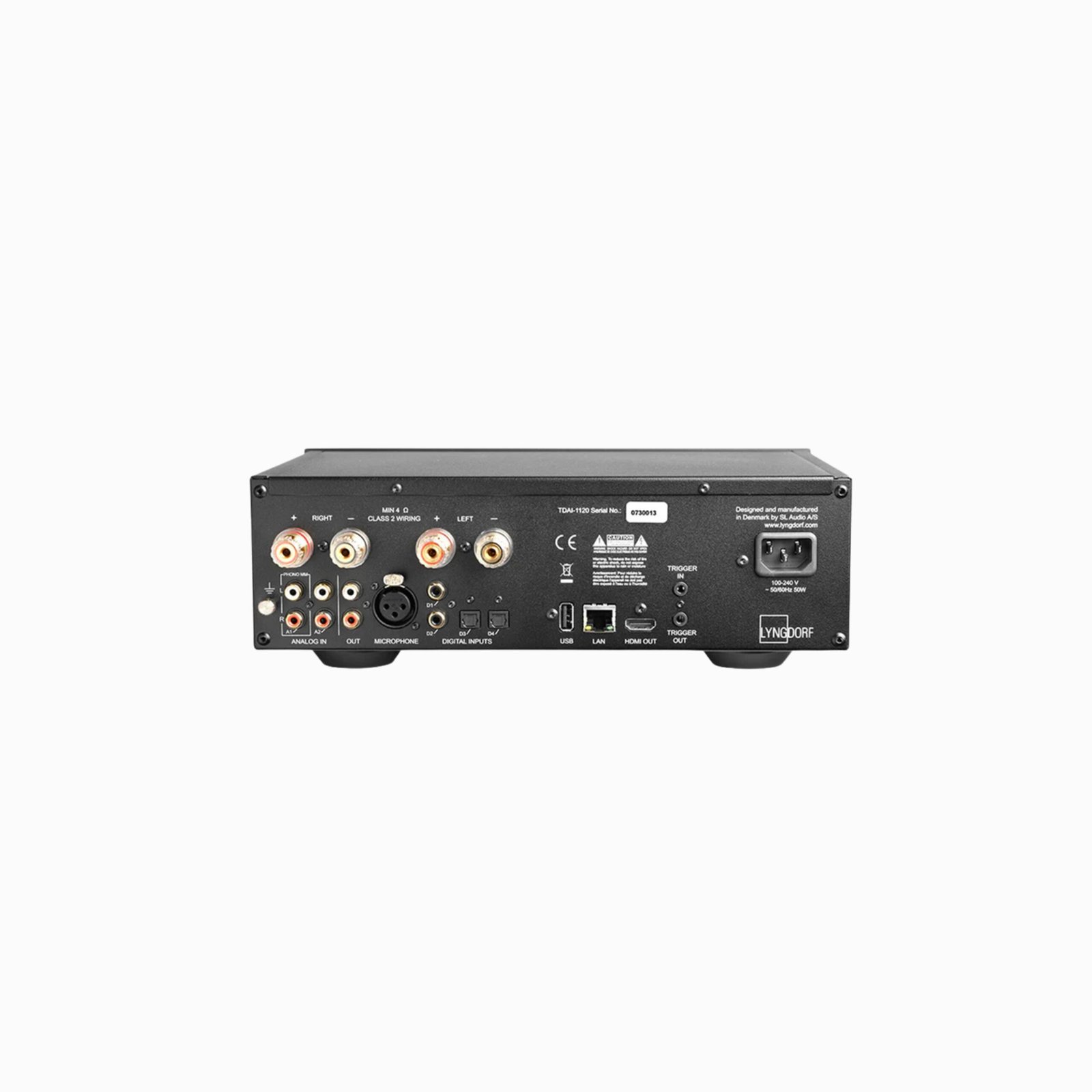

Control interfaces: Intuitive input selector, Web-interface for setup and media player, Remote application for IOS and Android, IP control, CEC (HDMI), 1 x trigger input, 1 x trigger output, 1 x RJ45 Ethernet LAN connector, 1 x USB connectors (Type A)
Accessories included: RoomPerfect™ microphone, Microphone stand, Microphone cable, Optional accessory: IR remote control, rack mounting kit
Placement options: Freestanding
Dimensions (H x W x D): 10.1 x 30 x 26 cm (including connectors), 3.98 x 11.8 x 10.3 inches (including connectors)
Weight: 8 kg / 17.6 lb
