Lyngdorf D500 - 2 Way In-Wall LCR Speaker (Each)

Key Features

High-Performance Audio

  • 2-Way LCR Design: Combines a dedicated woofer and tweeter in a single aligned configuration designed for Left, Center, or Right channel use in home cinema and stereo systems.

  • Balanced Sound Reproduction: Accurate midrange and detailed high frequencies provide clear vocals, dialog, and music performance.

  • Wide Frequency Response: Delivers smooth sound across lows, mids, and highs for immersive audio in films and music.

Driver Quality

  • Precision Drivers: Engineered drivers optimized for low distortion and consistent performance across the listening area.

  • Tweeter Detail: Designed to offer crisp, extended high-frequency response with natural clarity.

In-Wall Installation

  • Flush Mount Integration: Installs seamlessly into wall cavities for a clean, discreet look that preserves room aesthetics.

  • Paintable Grille: Included grille can be painted to match the wall surface, making the speaker virtually invisible once installed.

Acoustic Performance

  • Optimized Dispersion: Designed to provide even sound distribution across the listening area with controlled directivity.

  • Low Distortion: Engineering focus on minimizing distortion for clear and articulate playback at various volumes.

Build & Design

  • Robust Construction: Solid, durable build quality for long-term reliability in custom installation environments.

  • Compact In-Wall Form Factor: Ideal for home theaters, dedicated media rooms, and multi-room audio installations where discrete speakers are preferred.

System Integration

  • Flexible Use: Suitable as left, center, or right channel in surround sound setups, providing consistent tonal balance across the front-stage.

  • Matchability: Designed to work seamlessly with compatible amplifiers and AV receivers.

Overall Use

  • Excellent choice for custom home cinema and hi-fi installations where high-quality sound is desired without visible speaker cabinets.

Description

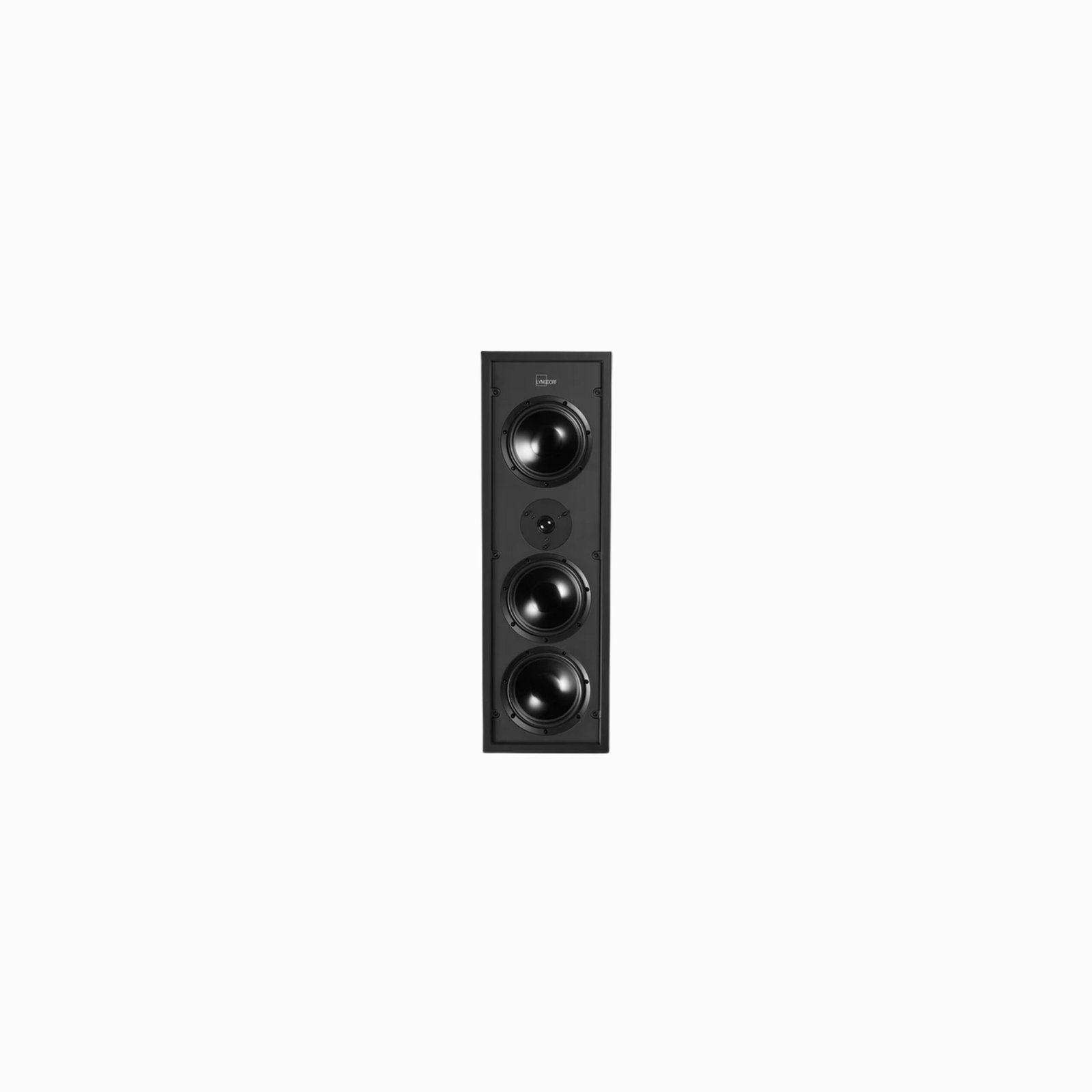

Lyngdorf D500 – 2 Way In-Wall LCR Speaker

Lyngdorf

D-500The D-500 and D-5 models bring Lyngdorf Audio sound quality to the custom installation speaker market. After the successful introduction of Lyngdorf loudspeakers for modern living rooms, ranging from the MH and FR on-wall speakers and BW boundary woofers to the CS-1 cabinet speaker, the Lyngdorf Discreet series expands the company’s range with in-wall and in-ceiling speakers for stereo and multichannel installations.

The first Lyngdorf Audio installation speakers

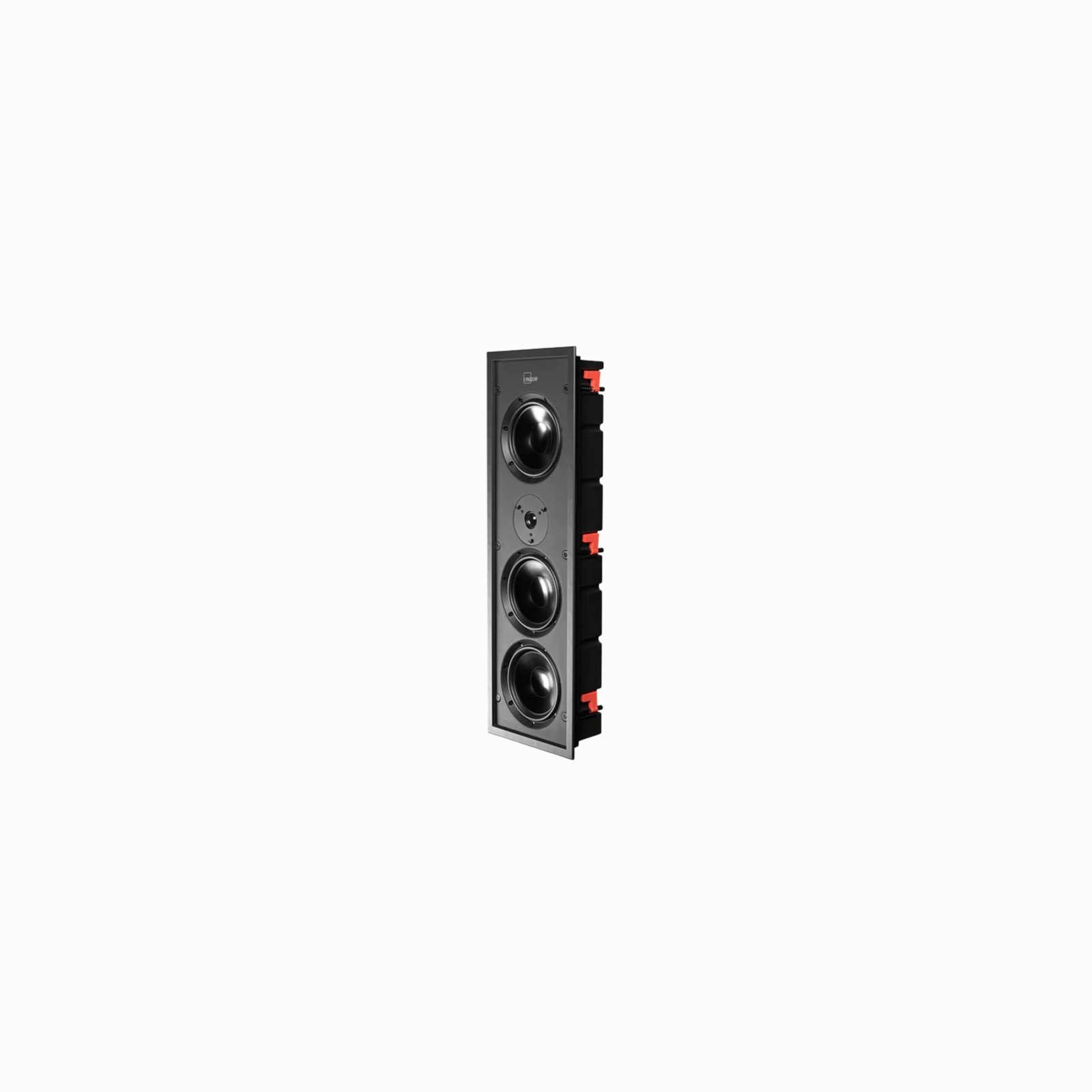

D stands for discreet – all models are designed as installation speakers for discreet in-wall or in-ceiling integration, featuring a wall-fixing mechanism with mounting legs. All models also come with their own loudspeaker enclosure, making system planning and the actual installation as easy as possible, with no after-market backbox or closed wall cavity required. This also ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.

D stands for discreet



Unique featuresThe D-500 models are designed as full-range speakers, with two passive woofers complementing the midrange driver and tweeter. This design makes the D-500 models easy to drive while reaching below 50Hz, suitable for systems without a subwoofer in smaller or medium-sized rooms, or as full-range in-wall speakers in a stereo setup left and right of a TV.

Full-range speaker design

All D-500 and D-5 models come with their own pre-mounted loudspeaker enclosure, so that no after-market backbox or closed wall cavity is required. This ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.

Pre-mounted loudspeaker enclosure

The D-500 and D-5 woofers, midrange drivers and tweeters are designed by Lyngdorf Audio and feature soft-dome tweeters, light aluminum cones, and powerful vented magnets.

Lyngdorf Audio speaker design and drive-units





Specifications

Model

Lyngdorf D-500

Description

2-way speaker with 2 passive woofers

Tweeter

28 mm / 1,1” soft dome

Midrange driver

175 mm, 38 mm voice coil, aluminum cone, vented magnet

Passive woofer

2 x 175 mm, aluminum cones

Enclosure

Closed compound cabinet

Frequency range

50 – 22.000 Hz (-3 dB)

Nominal Impedance

4 Ohm

Sensitivity

88 dB (2.83V/1m)

Power handling

100 W (IEC)

Maximum SPL

105 dB

Crossover point

2,5 kHz

Connections

Binding posts

Mounting

In-wall

Dimensions with grill (W x H x D)

254 x 779 x 106 mm / 10 x 30.7 x 4.2 inches

Cut-out dimensions (W x H x D)

226 x 751 x 100 mm / 8.9 x 29.6 x 3.9 inches

Weight

7,4 kg / 16 lb
