Luxman JPS-100 Reference Speaker Cable (terminated)

Key Features

High-purity Oxygen-Free Copper (OFC) Conductors
Designed for clean, low-resistance signal transfer with excellent clarity and stability.

2-Core Gently Twisted Structure (90 mm Pitch)
The twin conductors are twisted to maintain signal integrity and reduce noise while delivering a smooth, natural sound signature.

Large Conductor Cross-Section (~5 mm² equivalent)
Uses 0.25 mm × 100 strands per conductor, allowing strong current delivery, firm bass response and minimal power loss.

Optimised Electrical Characteristics

Conductor resistance: ≤ 3.5 Ω/km
Capacitance: ≤ 76 pF/m
These values support precise signal flow and stable performance over typical speaker cable lengths.

Robust Build Quality
Includes polyethylene insulation, a durable PVC outer jacket and an OFC drain wire for added shielding and long-term reliability.

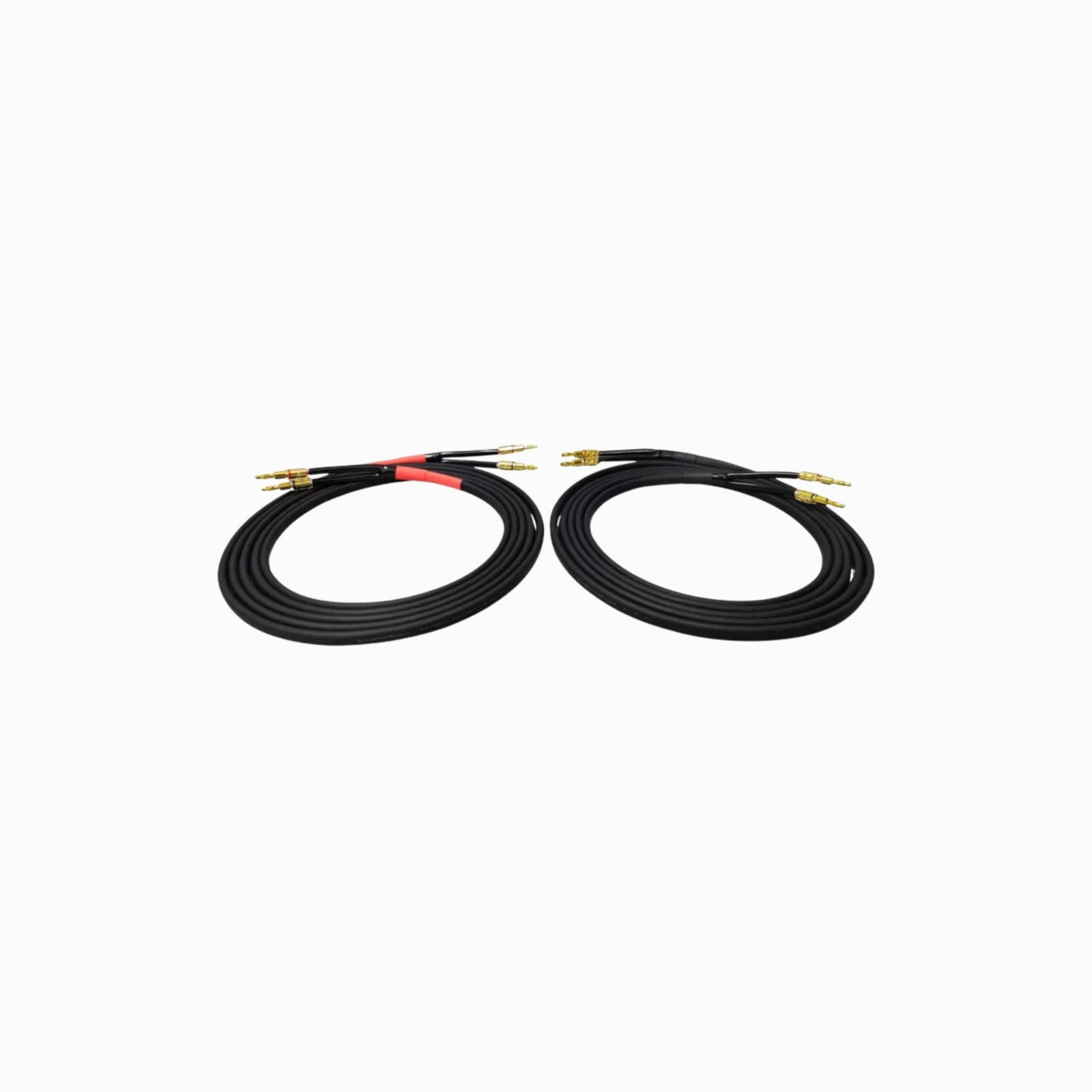

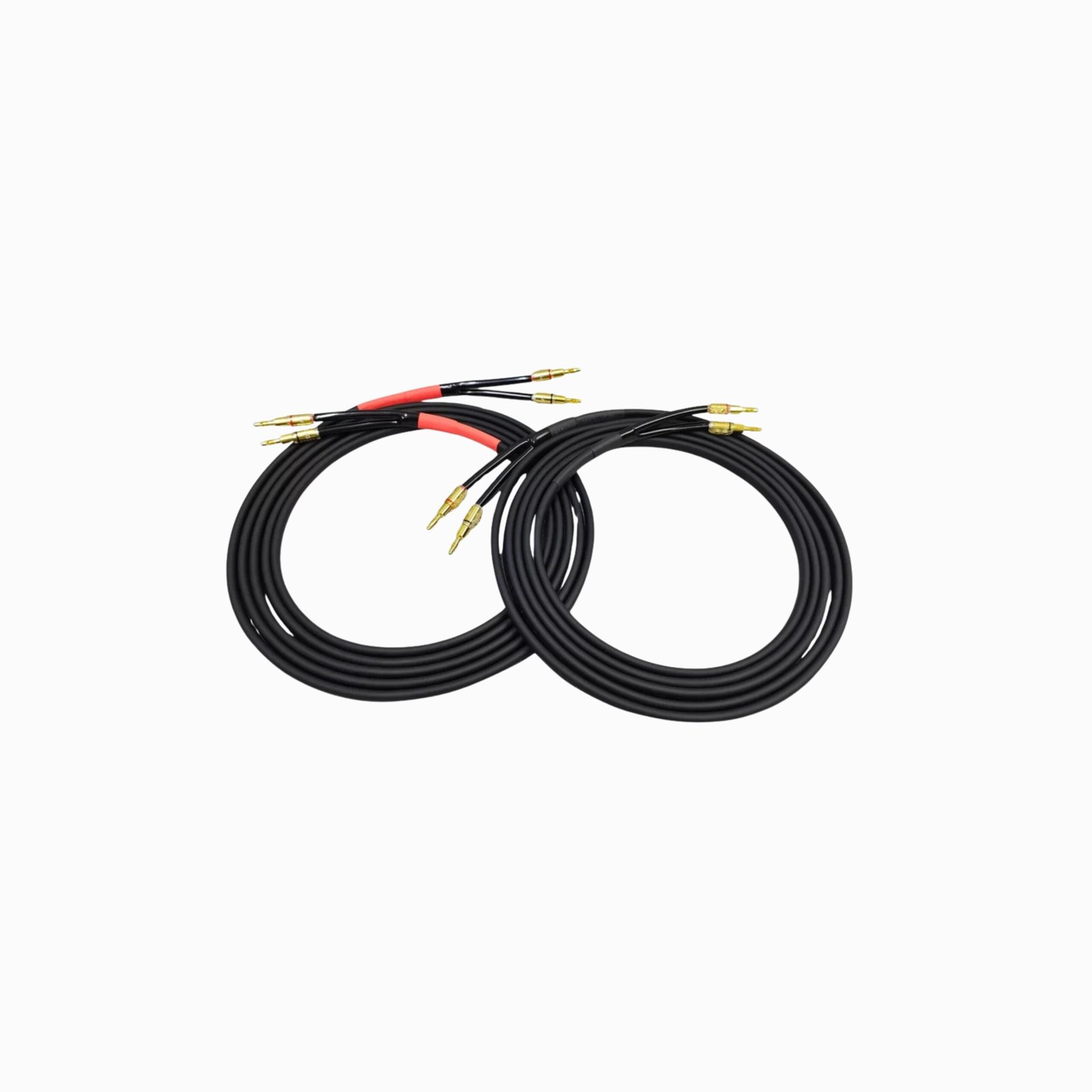

Factory-Terminated Pair
Comes ready to plug into your amplifier and speakers with high-quality terminations for optimal contact and longevity.

Description

Luxman JPS-100 Reference Speaker Cable (terminated)

The Luxman JPS-100 Reference Speaker Cable uses high-purity oxygen-free copper (OFC) for the core wire and drain wire. By setting the twist pitch of the core wire to a gentle 90mm, Luxman engineers have achieved natural and smooth transmission characteristics. Since it is sold separately, you can choose the optimal length for the speaker’s setting position.

Performance and features of the Luxman JPS-100 Reference Speaker Cable

High-purity oxygen-free copper (OFC) wire is used as the core wire.
Adopts an oxygen-free copper (OFC) drain wire with an antistatic effect.
In order to achieve natural signal transmission without clogging, the sound quality is tuned to a gentle twisting pitch of 90mm.

Specification of the Luxman JPS-100 Reference Speaker Cable

composition	2-core, 90mm gentle twist construction
core wire	Oxygen-free copper (OFC) 0.25mm x 100 pieces (5mm2)
Insulator	Polyethene (red, white)
Core wire semiconductor twisting pitch	90mm
sheath	PVC (black)
drain wire	Oxygen-free copper (OFC) 0.08mm x 30 pieces

Core conductor resistance	3.5Ω/km or less (20℃)
insulation resistance	1,000MΩ・km or more (20℃)
capacitance	76pF/m or less
Withstand voltage	AC500V (1 minute)
Cable outer diameter	11.0mm×6.4mm
