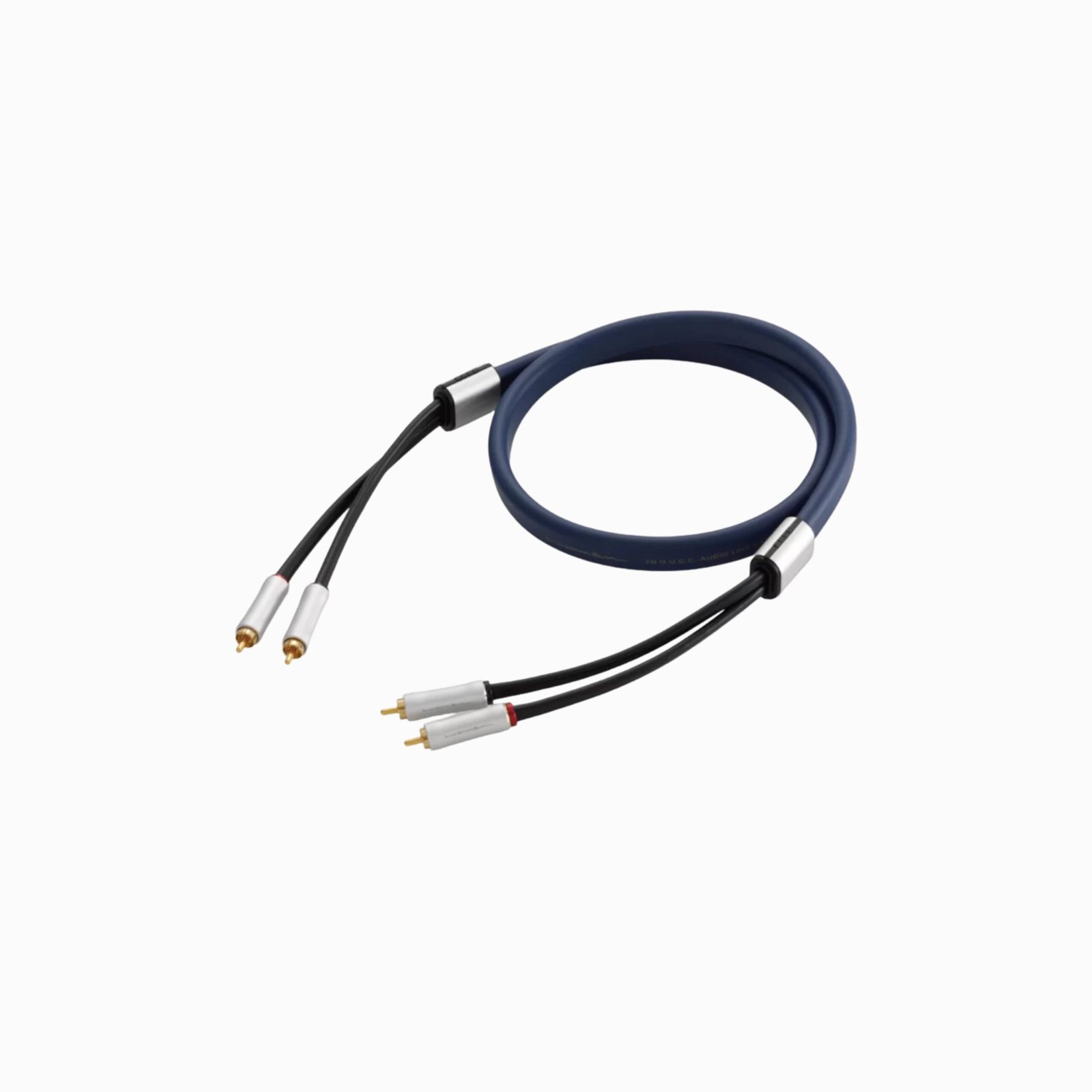

Luxman JPR-15000 RCA Cable (1.3m pair)

Key Features

7N-Class D.U.C.C. Ultra-Pure Copper Conductors for extremely low-loss audio transmission.

Multi-strand conductor structure (0.26 mm × 19 strands) for superior flexibility and conductivity.

Individually shielded 2-core design with hot and cold lines run in parallel to reduce inductance.

Dual OFC shielding + drain wire for excellent protection against EMI and RFI.

Low conductor resistance (≤ 18 mΩ per meter) improves overall signal integrity.

Capacitance ≤ 70 pF/m, helping preserve high-frequency detail and clarity.

Premium RCA connectors engineered by Luxman for high-stability and low-resistance contact.

Sturdy, thick outer jacket (approx. 10.5 mm × 20 mm) for durability and mechanical stability.

Description

Main Features of the Luxman JPR-15000 RCA Cable (1.3m pair)

Large diameter, high-purity 7N-Class 99.99998% pure copper ensures lower impedance. Dia Ultra Crystallised Copper (DUCC), while keeping the same crystal size of conventional high-purity conductors, allows for an even higher grade conductor with optimised structural crystal alignment, resulting in significantly improved conductivity.
The integrated bound structure of the Left and Right channels minimises unwanted ground loops.
A newly developed adjustable branch holder with integral aluminium cover allows the length of the terminal to the holder to be easily adjusted without compromising the structural performance or appearance.
The non-twisted core structure eliminates unwanted inductance, yielding unconstrained and lively sound.
Individual shielding for hot and cold transmission lines reduces line-to-line capacitance by half.
The internal and external sheathing pigment consists of non-magnetic carb, maintaining high sound quality with no colouration. The outer sheath is vivid blue.
JPR-15000 series cables feature newly developed, easy-to-connect, high-quality, highly conductive RCA connectors.

Specifications of Luxman JPR-15000 RCA Cable (1.3m pair)

Structure: Individual shielding for hot and cold transmission lines with a non-twisted structure
Core wire: High purity copper (7N-Class D.U.C.C.)Φ0.26mm×19 pcs
Insulator: Polyethene (red primary colour)
Shielded wire : Oxygen-free copper(OFC)Φ0.18mm×38 pieces
Sheath :PVC(blue)
Drain wire: Oxygen-free copper (OFC)Φ0.08mm×30 pieces
Conductor resistance :18mΩ/m or less (at 20 ゚C)
Insulation resistance : 5000MΩ/m or more (at 20 ゚C)
Capacitance : 70pF/m or less
Withstand voltage: 1000VAC (for 1 minute)
Cable outside diameter: 10.5mm×20mm
Length: 1.3m
