LD Systems MAUI 5 - All In One Ultra Portable Ultra Portable Bluetooth Column PA System with Mixer (Black)

  • Key Features

    Ultra-Portable All-In-One PA System

    • Compact Column Design
      Combines a slim column speaker array with an integrated subwoofer in a single, highly portable system.

    • Black Professional Finish
      Clean, modern look suitable for live events, street performances, presentations, and mobile applications.

    Battery-Powered Operation

    • Built-In Rechargeable Battery
      Enables true wireless, cable-free operation for outdoor and on-the-go use.

    • Extended Battery Life
      Designed to deliver several hours of continuous playback, ideal for busking, events, and locations without power access.

    Wireless Bluetooth Streaming

    • Bluetooth Audio Connectivity
      Stream music wirelessly from smartphones, tablets, and other Bluetooth-enabled devices.

    • Reliable Wireless Performance
      Stable connection suitable for backing tracks, background music, and playback audio.

    Integrated Mixer

    • Built-In Multi-Channel Mixer
      Allows direct connection of microphones, instruments, and line-level sources without external equipment.

    • Independent Channel Controls
      Individual volume and tone adjustments for each input enable easy sound balancing.

    Clear and Balanced Sound

    • Column Speaker Array
      Delivers wide dispersion and clear mid-to-high frequency reproduction for excellent vocal intelligibility.

    • Integrated Subwoofer Section
      Provides solid low-frequency response for fuller sound than traditional compact speakers.

    Portable and Easy Setup

    • Lightweight Construction
      Easy to transport and carry, ideal for mobile performers, presenters, and instructors.

    • Quick Assembly Design
      Fast setup with minimal components, making it user-friendly even for non-technical users.

    Versatile Input Support

    • Microphone Ready
      Supports wired microphones for vocals, speeches, and announcements.

    • Instrument and Line Inputs
      Suitable for acoustic guitars, keyboards, and playback devices.

    Durable and Practical Build

    • Robust Housing
      Built to withstand regular transport and outdoor usage.

    • Stable Base Design
      Ensures secure placement during performances and presentations.

    Application Versatility

    • Perfect for Mobile Use
      Ideal for street performers, fitness instructors, educators, small events, and outdoor gatherings.

    • True Grab-and-Go PA Solution
      Combines speaker system, mixer, Bluetooth streaming, and battery power into one compact unit.

Description

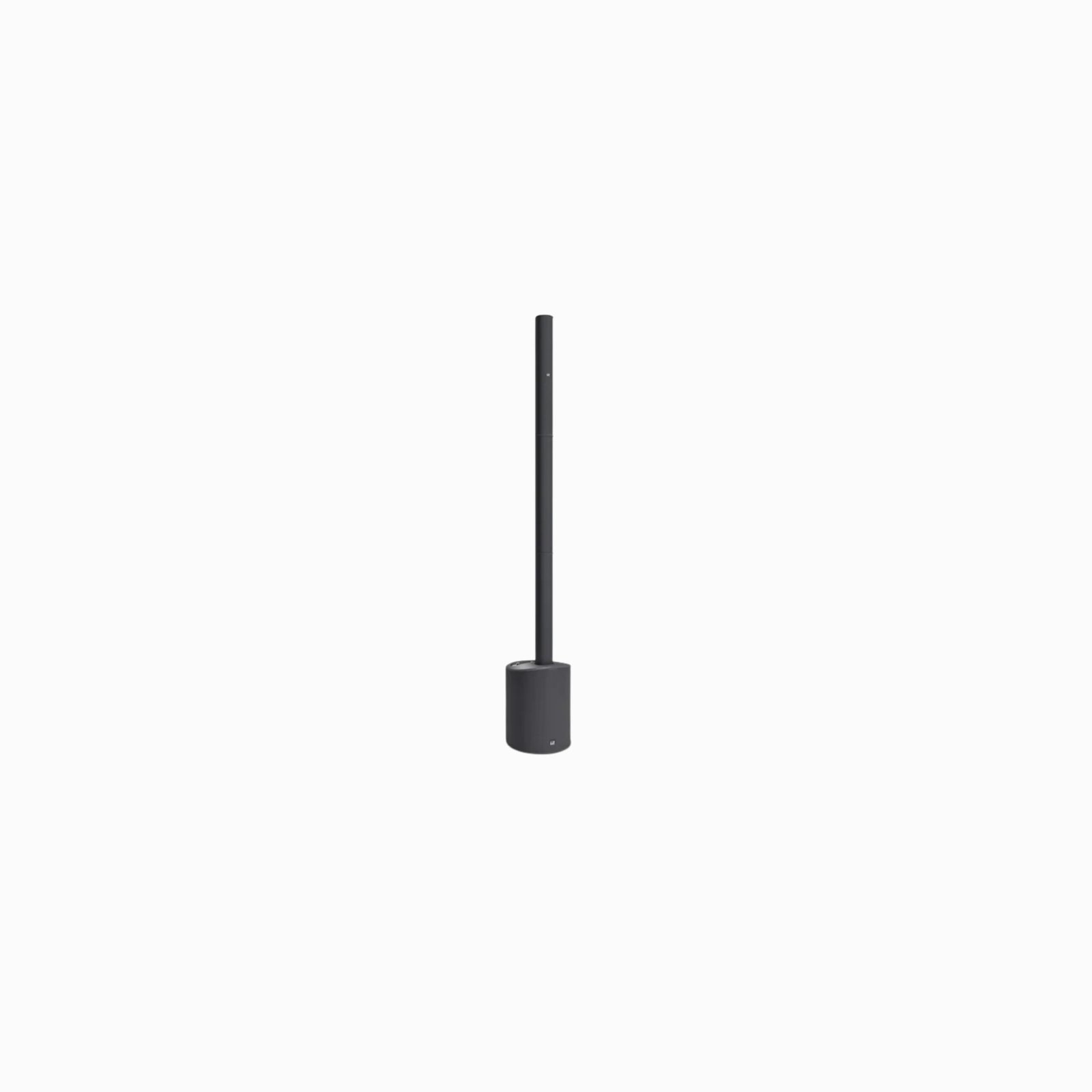

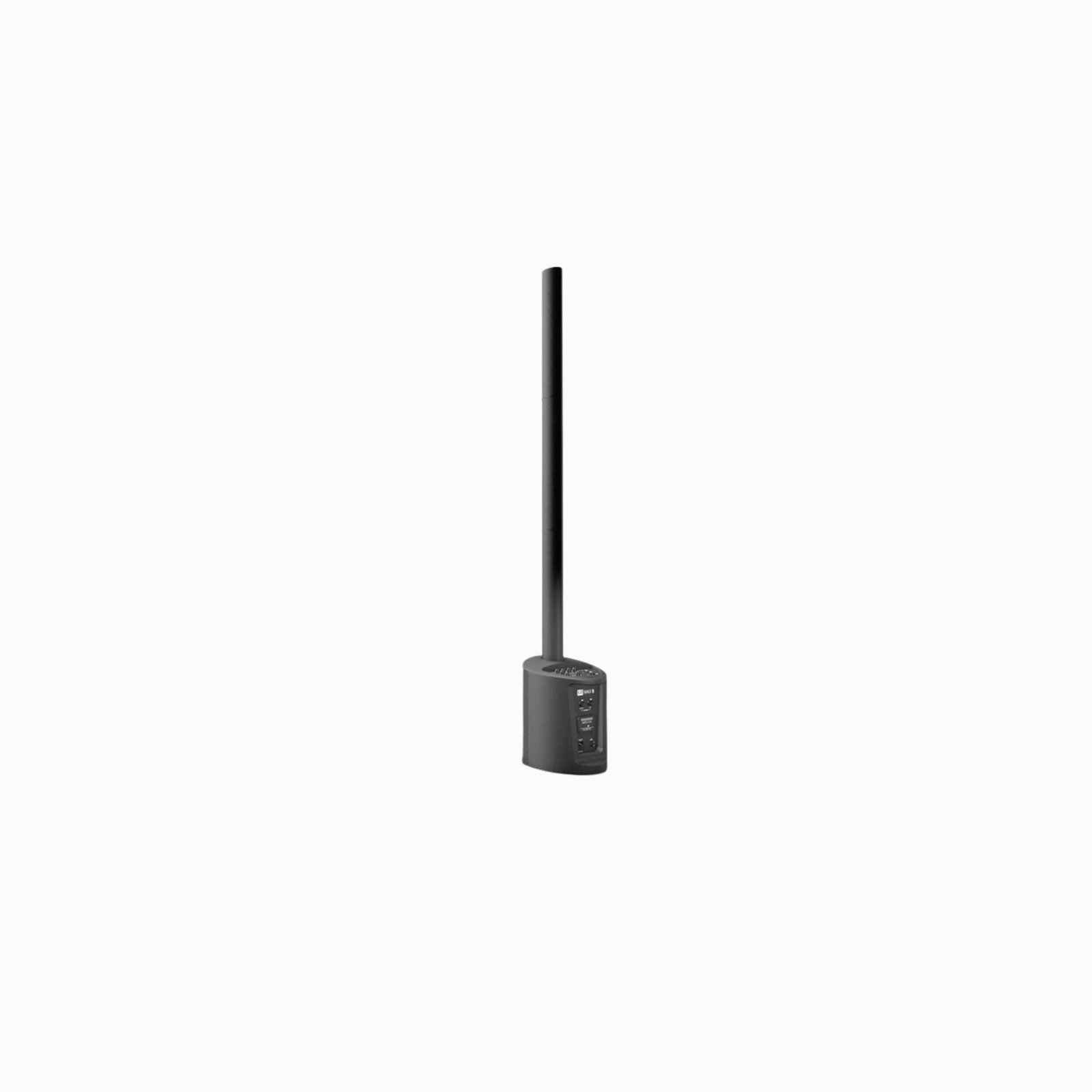

LD Systems MAUI 5 – All In One Ultra Portable Bluetooth Column PA System with Mixer

MAUI 5

Ultra-Portable Column PA System with Mixer and Bluetooth

  • Ultra-compact column PA
  • 800 watts peak power
  • LECC digital signal processing for controlled, dynamic operation
  • Wide range of connection options
  • Extremely easy to transport
  • PA and Monitor System in one
  • Extensive sound dispersion
  • Integrated 4-channel mixer with Bluetooth
  • Wireless assembly within seconds

Description

The MAUI 5 is an ultra-compact PA and monitor system in one that comes in at just under 11 kg to supply 800 watts peak performance and a maximum sound pressure of 120 dB. The smallest member of the MAUI family is assembled in a matter of seconds, thanks to specially developed multi-pin connectors and only four components. It also boasts extensive sound dispersion and high feedback resistance. The MAUI 5 is easy to carry and fits on any car seat.

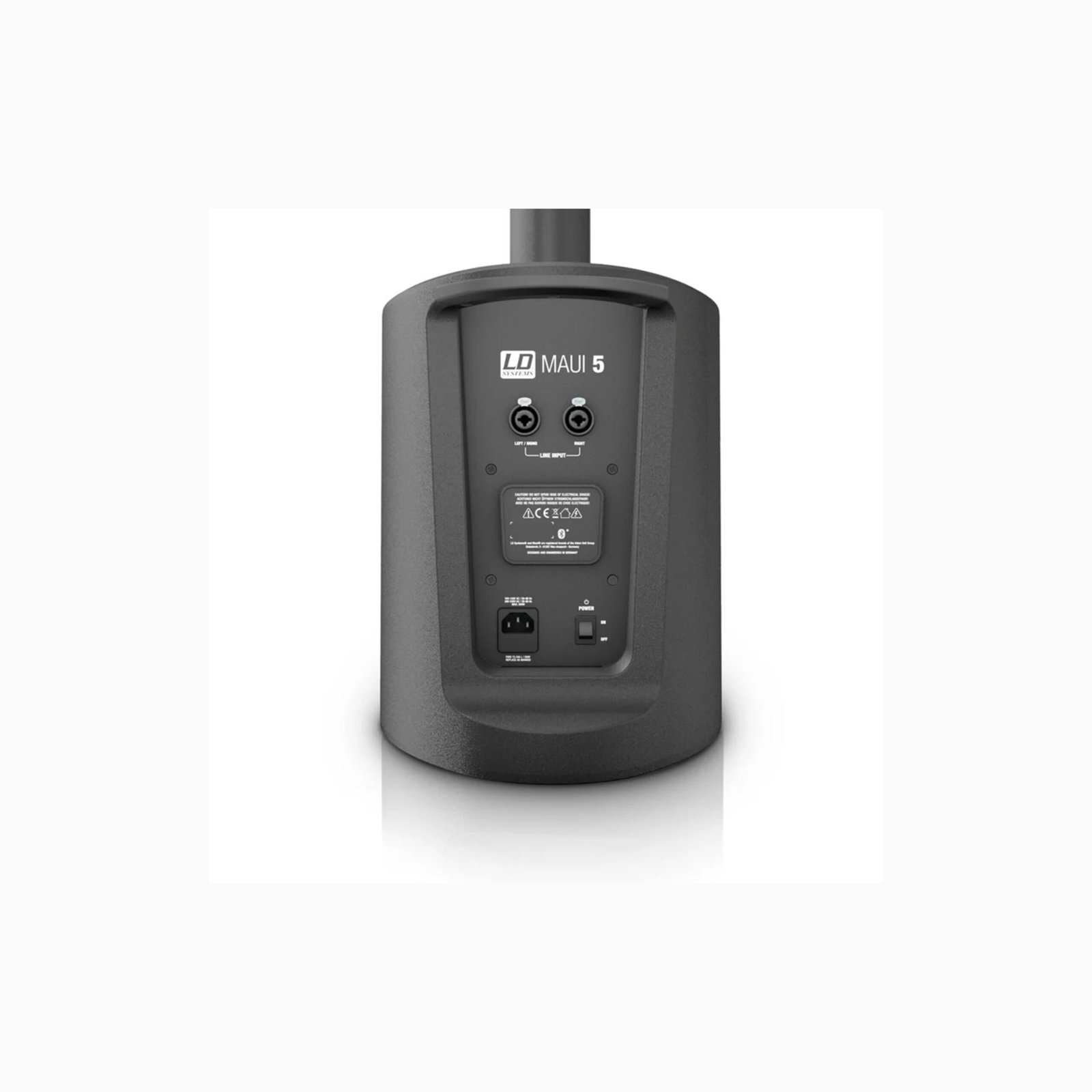

The bass reflex cabinet of the 8″ subwoofer base also houses the system’s class-D amplifier unit with protection circuits against overcurrent, overheating and short-circuiting, LD Systems LECC digital signal processing, and a 4-channel mixer. Thanks to built-in Bluetooth© technology for wireless streaming alongside use of the microphone, line, and high-impedance inputs, a wide variety of sound sources can be connected to the MAUI 5, including playback devices and instruments, such as keyboards or guitars. Separate level controllers, subwoofer and system volume controllers, and a high-shelf filter for adjusting treble to room acoustics ensure perfectly tuned performances. The MAUI 5 is also available in white (LDMAUI5W).



Specifications

 General

Weight
11,3 kg
Product type
PA Complete Systems
Color
Black
Max. SPL (continuous)
114 dB
Max. SPL (Peak)
120 dB
Frequency response
50 – 20000
Dispersion (H x V)
120° x 20 °
Overall height
1985 mm
Other features
4-channel mixer, Bluetooth, DSP-based signal processing

Woofer characteristics

Low/mid Woofer dimensions
8 “
Woofer dimensions (mm)
203.2 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil
2 “
Woofer voice coil (mm)
50.8 mm
Cabinet construction
Bass Reflex
Cabinet material
ABS plastic
Subwoofer width
305 mm
Subwoofer height
405 mm
Subwoofer depth
395 mm

Mid/Hi System

Midrange dimensions
4 x 3 “
Midrange dimensions (mm)
4 x 76.2 mm
Midrange magnet
Neodymium
Midrange brand
Custom-made
Midrange voice coil
1 “
Midrange voice coil
25.4 mm
Mid/Hi system impedance
4 Ohm(s)
Loudspeaker inputs
1
Speaker input connections
Custom-made multipin
Cabinet construction mid/high
Closed
Mid/Hi system cabinet material
ABS plastic
Mid/Hi system width
82 mm
Mid/Hi system height
535 mm
Mid/Hi system depth
105 mm

Amplifier module (integrated in subwoofer)

Amplifier
Class D
Amplifier output system (RMS)
200 W
Amplifier output system (peak)
800 W
Protection circuits
DSP-based multiband limiter, over-current, short circuit, thermal overload
Cooling
Convection
Controls
BT level, BT pairing, limiter, Line level, Main level, Mic level, MP3 / Hi-Z level, On, Protect (protection circuit engaged), Signal, Sub level
Indicators
Limit, On, Protect (protection circuit engaged), Signal
Operating voltage
Switching power supply
Operating voltage
100 V AC – 120 V AC, 50 – 60 Hz, 200 V AC – 240 V AC, 50 – 60 Hz (Automatic conversion)
Line inputs
2 x stereo
Line input connectors
6.3 mm jack, XLR
Mic inputs
1
Mic inputs
6.3 mm jack, XLR
MP3 inputs
1
MP3 input connectors
3.5 mm jack
Hi-Z inputs
1
Hi-Z input connectors
6.3 mm jack
Loudspeaker outputs
1
Speaker output connections
Custom-made multipin

DSP characteristics

Bit depth AD/DA converter
24 / 24 bit
Internal sampling frequency
48 kHz
