Klipsch R-50C Center Channel Speaker

Key Features & Design

Drivers
• Tweeter: 1-inch Aluminum LTS (Linear Travel Suspension) tweeter with Kapton suspension. Klipsch+2B&H Photo Video+2
• Woofers: Dual 5.25-inch spun-copper TCP (Thermoformed Crystalline Polymer) woofers. These help with smooth mid-bass and minimal distortion. Crutchfield+2Kronos AV+2

Horn
A 90° × 90° Tractrix® horn mating the tweeter helps direct high frequencies clearly, with improved dispersion (“sweet spot”) for dialogue and high frequency detail. Klipsch+2Crutchfield+2

Cabinet & Build
• Enclosure is sealed (no rear-ports), which gives more flexibility in placement (e.g., inside or under cabinets) and usually reduces unwanted resonances. Crutchfield+2B&H Photo Video+2
• Built from dense MDF, with reinforced bracing. Hidden fasteners, low-profile magnetic grille, and a scratch-resistant textured wood-grain vinyl finish. Kronos AV+2B&H Photo Video+2

Crossover & Dispersion
Uses a tapered array crossover to smooth transitions between tweeter and woofers and improve midrange clarity (important for dialogue).

Description

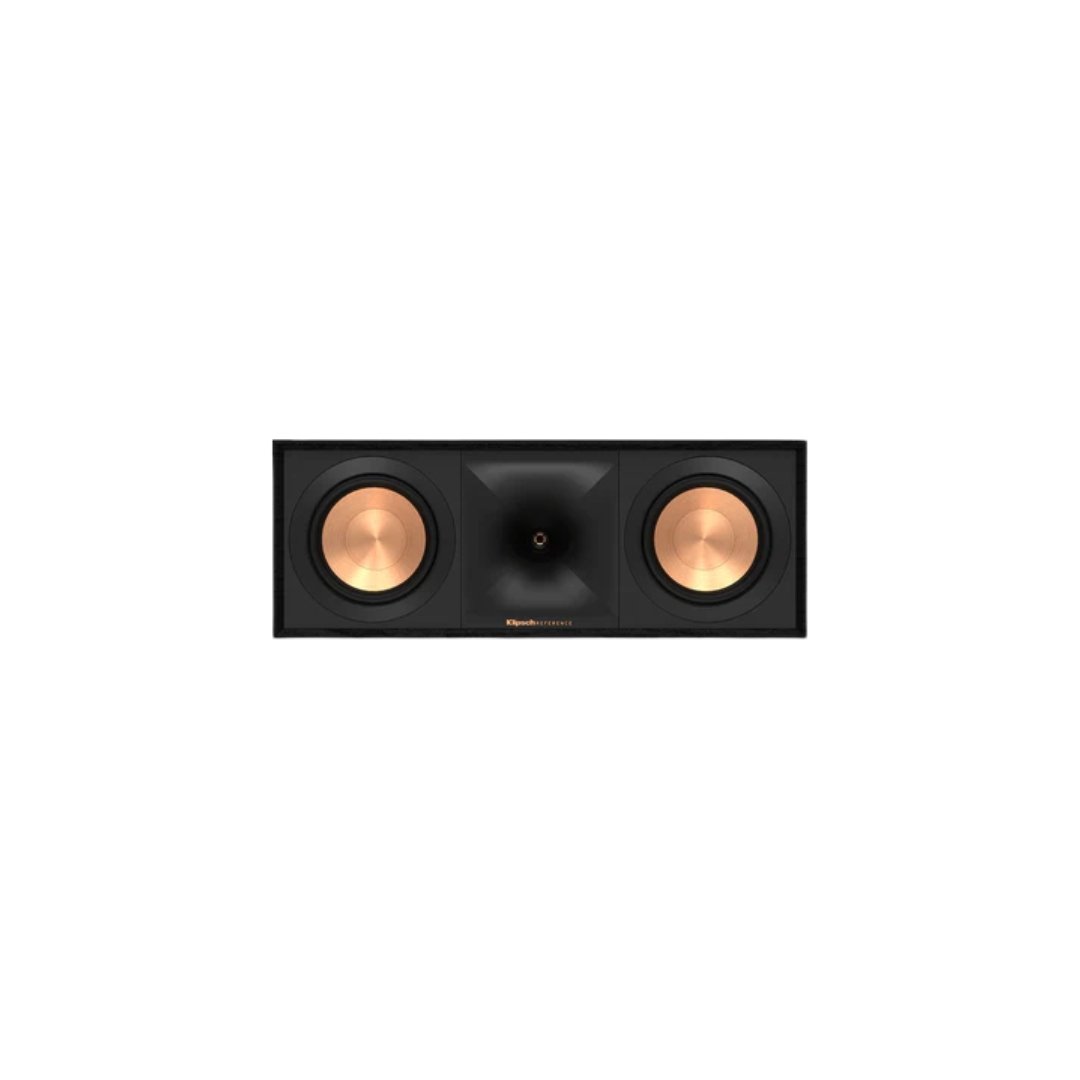

Delivering crisp dialogue and clean, natural sound to your home theater, the Reference R-50C 2-Way Center Channel Speaker from Klipsch features a 90 x 90° Tractrix Horn, which has large horn dimensions for directivity control, resulting in improved high-end and a more accurate soundstage. The Tractrix Horn is mated to a 1″ aluminum LTS tweeter with Kapton suspension, and the speaker is rounded out with a pair of 5.25″ spun-copper TCP woofers, all of which are packed within a solid 3/4″ reinforced MDF cabinet with hidden fasteners and a magnetic grille, completing the R-50C’s sleek and modern look.

Warranty:

2 years manufacturer’s warranty

Features:

2-Way Speaker Design
90 x 90° Tractrix Horn
1 x 1″ LTS Aluminum Tweeter with Kapton
2 x 5.25″ Spun-Copper TCP Woofers
100W RMS Audio Output
8-Ohm Impedance
90 Hz to 21 kHz Frequency Response
Reinforced 3/4″ Sealed MDF Cabinet
Low-Profile Magnetic Grille
Scratch-Resistant Wood Grain Vinyl

LTS Aluminum Tweeter with Kapton Suspension

Using a linear travel suspension (LTS), the 1″ tweeter’s highs are transmitted with minimal distortion for increased detail. The aluminum construction is lightweight, yet rigid, to further improve that audio detail and deliver improved sonic resolution.

Dual TCP Woofers
Borrowing technology from Klipsch’s Reference Premiere line, the R-50C offers spun-copper thermoformed crystalline polymer (TCP) for both 5.25″ woofers. This aligns the cones at a steeper angle for better accuracy and transparency, along with a smoother response. This is in addition to ribbing being added for better rigidity that ultimately results in less cone breakup at higher frequencies.

Solid and Sleek Construction

The smooth and sleek black textured wood grain vinyl exterior is supported by a solid, reinforced 3/4″ MDF with updated bracing. This robust construction helps to reduce vibration. Not only is the frame durable, even the vinyl exterior is also scratch-resistant. This can give the R-50C a long lease on life as part of your home theater sound system.
