Description
JBL Stage 245C- 2.5 Way Center Channel Speaker
2.5-way center speaker, 4.5-inch (114 mm) 4-speaker unit

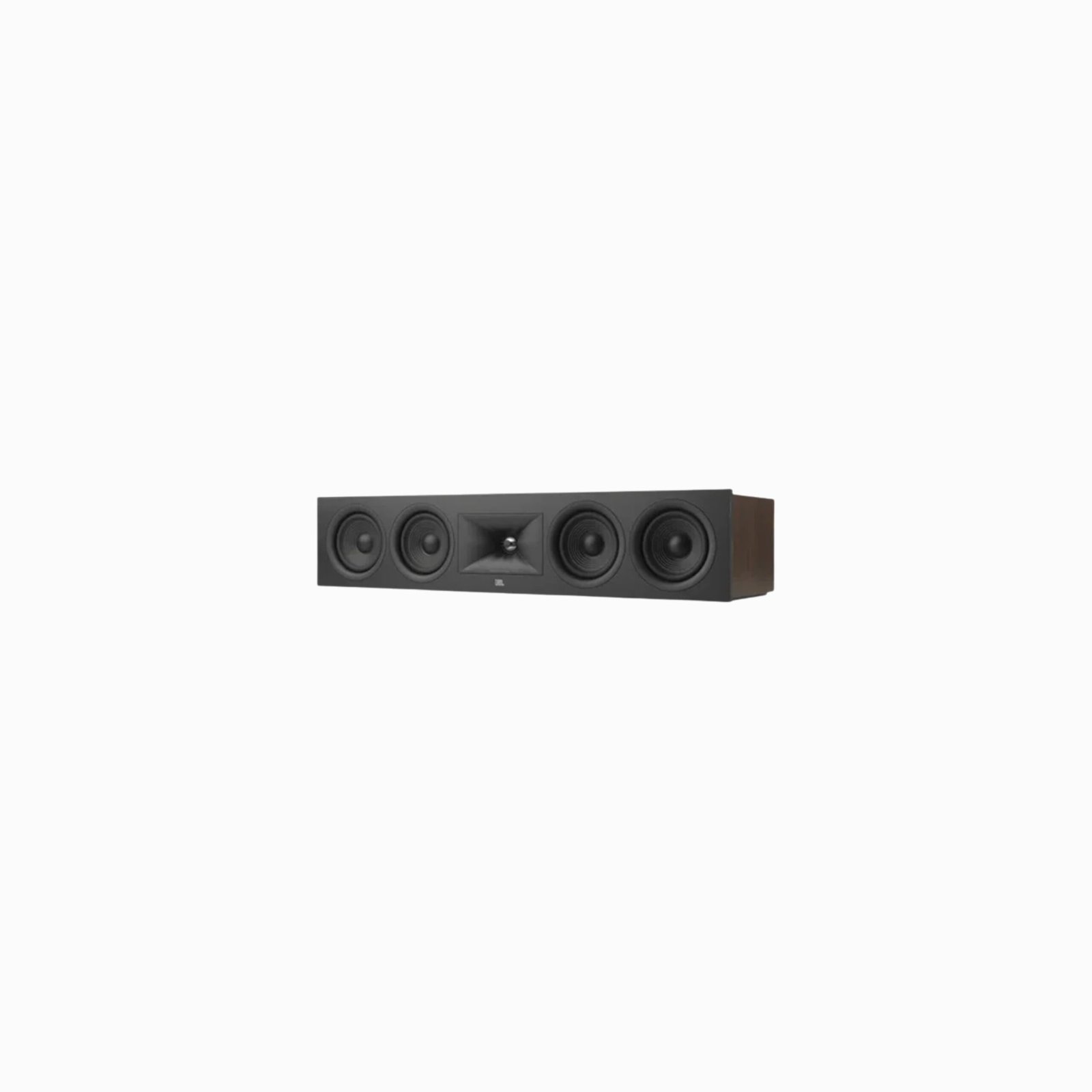

Engineered and developed at our world-renowned acoustic research center in Northridge, California, the Stage 245C is a center channel speaker that is acoustically optimized to match the Stage 2 floorstanding, bookshelf, and in-wall speakers. It features a 2.5-way design with patented High-Definition Imaging (HDI™) technology, a 1” (25 mm) anodized aluminum dome tweeter, and four 4.5” (114 mm) slotted polycellulose woofers that deliver JBL’s signature deep bass.
Product Description
2.5-way center speaker, 4.5-inch (114 mm) 4-speaker unit
Engineered and developed at our world-renowned acoustic research center in Northridge, California, the Stage 245C is a center channel speaker that is acoustically optimized to match the Stage 2 floorstanding, bookshelf, and in-wall speakers. It features a 2.5-way design with patented High-Definition Imaging (HDI™) technology, a 1” (25 mm) anodized aluminum dome tweeter, and four 4.5” (114 mm) slotted polycellulose woofers that deliver JBL’s signature deep bass.
Specifications
General Specifications
|
type
|
Center speaker system |
|---|---|
|
Low-frequency driver
|
Four 4.5″ (114mm) polycellulose grooved loudspeakers. |
|
High-frequency driver
|
1 inch (25 mm) anodized aluminum |
|
Wave guide
|
NEW HDI™ TECHNOLOGY |
|
Driving the amp
|
20-150W |
|
Sensitivity
|
91dB |
|
Frequency Response
|
55Hz-25kHz |
|
resistance
|
6 ohms |
|
Crossover circuit
|
1.3kHz/2.0Khz |
|
Speaker Cabinet Tuning
|
Bass reflex through dual elliptical sound tubes, releasing tuned rear sound |
Dimensions
|
Size (height x width x depth
|
10.7 in. x 6.9 in. x 8.5 in. (272 mm x 175 mm x 217 mm) |
|---|---|
|
Product weight
|
26.4 lbs (12.0 kg) |
|
Weight when shipped
|
32.4 lbs (14.7 kg) |
|
Units of measurement for shipping
|
Connect one speaker |
