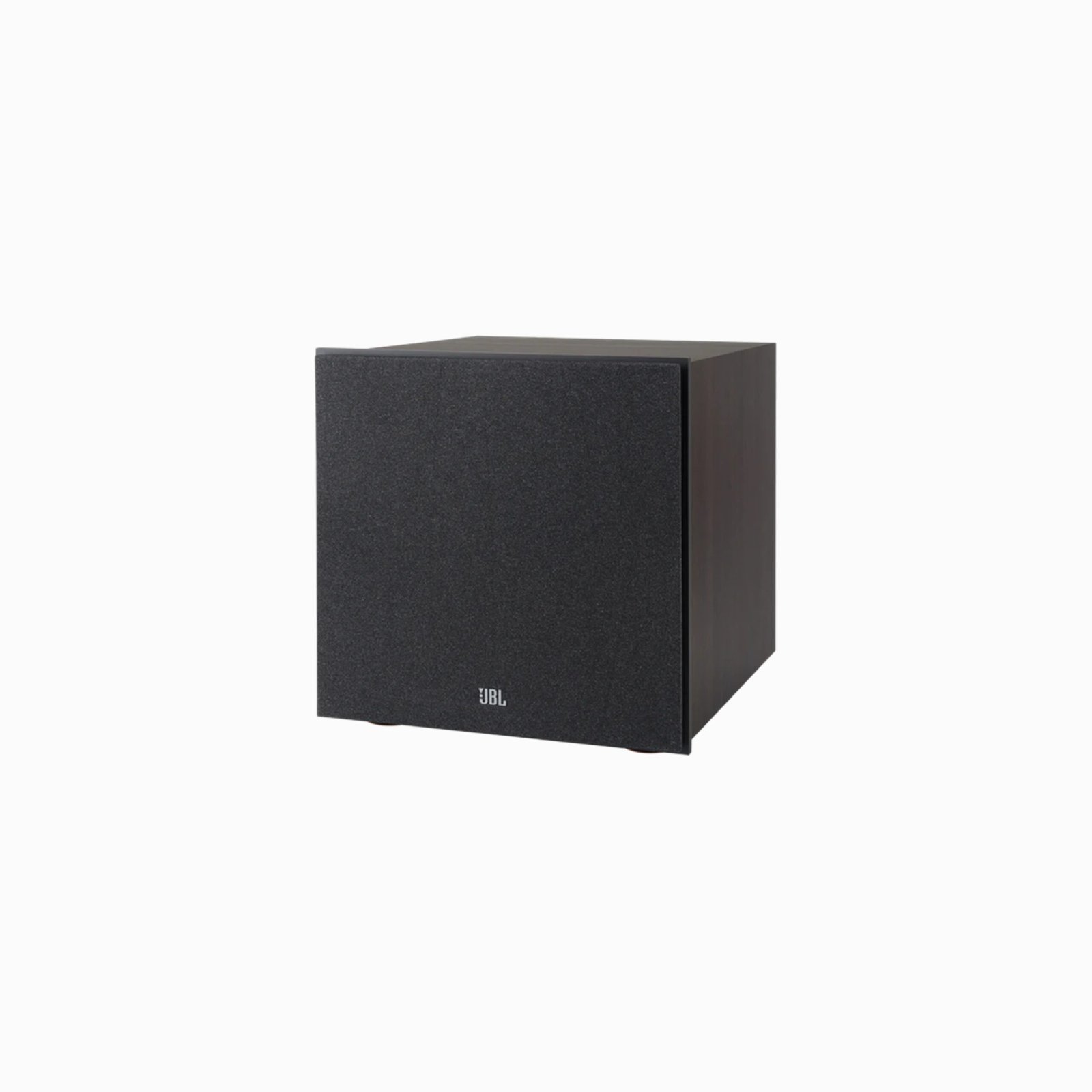

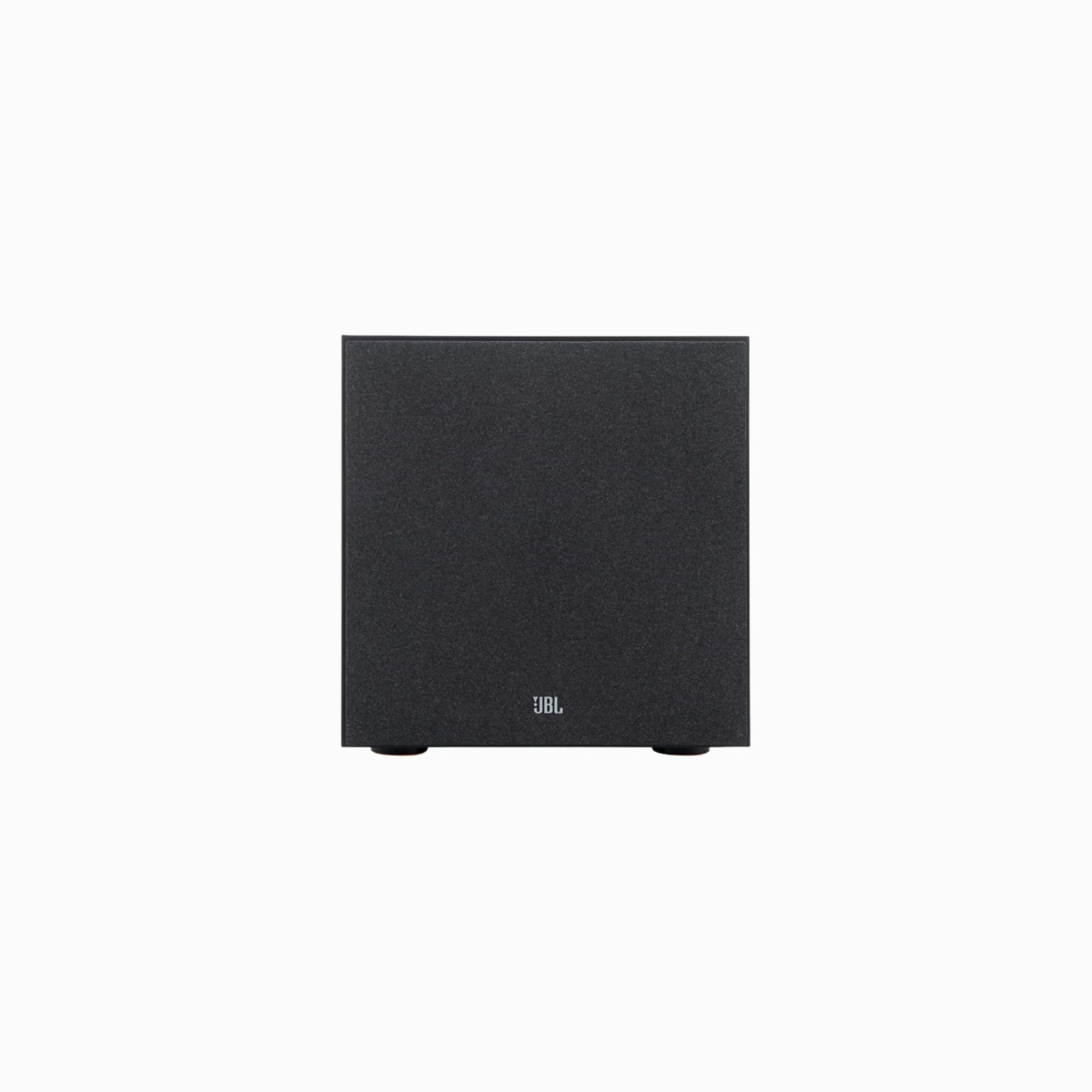

JBL Stage 200P – 10 Inch Powered Subwoofer
Stage 200P

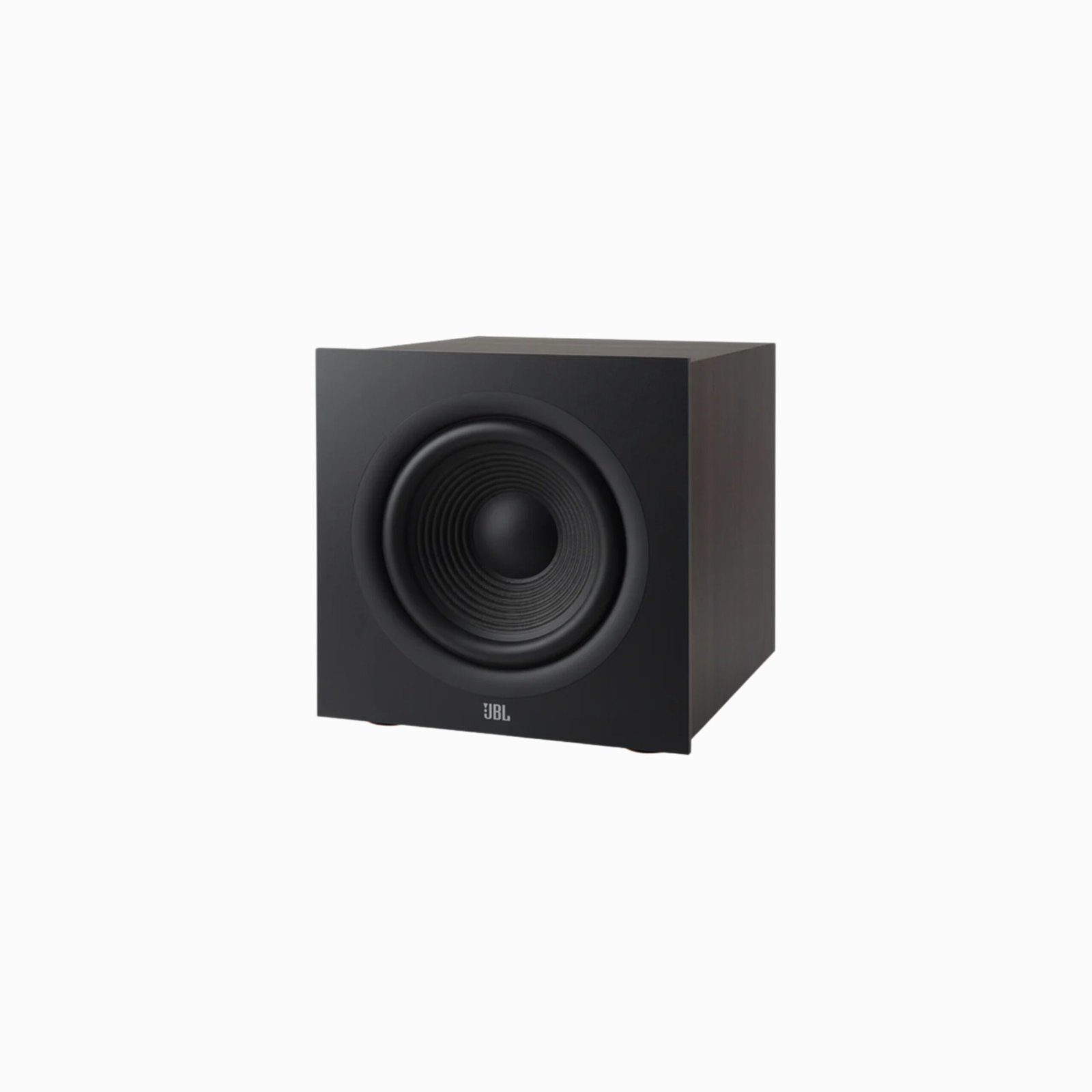

10-inch (250mm) Polycellulose Ribbed Cone Low-Frequency Woofer
Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity, and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room-filling bass.
150-Watts RMS Amplifier (300 Watts Peak Power)
The built-in high-performance 300-watt amplifier provides impactful and memorable sound quality deserving of the JBL name. The 200P can be placed anywhere in the room and connects to your AVR to create a stereo or multi-channel home theatre system with impactful bass and unprecedented performance.
Bass-Reflex Design with Dual Rear-Firing Flared Ports
The Bass-Reflex design of the 200P uses dual rear-firing flared ports. This new flared design reduces the velocity of the air when exiting the speaker cabinet, eliminating any chuffing or colouration of output.
Description
10-inch (250mm) 300W Powered Subwoofer
Designed and engineered at our world-famous Acoustic Engineering Centre of Excellence in Northridge, California, the Stage 200P is a 300W powered subwoofer perfectly matched with the entire Stage series and delivers the low-frequency excitement that customers crave. This subwoofer features a front-firing high excursion 10-inch (250mm) Polycellulose low-frequency woofer with dual rear-firing tuned ports that provide deep, powerful, signature JBL bass. A full complement of controls provides for easy system integration.
Specifications
General Specifications
|
type
|
Powered Subwoofer |
|---|---|
|
Low-frequency driver
|
10-inch (250mm) Polycellulose Ribbed High Excursion |
|
Frequency Response ± 6dB
|
28Hz-150Hz |
|
Crossover Frequencies
|
50Hz-150Hz (variable) 24dB/octave |
|
Controls
|
35Hz-150Hz |
|
Inputs
|
One (1) Line-Level LFE Input |
|
Enclosure Tuning
|
Bass-Reflex via Dual Rear-Firing Tuned Ports |
|
Power Requirements
|
120V, 60Hz (US) 220-230V, 50/60Hz (EU) |
|
Power Consumption
|
<0.5W (standby) / 205W/1.6A (max – 230V) / 205W/3.15A (max – 120V) |
Dimensions
|
Dimensions (HxWxD)
|
14.2in x 13.8in x 15.2in (361mm x 350mm x 385mm) |
|---|---|
|
Product Weight
|
31.8lbs. (14.4kg) |
|
Shipping Weight
|
40.3lbs. (18.3kg) |
|
Shipping Units of Measure
|
Each |
|
What’s in The Box?
|
1 x 200P – 1 x Power Cord 4 x Floor Spikes – 1 x Speaker Grille – 1 x Safety Sheet – 1 x Quick-Start Guide |
