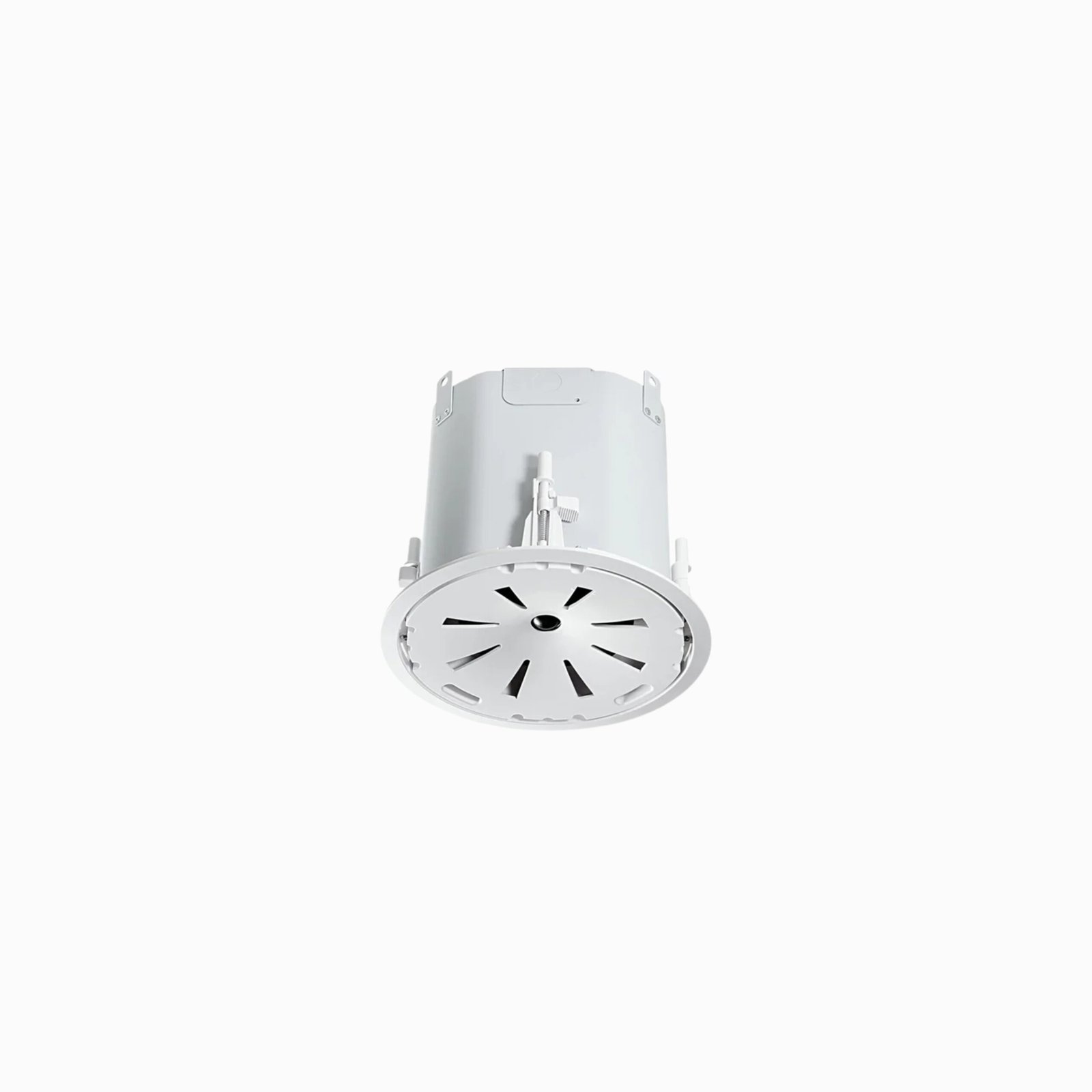

JBL Control 47C/T - 75W Consistent Coverage Extended Bass In-Ceiling Speaker (Each)

In-ceiling loudspeaker designed for commercial audio applications
6.5-inch woofer for extended bass response and full-range audio performance
1-inch aluminum dome tweeter for clear high-frequency reproduction
Consistent Coverage Technology provides smooth sound distribution throughout the listening area
75 W power handling for reliable performance in both background and foreground music environments
Built-in multi-tap transformer for use with 70 V and 100 V distributed speaker systems
Switchable low-impedance mode for direct connection to standard amplifiers
Pivoting tweeter allows aiming of high frequencies for improved coverage control
Removable grille and flush design for discreet integration into ceilings
Durable construction suitable for continuous commercial use
Easy installation with included mounting hardware

Description

Frequency Range	55 Hz – 20 kHz
Power Rating	IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), hrs
Sensitivity	91 dB (1kHz – 16 kHz)
Transformer Taps	60W, 30W, 15W (7.5W at 70V only)
Coverage Angle	120° conical, constant directivity
Impedance	8 ohms (in bypass mode)
Drivers	LF Driver: 165 mm (6.5 in) HF Driver: 25 mm (1 in)

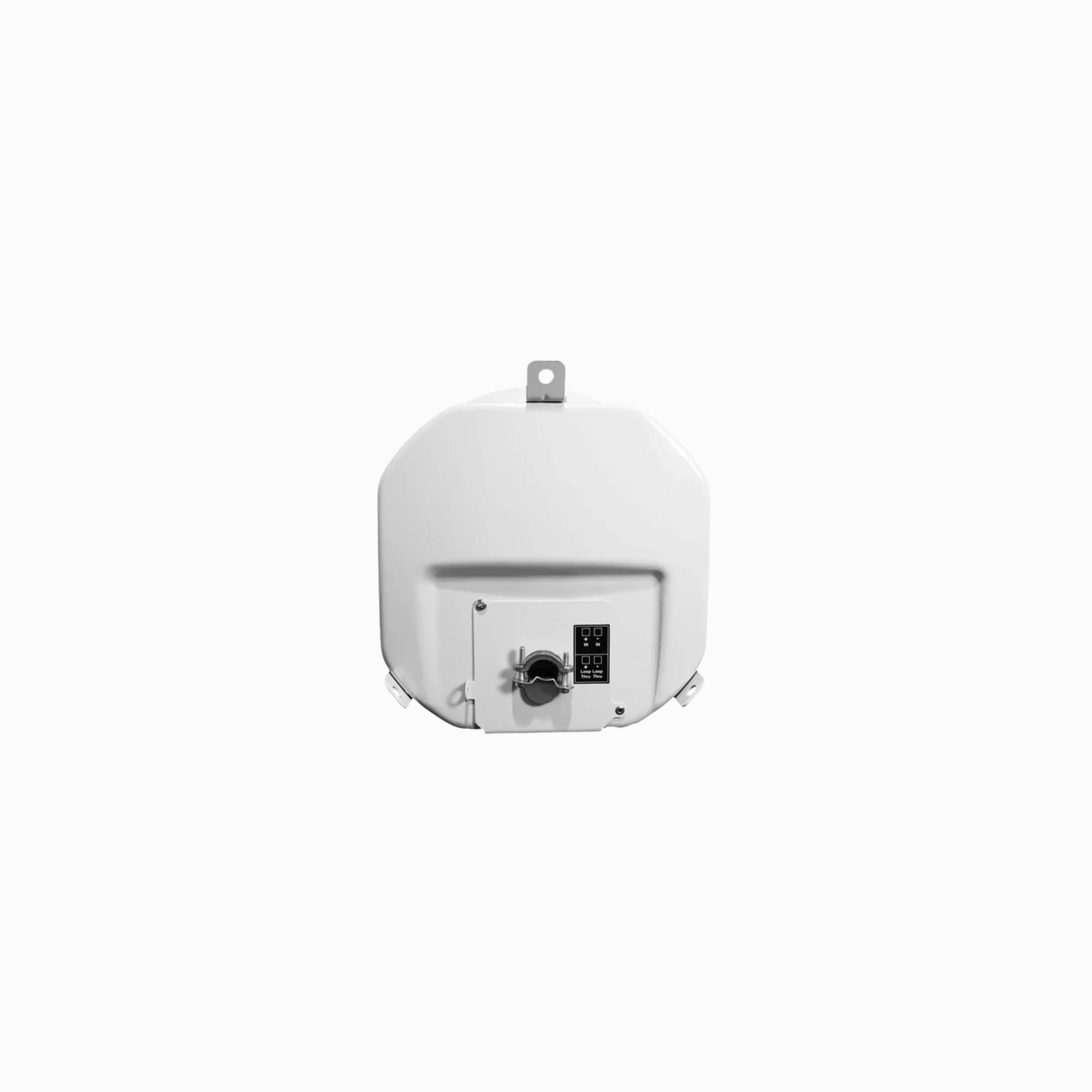

Input Connectors	Two removable locking 2-pin connectors with screwdown terminals.
Included Accessories	C-rings, tile rails, paint shield, cutout template, Grille
Suspension Tabs	Three, on the top panel
Dimensions (Diameter x Depth)	305mm Diameter x 259mm Diameter Depth (12.0 in x 10.2 in)
Maximum SPL (1m)	110 dB (low-impedance, 116 dB peak) 109 dB (top 70V/100V tap)
Color	White
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

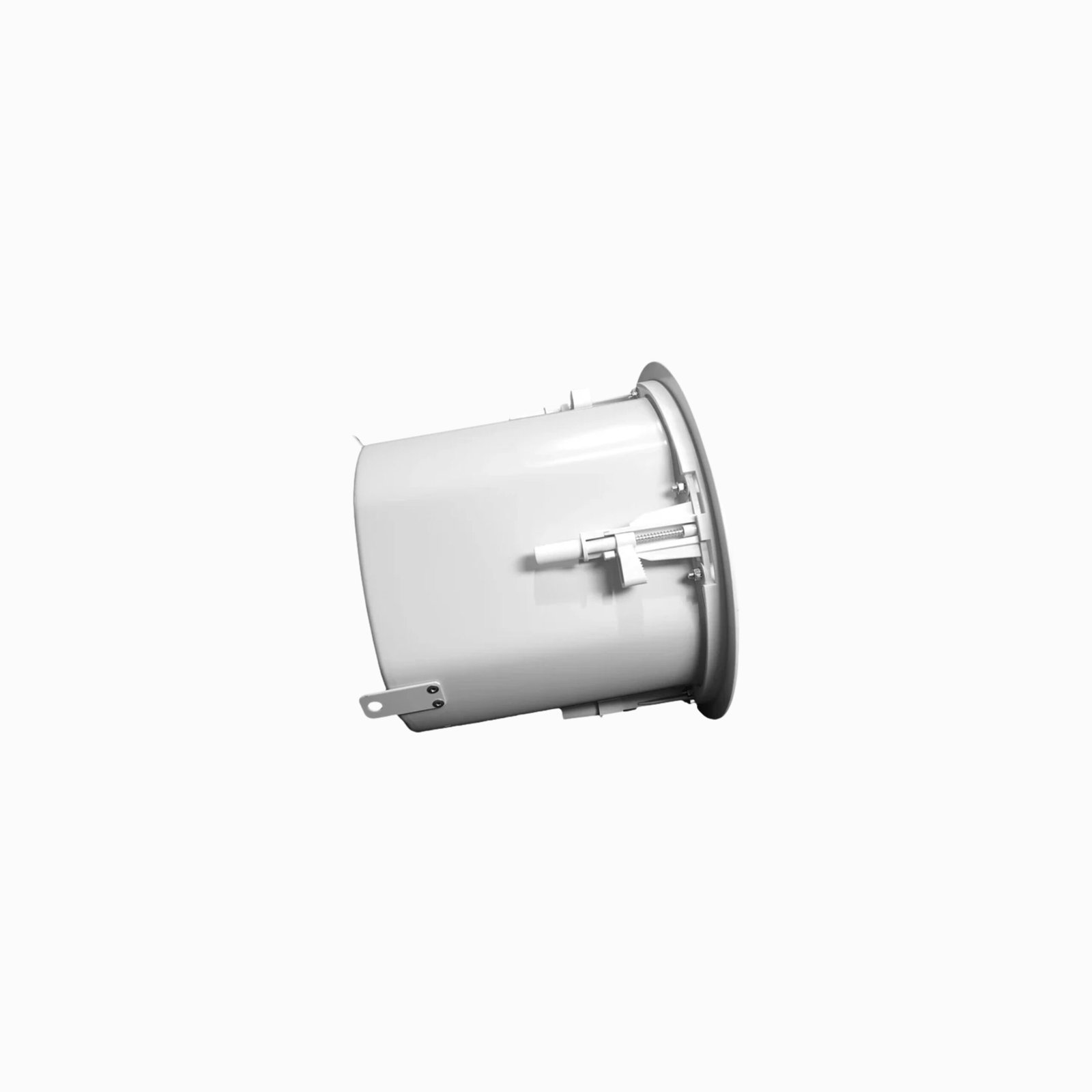

Backcan	formed steel (included “blind-mount”)
Baffle/Rim	ABS baffle with UL94-V0 flame class fire rating.
Ceiling Cutout Size	282 mm Diameter (11.1 in) (cardboard cutout template included)
Optional Accessories	MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket
Plenum Usage	Yes, backcan included
