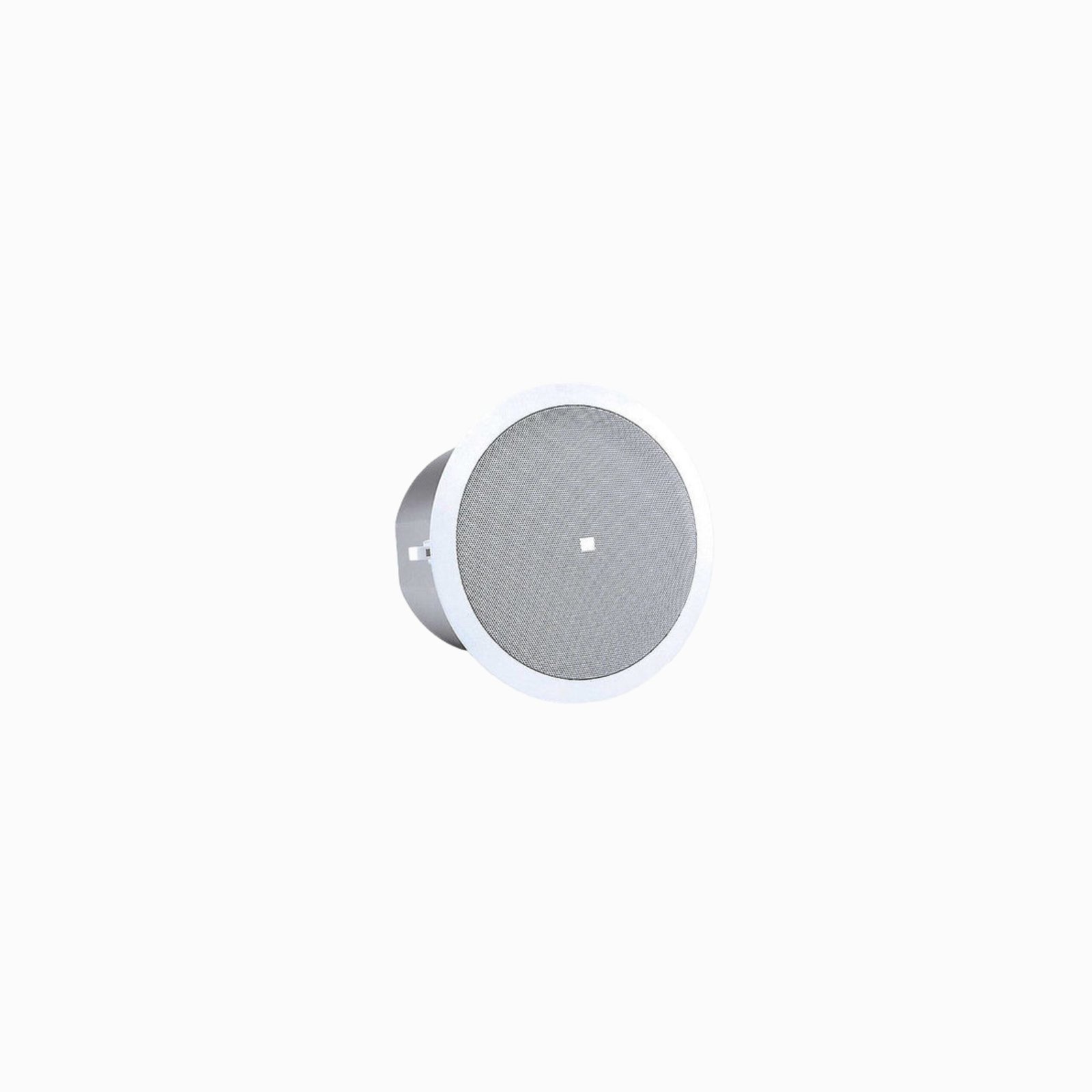

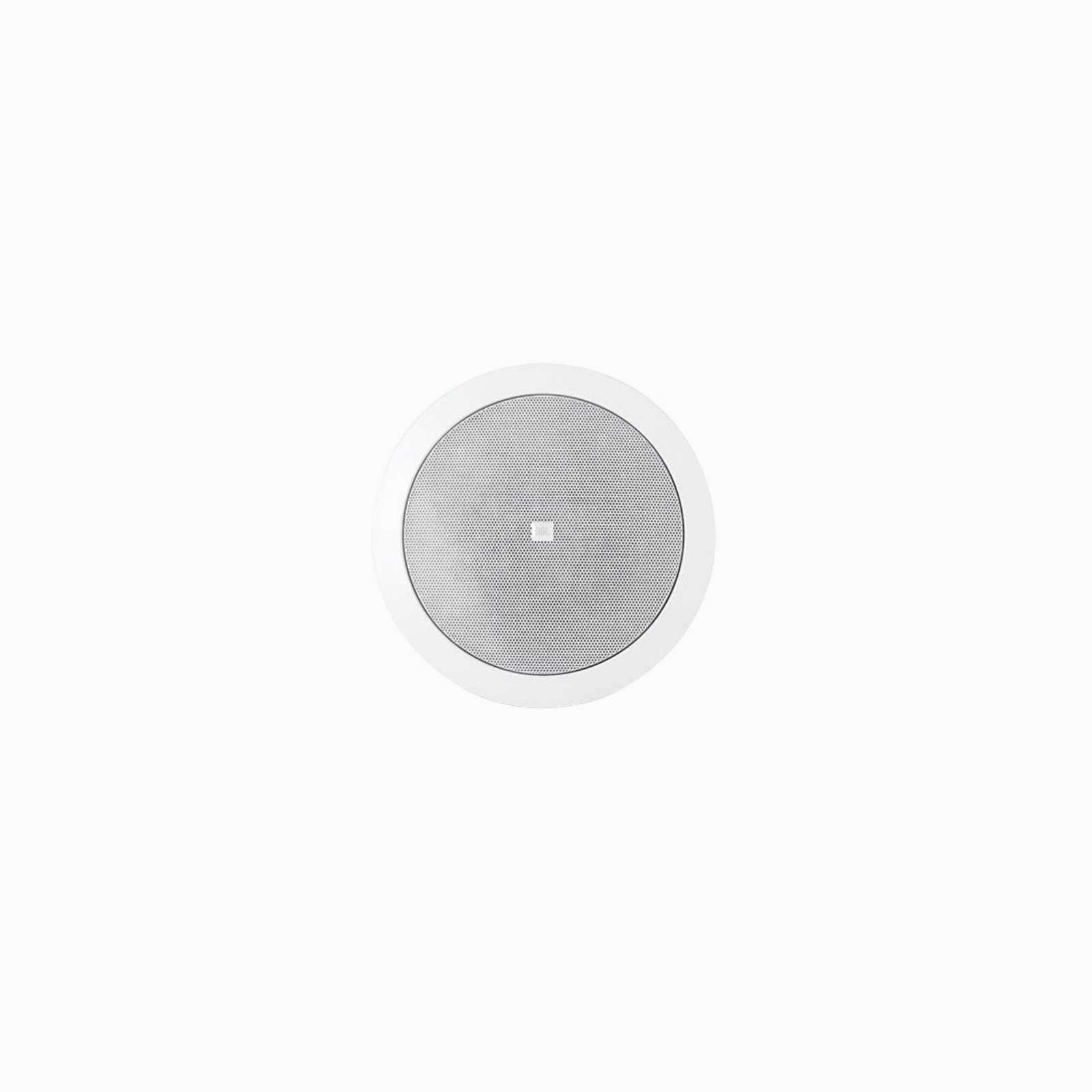

JBL Control 24CT-Background/ Foreground Ceiling Loudspeakers

Key Features

  • Dual-Application Design – Engineered for both background music and foreground audio use in commercial, retail, office, hospitality, and residential environments.

  • Two-Way Ceiling Loudspeaker – Combines a dedicated woofer and high-frequency driver for clear, natural sound with extended frequency response.

  • Wide Sound Dispersion – Optimised driver and horn design distributes audio evenly across the listening area for consistent coverage.

  • Flush-Mount Ceiling Integration – Low-profile design blends discreetly into ceilings for professional installations with minimal visual impact.

  • Rugged and Reliable Build – Durable construction suitable for frequent or continuous operation in business and high-traffic environments.

  • Transformer Options Available – Can be configured with an internal transformer for use in distributed audio systems with 70V/100V lines (where applicable).

  • Easy Installation System – Designed for quick and secure ceiling mounting with simple mounting tabs or clamps.

  • High Output Capability – Delivers sufficient SPL for both background music and more dynamic foreground listening.

  • Consistent JBL Acoustic Signature – Tuned for natural, balanced sound with focused midrange and clear high frequencies.

  • Each Sold Individually – Price and packaging cover one ceiling loudspeaker, allowing you to order the exact number needed for your system.

Description

  • JBL Control 24CT-Background/ Foreground Ceiling Loudspeakers

    Background/ Foreground Ceiling Loudspeakers

    The Control 24CT is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.

    Features

    • Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
    • High power, wide frequency response and low distortion for high sound level capability.
    • Wide coverage allows fewer speakers, reducing the cost of
    • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.



    Specifications

    Frequency Range
    80 Hz – 20 kHz
    Power Rating
    See transformer taps
    Transformer Taps
    70V: 30W, 15W, 7.5W (& 3.7W @ 70V)
    Coverage Angle
    130° conical
    Directivity Factor (Q)
    2.4 dB averaged 500 Hz to 4 kHz
    Directivity Index (DI)
    3.8 dB averaged 500 Hz to 4 kHz
    Maximum SPL (1m)
    102 dB (top 70V/100V tap)
    Nominal Impedance
    16 ohms (Min Z 16.1 ohms @ 320 Hz)
    Sensitivity
    86 dB (100 Hz – 10 kHz)
    Input Connectors
    Removable 4-pin locking connector with screw-down terminals.
    Drivers
    LF Driver: 100 mm (4.0 in)
    HF Driver: 19 mm (0.75 in)
