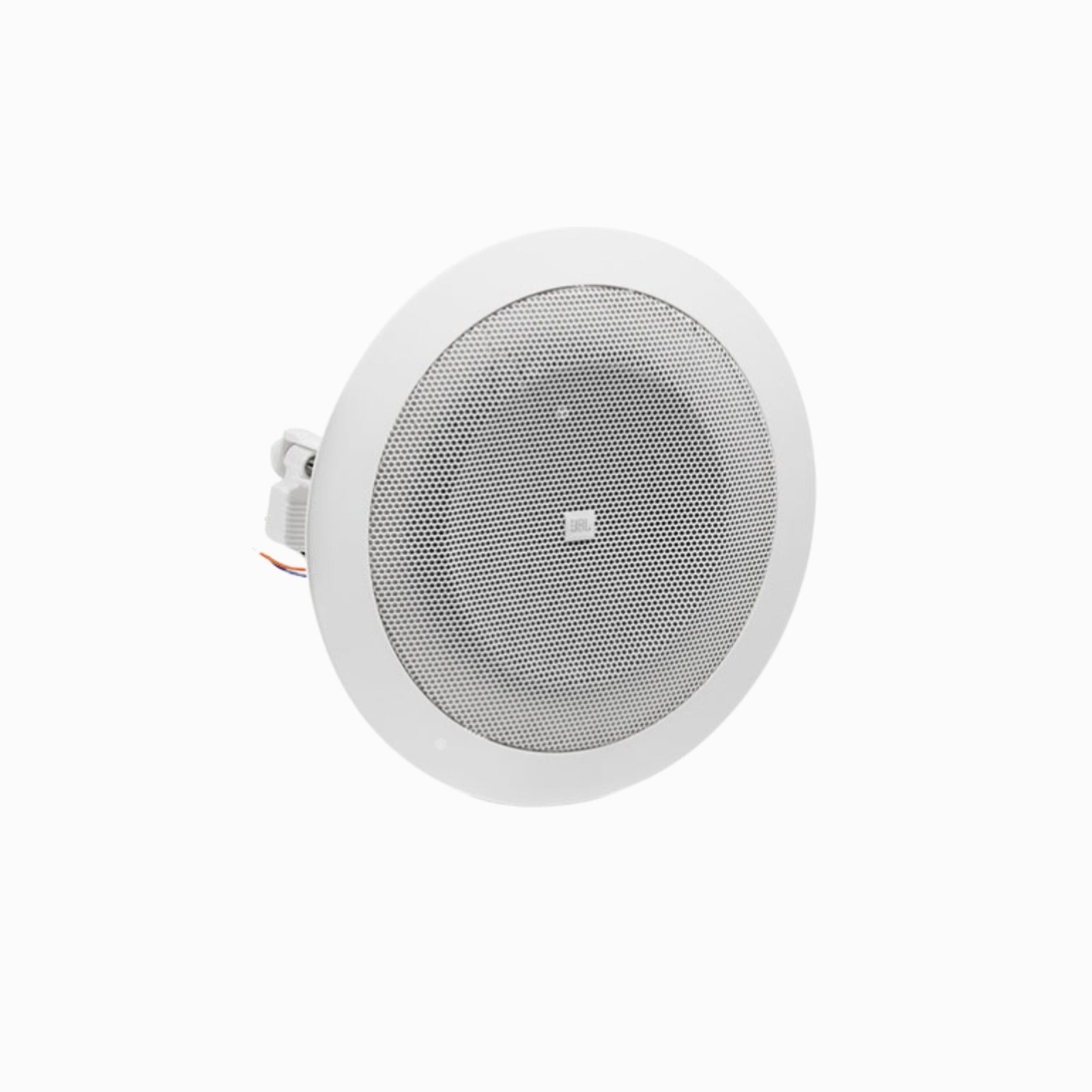

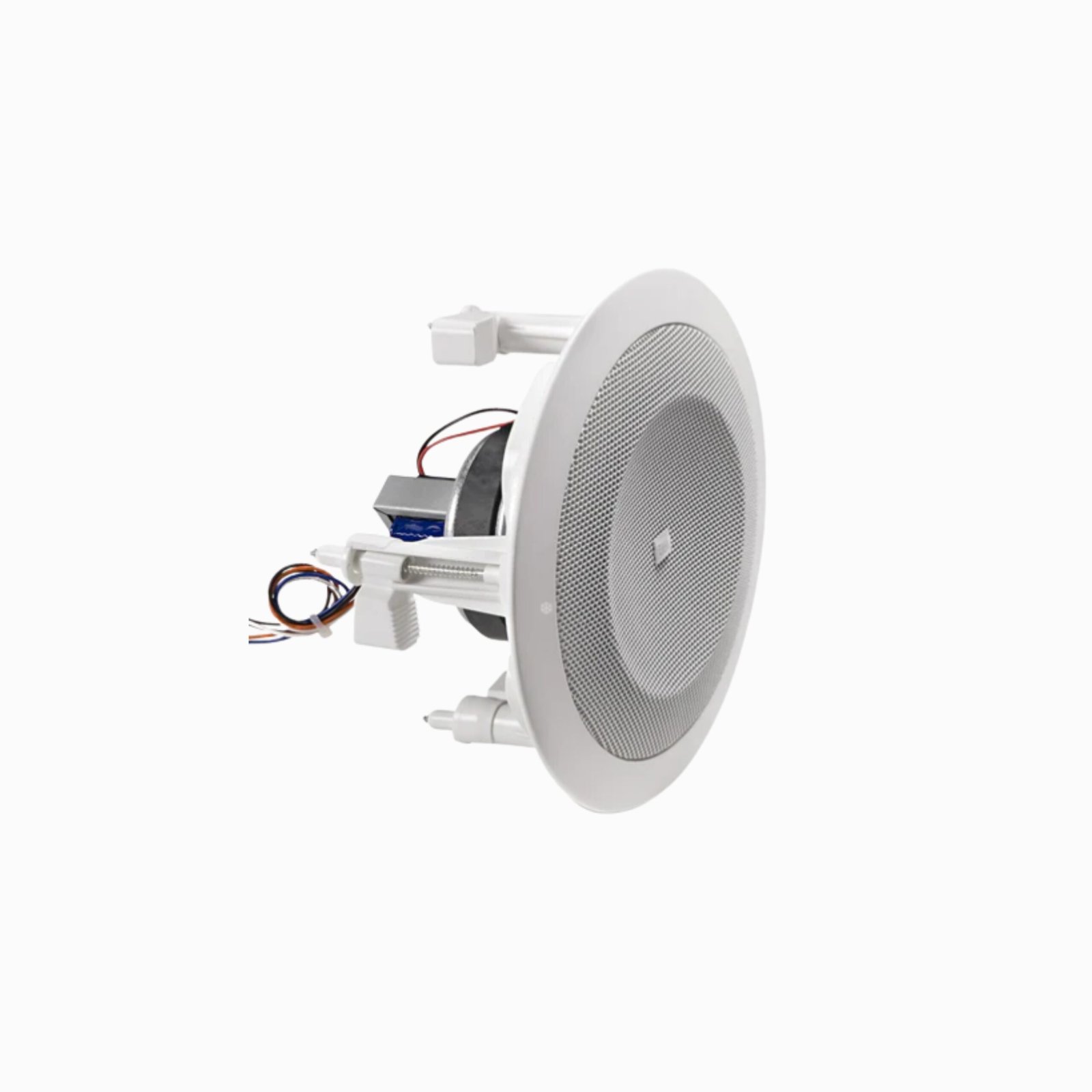

JBL 8124 In-Ceiling Speaker

The 8124 is a 4-inch, full-range, cost-effective loudspeaker for commercial applications. The 8124 features high-fidelity performance in an easy-to-install package. The system’s high-sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps, and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a backcan for installation.



Specifications

Drivers
 4 in (100 mm), Full-range Driver
Frequency Range
 60 Hz – 18 kHz
Sensitivity (1W, 1m)
 93 dB (1 kHz – 8 kHz)
Coverage Angle
 130° conical
Transformer Taps
 6W, 3W, 1.5W (0.75W at 70V only)
Input Connectors
 Bare wires
Dimensions (Diameter x Depth)
 8.1 in (206mm) x 3.5 in (89mm)
Weight
 2.5lb (1.2kg)
Included Accessories
 Sculpted Grille
Optional Accessories
 MTC-8124C C-ring, MTC- Rail tile rails
Power Rating
 See transformer taps
Rated Maximum SPL (1m)
 101 dB ave. (top 70V/100V tap)
Color
 White
Baffle/Rim
 Plastic
Ceiling Cutout Size
 175 mm diameter (6.9 in)
Plenum Usage
 Not intended for use in return air plenums
Backcan
 No
