Focal SIB EVO 5.1.2 Dolby Atmos Speaker Package

Key Features

5.1.2 Dolby Atmos Configuration

Complete home theatre package including front speakers, center speaker, surround speakers, up-firing Atmos modules, and an active subwoofer.

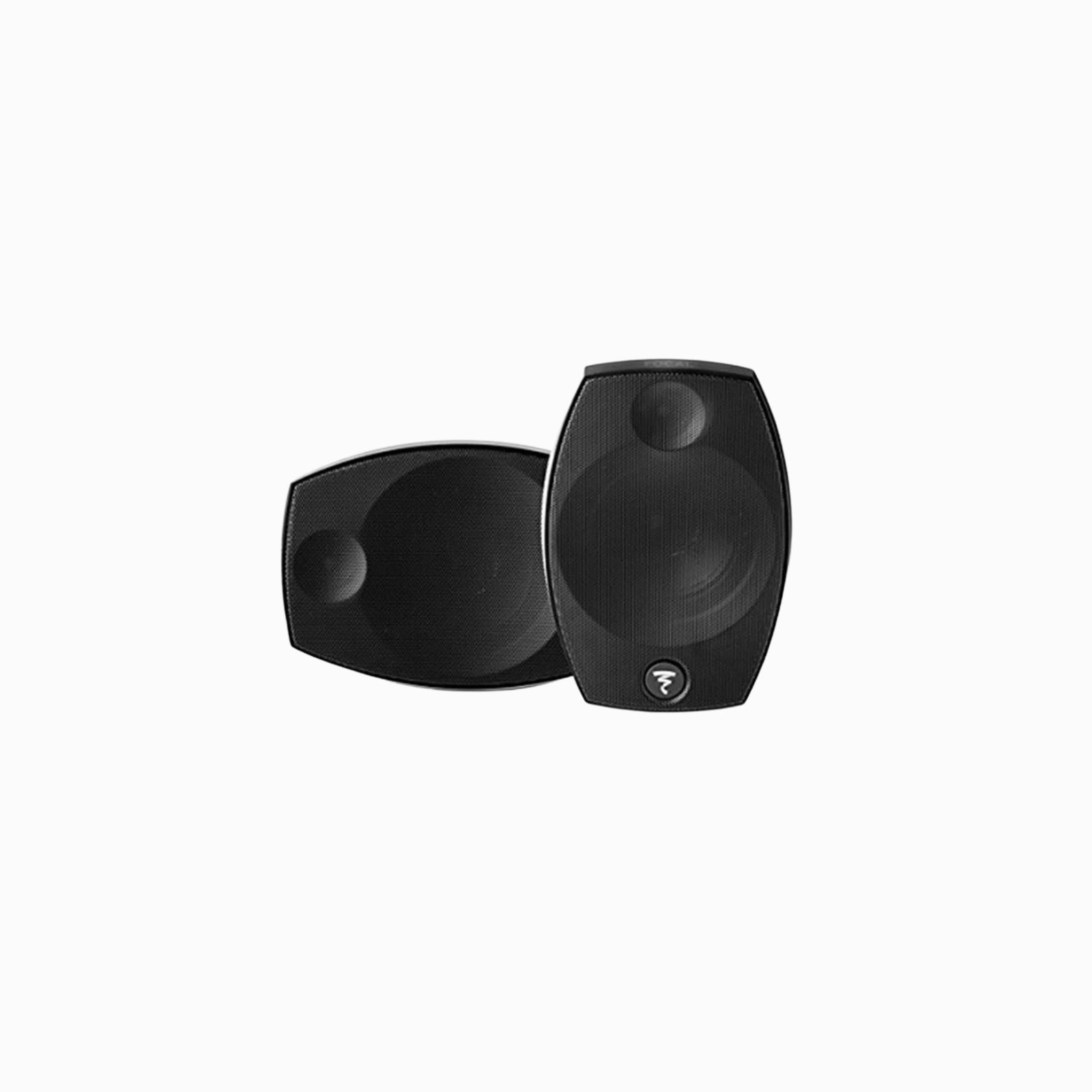

Sib Evo Satellite Speakers

2-way design with a 5-inch Polyflex midbass driver and 0.75-inch silk-dome tweeter.
Wide and detailed soundstage ideal for movies and music.
Frequency response approximately 70 Hz to 25 kHz.
Compact cabinet design suitable for small and medium rooms.

Dolby Atmos Up-Firing Modules

Built into the front speakers for height effects.
Uses a 4-inch full-range driver to bounce sound off the ceiling for immersive overhead audio.
Provides true 3D sound without installing ceiling speakers.

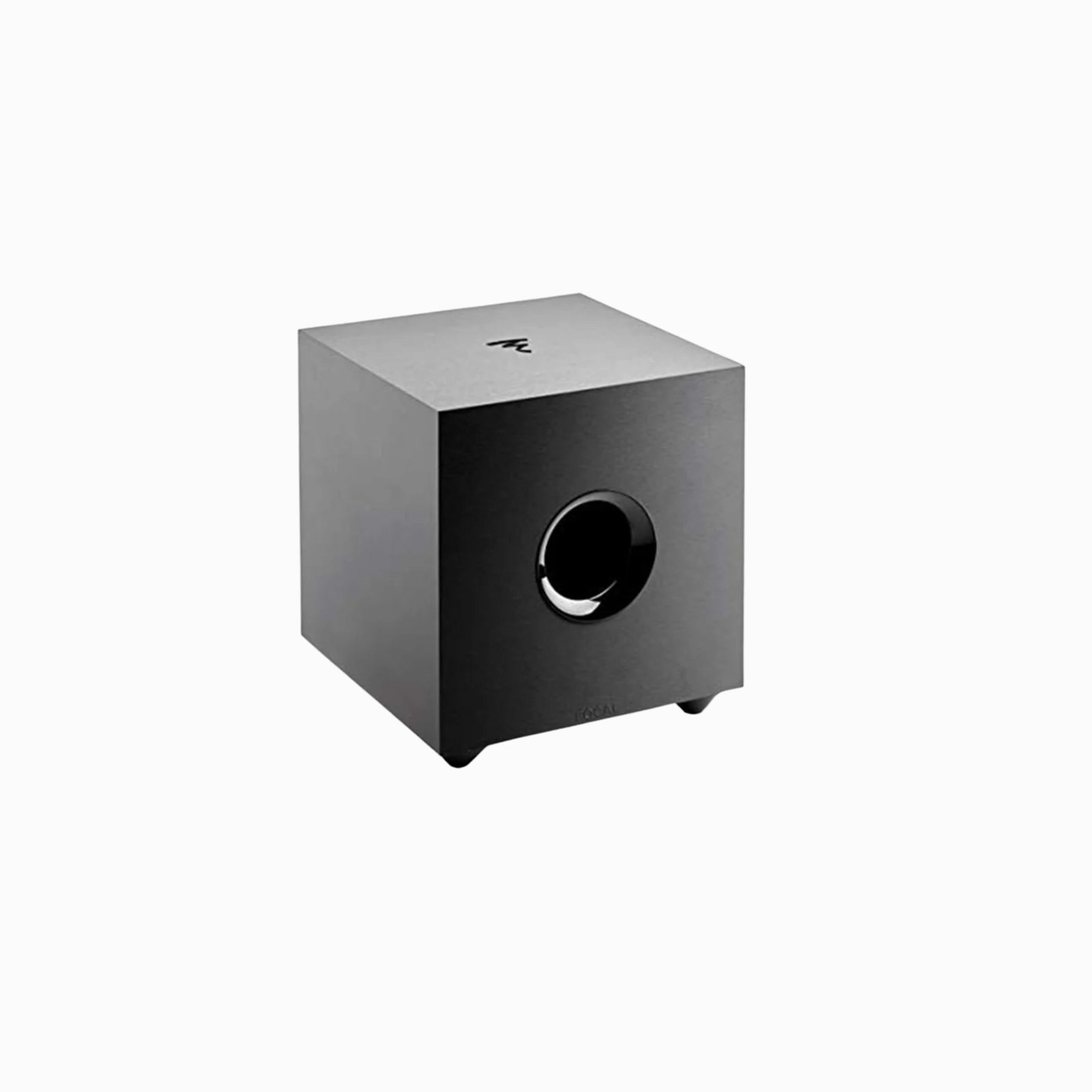

Cub Evo Powered Subwoofer

Features an 8-inch bass driver with a 200-watt Class-D amplifier.
Deep and punchy bass reaching down to approximately 35 Hz.
Compact yet powerful design suitable for cinema-style low-frequency effects.

High Sensitivity and Power Handling

Satellites have a sensitivity of around 90 dB for efficient use with AV receivers.
Compatible with a wide power range from standard home AVRs.

Modern, Stylish Design

Glossy, compact enclosures that blend easily into any room decor.
Wall-mountable and easy placement options.

Ideal for Home Cinema

Designed specifically for immersive surround sound in small to medium-sized rooms.
Well-balanced performance across movies, TV, gaming, and music playback.

Description

Focal SIB EVO 5.1.2 Home Theatre System. Enjoy Atmos sound effects worthy of cinemas, and created by Dolby, when watching your favourite films at home. Your films will take on a completely new dimension! Although it hasn’t quite made its way into every living room, rapidly on the increase, this system distinguishes itself by offering sound effects on a vertical plane, reflected off the ceiling. This gives the spectator the impression of being plunged into an ultra-realistic 3D universe! The strict minimum for Dolby Atmos^® is a 5.1.2 system, and Focal wanted to integrate this technology into the new generation of Sib & Co loudspeakers, the iconic Home Cinema range launched in 2002.

The 5.1.2 pack is composed of two loudspeakers equipped with an additional speaker driver on the top featuring Dolby Atmos^® technology. This new-generation “enabled loudspeaker” was designed to reproduce both horizontal and vertical waves (towards the ceiling). The major innovation of this technology lies in the reflection of sound waves off the ceiling towards the listener using an extra speaker driver on top of the loudspeaker. Get ready to live a completely new audio experience worthy of cinemas! This pack is ideal for rooms measuring 100ft2 to 540ft2 (10 to 50m²), and it will blend in perfectly with your interior, giving it a very stylish touch.

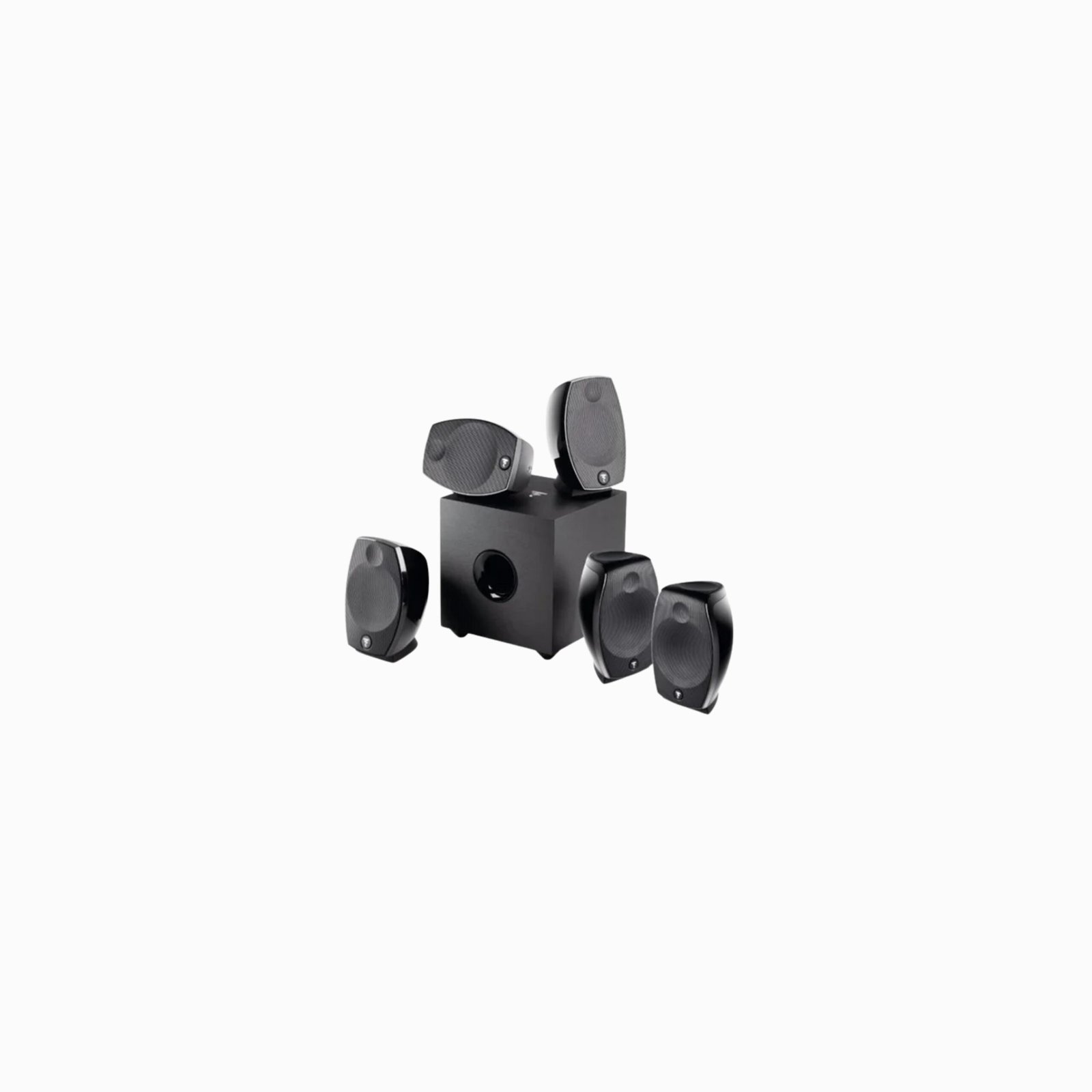

Package includes:

3 Nos Focal SIB Evo Satellites
2 Nos Focal SIB Evo Dolby Atmos® Loudspeakers
1 No Focal CUB Evo Subwoofer

Key Features:

Unrivalled power in its category
Optimal design for advanced integration
Integrated Dolby Atmos® technology for 3D sound effects
Transform your Home Cinema system without changing your loudspeakers
Powerful 200W Class-D amplifier
Exclusive streamlined port
Large 81/4″ (21cm) speaker driver
Acoustic accuracy, whether for Home Cinema or Hi-Fi
Optional Hip Evo stand

Speakers	SIB Evo Satellites
Type of Speaker	Two-way compact bass-reflex loudspeaker
Speakers	5″ (13cm) Polyflex woofer 3/4″ (19mm) soft dome tweeter
Frequency response (+/-3dB)	70Hz to 25kHz
Low frequençy point (-6dB)	66Hz
Sensibility (2.83V/1m)	90dB
Nominal Impedance	6 Ohms
Crossover Frequency	3.5kHz
Recommended Amplifier Power	25 – 200W
Dimensions (H x W x D)	252 x 162 x 162 mm
Weight (unit)	4lbs (1.8kg)

Speakers	SIB Evo Dolby Atmos Loudspeakers
	Front Channel	Atmos Channel
Type	Two-way bass-reflex loudspeaker	Fullrange sealed loudspeaker
Speakers	5″ (13cm) Polyflex woofer 3/4″ (19mm) soft dome tweeter	4″ (10cm) full-range speaker
Frequency response (+/-3dB)	65Hz to 25KHz	90Hz to 20KHz
Low frequençy point (-6dB)	60Hz	75Hz
Sensibility (2.83V/1m)	90dB	90dB
Nominal Impedance	6 Ohms	6 Ohms
Crossover Frequency	3.5kHz
Recommended Amplifier Power	25 – 200W
Dimensions (H x W x D)	295 x 195 x 190mm
Weight (unit)	7lbs (3.25 kg)

Subwoofer	CUB Evo Subwoofer
Type	Active bass-reflex subwoofer
Speaker	81/4″ (21cm) Polyflex woofer
Frequency response (+/-3dB)	35Hz – 150Hz
Cutoff frequency (-6dB)	30Hz
RCA input	Right, left LFE
Cut-off frequency	3.5kHz
Phase adjustment	Phase inverter 0° / 180°
Amplifier Power	200W Class-D amplifier
Power Mode	On / Autopower (0.5W)
Dimensions (H x W x D)	305 x 282 x 299mm
Weight (unit)	17.5lbs (8kg)
