Key Features

Design & Build

Premium 2-way in-ceiling speaker designed for high-quality distributed audio and home theater applications
Low-profile, paintable grille that blends seamlessly into ceilings
Sturdy construction engineered for long-term reliability

Driver Configuration

Dedicated tweeter for clear, detailed high frequencies
Woofer optimized for strong midrange and controlled bass response
Precisely tuned crossover network for smooth integration between drivers

Sound Performance

Balanced and natural frequency response suitable for music and movies
Clear vocals and crisp highs with solid midrange presence
Designed to fill rooms with even, immersive sound
Consistent performance across the listening area

Installation & Flexibility

Easy mounting with secure clamps for quick installation
Designed for in-ceiling placement in homes, offices, or commercial spaces
Can be used individually or as part of a multi-speaker array

Connectivity

Standard speaker terminals for secure connection with speaker cables
Compatible with most amplifiers and AV receivers

Applications

Ideal for whole-home audio, multi-room music systems, or in-ceiling surround channels
Great choice for discreet, high-performance in-ceiling audio

Description

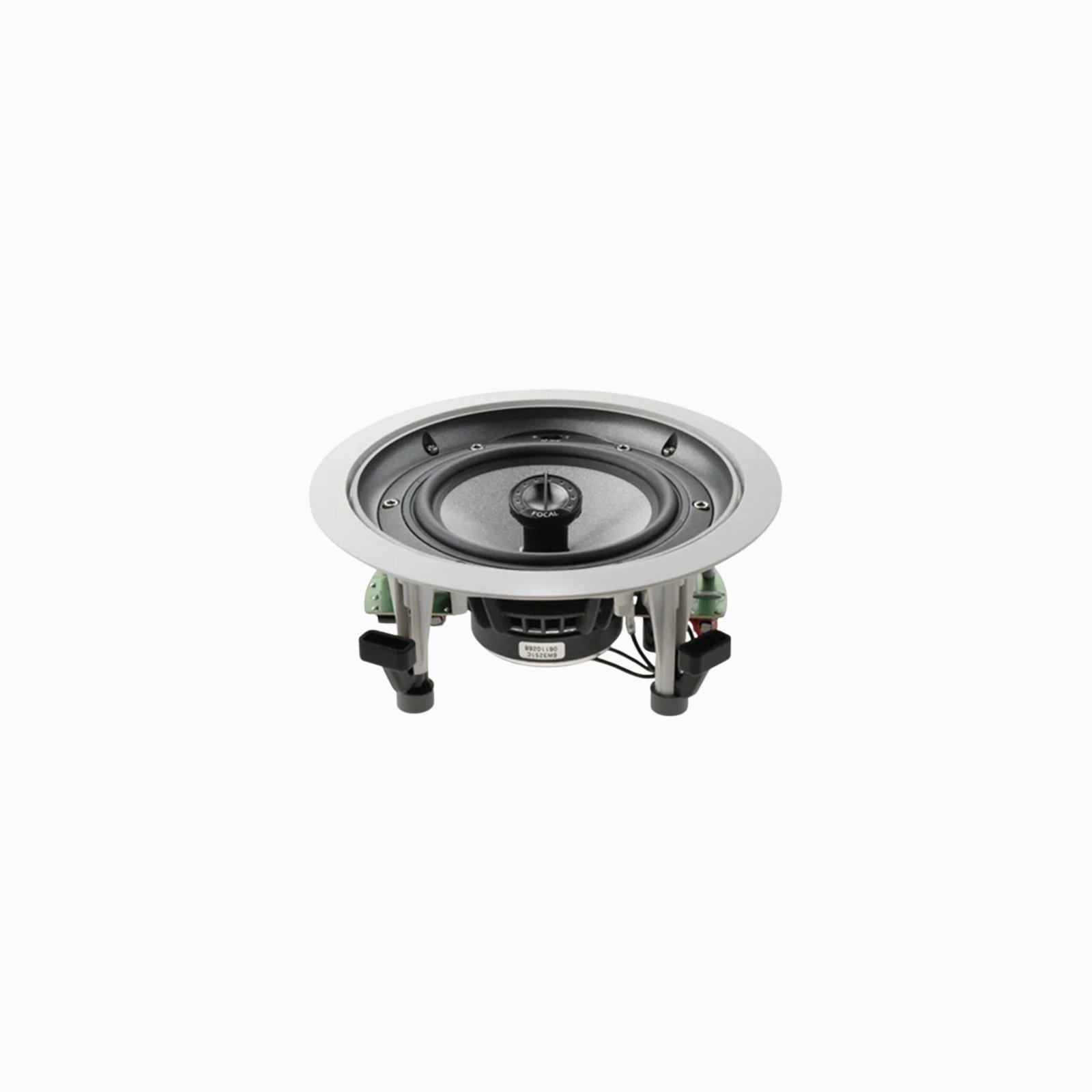

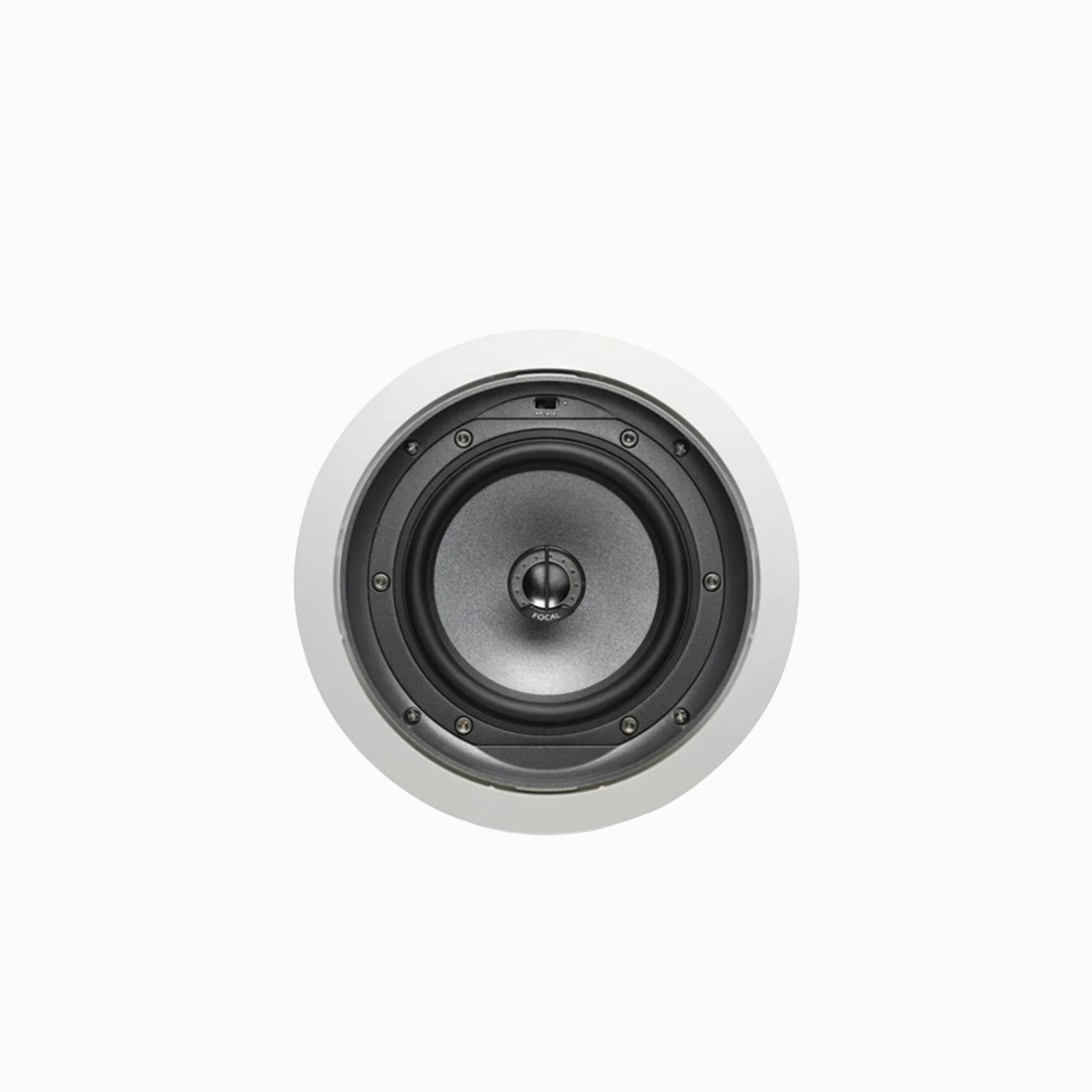

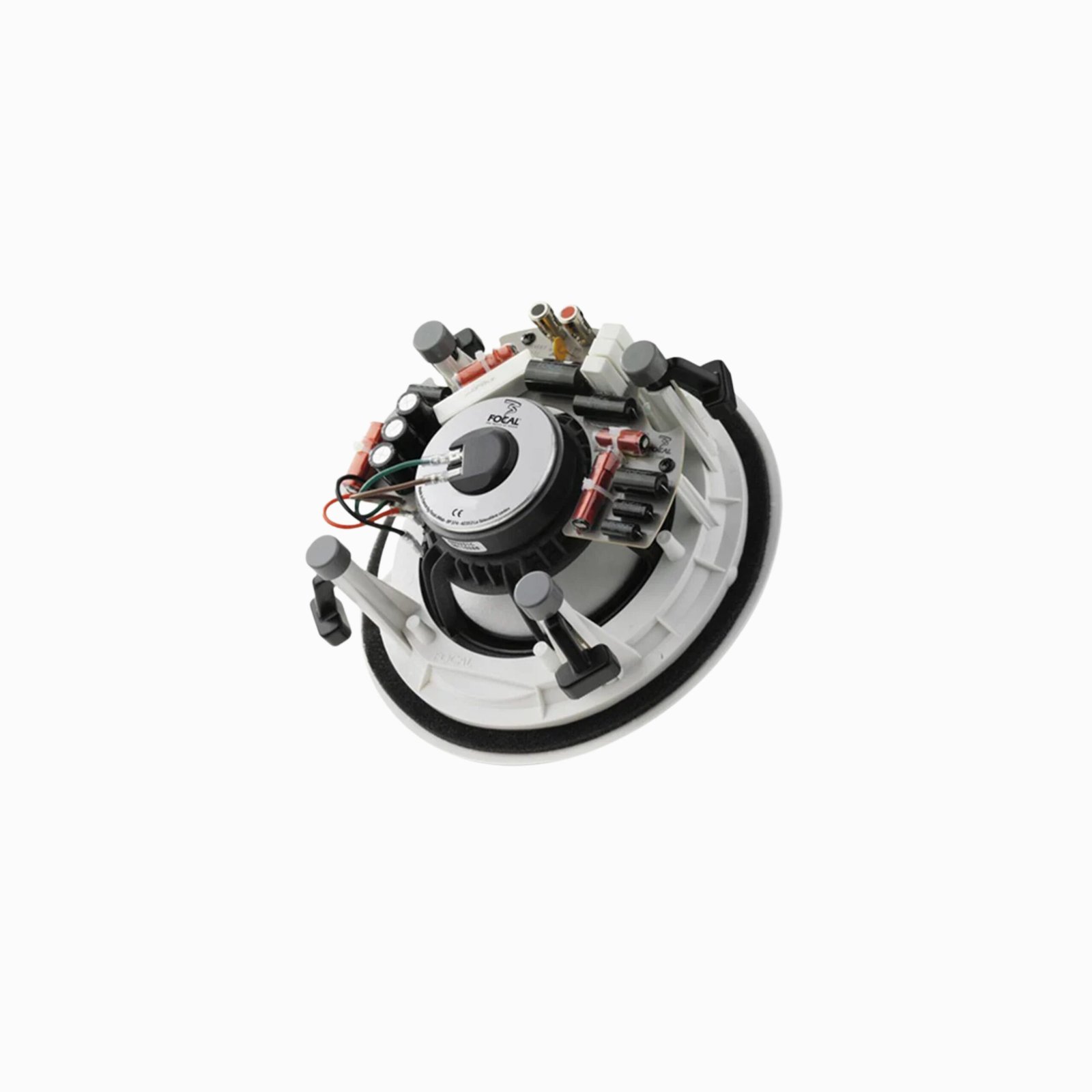

Focal IC-1002 -2-Way In-Ceiling Speaker

Discover Electra IC1002, a high-end loudspeaker equipped with an exclusive coaxial speaker driver. Thanks to its ‘W’ cone and its Al/Mg tweeter, it guarantees great musicality and maximal power handling. It is ideal as a main high-quality audio loudspeaker or as a high-end surround loudspeaker. The Electra range embodies technological excellence at the service of the absolute finest sound: Focal’s core values in just a few words. This product offer is a truly compact and invisible alternative for a traditional audio system for your home. The sophisticated design and exceptional performances of this line enables it to compete with classic high-end loudspeakers. A very high-fidelity sound in an In-Ceiling version. A remarkable sobriety and an exceptional sound: Focal’s core values in just a few words. On your way to emotion.

Excellent power handling and high efficiency
Easy and quick installation

Optimal sound dispersion

Aluminum/magnesium Inverted Dome Tweeter

Magnesium possesses great damping qualities, Aluminum great rigidity and the two in alloy can greatly reduce distortion. The impulse response is incredibly rapid yet benefits from a very short settlement time and excellent damping. This configuration produces a precise, analytical sound and an extremely deep soundstage. The frequency response curve linearity is also remarkable in that it ensures perfect neutrality. When listening, the treble frequencies are dynamic and detailed.

W Cone

Optimized Acoustic Performance

The “W” composite sandwich cone permits total optimization of the frequency response curve, thanks to the total control of three key parameters: lightness, rigidity and damping. These unique characteristics of lightness and rigidity provide control of the signal transmission speed inside the material.

Specifications

Sensitivity ( 2.83V / 1m )	88 dB
Nominal impedance	8 Ohm
Frequency response ( ±3 dB )	60 Hz – 30.5 kHz
Crossover frequency	600 Hz
Recommended amplifier power	25 watts – 150 watt
Tweeter adjustment	-3 dB / 0 dB / +3 dB
Drivers	6^1/2” (16.5 cm) “W” mid bass 1^1/4” (27 mm) Al / Mg inverted dome tweeter
Frame size	with grille: Ø10 x 33/4” ( Ø253 x 96 mm )
Cut-out dimensions	Ø 811/16” ( 221 mm )
Depth from the wall	3^5/8” ( 92 mm )
Net weight	3^5/8” (92 mm)
