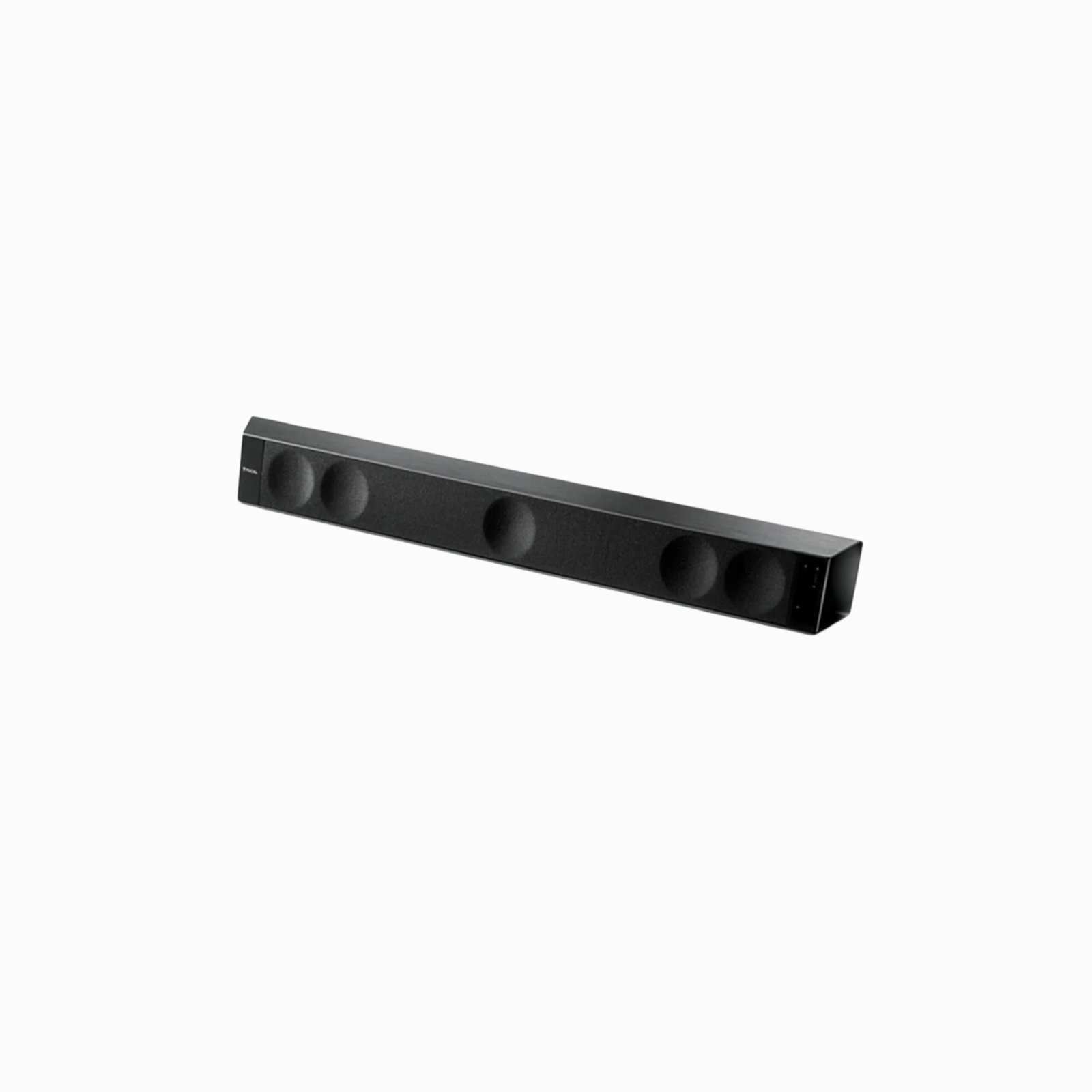

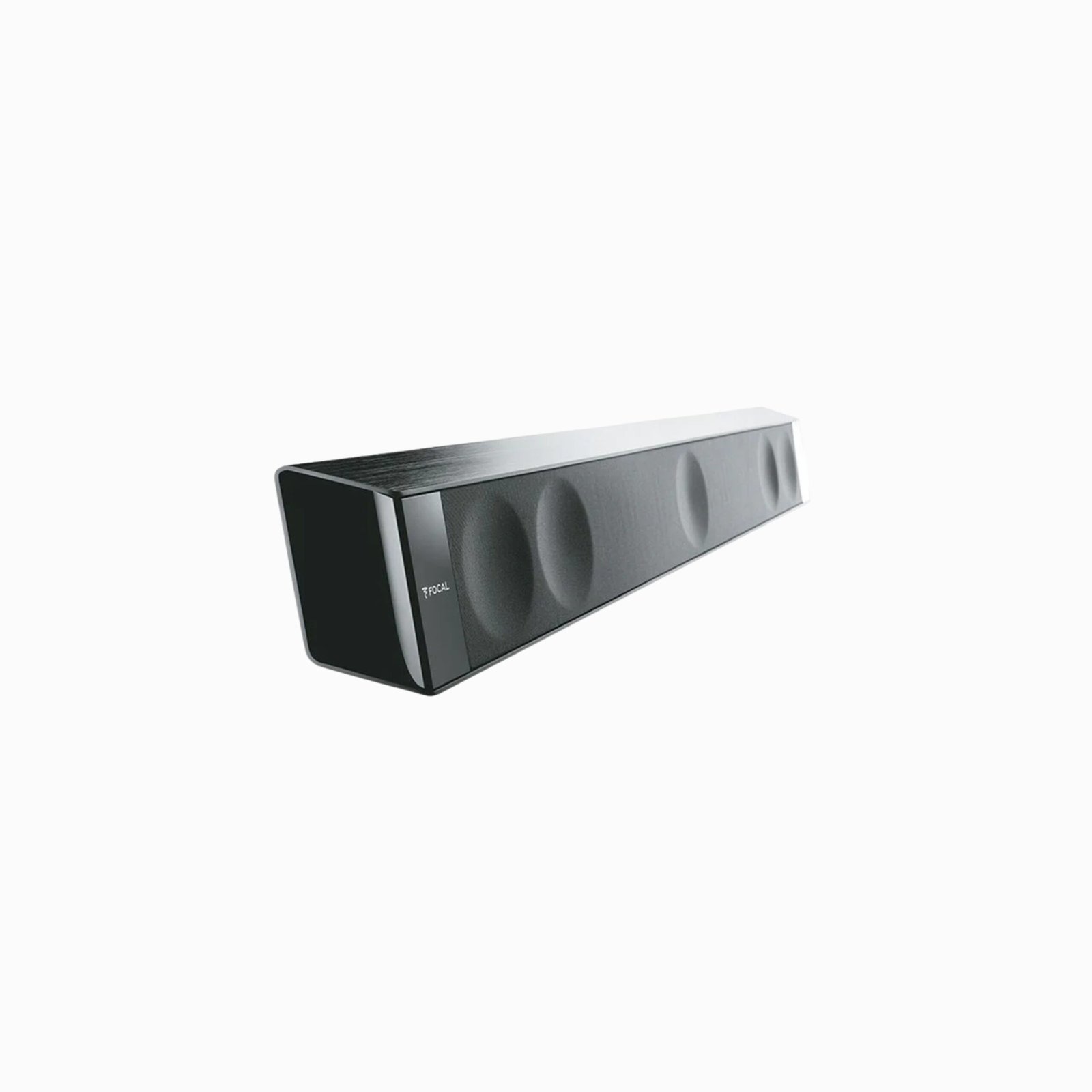

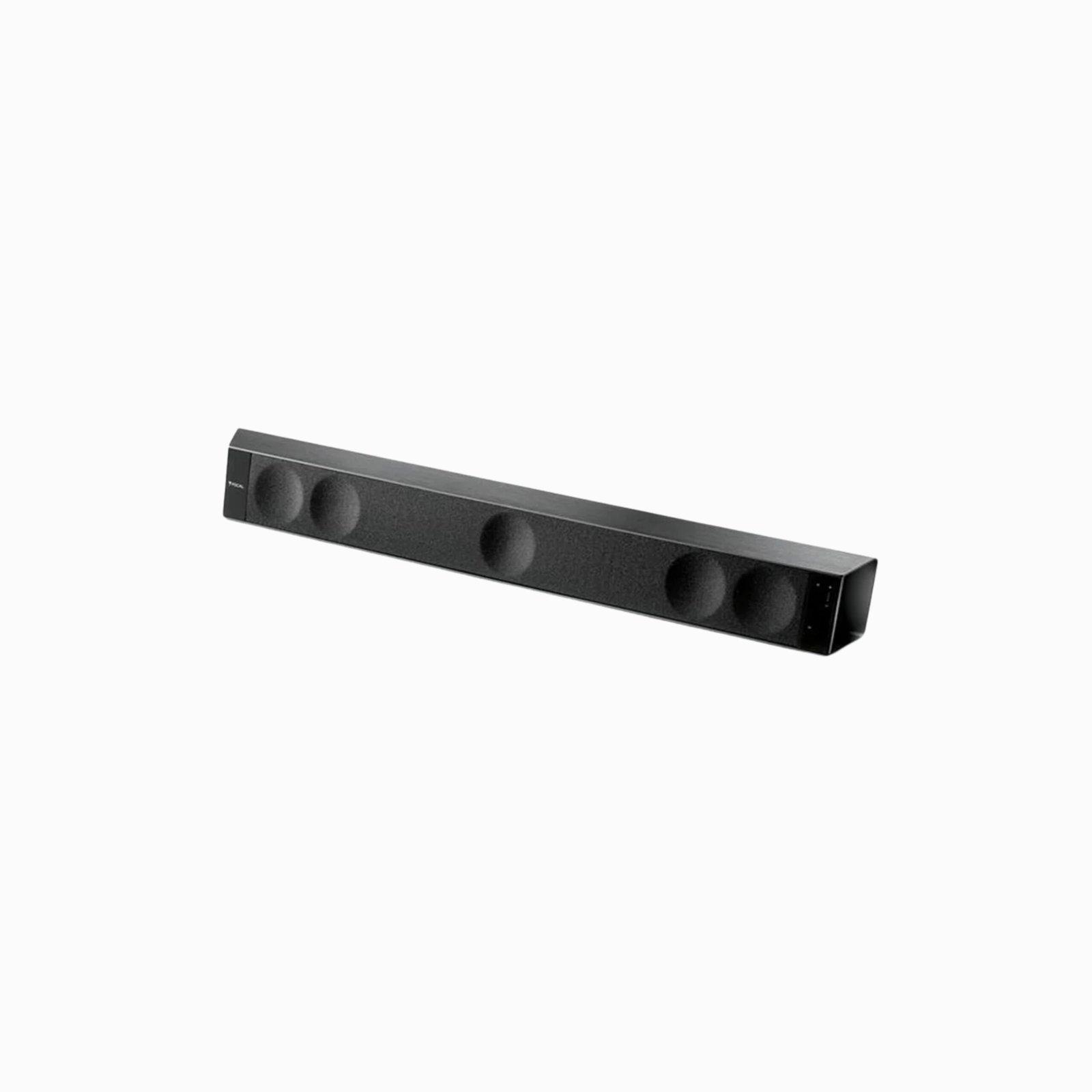

Focal Dimension Soundbar

Key Features

Sound & Performance

High-performance soundbar designed to deliver rich, detailed audio for movies, TV, and music
Multi-driver configuration with dedicated woofer and tweeter units for clear mids, crisp highs, and controlled bass
Built-in amplification optimized for balanced and dynamic sound reproduction
Wide sound dispersion for enhanced stereo imaging and immersive listening

Connectivity

HDMI ARC / eARC support for high-quality audio from compatible TVs
Optical and analog inputs for flexible source connectivity
USB input for playback from compatible media devices
Wireless Bluetooth streaming for easy connection with smartphones and tablets

Design & Integration

Slim, low-profile design that fits neatly under TVs or can be wall mounted
Premium finish that complements modern home entertainment systems
Integrated controls on the unit with remote control for easy operation

Enhanced Features

Built-in audio processing to improve dialogue clarity and sound balance
Automatic level adjustment for consistent audio volume across content types
Some models may include dedicated subwoofer output or built-in subwoofer drivers for stronger low-end performance

Use Cases

Ideal for enhancing TV audio with expanded soundstage and improved clarity
Suitable for movies, series, gaming, and music playback in living rooms and media rooms
Can act as the central front channel in a larger home theater setup

Description

TRUE 5.0 SYSTEM

Dimension is a soundbar with exceptional acoustic qualities perfectly adapted to flat screens. R&D teams offer you a soundbar capable of restoring a quality sound with clear and natural-sounding dialogues thanks to five ultra-flat patented speaker drivers. Dimension is the response to the desire of flat screen’s owners for powerful sound in a discreet and perfectly integrated audio system. Finally offer to your images the sound and emotions they deserve!

When a traditional soundbar depends on the room spatialisation, Dimension offers an immersive 5.1 sound with realistic and precise sound effects not only in the high frequencies.

With a soundstage of 4m and a maximum power of 450W, Dimension performances are equivalent to a very good high-fidelity audio system and are perfect for rooms even measuring over 50m2.

PERFORMANCE

HEAR BETTER, SEE BETTER

AN EASIER INTEGRATION

The small thickness (65mm) and the compactness of Dimension allow it to perfectly fit your room whatever the configuration of your acoustic installation. It is easy to install on a wall or a TV cabinet. Associated with its subwoofer, Dimension and Dimension Sub then become one making a perfect sound base for your flat screen. Dimension can also be combined with a subwoofer such as Sub Air, Cub3 or Dôme Subwoofer.

INNOVATIVE TECHNOLOGY

Dimension has a wide dynamic range thanks to its 26mm five ultra-flat patented speaker drivers for an optimal coherence. High frequencies are clearly defined and coherent because the center of the speaker drivers has the shape of an inverted dome. Enjoy clear and natural-sounding dialogues!

The soundbar also benefits from incredibly deep bass, even without a subwoofer. The two pairs of lateral speaker drivers are used for reproducing the bass, bass-reflex loading with two ports on either side of the soundbar.

Finally, no vibrations will interfere with the sound, thanks to the exceptional rigidity of Dimension’s brushed aluminium mono bloc chassis.

PLUG & PLAY

Dimension is easy to use and install: in a few minutes only, set it up once through the presets available. Enjoy the potential of HDMI™ connectivity and CEC command to control your entire home-cinema system using a single remote control.

The use is also simple and intuitive: a tactile and discreet interface, which can be turned on in just a wave of the hand, will enable you to adjust the volume and activate the « Night » mode.

Keeping with the times, Dimension can finally be connected to a smartphone or a tablet for listening to your audio and video file,s adding the optional Bluetooth® aptX® Universal Wireless Receiver.

UNIVERSAL WIRELESS RECEIVER

The Universal Wireless Receiver enables wireless connection of all your Bluetooth-compatible devices to your amplifier or multimedia system.

More freedom for your mobile devices without impairing audio reproduction quality. The apt-X codec achieves a 4:1 compression ratio, allowing for near-CD quality listening.

Key points

Wireless transmission with near-CD quality
Compatible with all smartphones and tablet PCs equipped with Bluetooth technology
No dongle required for the mobile device
Easy to install and use
Audio-visual use: low latency
A range of approximately 10 meters without obstacles
RCA extension cable supplied – compatible with all amplifiers equipped with stereo RCA input
Compatible with the XS Book Music System

Type	5-channel sound bar
Speaker drivers	5 ultra-flat speaker-drivers made of paper cones – 315/16″ (10cm
Integrated amplification	6-channel 450 Watts
Frequency response (+/- 6 dB) Soundbar alone	50 Hz – 25 kHz
Inputs	2 x HDMI™ (OUT/IN) Digital Optical Toslink Analogue 3.5 mm Jack
Subwoofer outputs	Dimension Sub Out: Powered output dedicated to Dimension Sub Sub Line Out: Low-Level output compatible with all amplified subwoofers
Modes	HDMI ARC™ (Audio Return Channel) HDMI CEC™ (Consumer Electronics Control) Auto Power on HDMI™ inputs Adjustable bass Adjustable Sound and Picture synchronisation Night mode Optimum acoustic integration through settings on the rear panel: – Soundbar positioning – Room acoustics – Sweet spot
Soundbar on furniture (Width x Depth x Height)	45 1/4″ x 4 1/2″x 4 1/2″ (115.5 x 11.5 x 11.5 cm)
Wall-mounted Soundbar (Width x Depth x Height)	45 1/4″x 2 9/16˝ x 5 15/16″ (115.5 x 6.5 x 14.7 cm)
Weight	12lbs (5,5kg)
Universal Wireless Receiver	Range:- 10m (line of sight) Codec:- aptX Compression Ratio:- 4:1 Resolution and Sampling Rate:- 16 bits – 44.1 kHz Frequency response :- 10Hz to 22kHz Algorithmic Delay :- <1,89ms @ Fs 48KHz Radio transmission power :- 2,5mW (4dBm) Radio transmission Frequency Range :- 2,4GHz (Bandes ISM) Dimensions :- 60x56x14mm Weight:- 0.044lb (22g)
