Emotiva XPA-11 Gen3 – 11 Channel Audiophile Power Amplifier

Key Features

11-Channel High-Performance Power Amplifier
Designed to drive large home theatre systems with multiple speakers while maintaining clarity, dynamics, and control.
Modular Gen3 Amplifier Architecture
Fully modular design allows each channel to operate independently for consistent performance and efficient power distribution.
High-Current Class AB Amplification
Delivers clean, powerful output with low distortion and excellent musicality across all channels.
Massive Shared Power Supply
Oversized toroidal transformer with high energy storage ensures strong transient response and stable power delivery during demanding scenes.
Balanced and Unbalanced Inputs
Features both XLR and RCA inputs for flexible integration with AV processors and preamplifiers.

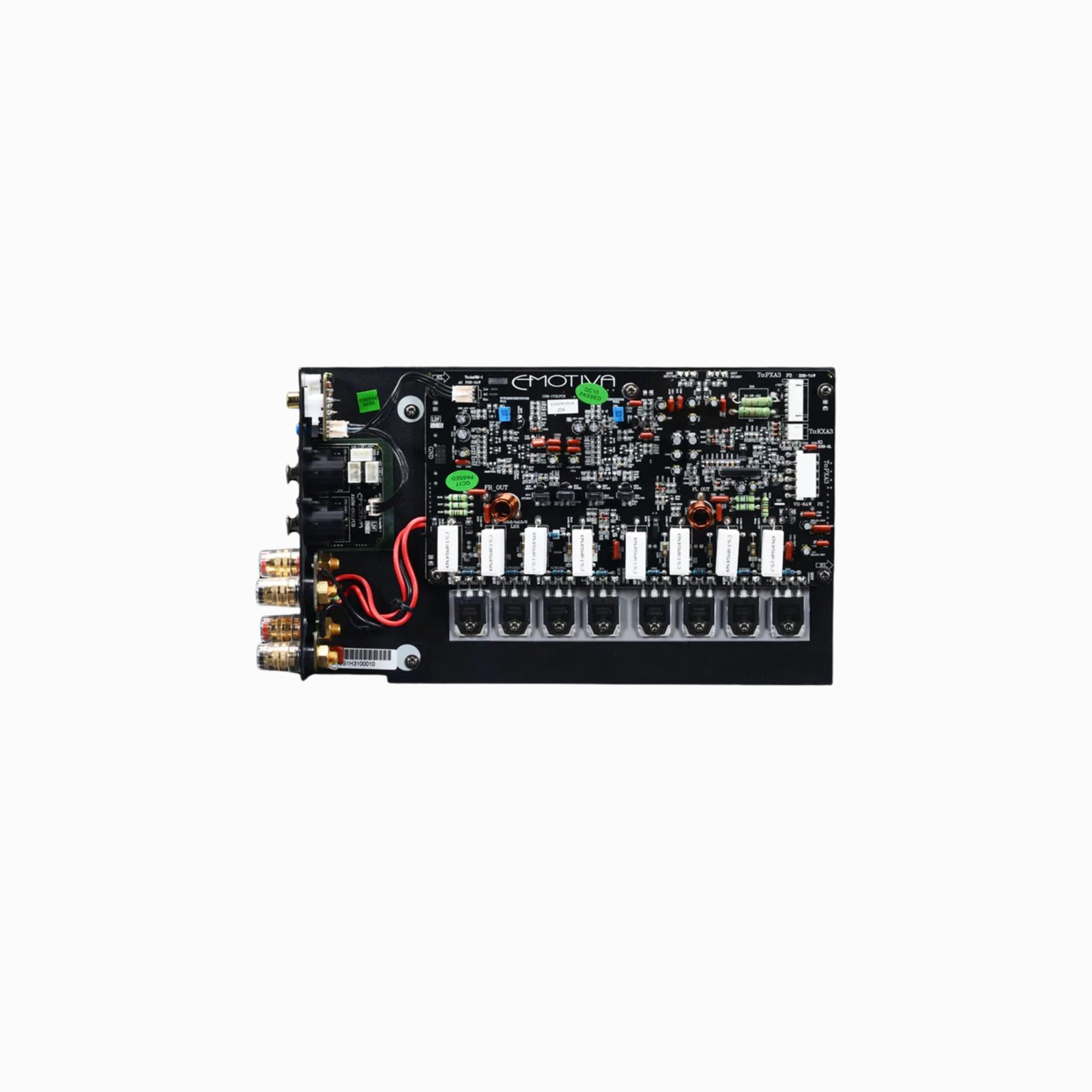

Independent Channel Modules
Each channel has its own amplifier module, reducing crosstalk and improving channel separation.
Stable with Low-Impedance Speakers
Capable of driving demanding speaker loads while maintaining control and dynamic precision.
Advanced Protection Circuits
Comprehensive protection against overheating, short circuits, and overload ensures long-term reliability.
Efficient Thermal Management
Large heatsinks and intelligent design maintain optimal operating temperatures even during extended high-output use.
Heavy-Duty Steel Chassis Construction
Rigid enclosure minimises vibration and electromagnetic interference for improved sonic purity.
Ideal for Reference Home Theatre Systems
Engineered for immersive multi-channel audio setups requiring audiophile-grade power and performance.

Description

Power Output	300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven. 550 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven. 300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven. 490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.
Power Bandwidth (at rated power; 4 Ohm – 8 Ohm load)	20 Hz to 20 kHz (+ / – 0.1 dB).
Broad Band Frequency Response	5 Hz to 80 kHz +0/-2 dB.
THD + noise	< 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms.
Signal to Noise Ratio (8 Ohm load)	> 115 dB; ref FTC rated power; unbalanced input (A-weighted). > 86 dB; ref 1 watt; unbalanced input (A-weighted).
Minimum Recommended Load Impedance (per channel)	4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads).
Damping Factor (8 Ohm load)	> 500.
Input Sensitivity (for rated power; 8 Ohm load)	1.5 V.
Gain	29 dB.
Maximum Power Consumption	2,600 watts. Note: The values shown refer to the amount of power the amplifier would consume while playing test tones continuously, on all channels, at full power, into a load bank. Therefore, they are not at all characteristic of what you would expect when playing music or the soundtrack from a movie. Normal audio signals are dynamic, so the amount of power they require from second to second varies widely, and the average is far lower than this. With normal content, even playing very loudly, one of our amplifiers will consume far less power than indicated in the chart, so these values should not be considered to be a circuit requirement for normal operation.
Input Impedance	33 kOhms (balanced). 23.5 kOhms (unbalanced).

Power Output	65 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven. 100 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven. 65 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven. 100 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.
Power Bandwidth (at rated power; 4 Ohm – 8 Ohm load)	20 Hz to 20 kHz (+ / – 0.1 dB).
Broad Band Frequency Response	50 Hz to 80 kHz +0/-1.5 dB.
THD + noise	< 0.02%; at 60 watts RMS; 1 kHz; 8 Ohms
Signal to Noise Ratio (8 Ohm load)	> 105 dB; ref FTC rated power; unbalanced input (A-weighted). > 85 dB; ref 1 watt; unbalanced input (A-weighted).
Minimum Recommended Load Impedance (per channel)	4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads).
Damping Factor (8 Ohm load)	> 500.
Input Sensitivity (for rated power; 8 Ohm load)	0.8 V (800 mV).
Gain	29 dB.
Input Impedance	33 kOhms (balanced). 23.5 kOhms (unbalanced).

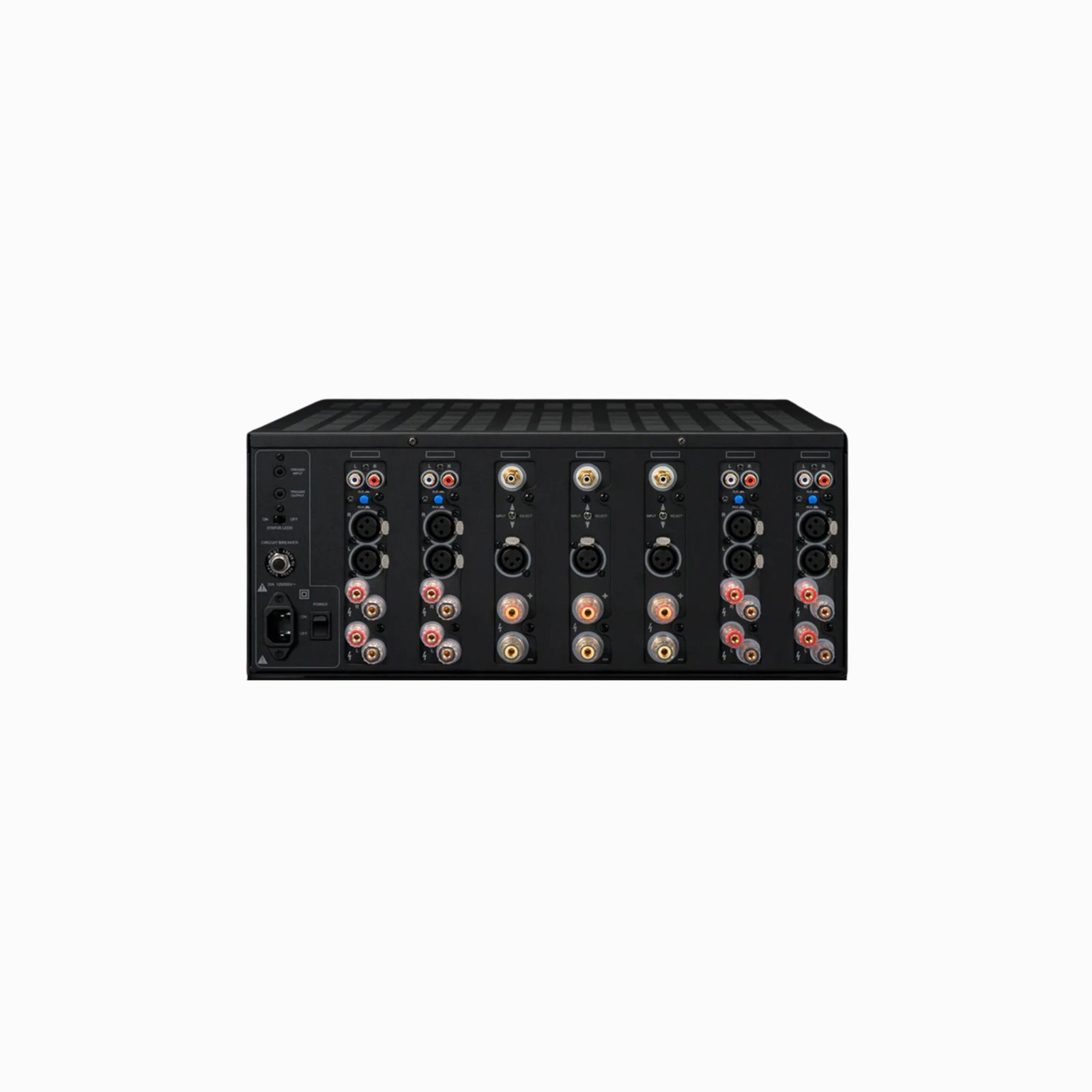

Input Connections	(High-Powered Single Channel Modules): Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable.
Input Connections (Stereo Modules)	2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable.
Speaker Output Connections	Audiophile-grade, gold-plated, 5-way binding posts.
Trigger	Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required. Trigger Output: 12 VDC; can drive any load up to 120 mA.

Power Requirements	Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected).

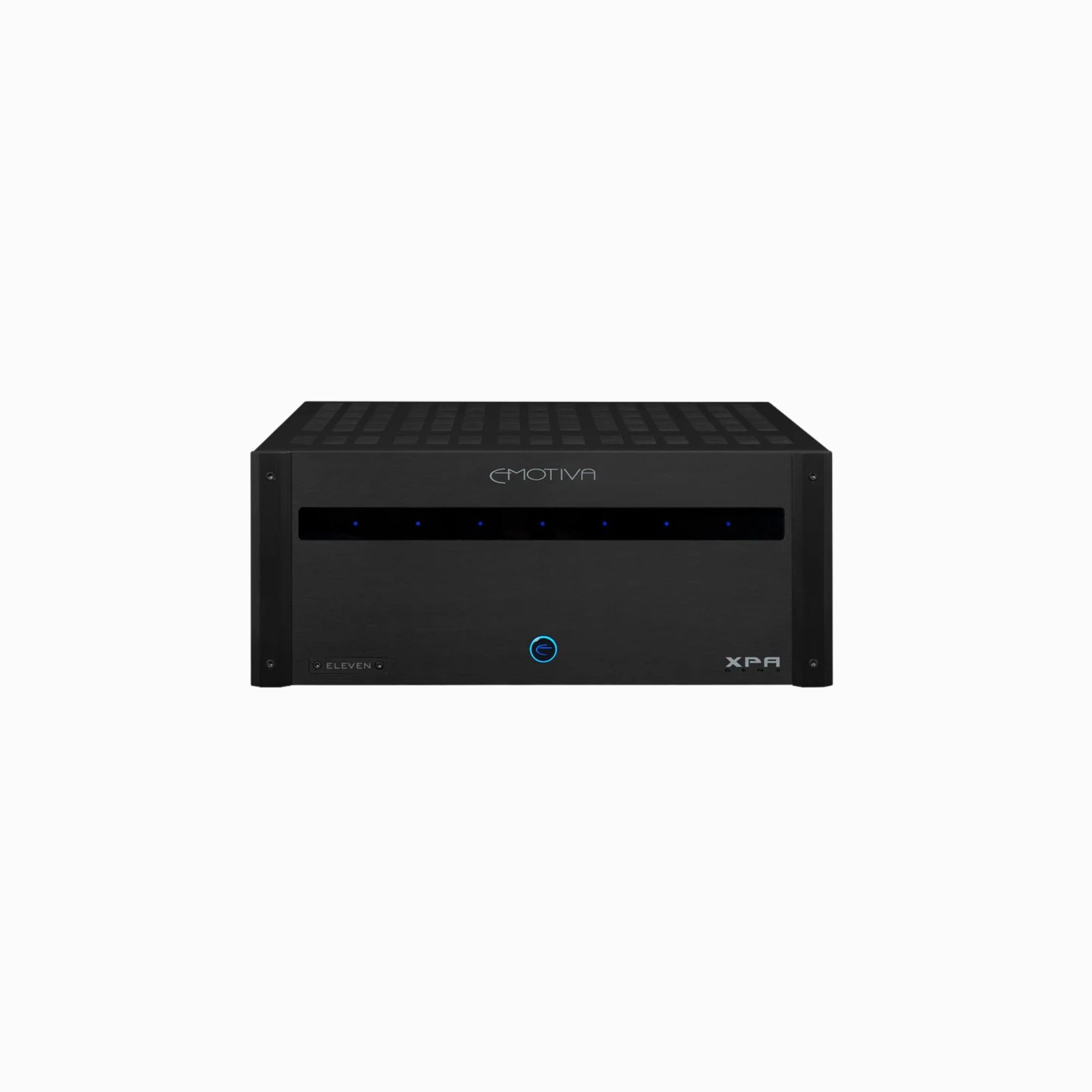

Standby	push button (halo ring changes color to indicate Standby or On).
Status LEDs	one per channel; blue. Status LEDs change to red to indicate a fault condition.

AC Power switch	rocker switch (switches the AC main power).
Status LEDs switch	disables front panel Status LEDs and dims Standby button halo.
Input selector switches (one per channel)	metal toggle switches; select between balanced and unbalanced inputs.
Circuit Breaker	press button to reset it.

Protection	The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.

Dimensions	17” wide x 8” high x 19” deep (unboxed; including feet). 17” wide x 7” high x 19” deep (unboxed; without feet). 24-1/2” wide x 12” high x 24-3/4” deep (boxed).
Weight	53 lbs (unboxed). 58 lbs (boxed).
