Description
The Emotiva BasX A2 is the ideal amplifier to serve as the foundation of a great-sounding stereo system, to power the front main speakers on a surround sound system, or to upgrade the front left and right channels of your favorite surround sound receiver.
Warranty:
2-year manufacturer’s warranty
Features:
- Audiophile quality Class A/B output stage.
- Linear power supply with a hefty toroidal transformer and plenty of filtering.
- Designed to sound great with every speaker and all types of music.
- Perfect for a stereo system or to power or upgrade front main channels.
SOUND QUALITY FIRST
- Designed first and foremost to sound great in all types of audio systems with all types of music.
- Great sounding Class A/B output stage ensures smooth, detailed sound and incredibly natural imaging, without a trace of harshness or strain.
- Low noise, wide bandwidth design, and a highly optimized input stage let you hear everything your high-definition sources have to offer.
- Totally stable with real-world speakers in real systems; not just on a test bench.
SOLID ENGINEERING AND QUALITY CONSTRUCTION
- A heavy-duty linear power supply with an oversized toroidal power transformer delivers plenty of current to drive even difficult speakers.
- Top quality parts and construction throughout deliver years of reliable, trouble-free service.
- Heavy steel chassis with milled aluminum faceplate offers strength and rugged good looks.
- Double-sided FR4 circuit boards, with plated-through holes, help optimize signal paths and minimize the need for point-to-point wiring.
FLEXIBLE SIGNAL CONNECTIONS AND POWER OPTIONS

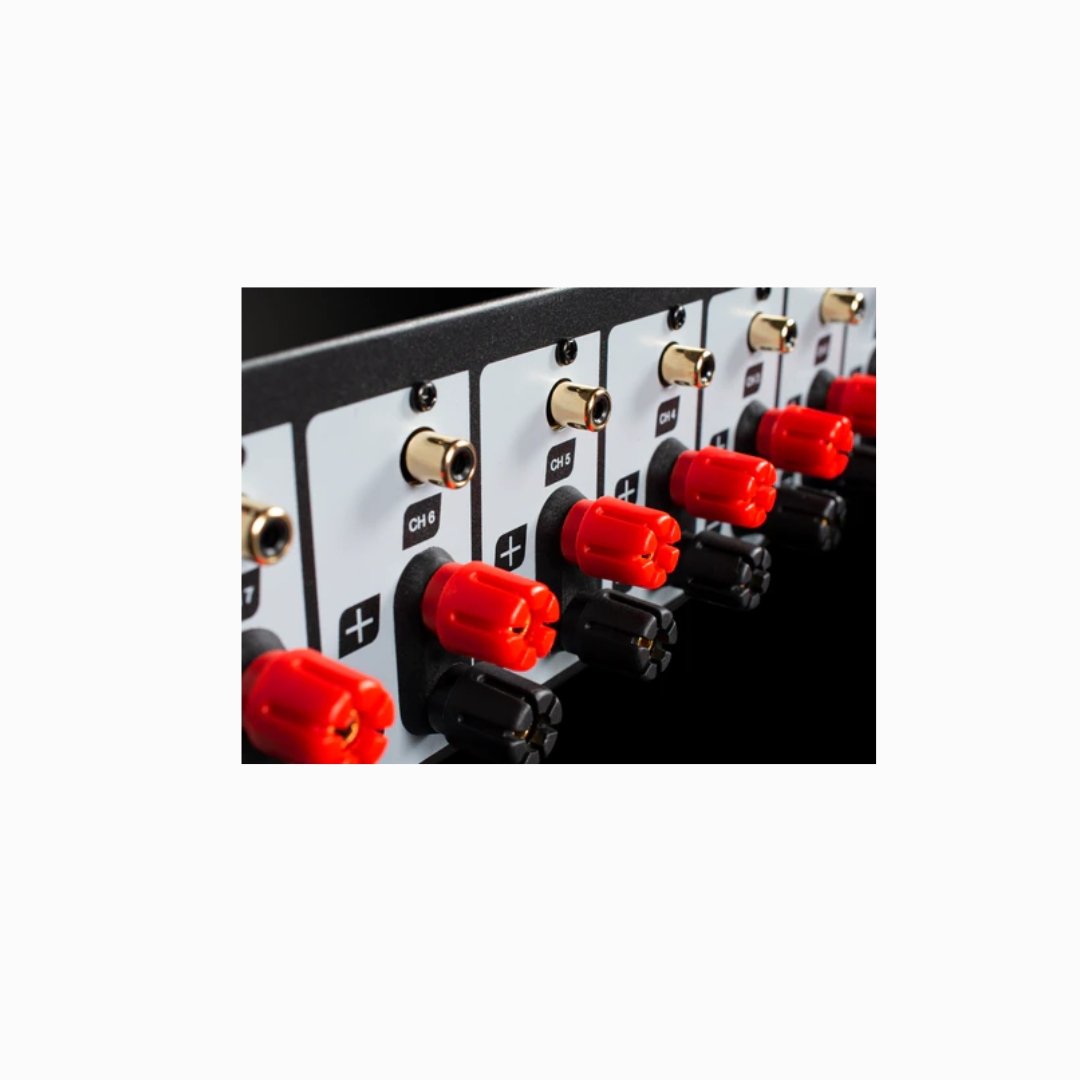

- Unbalanced inputs via industry-standard RCA connectors accept all standard unbalanced interconnects.
- Heavy-duty insulated five-way speaker binding posts allow you to use a wide range of speaker cables with bare wires, lugs, or banana plugs.
- Auto-On input sensing
- Remote trigger input and output allow the BasX A2 to control and be controlled by other trigger-enabled equipment.
- The BasX A2 is designed to operate on either 115 VAC or 230 VAC at 50/60 Hz and will automatically detect and configure itself for the proper line voltage.
STYLISH NEW LOOK
- They redesigned the front panel to give the new BasX A2 a sleek, modern aesthetic that fits well with virtually any room décor.
STRONG YET SILENT SYSTEM PROTECTION
- Audiophile-grade fault protection is entirely transparent under normal listening conditions, yet protects the amp and your other equipment from virtually all common faults.
Technical Specifications:
| Power Output |
|
| Power Bandwidth (at rated power; 8 Ohm load): | 20 Hz to 20 kHz (+ / – 0.07 dB) |
| Broad Band Frequency Response | 10 Hz to 80 kHz +0/-1.8 dB |
| THD + noise | < 0.02% (A-weighted); ref-rated power |
| Signal to Noise Ratio (8 Ohm load) | > 112 dB; ref rated power; (A-weighted) |
| Minimum Recommended Load Impedance (per channel) | 4 Ohms |
| Damping Factor (8 Ohm load) | >500 |
| Power Requirements | 115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected) |
| Dimensions |
|
| Weight | 11.43Kg |
