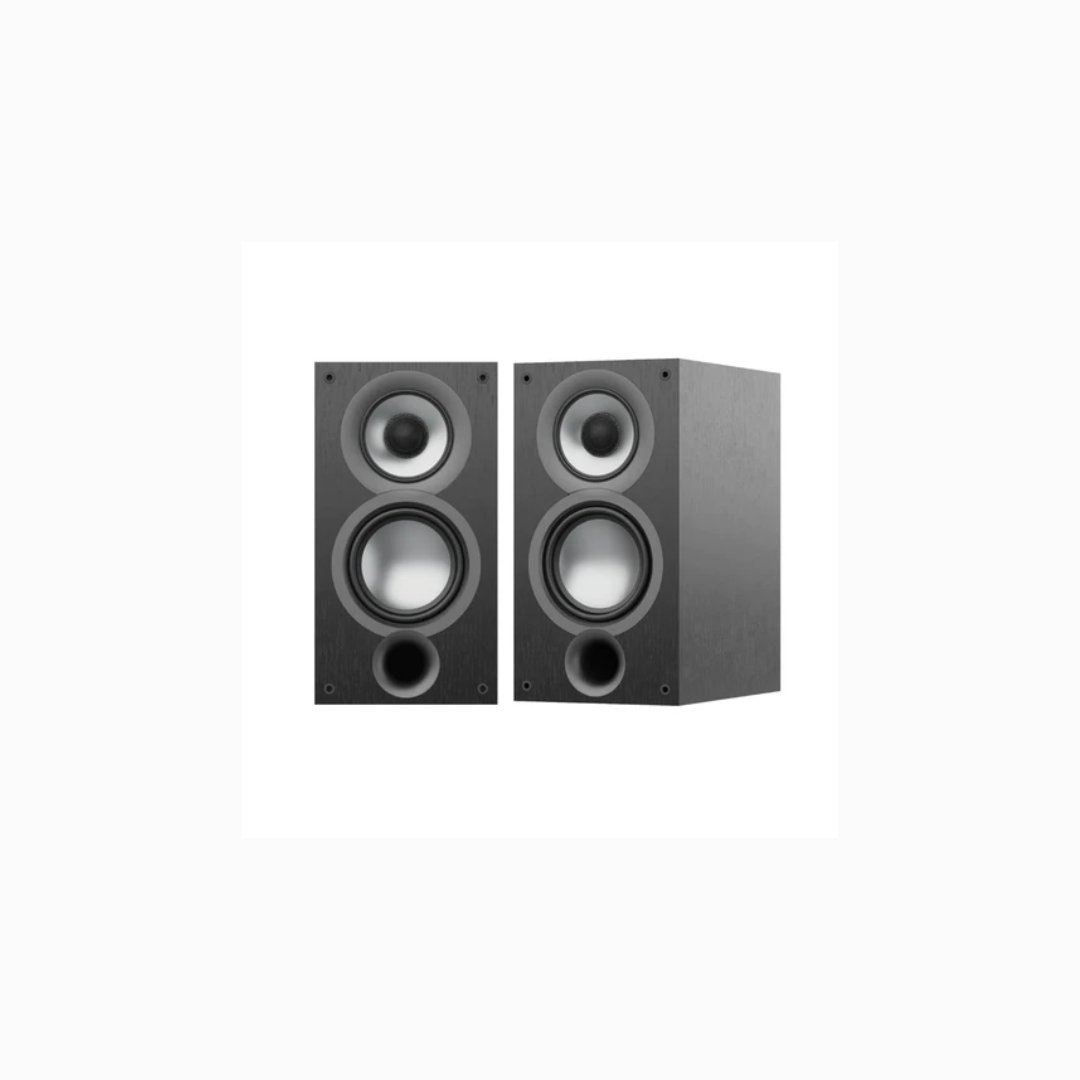

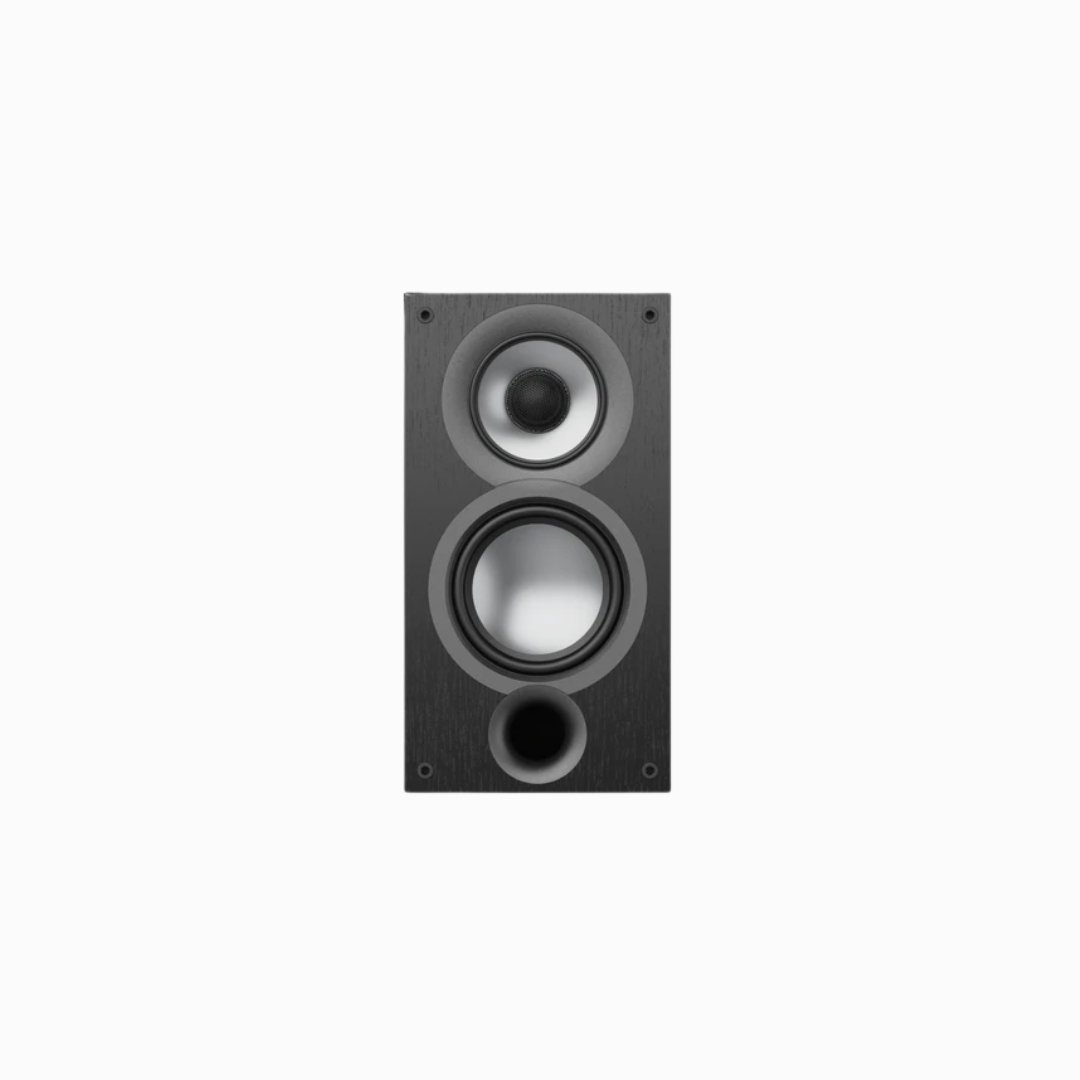

ELAC Uni-Fi 2.0 UB52 Bookshelf Speakers

The ELAC Uni-Fi 2.0 UB52 is a high-value, three-way bookshelf loudspeaker that brings advanced driver and cabinet engineering into a compact footprint. It features a concentric driver pairing—a 4″ aluminum mid-range with a 1″ soft-dome tweeter at its center—combined with a 5.25″ aluminum-cone woofer for rich bass dynamics and clear mid/high detail. Audio Advice+2cdn.elac.com+2 Its cabinet is engineered with thick-braced MDF walls and a front-firing flared port to allow flexible placement near walls, and the enclosure is finished in a stylish black-ash vinyl. cdn.elac.com+1 In terms of performance, it’s specified to deliver a frequency response from approximately 46 Hz to 35 kHz, with a sensitivity of 85 dB at 2.83 V/1 m and a nominal impedance of 6 Ω—making it compatible with a wide range of quality amplifiers. B&H Photo Video+1 Overall, the UB52 is a compelling choice for someone seeking high-fidelity sound in a compact design, whether for stereo music or as part of a front pair in a home-theatre setup.

Description

Space constraints should never compromise great sound. The Uni-Fi 2.0 UB52 is the perfect solution when space is at a premium, yet demand for audiophile sound is not negotiable. Using the same outstanding drivers and technology as the other models in the series ensures this compact, 3-way, bass-reflex monitor delivers a matched sonic signature.

Warranty:

3 years manufacturer’s warranty

Features:

40 to 140W Recommended Amplifier Power
3-Way Speaker Design
5.25″ Aluminum Cone Woofer
4″ Aluminum Cone Midrange
1″ Soft-Dome Concentric Tweeter
Front-Facing Flared Port
46 Hz to 35 kHz Frequency Range

3-Way Speaker Design
With separate tweeter, mid-range, and bass drivers, the Uni-Fi UB52 delivers clean bass without distorting vocals.

Newly Developed Concentric Driver
A new wide-surround tweeter enhances its low and high frequency extension, allowing for improved blending with the midrange driver. An entirely new mid-range design features a larger diameter voice coil, new aluminum cone profile, new low-profile surround, and an all-new neodymium magnet assembly.

New Single Piece Woofer
A newly developed single-piece aluminum dished cone results in improved stiffness. Combined with an oversized magnet, large diameter voice coil, and extended pole piece, these changes result in improved accuracy and bass dynamics.

Sophisticated 3-Way Crossover
An enhanced design improves response linearity, improves driver integration, and delivers a true 6-ohm nominal impedance for compatibility with virtually all AV receivers.

Enhanced Bracing
Every Uni-Fi 2.0 enclosure is engineered with thick MDF outer walls and a luxurious black ash vinyl finish. Specially located internal bracing adds stiffness and strength to the cabinet’s outer walls, reducing the cabinet vibration that causes unwanted coloration.

Technical Specifications:

Speaker Configuration	3-Way
Power Handling	140 W Peak per Channel
Recommended Amplifier Power	40 to 140 W per Channel
Bi-Amp Capability	None
Drivers	1 x 5.25″ / 133.35 mm Aluminum Cone Woofer (per Speaker) 1 x 4″ / 101.6 mm Aluminum Cone Midrange (per Speaker) 1 x 1″ / 25.4 mm Soft-Dome Tweeter (per Speaker)
Enclosure Type	Bass-Reflex
Ports	1 x Front-Firing (per Speaker)
Frequency Response	46 Hz to 35 kHz
Impedance	6 Ohms
Magnetic Shielding	None

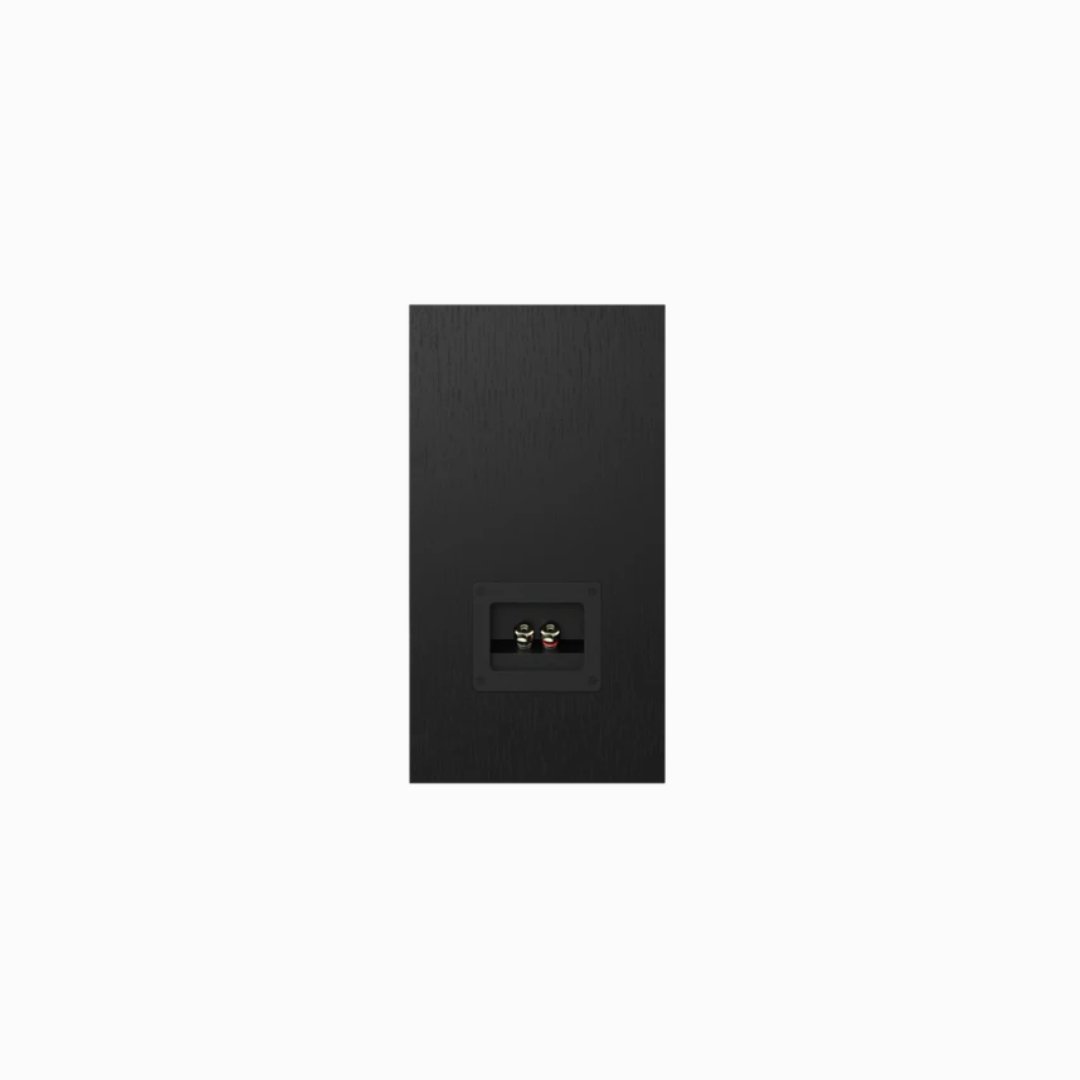

Wired I/O	1 x 5-Way Binding Post Pair Input
Crossover	200 Hz 2 kHz
Sensitivity	85 dB
Physical
Placement & Mounting Options	Tabletop/Bookshelf
Cabinet Material	MDF
Grille	Cloth (Removable)
Dimensions	7.3 x 13.6 x 10.8″ / 18.5 x 34.5 x 27.4 cm (Each)
Weight	18.3 lb / 8.3 kg (Each)
