ELAC Muro OW-V41L Dual On-Wall Speakers

The ELAC Muro OW-V41L is a slim, high-performance on-wall speaker designed for front left / center/right (LCR) or surround use in a home theater setup where space is tight but sound quality can’t be compromised. It’s a passive 2-way sealed enclosure with dual 4-inch aluminum cone woofers and dual 4-inch passive radiators, plus a 1-inch soft-dome tweeter with a Deep Spheroid Waveguide—designed to control dispersion and deliver crisp, clean highs. With its sealed plus passive-radiator design, it delivers richer low-end extension than might be expected from its shallow depth. The speaker offers flexibility in mounting: a rear panel switch (AXIS Tilt Control) lets you adjust the tweeter’s behavior depending on whether the speaker is mounted horizontally or vertically, helping aim the directivity toward the listener for better imaging. The front baffle is available in satin black or white, with the rest of the cabinet wrapped in vinyl, and magnetic fabric grilles add a clean look. Despite its height, it keeps a low visual profile, making it ideal under a TV or along the wall without intruding too much.

Description

The compact proportions of the Muro Series make on-wall installation a breeze. Bring huge dimensionality to your system with a speaker that makes itself heard but barely seen.

Warranty:

2-year manufacturer’s warranty

Features:

Silk Dome Tweeter With Deep Spheroid Waveguide
The waveguide surrounding the new ELAC high-frequency driver features a custom, deep spheroid profile to improve directivity control and efficiency.

Custom-designed woofer with aluminum cones
Aluminum cones offer a superior strength-to-weight ratio and improved damping characteristics over conventional paper or plastic drivers. This added strength means arriving at designs that achieve a broader bandwidth with a smoother response.

AXIS Tilt Control (OW-V41L Model Only)
Allows for the listening axis to be directed towards the listener based on mounting orientation and height. Selectable by a rear panel switch.

Intricate Crossover
A custom multi-element crossover with audio-grade components is implemented to ensure a smooth transition between the drivers.

Flexible Mounting Options
Both Muro On-wall allow for both vertical and horizontal mounting.

Technical Specifications:

Enclosure type	2-way, dual passive radiator, sealed
Tweeter	1 x 1-inch soft dome
Woofer	2 x 4-inch Aluminum cone
Passive Woofer	2 x 4-inch Aluminum cone
Crossover frequency	2,800 Hz
Frequency response	75 to 35,000 Hz
Sensitivity	86 db at 2.83 v/1m
Max power input	80 watts
Nominal impedance	8 W
Binding posts	5-way metal
Cabinet	CARB2 rated MDF
Cabinet	Finish Painted Satin Black or White Front Baffle with vinyl wrapped cabinet

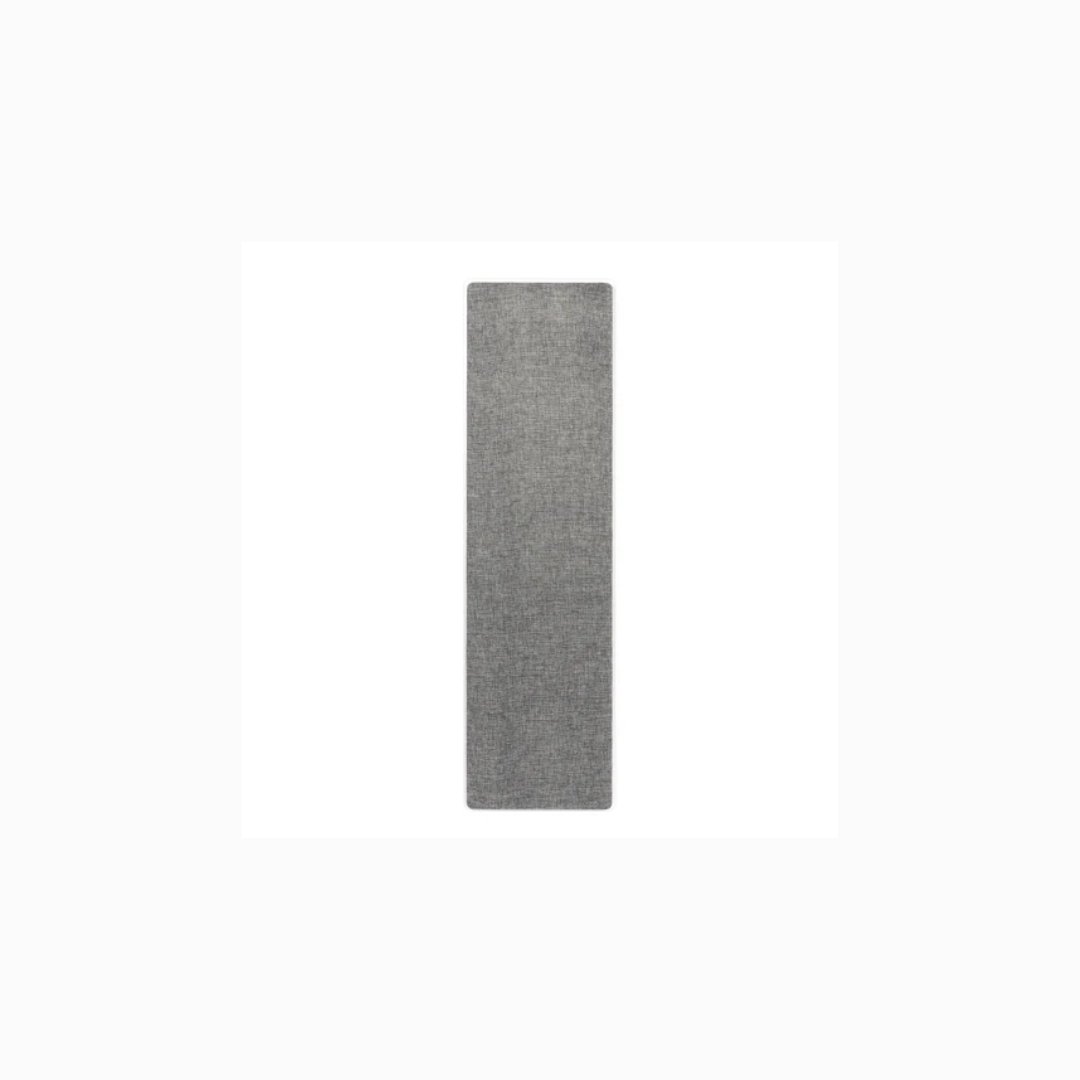

Grille	Magnetic White or Black Fabric Grill
Accessories included	Mounting template, manual
Height	25 1/2”
Width	7 13/16”
Depth	3 3/8”
