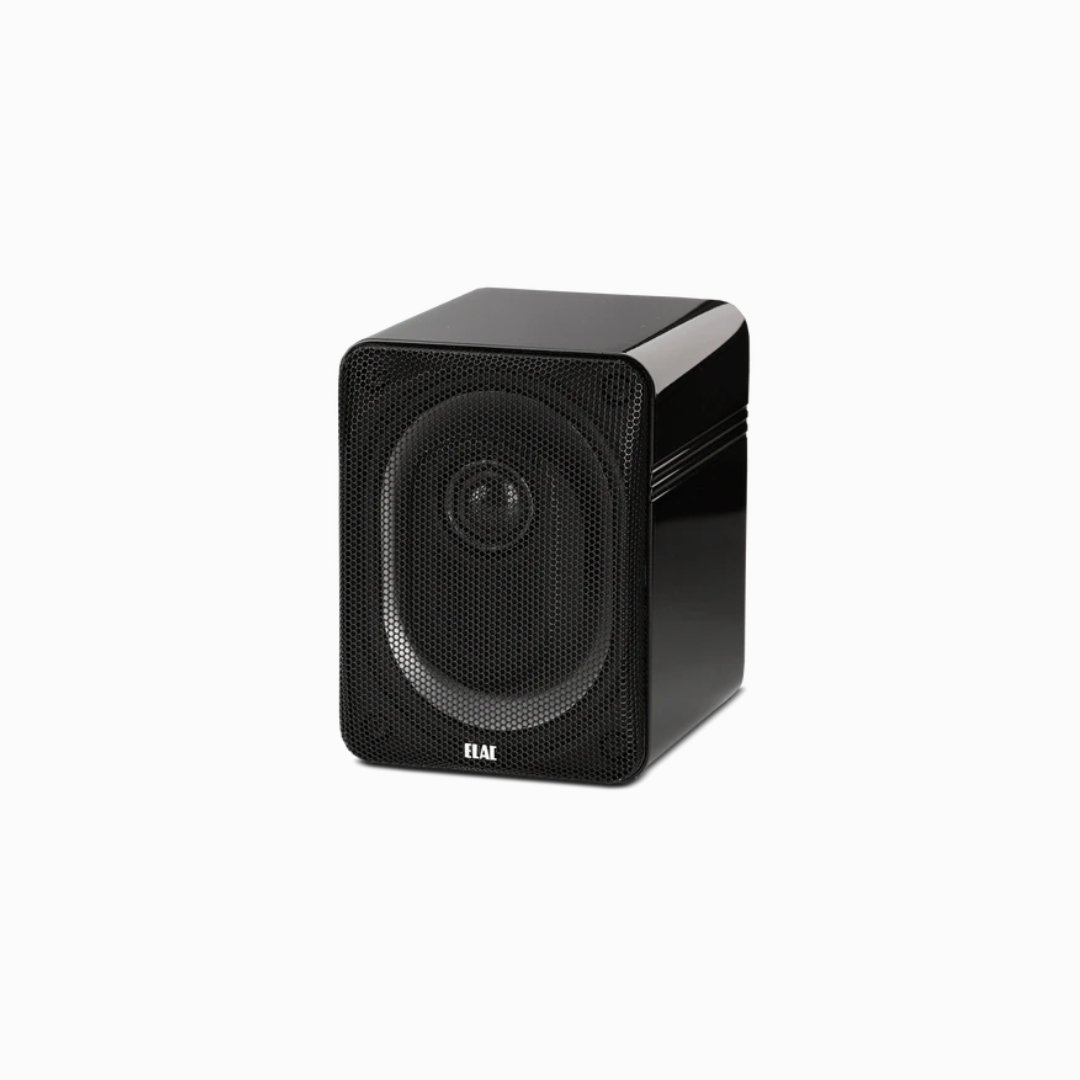

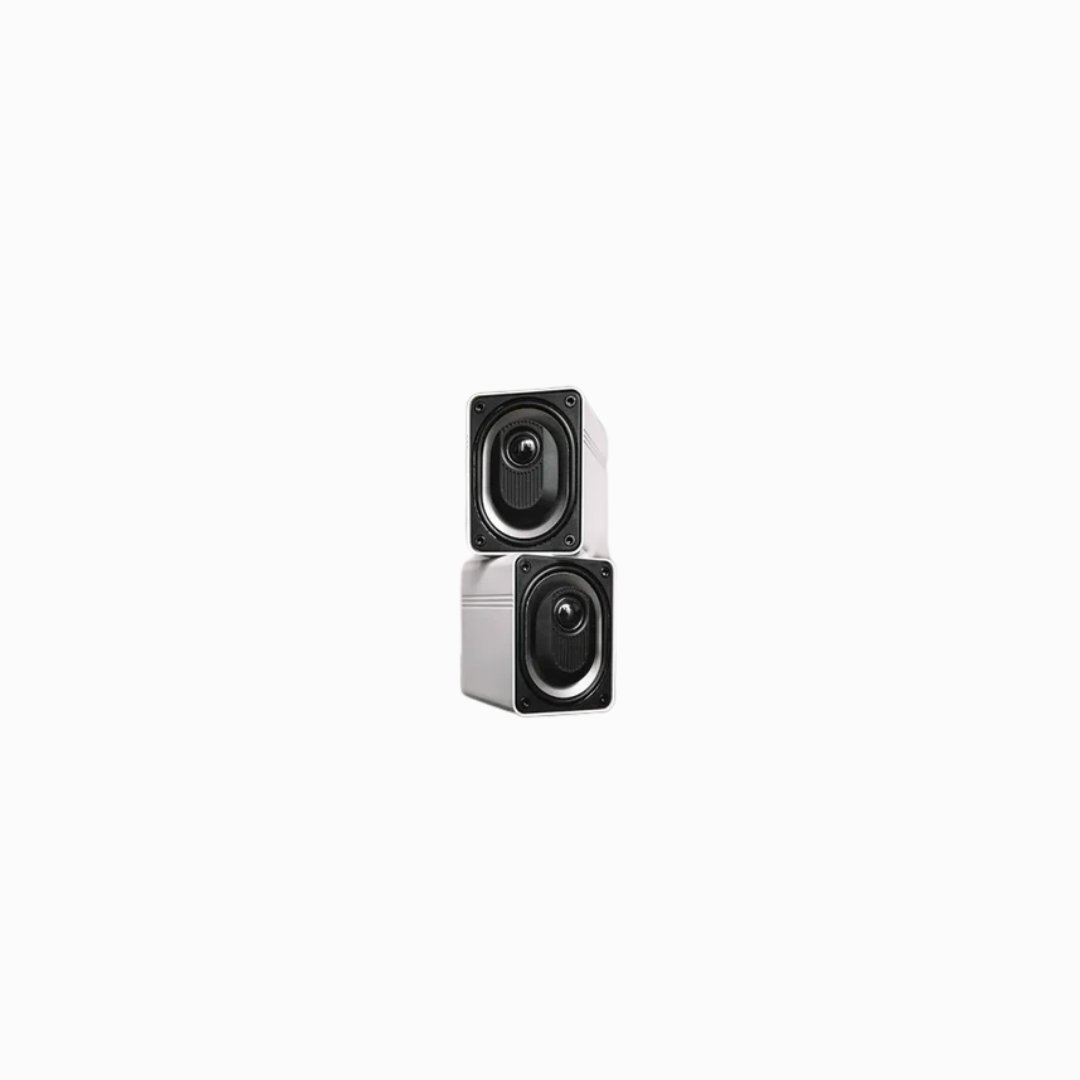

ELAC Line 300 BS302 2-way Compact Bookshelf Speakers (Each)

    • The ELAC Line 300 BS302 is a compact 2-way bookshelf loudspeaker that impresses with style and sound despite its very small footprint. It features a 20 mm cloth-dome tweeter and a 78 × 108 mm AS-oval-cone woofer, operating in a sealed (closed-box) cabinet. elac.com+2ProHiFi India+2 The frequency response is specified from about 80 Hz to 35 kHz, with a sensitivity of 86 dB (2.83 V/1 m) and a nominal impedance of 4 Ω (minimum ~3.5 Ω at ~1,200 Hz). ELAC America+2ProHiFi India+2 Its compact size – approximately 91 × 121 × 111 mm (W×H×D) and weight of about 1.3 kg each – makes it extremely flexible for placement in tight spaces or for wall-mounting (via optional bracket). ProHiFi India+1 The finish options include high-gloss black, grey, or white, helping it blend into modern décor.

Description

  • Sublime sound served up with serious power.

    ELAC’s new Navis Series answers every minimalist audiophile’s dream of a no-compromise powered speaker driven by best-in-class amplifiers that are truly deserving of the name “high end.” While most powered speakers rely on Class D digital designs, ELAC engineers build in 300 watts of pure analog amplification— for maximum power and exceptional sound. Add the Discovery Connect wireless transmitter to your system, and Navis becomes a wireless speaker that lets you enjoy streaming content without a cable in sight.

    Warranty:

    1-year manufacturer’s warranty

    Top Features:

    • Comes with a tri-amp pure analog amplifier, employing three separate amps for each transducer.
    • Offers a 110 dBA signal-to-noise ratio and a 100 UV noise floor.
    • Connect the wireless transmitter to stream Discovery, Spotify Connect, Bluetooth, AirPlay, and Roon.
    • An elegant design integrates perfectly with any interior.
    • Features an in-house developed transducer, a 4-inch aluminum midrange.
    • Comes with a driver with a concentrically mounted 1-inch soft-dome tweeter.

    Powerful Trifecta
    Inside each Navis Bookshelf Loudspeaker is a Tri-Amp Pure Analog Amplifier, employing three separate amps for each transducer: a 160-watt BASH AB amplifier for the woofer, a 100-watt BASH AB amplifier for the midrange, and a 40-watt Class AB amplifier for the tweeter. A total amplifier power of 300 watts ensures that each transducer is optimally—and amply—powered, eliminating clipping and crossover distortion, and driving each transducer with authority. Specs like a 110 dBA signal-to-noise ratio and 100 μV noise floor could only come from such audiophile-quality amps!

    All New Custom Designed Midrange/Tweeter
    One reason the Navis sounds so natural is because of its in-house developed transducer, a 4-inch aluminum midrange driver with a concentrically mounted 1-inch soft-dome tweeter.
    Combined, this signature configuration lets Navis set the
    performance standard for its class.

    Flexible Connections
    Local inputs include balanced XLR, RCA, and Wireless, when used with ELAC’s Discovery Connect wireless transmitter to stream Discovery, Spotify Connect, Bluetooth, AirPlay, and Roon. Just switch Wireless “Off” for a no-compromise analog input and output.

    Technical Specifications:

    Speaker type type: 3-Way Powered
    Tweeter 1″ Soft Dome Concentrically Mounted
    Midrange 4″ Aluminum
    Woofer 5-1/4″ Aluminum
    Frequency Response 44Hz – 28kHz
    Crossover Frequency 2.2kHz / 260Hz
    Total Amplifier Power 300 Watts Total
    Bass Amplifier 160 Watt Bash Amplifier
    Midrange Amplifier 100 Watt Bash Amplifier
    Tweeter Amplifier 40 Watt Class AB Amplifier
    Inputs RCA / XLR / AirX² Wireless
    Cabinet finishes Gloss Black, Gloss White, Gloss Ebony Emara
    Height 13.58″
    Width 7.44″
    Depth 9.45″
    Net weight (each) 17.85lbs
