ELAC IC-1005 In-Ceiling Speaker White (Each)

Key Specifications

Design: 2-way in-ceiling speaker

Woofer: 130 mm fibreglass-reinforced polypropylene cone

Tweeter: 20 mm fabric dome (coaxial)

Frequency Response: 40 Hz – 25,000 Hz

Crossover Frequency: 2,200 Hz

Sensitivity: 87 dB @ 2.83 V/1m

Nominal Impedance: 6 ohms

Recommended Amplifier Power: 20 W – 120 W

Power Handling: 50 W (nominal) / 70 W (peak)

Overall Dimensions: 205 mm diameter × 84 mm depth

Cut-out Size: 180 mm diameter × 82 mm fitting depth

Weight: Approx. 1 kg

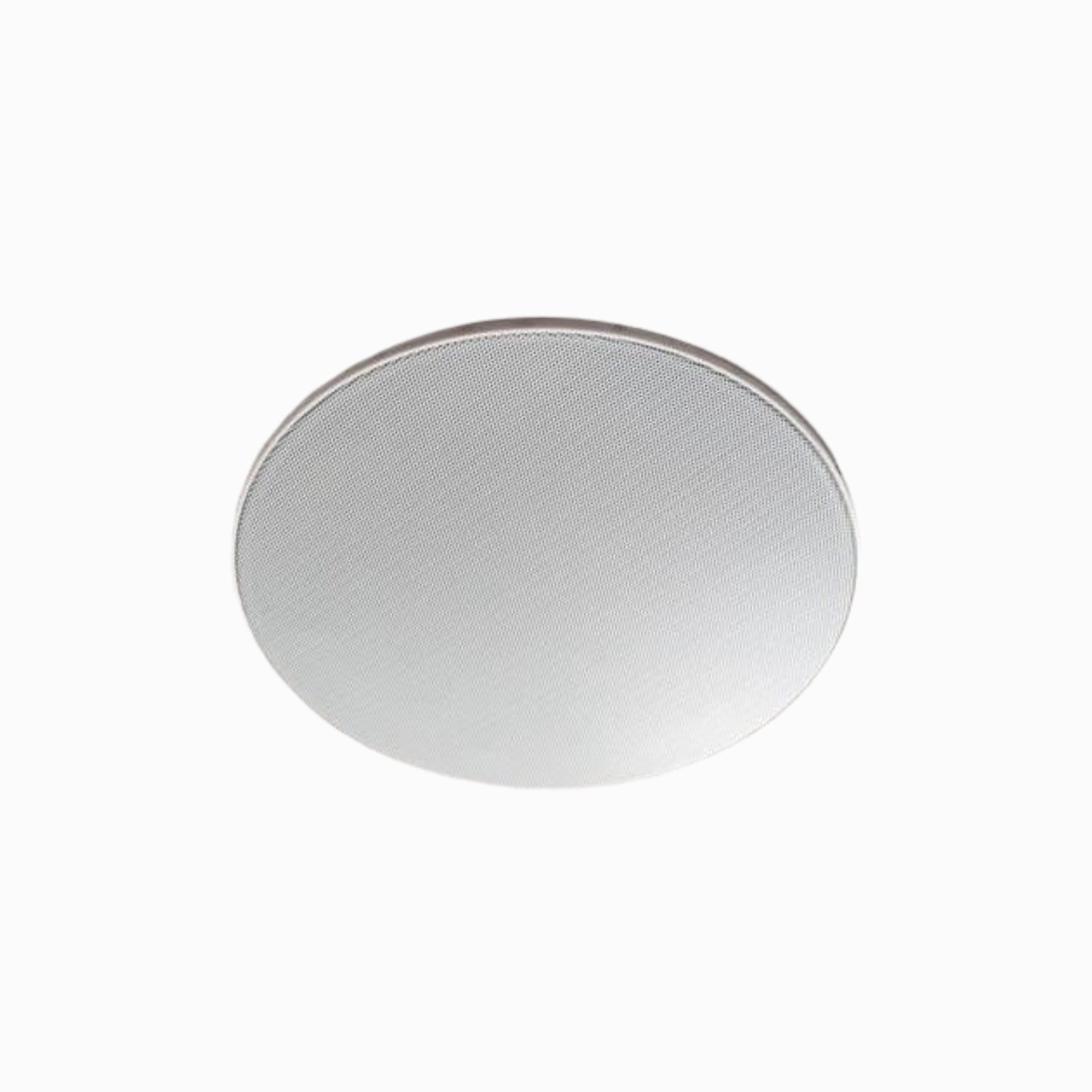

Grille: Magnetic, paintable

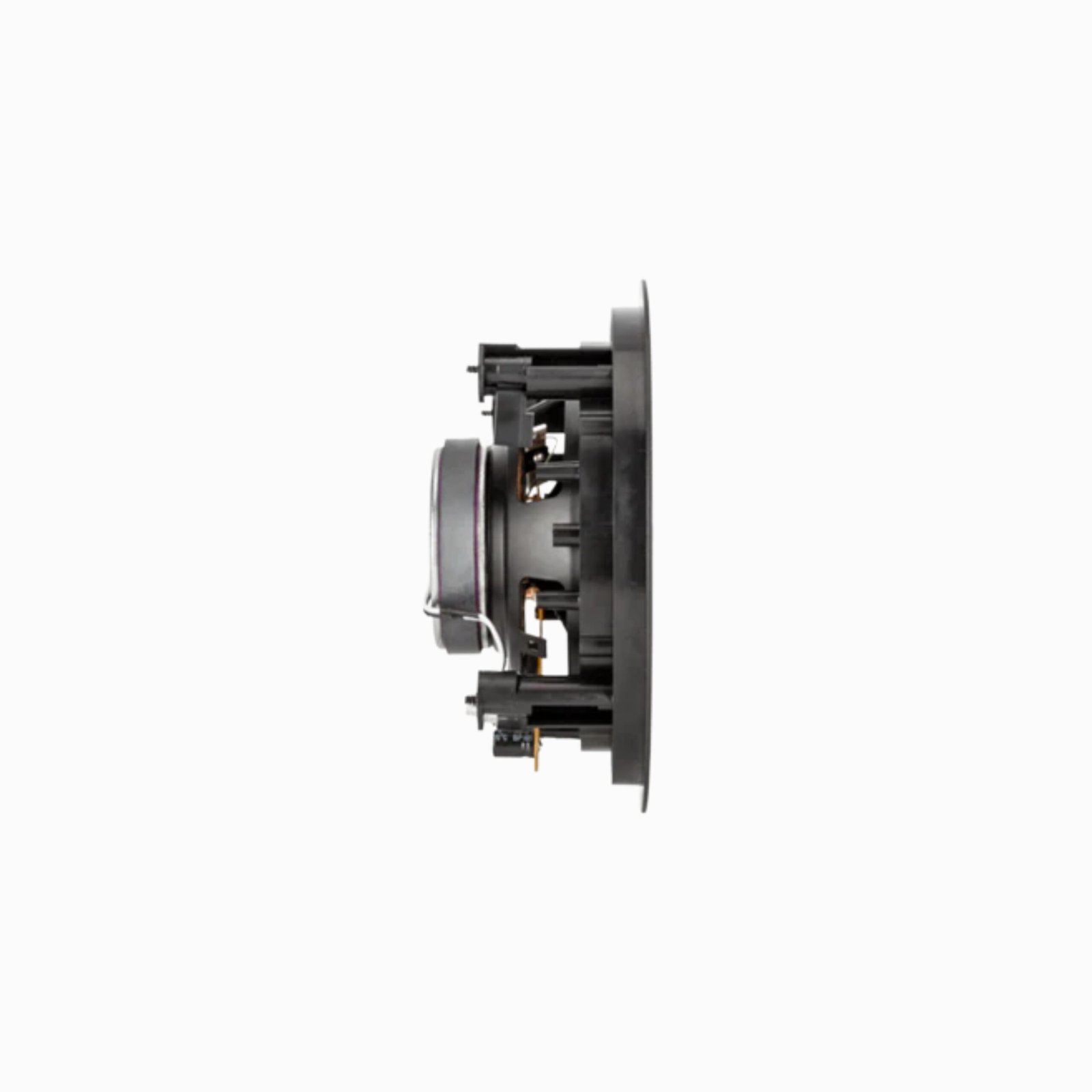

Mounting: 4-point clamp mechanism

Placement: Ceiling or in-wall installation (up to 35 mm wall thickness)

Description

The IC 1005 marks the entry into the world of built-in loudspeakers. Its compact external and fitting dimensions make it ideal for installation in walls or ceilings. Not only is it perfect for virtually invisible stereo or multichannel installations, it also makes an excellent addition to conventional floorstanding or bookshelf loudspeakers. The IC 1005 is easy to install, extremely robust, and blessed with absolutely authentic sound.

Warranty:

3-year manufacturer’s warranty

Features:

A 70-watt in-ceiling loudspeaker.
Comes with 6 ohms impedance, enabling effective use of the amplifier.
It can be installed in-wall or in-ceiling structures up to 35 mm thick.

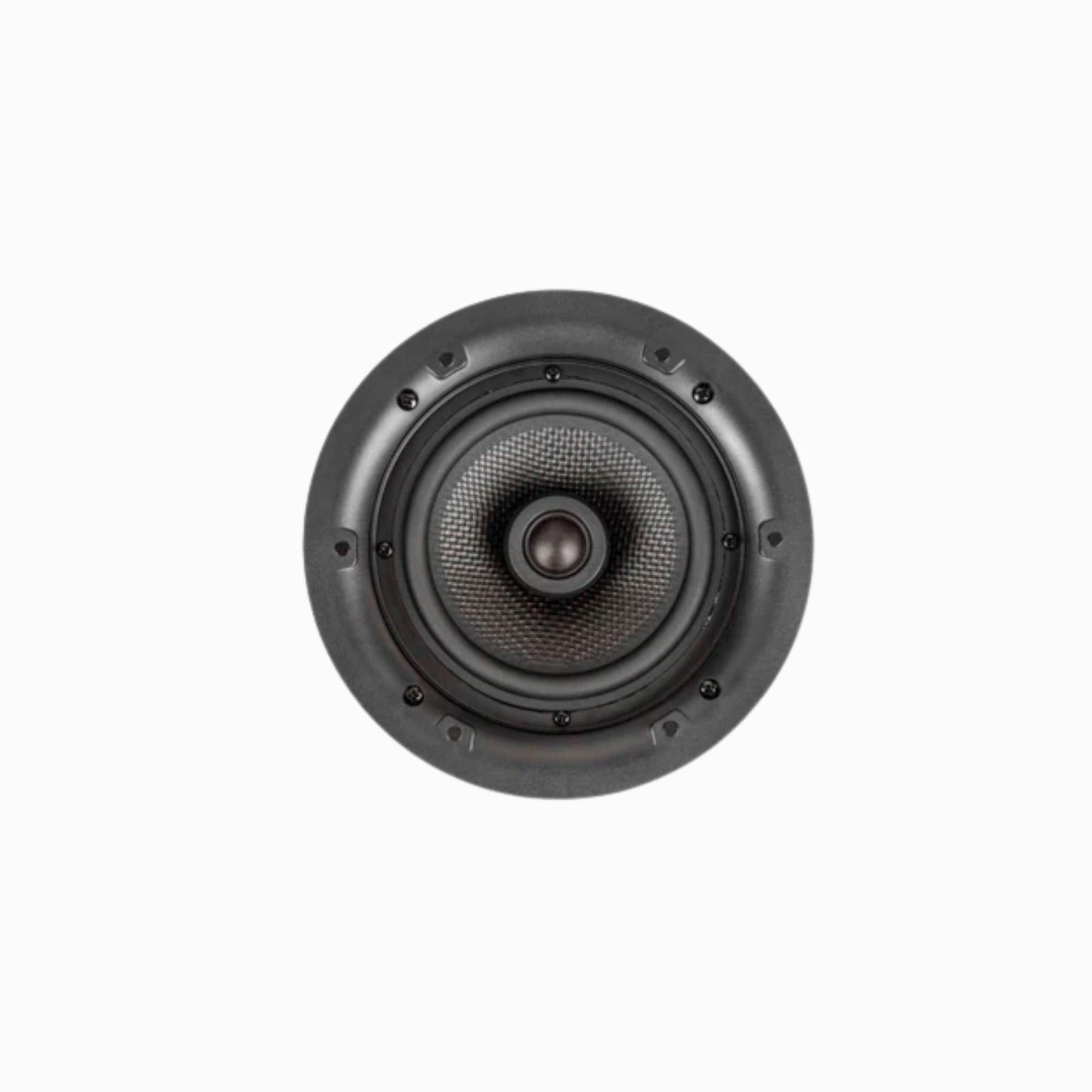

Coaxial design for optimised throw and fidelity.The
20 mm fabric dome guarantees accurate reproduction of the high-frequency range.
130 mm fibreglass-reinforced polypropylene membrane.
The magnetically fixed cover grille can be removed and refitted without the need for tools.

Technical Specifications:

Sales Package	Speaker and User documentation
Brand	Elac
Model	IC 1005
Color	white
Frequency Response	40 – 25,000 Hz
Nominal Impedance	6 Ω; min. 6.3 Ω @ 1900 Hz
Sensitivity	87 dB at 2.83 V/m
Crossover Frequency	2,200 Hz
Recommended amplifier power	20 to 120 wpc
Nominal/peak power handling	50 / 70 wpc
Tweeter	1 x 20 mm dome
Woofers	1 x 130 mm cone
Dimensions: diameter x depth	8.07 in / 205 mm x 84 mm / 3.31 in
Fitting dimensions: diameter x depth	7.09 in / 180 mm x 82 mm / 3.23 in
Weight	1 kg
