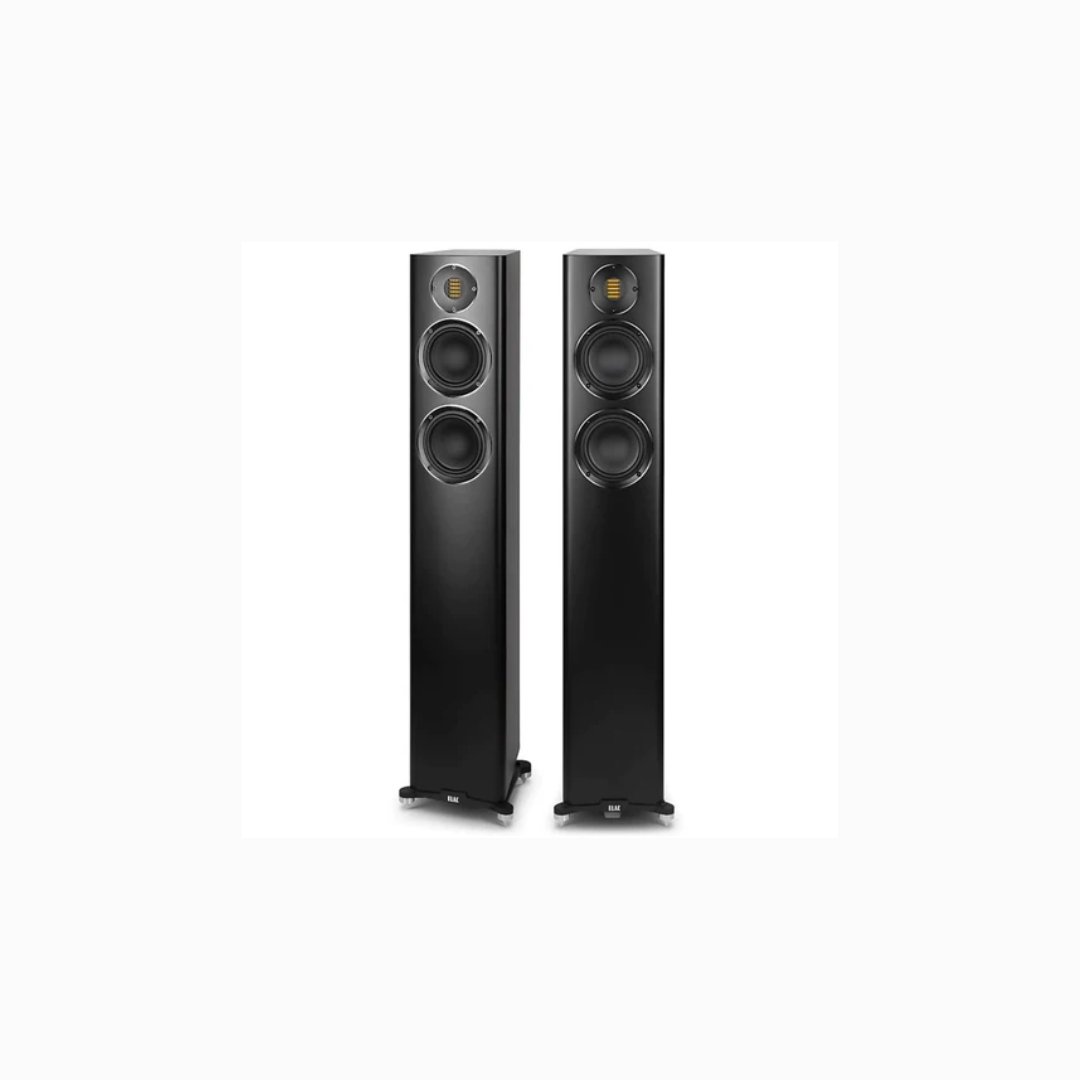

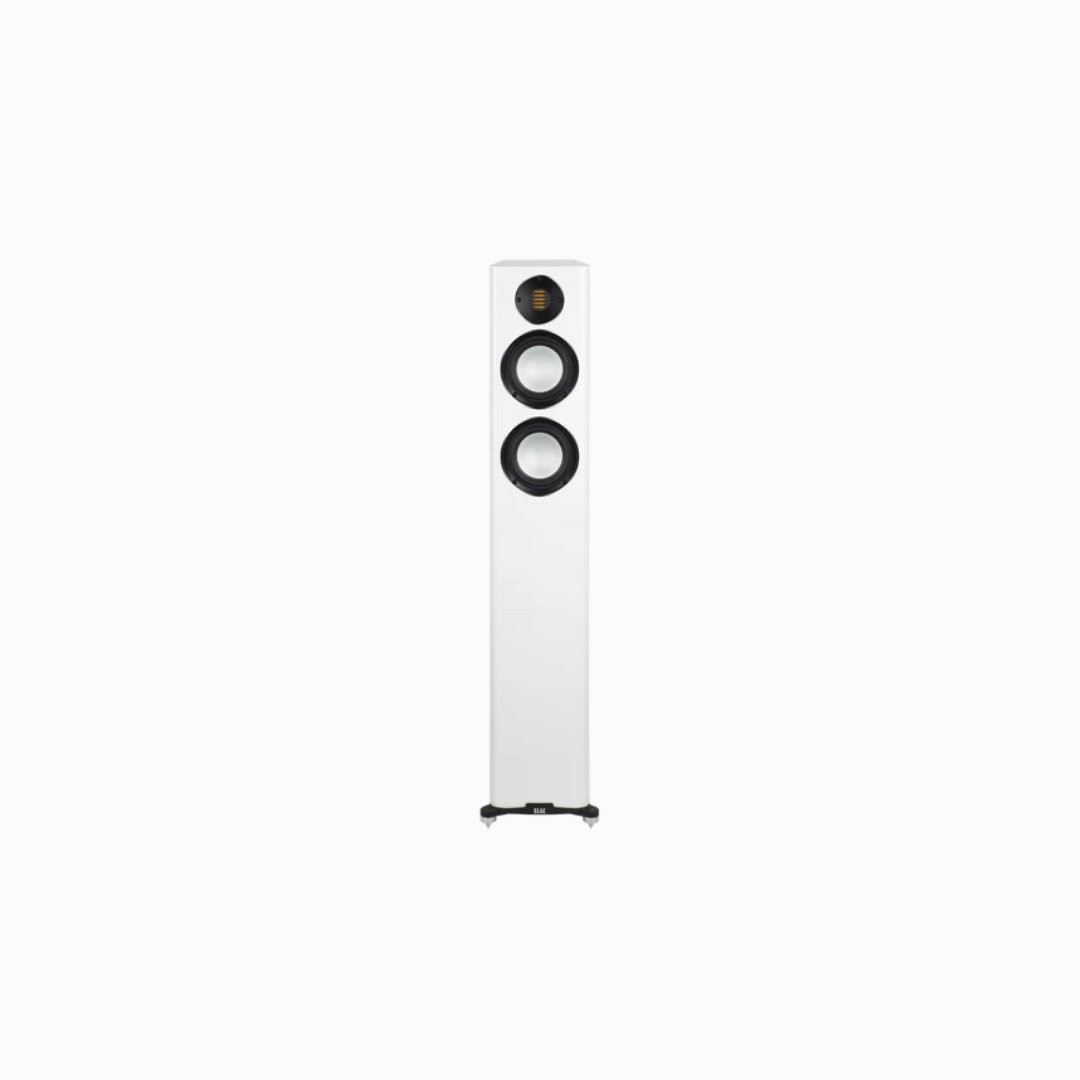

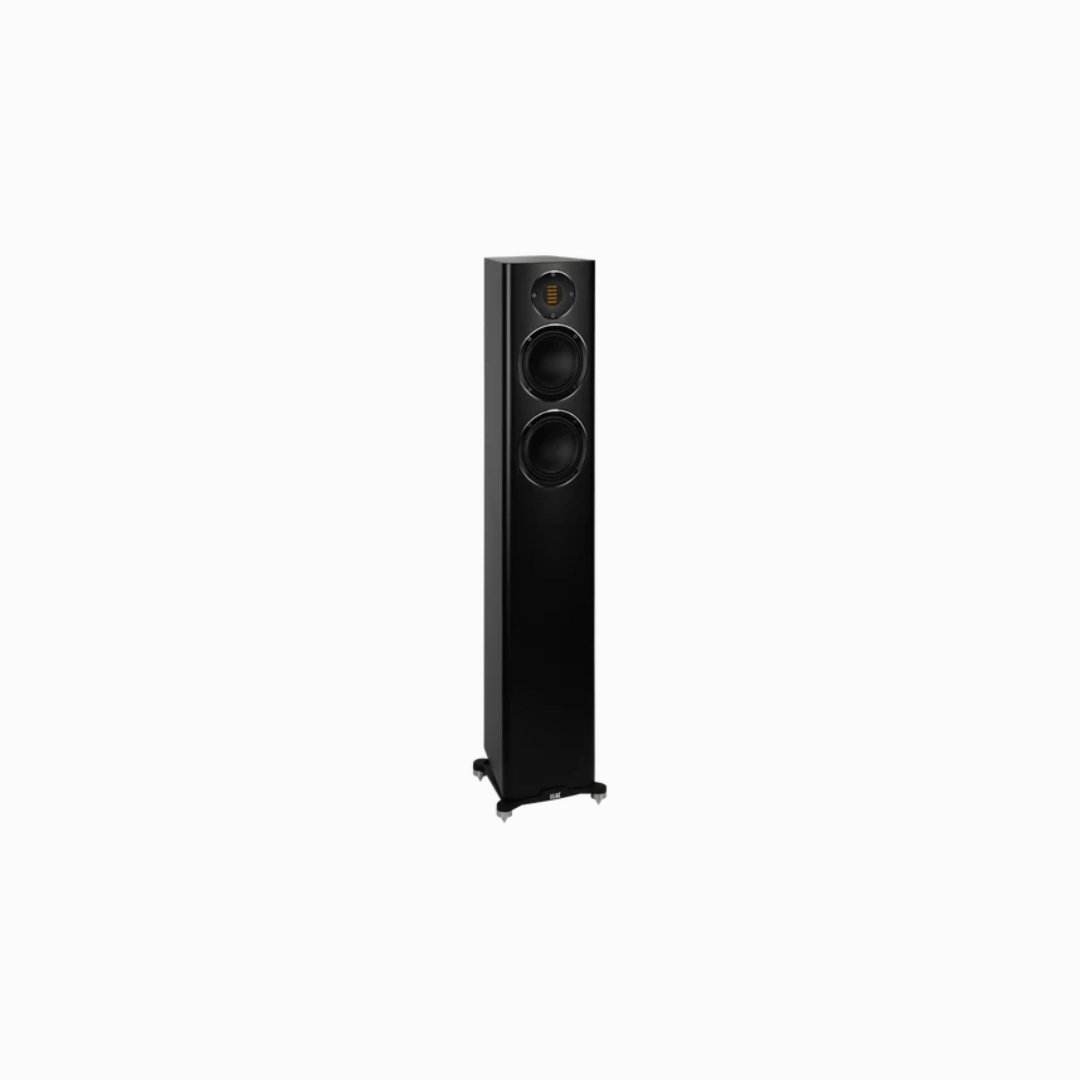

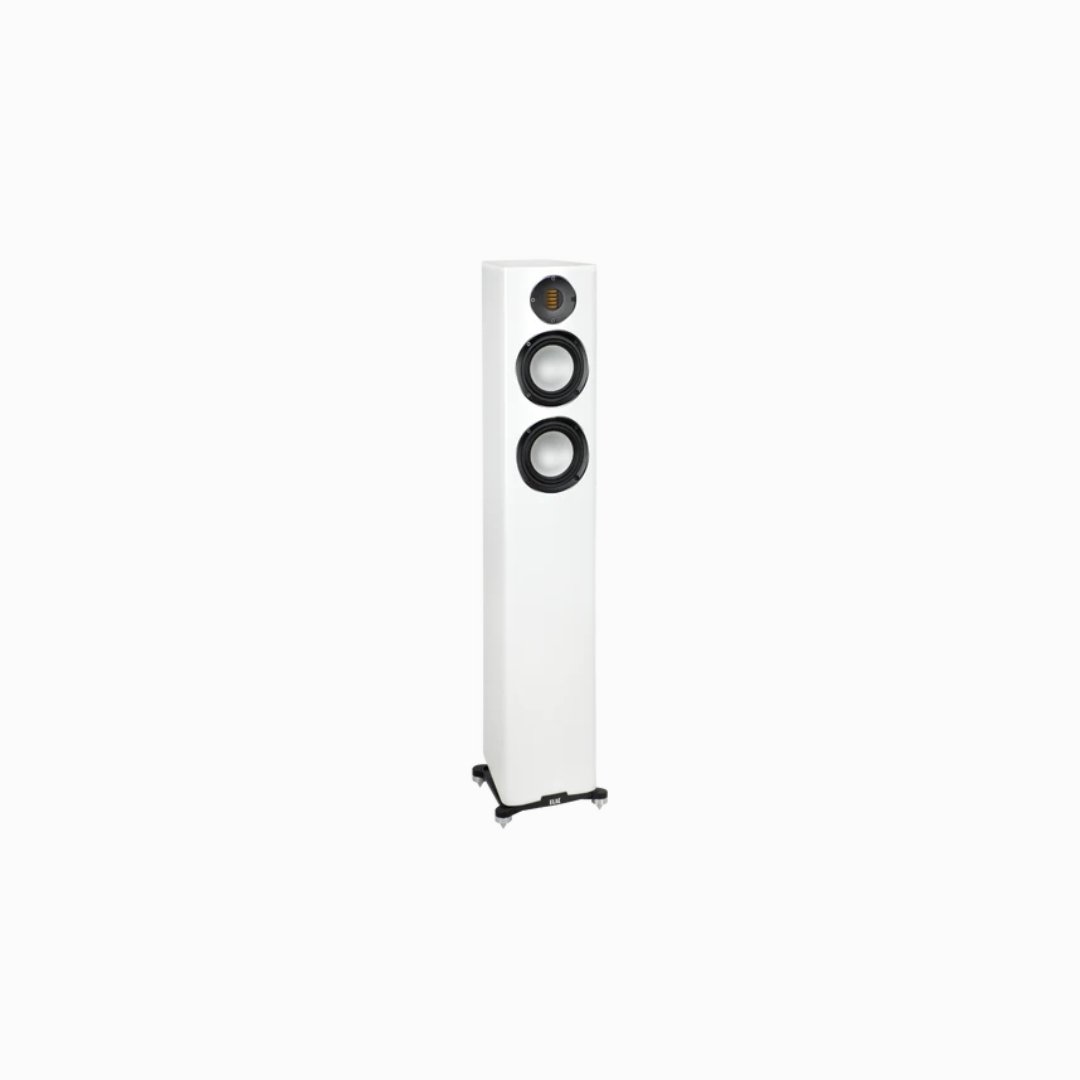

Elac CARINA FS 247 Floorstanding Speakers (Pair)

The ELAC Carina FS247.4 floor-standing speaker pair delivers serious high-fidelity performance in a stylish, modern cabinet crafted for immersive listening. At its heart are dual 5.25″ aluminium-cone woofers paired with ELAC’s JET folded-ribbon tweeter — a combination that balances deep, controlled bass with lightning-fast treble extension and broad dispersion. According to the specification sheet, the FS247.4 is rated for a frequency range of 34 Hz to 30 kHz (IEC 268-5), has a sensitivity of 87 dB/2.83 V/1 m, and a nominal impedance of 6 Ω (minimum ~4.8 Ω). cdn.elac.com+1 The design features a 2½-way bass-reflex (vented) architecture with a crossover at approximately 1 kHz / 2.7 kHz, and includes a downward-firing bass-reflex port for more flexible placement and reduced port noise. studio-hifi com+1 Aesthetically, it is available in satin black or white finishes, with included accessories such as binding-post straps, outrigger feet, spikes, and discs for optimized setup.

Description

Building upon its performance, Carina continues ELAC’s tradition of utilizing the JET tweeter, chosen for its amazing clarity, dynamics, and attack.

To match this capability, a new in-house developed proprietary compound curvature aluminum coned woofer is seamlessly blended via a sophisticated multi-element crossover to produce an organic, life-like sound experience. Fresh looks, fresh sound; the new Carina is destined to further enhance ELAC’s class-leading reputation.

Warranty:

3-year manufacturer’s warranty

Features:

2.5-Way Speaker Design
5.25″ Aluminum Cone Woofer & Mid-Woofer
JET Folded Ribbon Tweeter
30 to 250W Recommended Amplifier Power
34 Hz to 30 kHz Frequency Response
Bass Reflex via Down-Firing Port

JET Folded Air-Motion-Transformer
Delivering true high-definition sound, ELAC’s JET tweeters enthrall with their lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom, and a wider frequency range. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.

Compound Curvature Aluminum Woofer

To match the capabilities of the JET tweeter and guarantee a seamless transition from the woofer to the JET tweeter, the compound curvature cone has been developed to control the cone breakup and move it well beyond the operating range of the woofer. A large diameter voice coil and oversized vented pole piece magnet combine to give remarkable bass dynamics and a rich, powerful performance.

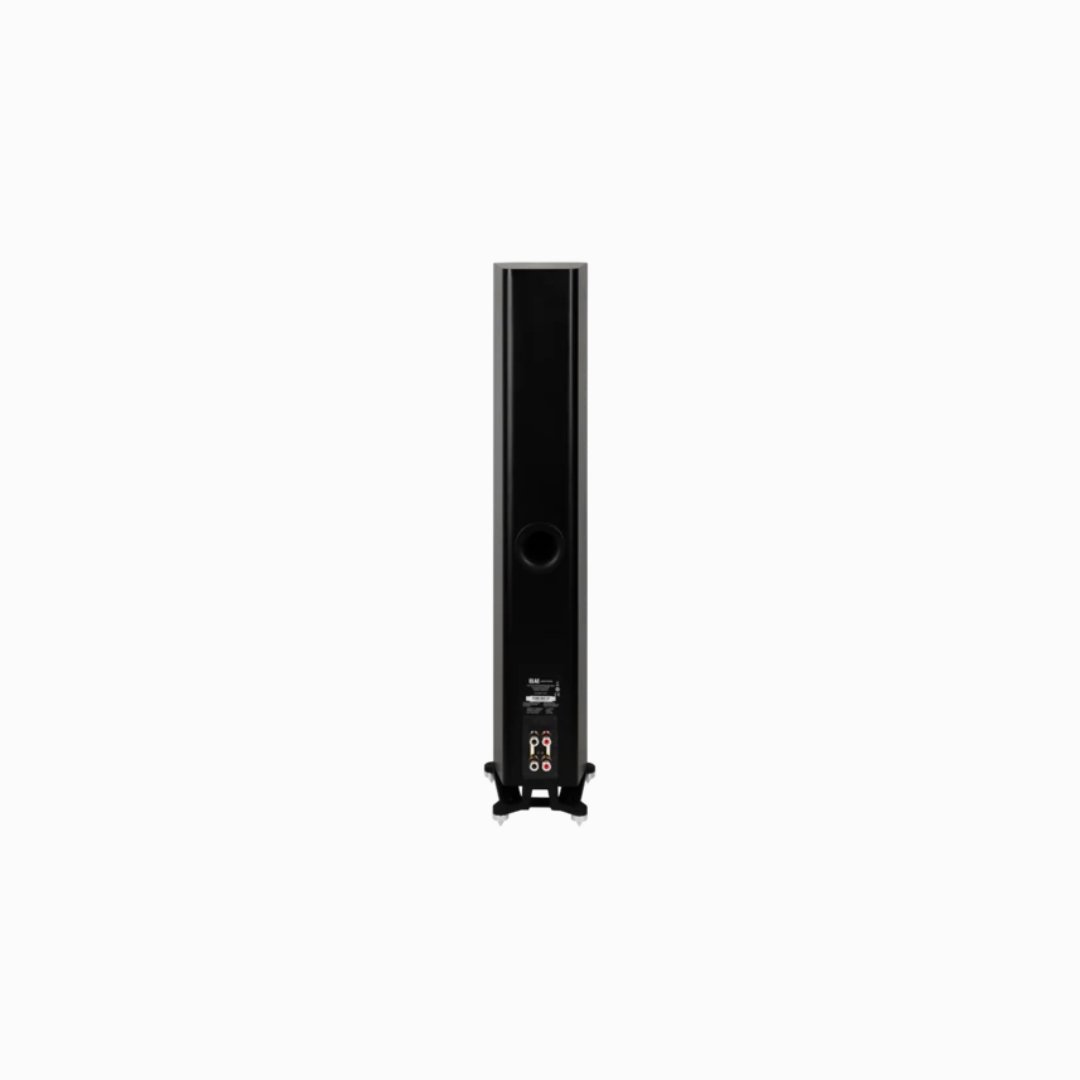

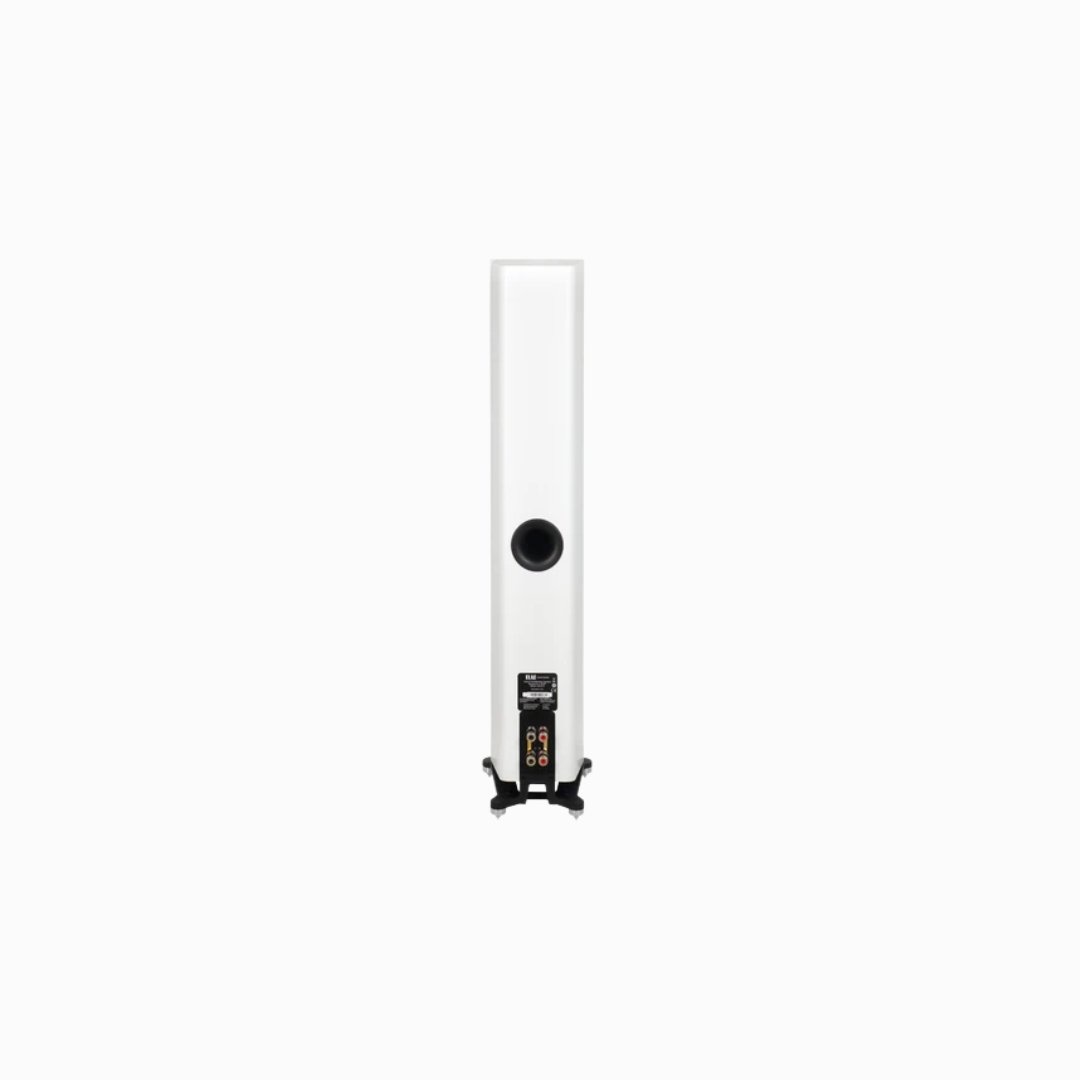

Downward Firing Port

For a more flexible speaker placement and to minimize ventilation noise, the bass reflex port on the Carina series is directed to the floor, exiting the bottom of the speaker cabinet in a down-firing configuration.

Technical Specifications:

Speaker Configuration	2.5-Way
Power Handling	120 W Peak
Recommended Amplifier Power	30 to 250 W
Drivers	1 x Folded Ribbon Tweeter 1 x 5.25″ / 133.35 mm Aluminum Cone Mid-Woofer 1 x 5.25″ / 133.35 mm Aluminum Cone Woofer
Enclosure Type	Bass-Reflex
Ports	1 x Down-Firing
Frequency Response	34 Hz to 30 kHz
Impedance	6 Ohms
Wired I/O	2 x Binding Post Pair
Crossover	Low-Pass: 1 kHz High-Pass: 2.7 kHz
Sensitivity	87 dB
Physical
Placement & Mounting Options	Floorstanding
Dimensions	8.1 x 42.1 x 8.5″ / 20.6 x 106.9 x 21.6 cm
Weight	36.2 lb / 16.4 kg
Packaging Info
Package Weight	39.2 lb
Box Dimensions (LxWxH)	47 x 13 x 12.5″
