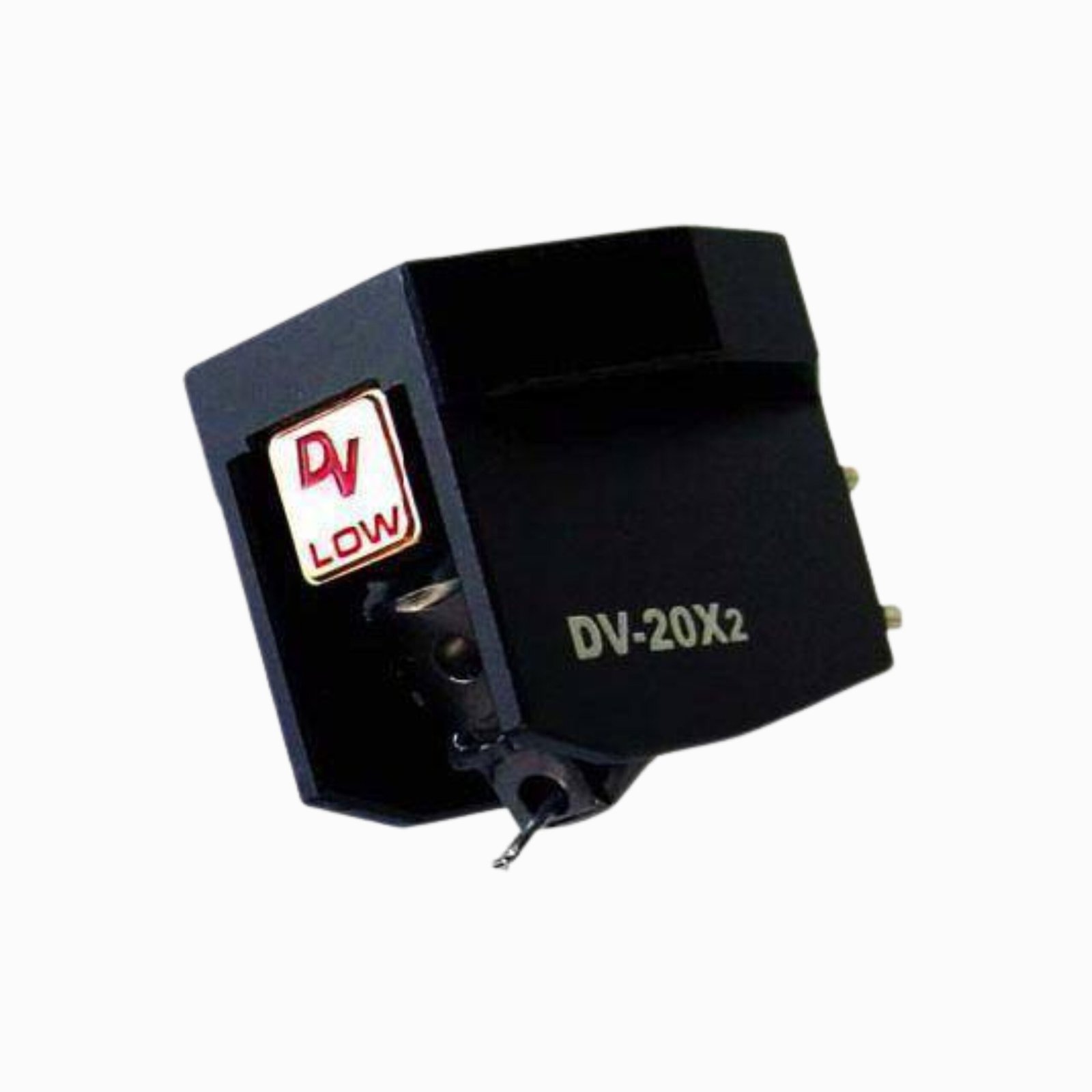

Dynavector DV-20X2 MC Cartridge

Features:

• High-output and low-output moving-coil versions designed for exceptional musical accuracy
• Features a robust aluminum alloy body for reduced resonance and improved stability
• Utilizes Dynavector’s advanced magnetic flux damping for cleaner, more detailed sound
• Nude Micro-Ridge stylus ensures precise tracking and extended high-frequency response
• Delivers wide soundstage, rich midrange, and controlled bass performance
• Compatible with a wide range of tonearms and phono stages
• Ideal for audiophiles seeking a balanced, natural, and dynamic vinyl playback experience

Description

Dynavector DV-20X2 MC Cartridge

For more than 35 years, Dynavector have established an enviable reputation for producing affordable high-quality moving coil cartridges. The outstanding performance of the Dynavector high-output moving coil cartridges can be attributed to the exclusively Dynavector-designed coil winding machine capable of utilising extremely fine coil wire, providing a high output to mass ratio.

The Dynavector DV-20X2 MC Cartridge has a solid aluminium alloy body and a rigid magnet construction similar to XX-2MKII. The cantilever is a 6mm length of hard aluminium pipe with a Micro-Ridge stylus. The magnetic flux damping and softened magnetism, along with powerful neodymium magnets, give the 20X2H an output of 0.3 mV, ideal for most MC phono stages.

Specifications of the Dynavector DV-20X2 MC Cartridge

Type Low Low-output moving coil cartridge with flux damper and softened magnetism
Output Voltage 0.3mV (at 1KHz, 5cm/sec.)
Channel Separation 25 dB (at 1KHz)
Channel balance 1.0 dB (at 1KHz)
Frequency response 20 – 20,000Hz (± 1dB)
Compliance 12 mm/N
Tracking force 2.2 g
Impedance 5 ohms
Recommended load impedance > 30 ohms
Cantilever 6mm length, hard aluminium pipe
Stylus tip Micro Ridge Nude diamond
Weight 9.2 g
