Featuring digital inputs and a built-in phono equalizer, the Denon PMA-800NE integrated amplifier sets new standards in premium audio performance with the power to drive all your content.

Warranty:

1-year manufacturer’s warranty

Features:

  • 2 x 85 W (4 ohms) power output: Get the maximum performance to drive your favorite loudspeakers
  • Advanced High Current (AHC) Single Push-Pull circuit power amplifier: Wide bandwidth captures everything from deep bass to detailed highs
  • 3 Optical, 1 Coaxial digital input: Supports all digital music sources
  • Built-in 192kHz/24-bit D/A converter: Experience high-resolution audio playback
  • Impeccable sound engineering with carefully selected and rigorously tested Hi-Fi parts: Enjoy the exceptional sound that is the signature of Denon amplifiers
  • Analog Mode for pure audio reproduction: Enjoy the richness of your treasured analog music sources
  • High-performance MM and MC phono equalizer amp: Connect any turntable and enjoy vinyl tracks
  • Vibration-resistant design with Direct Mechanical Ground Construction: Listen to music with pristine detail and quality, unaffected by the environment
  • Main transformer with separate coiled wires for audio/control circuits: Eliminates interference to optimize sound quality
  • Microprocessor with Stop Mode: Protects the audio signal from external noise during playback
  • Denon-proprietary Signal Level Divided Construction (SLDC) chassis: Amplify and transmit delicate musical signals to the speakers to capture the nuance of the music
  • Engineered with a more than 100-year Denon legacy in audio excellence: Trust this high-quality and durable system to deliver the ultimate audio experience

HIGH POWER 85W INTEGRATED AMPLIFIER
Power your loudspeakers with the Denon PMA-800NE integrated amplifier. Engineered with remarkable Denon amplifier technology, the PMA-800NE delivers 85 Watts of power per channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.

ADVANCED HIGH CURRENT (AHC) SINGLE-PUSH-PULL CIRCUIT
Enjoy powerful sound with detailed, musical accuracy. The PMA-800NE incorporates AHC transistors with two-to-three times the electrical current supply capacity of conventional audio power transistors.

HIGH-GRADE AUDIO COMPONENTS
Denon engineers carefully constructed the amplifier circuit within the PMA-800NE to secure a frequency response of up to 100 kHz during applied use. The volume circuit suppresses noise in the amplifier, achieving high sonic resolution. The PMA-800NE handles a wide, dynamic range of high-resolution audio sources with tone control and power throughout.

Analog Mode
Analog Mode allows the PMA-800NE to operate as a purely analog amp, disabling coaxial, digital, and optical digital inputs while you listen to an analog source. Turn on Analog Mode to cut power to the dedicated digital power source and stop the operation of the digital input circuitry, avoiding any high-frequency influence on the analog section of the PMA-800NE. Enjoy your favorite analog sources with uninhibited clarity and detailed reproduction.

MM and MC Phono Equalizer
The PMA-800NE includes a phono equalizer that supports input from both MM and MC cartridges. This phono equalizer has high gain, and unlike loops in other circuit board patterns, which cause adverse effects on sound quality, the simple, straightforward design of the PMA-800NE phono equalizer significantly improves the sound.

Direct Mechanical Ground Construction for Pristine Sound
Vibration-resistant design reduces the adverse audio effects of heavy components within amplifiers, so sound quality meets Denon standards. The power transformer — which is the largest vibration source among amplifier components — is outfitted with a 1.6mm thick steel plate to the mount, suppressing vibration created by the transformer as well as external vibration toward the transformer. By directly supporting the transformer with a steel plate, the vibration surrounding the chassis is reduced, resulting in pristine sound.

Optical and Coaxial Digital Inputs
The PMA-800NE features three Optical inputs and one Coaxial input and supports PCM signals up to 192 kHz/24-bit. These digital inputs help to improve the sound and visual quality of your TV audio, Blu-Ray, media players, and more. Also, use it to input high-resolution sound from an audio source on your computer.

Main Transformer with Individual Wiring
To eliminate interference and maintain exceptional sound quality, the main power transformer of the PMA-800NE has separate coiled wires for the audio and control circuits. An integrated microprocessor features Stop Mode for even greater sound quality while you listen.

Micro-processor Stop Mode
The microprocessor of the PMA-800NE features a Stop Mode that automatically ceases all operations of the microprocessor when it’s not needed for playback. By stopping the oscillation of the microprocessor clock during these listening moments, the audio signal is protected from external noise and enhanced sound quality.

Signal Level Divided Construction (S.L.D.C.)
The Signal Level Divided Construction (SLDC) chassis developed by Denon is used in the audio circuit to ensure that delicate musical signals are faithfully amplified and transmitted to the speakers. Listen with exemplary quality, every time.

Technical Specifications:

Configuration Stereo
Power Output
  • 2 x 50 W @ 8 Ohms, 20 Hz to 20 kHz, 0.07% THD
  • 2 x 85 W @ 4 Ohms, 1 kHz, 0.7% THD
Speaker Impedance
  • A or B: 4 to 16 Ohms
  • A + B: 8 to 16 Ohms
Total Harmonic Distortion 0.01% (rated output -3 dB, 8 Ohms, 1 kHz)
Tone Control
  • Treble: ±8 dB at 10 kHz
  • Bass: ±8 dB at 100 Hz
Frequency Response 5 Hz to 100 kHz (0, -3 dB)

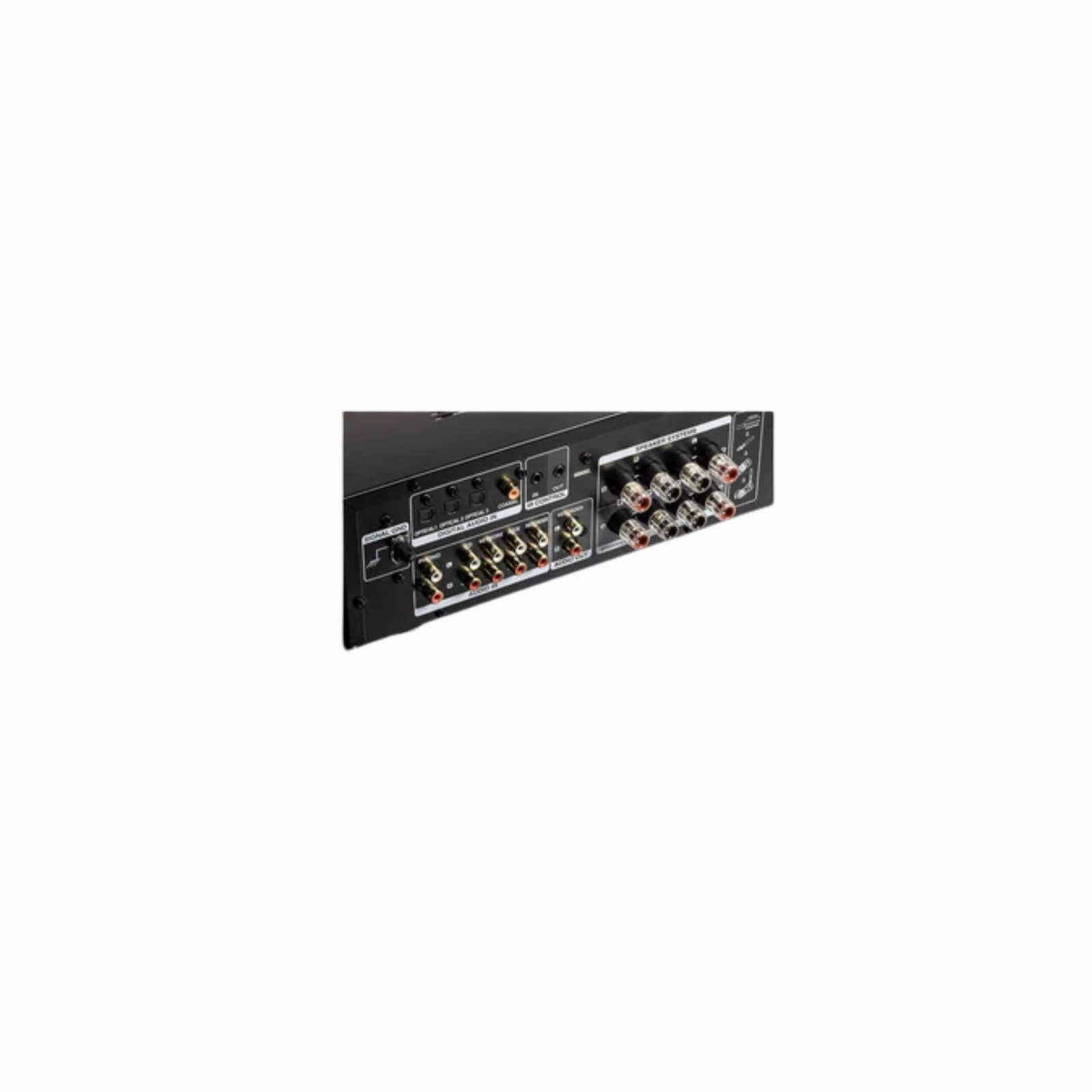

Analog Inputs
  • 4 x gold-plated stereo RCA
  • 1 x gold-plated stereo RCA phono (MM/MC) with ground screw
Digital Inputs
  • 3 x optical TOSLINK (>-27 dBm, 660 nm)
  • 1 x digital coaxial (0.5 Vp-p / 75 Ohms)
Outputs
  • 1 x stereo RCA
  • 1 x 1/4″ / 6.35 mm headphone (front)
Speaker Connectors 4 x binding post pairs
Other Connections
  • 1 x 1/8″ / 3.5 mm IR in
  • 1 x 1/8″ / 3.5 mm IR out
Input Sensitivity and Impedance
  • Phono MC: 200 mV / 100 Ohms
  • Phono MM: 2.5 mV / 47 kOhms
  • Line, Source Direct Off 105 mV / 40 kOhms
  • Line, Source Direct On: 105 mV / 17 kOhms
S/N Ratio
  • Phono MC: 71 dB (0.5 mV input)
  • Phono MM: 86 dB (5 mV input)
  • Line: 105 dB
RIAA Equalization Deviation 20 Hz to 20 kHz, ±0.5 dB
Maximum Input
  • Phono MC: 6 mV / 1 kHz
  • Phono MM: 70 mV / 1 kHz
A/B Speaker Selection Yes: A and/or B
Operating Temperature 41 to 95° / 5 to 35°C
Dimensions 17.13 x 4.88 x 12.13″ / 434 x 122 x 307 mm
Weight 16.5 lb / 7.5 kg
