DENON DHT-S516H Sound Bar and Wireless Subwoofer with Heos Built-in

DHT-S516H
SOUND BAR AND WIRELESS SUBWOOFER WITH HEOS BUILT-IN

UPGRADE TO THRILLING HOME THEATER SOUND
Add outstanding dimension, clarity and power to your favorite movies, music and video games with the Denon DHT-S516H sound bar and wireless subwoofer with HEOS Built-in. The Denon DHT-S516H features bi-amplified mid-woofers and tweeters with advanced DSP processing, Hi-Res audio playback support, plus a powerful wireless subwoofer. Enjoy single-wire connection to your TV with included HDMI input and output with Audio Return Channel (ARC). Dolby Digital, Dolby Digital Plus and DTS decoding for immersive sound. Stream your favorite music services wirelessly with HEOS Built-in, AirPlay 2 and Bluetooth®. Hands-free convenience thanks to Amazon Alexa voice control. All cables are included for simplified setup.

HIGHLIGHTS – YOUR BENEFITS
Immersive audio – Experience immersive home theater sound with the DHT-S516H sound bar and powerful wireless subwoofer
Premium digital amplification – Two bi-amplified mid-woofers and two tweeters with four channels deliver the Denon premium sound
Wireless subwoofer – Included subwoofer wirelessly connects to the sound bar for deep, impactful bass
Home theater sound – Supports Dolby Digital, Dolby Digital Plus and DTS decoding surround sound formats
Advanced DSP processing – With a powerful 400 MHZ 32-bit floating point DSP engine — the same processor found in premium Denon
AV receivers, enjoy enhanced sound quality
HDMI in/out with Audio Return Channel (ARC) support – Experience entertainment exactly as it was engineered from your TV to AV receiver communication while
decoding Dolby Plus audio
Expansive driver array – Dual soft dome tweeters with neodymium magnets deliver extended treble response with wide dispersion
Enjoy your music when you want it – Stream popular music services via AirPlay 2, Bluetooth and HEOS Built-in technology
Voice control – Use your voice to control music and other sound bar functions with the HEOS Home Entertainment Skill app
and your Amazon Alexa device

Powerful Home Theater Sound
Two bi-amplified mid-woofers, two tweeters, and advanced DSP processing paired with a powerful wireless subwoofer with two drivers add dimension and depth to your favorite movies and TV shows.

HDMI In/Out with Audio Return Channel (ARC)
HDMI input and output features Audio Return Channel (ARC) for single cable connection from the sound bar to your TV. Supports 4K with HDCP 2.2, Dolby Vision and HDR10.

Works with Most TV’s and TV Remotes
Never worry if the DHT-S516H will work with your TV or not; the included HDMI and Optical cabling makes certain your sound bar is compatible with any source. The included IR blaster and HEOS IR learning function allows for control with your TV remote if the sound bar is blocking its IR receiver (sensor).

Stream Music via AirPlay 2, Bluetooth and HEOS Built-in
Stream music effortlessly with Apple AirPlay 2 compatibility and built-in Bluetooth technology. And because it works as a HEOS speaker, you can wirelessly stream music in one room or with other HEOS products, controlling it all with the free HEOS Home Entertainment Skill app.

Amazon Alexa Voice Control
With Amazon Alexa support you can control music from your favorite music streaming services — Pandora, Spotify, Amazon Music and much more — with your voice using the free HEOS Home Entertainment Skill app and your Amazon Alexa device (ex. Echo, Dot). To start streaming with Alexa voice commands, simply open the Alexa app and select “Skills.” Add HEOS Home Entertainment to enable. Then, go to Smart Home in the Alexa app menu and choose Devices and Discover. Or say “Alexa, discover my devices.”

HEOS Multi-Room Streaming
HEOS Built-in technology lets you enjoy your favorite music in any room of your home for a complete wireless, whole-home audio experience. Play the same song in every room, or select a different song for each connected room — the choice is yours. Enjoy music from Spotify, TuneIn Internet radio, SoundCloud, TIDAL, Napster, Deezer, or your local music file libraries. With additional HEOS components, like HEOS-capable receivers, you can play all your music in just one room or many

Supports Popular Surround Sound Formats
Supports Dolby Digital, Dolby Digital Plus, and DTS decoding for an immersive surround sound experience.

High-Resolution Audio Playback
Enjoy the ultimate music listening experience with high-resolution playback, whether you stream over your network or plug in a USB to play previously saved tracks. Supports WMA (up to and including 192kbps AAC), MP3 (up to and including 320kbps), WAV, ALAC and FLAC (up

Movie, Music and Night Modes
The DHT-S516H features pre-set EQ modes optimized for movie and music listening. Select the Movie mode to punch up the bass of an action scene or to make dialogue sound clearer. Choose the Music mode for a wider soundstage and even dispersion. Or, switch to Night mode for lowered bass and clear dialogue when it’s time to quiet things down

Wall-Mountable
Easily mount the sound bar to a shelf or wall — the choice is yours

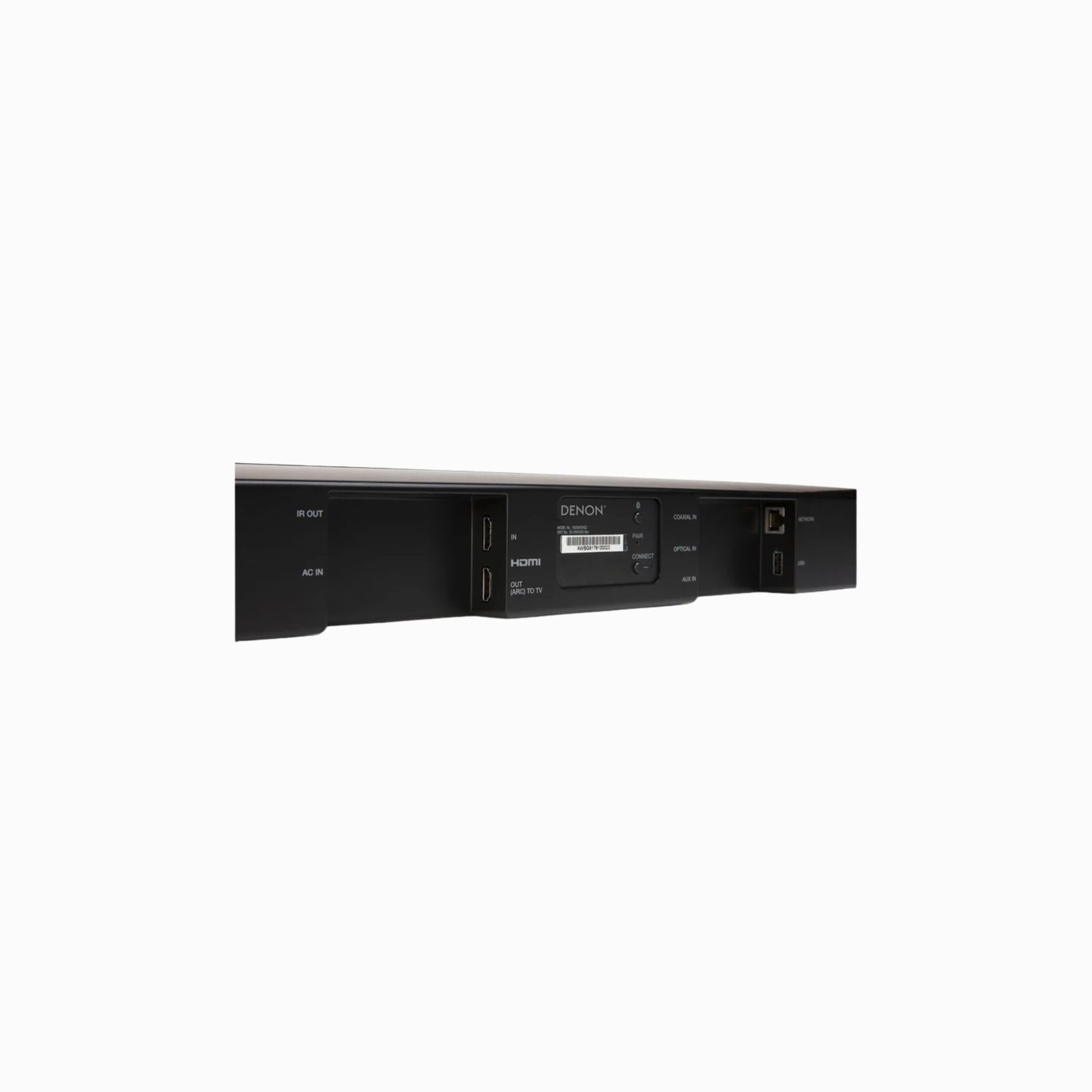

Inputs
HDMI 2.0 : 4K60, HDR10, Dolby Vision,
HDCP 2.2 compatible,
Optical input

Optical input
Coaxial input
3.5mm Aux input
USB-A input
Ethernet input
AC input

Outputs
IR output
HDMI 2.0 output with ARC

Sound Bar
(2) 2” x 5” full-range drivers
(2) soft-dome dual tweeters

Subwoofer
(2) 5.25” woofers

Subwoofer Dimensions
101.8 x 7.3 x 10.4(cm);
40.125” x 2.875” x 4.125”

Subwoofer unit:
17.2 x 31.1 x 33.2(cm);
6.75” x 12.25” x 13.0625”

What’s in the Box
DHT-S516H Sound Bar
DHT-S516H Subwoofer
(2) Power cords
3.5mm AUX cable
Optical cable (2m)
HDMI cable (2m)
Ethernet cable (3m)
IR blaster cable (0.6m)
Removable feet
Quick Start Guide
Warranty Card
