The UIW RCS II in-ceiling speaker produces phenomenally rich and immersive sound while it disappears above, virtually hidden in your ceiling. It’s a technology that took decades to perfect, but will only take you milliseconds to appreciate.

Warranty:

3-year manufacturer’s warranty

Definitive Technology UIW RCS II Features:

  • Single Reference in-ceiling/in-wall surround speaker
  • Equipped with two 6.5-inch bass/mid drivers and two 6.5-inch Planar pressure-coupled low bass radiators
  • Frequency response: 22Hz – 30kHz
  • Equipped with two 1-inch pure aluminum dome tweeters
  • Outer Flange size: 8.13 W x 29.75 H x 3.88 D inches

Reference Audio from Above

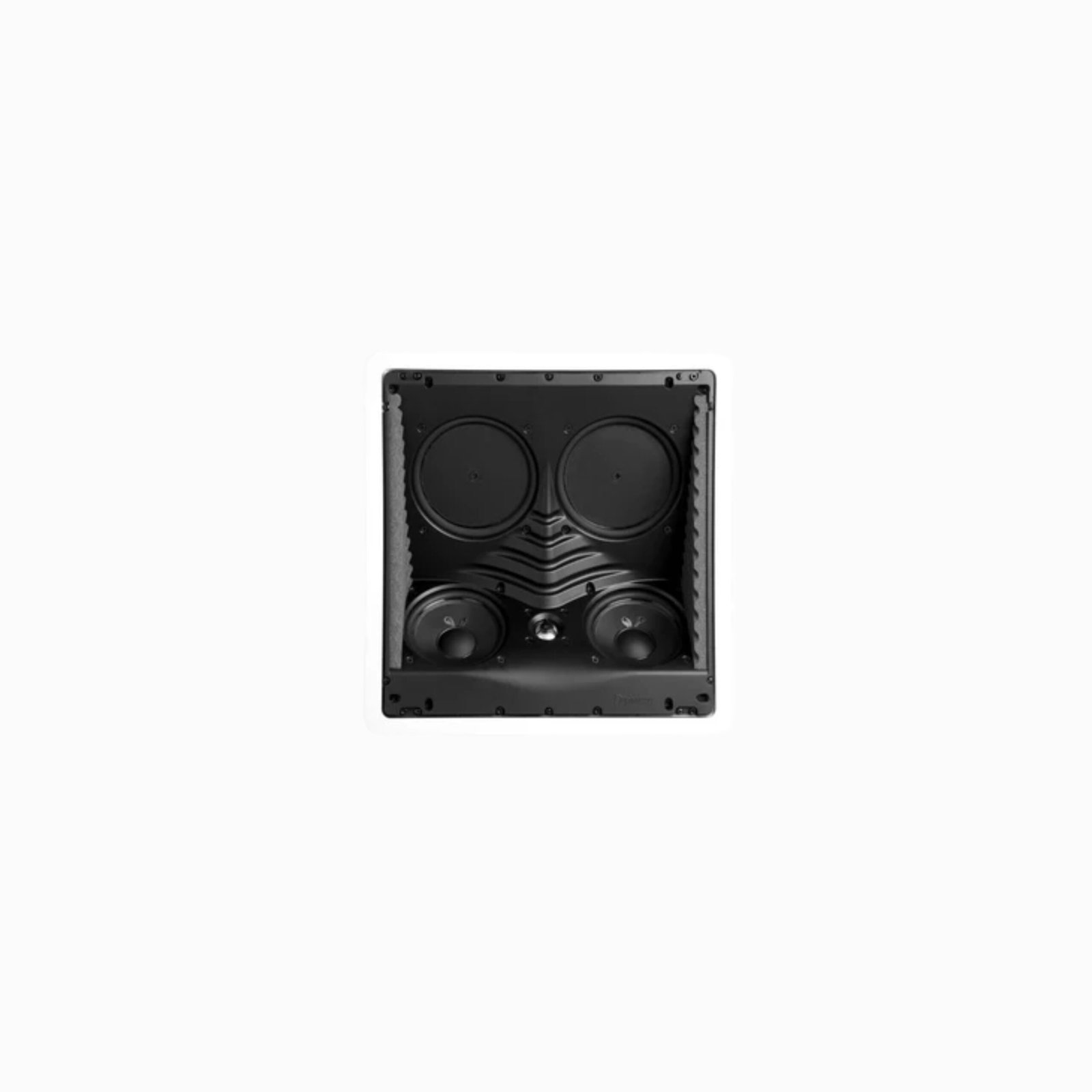

UIW RCS II speakers feature precisely-aimed drivers in our patented Wave Launch configuration – including two cast-basket midrange/woofers and a pure aluminum tweeter – angled downward toward the listening area for a full audio experience.

Reference-quality Drivers & Radiators Flagship Loudspeaker Performance

Ultimate In-Wall series speakers are designed with the same driver technologies as our flagship floor-standing speakers, enabling freestanding speaker-level performance from within your ceiling and walls.

1″ Aluminum Dome Tweeter
The RCSII aluminum dome tweeter delivers a clear, precise high-frequency response. Their ultralight, rigid construction enables them to play significantly higher frequencies than we can hear, providing effortless, distortion-free highs within and beyond the audible range.

Wave Launchâ„¢ Technology for a theater-like presentation
The RCSII’s Patented Wave Launch™ technology turns overhead speakers into engineering wonders, using precisely configured dual-angle baffles to create acoustics that make you believe you’re in front row center.

For Reference-Level Rooms

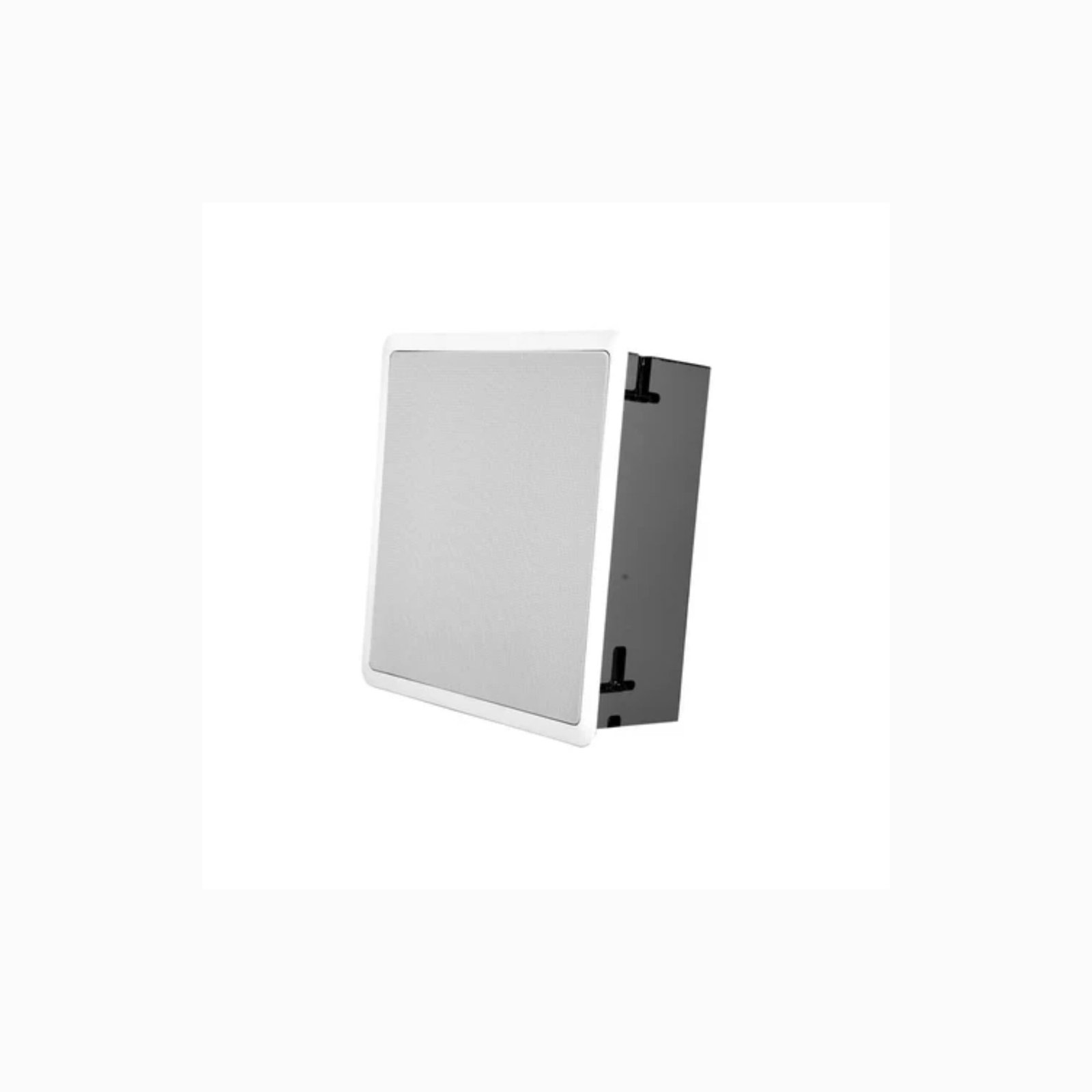

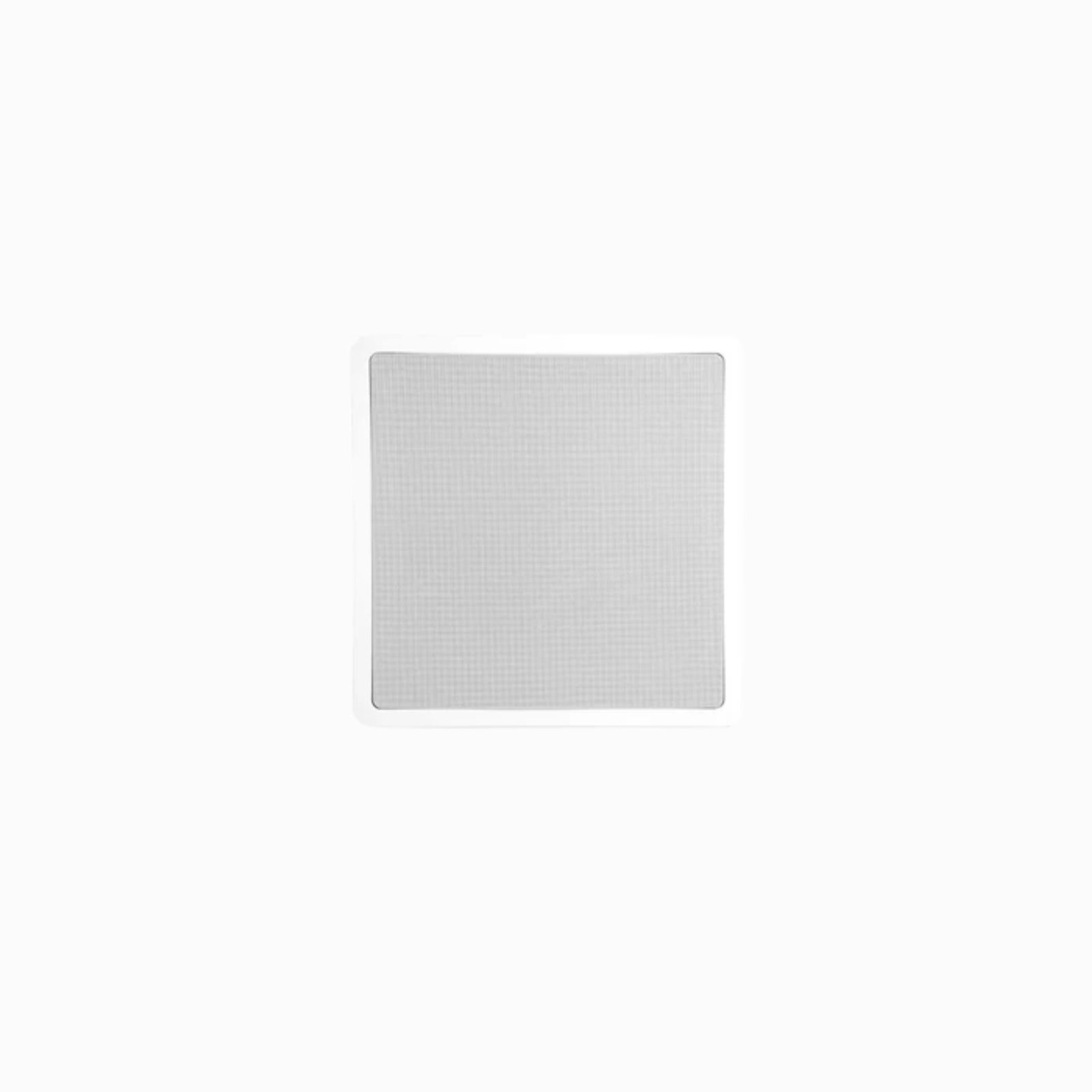

Whether new or existing construction, walls or ceilings, residential or commercial, UIW Reference Series loudspeakers feature simple, secure installations. From metal pivoting lock arms to paintable grilles and frames to fully sealed enclosures, Definitive Technology engineers designed speakers that put installation simplicity on equal footing with sound quality.

Fully enclosed for powerful sound where you want it
UIW Reference Series loudspeakers are fully enclosed and sealed with dense, acoustically inert, anti-resonant, anti-vibration Medite® wood. With the RCSII, you’ll hear loud, accurate, uncolored midrange and tight, powerful bass with no buzzing or sound leakage into walls and ceilings.

Definitive Technology UIW RCS II Technical Specifications:

Brand Definitive Technology
Speaker Type In-Ceiling Speaker
Speaker Special Features Passive Radiator
Enclosure type Sealed Medite
Frequency Response 22 Hz – 30 kHz
Power 10 – 250 watts per channel
Woofer Size 5.25″
Mid/Bass Driver 2 × 133 mm
Tweeter 25 mm
Impedance (Ω) 8 Ω
Sensitivity 1 watt @ 1 Meter 92 dB
Item Sold As Single
Dimension
Product Dimension (H×W×D) 393.7 x 393.7 x 149.2 mm (ea)
Hole Cutout Dimensions 365.1 x 365.1 x 149.2 mm (ea)
Total Frequency Response 22 Hz → 30,000 Hz
Nominal Impedance Range 8 ohms
Sensitivity (1 watt @ 1 meter) 92 dB
Included Accessories • (1) Wall Mounting Template • (1) Paint Mask • (1) Paintable Grille • (1) Self-Adhering Foam Gasket
