Definitive Technology DW 65 MAX - 6.5 Inches In-Wall Speaker (Each)

Key Features

  • High-performance in-wall speaker designed for custom home audio and home theater systems

  • 6.5-inch woofer delivering solid bass and clear midrange response

  • Dedicated high-frequency tweeter for detailed, extended treble

  • Wide sound dispersion for uniform coverage throughout listening areas

  • Low-profile, paintable grille for seamless, discreet integration into walls

  • Optimized crossover network for balanced, natural sound reproduction

  • Moisture-resistant components and durable construction for reliable long-term performance

  • Ideal for use in stereo setups or multi-channel surround systems

  • Designed for easy installation in standard wall cavities

  • Excellent choice for quality in-wall audio without compromising room aesthetics

Description

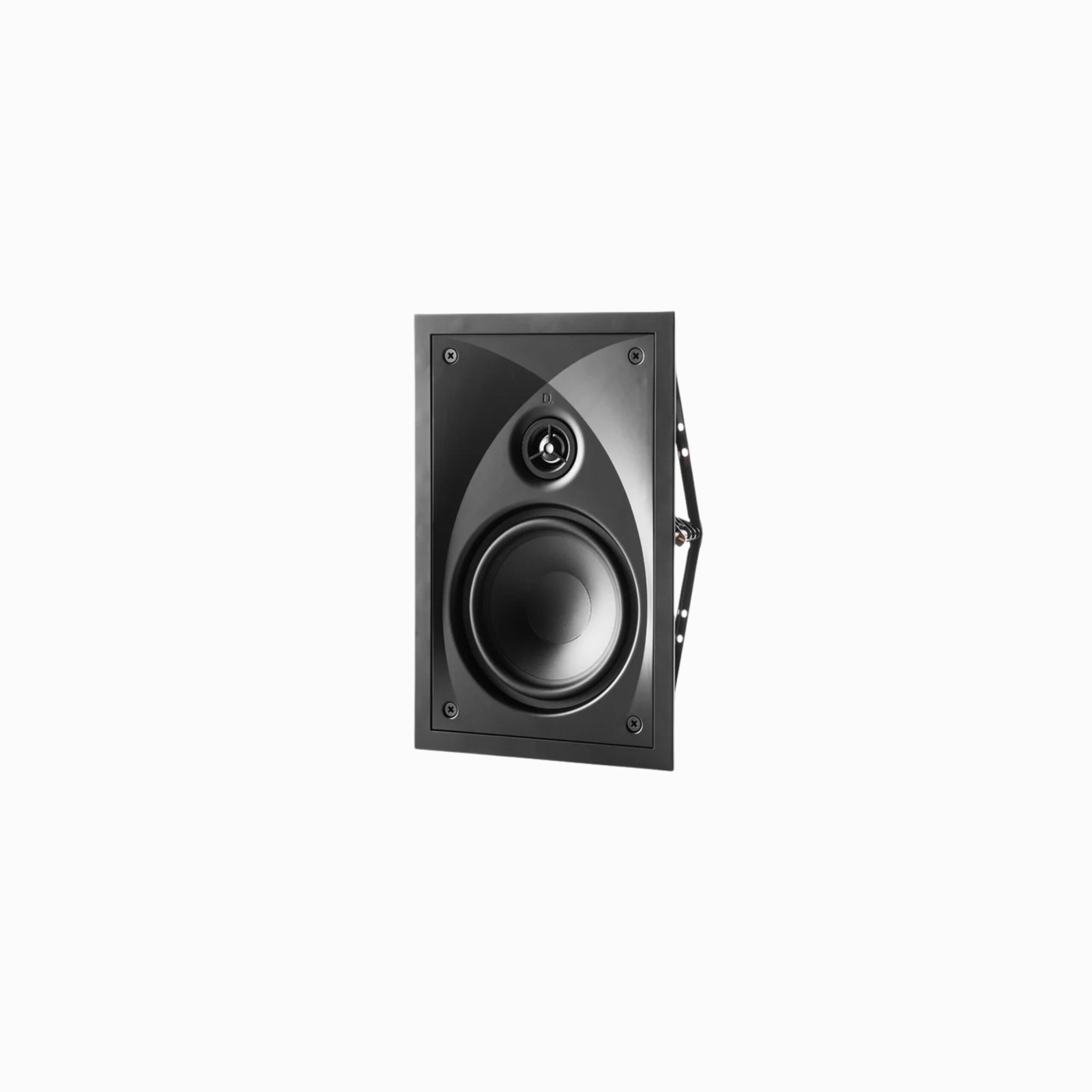

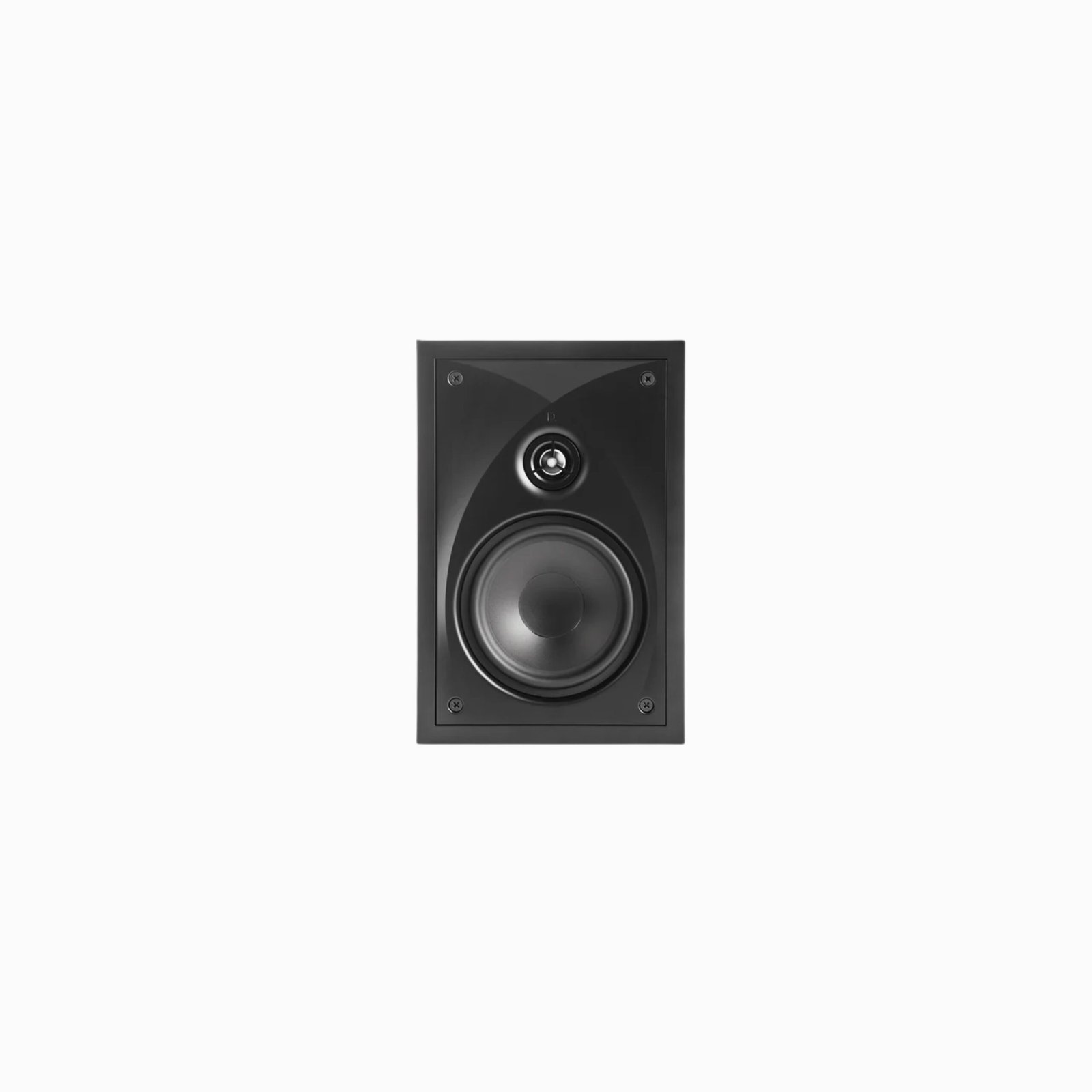

Definitive Technology DW 65 MAX – 6.5 Inches In-Wall Speaker (Each)

Dymension DW-65 MAX

Premium 6.5″ In-Wall Speaker with Pivoting Tweeter

Dymension CI™ DW-65 MAX in-wall speakers deliver precise sound, indoors and out, thanks to premium woofers and tweeters, discreet aesthetics, and robust weather protection.

  • 6.5″ Mineral-Filled BDSS Woofer with Linear Response Waveguide™
  • Toolless Installation
  • Tweeter Attenuation Switch
  • 1″ Pivoting Aluminum Oxide Dome Tweeter
  • Flush, Border-Free Design

Elevated Acoustics, Disappearing Design

Rich, Balanced Sound

Effortless Bass and Crystal Clear Highs

Sophisticated Design

Maintain the aesthetics of your space.

Seamless Installation

Install without tools, safely and securely, in minutes

Dymension DW-65 MAX

Sound for Every Space

Pivoting Aluminum Oxide Dome Tweeter for superior imaging everywhere in the room

An ultralight, rigid, 1” aluminum oxide dome tweeter produces crisp, distortion-free highs that extend far beyond the range of human hearing. CI MAX Series features a pivoting tweeter on most models, allowing for speaker placement in convenient locations while directing sound precisely where it matters most.

 Tweeter Attenuation Switch for easy adjustments

A three-position high-frequency attenuation switch (-2 dB, flat, + 2 dB) adjusts tweeter response to compensate for acoustic issues like overly bright- or dull-sounding rooms.

Premium BDSS Woofers with Linear Response Waveguide for robust mids and lows, and the ultimate sweet spot

Dymension CI MAX’s light, stiff, mineral-filled woofers feature Definitive Technology’s revolutionary Balanced Double Surround System (BDSS™), which improves driver excursion and output, delivering superior punchiness and detail and a more even midrange throughout the room. Our patented Linear Response Waveguide™ extends both on-axis and off-axis frequency dispersion for more natural midrange and precise imaging and an open, airy sound.

Discreet Designs for the ultimate vanishing act

An integrated frame and baffle, paintable micro-perforated magnetic grille, and flush, border-free design mean speakers fade into the background for a virtually invisible appearance that’s in perfect harmony with your space.

Toolless Installation for fast, easy installs

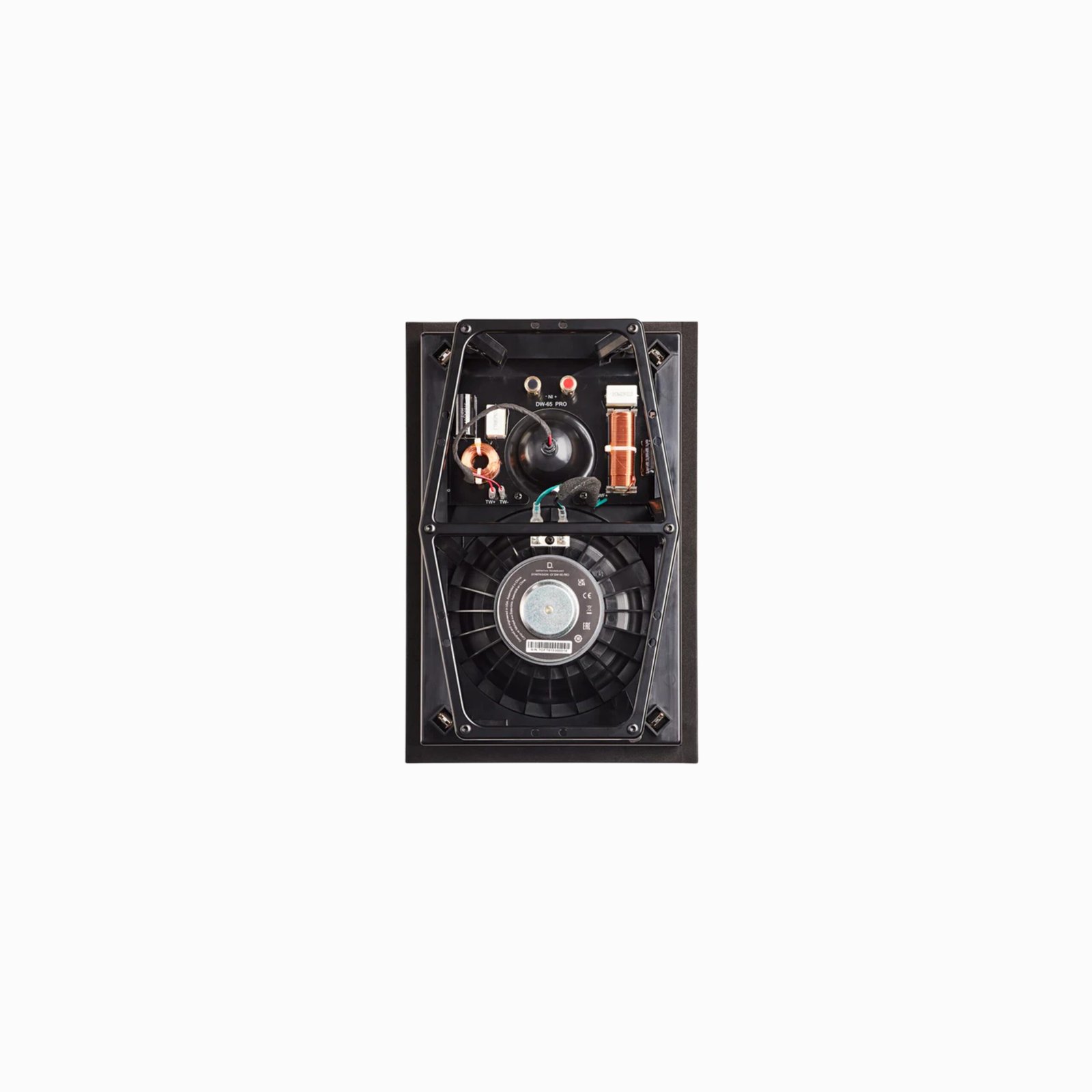

A simple, two-piece system with pivoting “dog” arms installs effortlessly—no tools, no hassles. Pre-construction brackets are available for all Dymension CI models.

IP55-Rated Construction for robust weather protection

Stunning sound doesn’t have to be limited to indoor spaces. With IP55-rated protection against dust and low-pressure water streams, trust that you can bring premium sound to any space, including high-humidity environments and outdoor areas.

Timbre-Matching for a cohesive sound system

With Dymension, fidelity runs in the family: Combine timbre-matched Dymension, Dymension CI, and Mythos speakers and Descend Series subwoofers to design the high-performance home theater system of your dreams.



Specifications

Product Dimensions (H x W x D)
9.15 x 13.68 x 3.95 in (232.4 x 347.4 x 100.3 mm)
Cut- Out Dimensions (W x H)
7.92 x 12.45 in (201.2 x 316.2 mm)
Mounting Depth
3.65 in (92.8 mm)
Weight
5.09 lbs (2.31 kg)
Color
White Paintable Grille
Grille material
Micro-Perforated Magnetic Grille
Tweeter
1 in Pivoting Aluminum Oxide Dome Tweeter
Midrange/Midbass
6.5 in. Mineral Filled Poly BDSS™ with Linear Response Waveguide™
Frequency response
34 Hz–30 kHz (-10dB)
56 Hz–25 kHz (-3dB)
Nominal impedance
Sensitivity
85dB (2.83V/1m)
Recommended Amplifier Power
20-150W
IP Rating (Ingress Protection)
IP55
Warranty
5 years
Included accessories
Grille, Literature Pack (QSG/Registration Card/Warranty), Hole Cutting Guide
