Description
The DALI Phantom E-80 delivers big, dynamic sound with an 8″ woofer that fills even large spaces with powerful, controlled bass. These in-ceiling speakers are versatile enough to serve as the main speakers in a living room stereo setup or as part of a home cinema surround system. Designed primarily for in-ceiling use, the Phantom E-80 also performs superbly as an in-wall speaker. Its compact build and intuitive compass positioning system make placement straightforward and precise, while two slide switches allow fine-tuning for off-axis performance, ensuring optimal sound even in challenging acoustic environments.
Warranty
1-year manufacturer’s warranty
Dali Phantom E-80 Key Features
- Wide dispersion – DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers
- Easy Installation – The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place
- Discreet Design – The thin magnetic front grilles integrate seamlessly into any home environment
- Functional Flexibility – The Phantom E speaker can be adjusted to deliver room-filling off-axis audio to almost any listening space
Benefits of Dali Phantom E-80 In-ceiling Speaker
Big In-ceiling sound
The PHANTOM E-80 is all about big sound. Drawing on every part of its 8” woofer to fill even very large rooms with high-quality sound, these in-ceiling speakers can function as the main loudspeakers in a living room stereo setup or as part of a home cinema surround system. The compact construction and the easy-to-use compass positioning system make placing the speaker simple and accurate, while two slide switches let you fine-tune the off-axis performance, even in acoustically challenging rooms.
Design details
Thick edges around the PHANTOM E-80 baffle offer tight and secure mounting and improve the overall strength and rigidity of the speaker, while the dogleg mounting system makes installation a simple one-step action. At the front, the stylish and discreet grille design helps the PHANTOM E-80 integrate perfectly into any room.
High-quality crossover

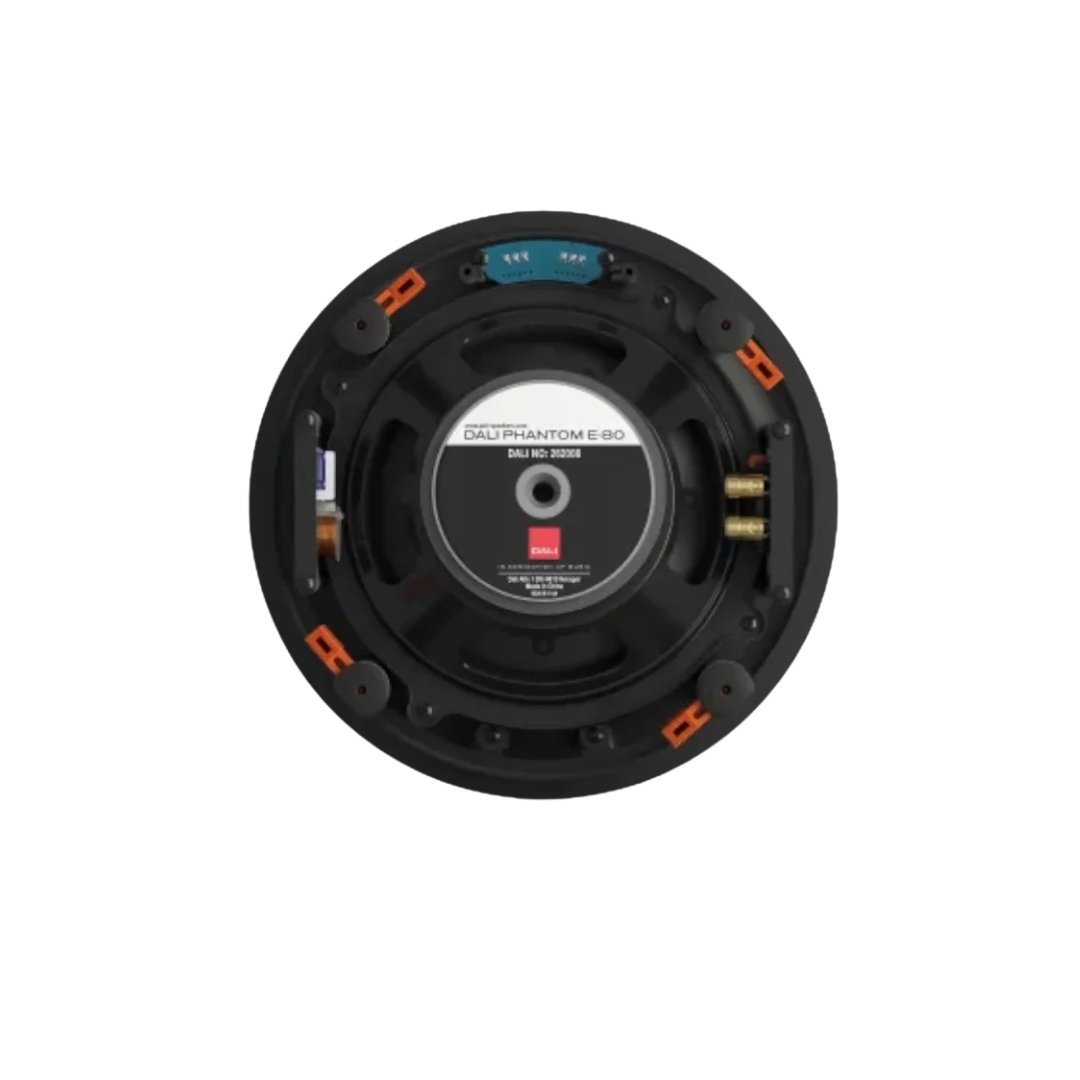

The PHANTOM E-80 crossover includes a PPTC (Polymeric Positive Temperature Coefficient device safety function. Also called a resettable fuse, the PPTC safeguards the driver components from overheating if played at very loud volumes over a long period. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.
Tweeter placement

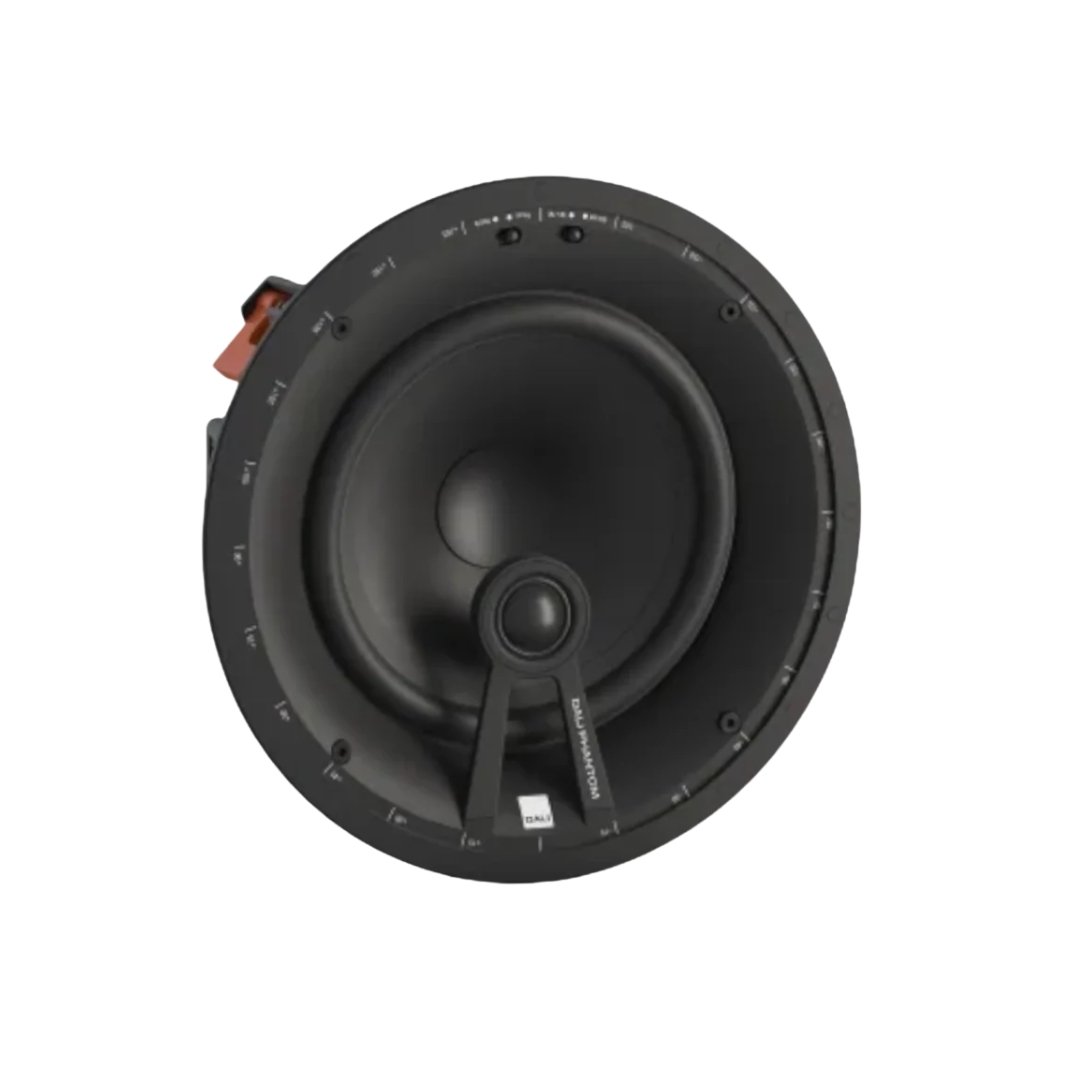

The 25 mm soft dome tweeter module in the PHANTOM E-80 is fixed over the woofer in a composite housing mounted on an aeroplane-wing profile wishbone bracket. As well as reducing the size of the speaker, the wing design and off-centre placement of the tweeter help eliminate sound colouration normally associated with coaxial drivers. The tweeter’s positioning also helps the midrange and low frequencies blend gracefully with the high frequencies for a precise and natural overall performance, even at higher volumes.
Polypropylene woofer
To ensure the best balance between durability and great audio reproduction, the 8″ woofer features a polypropylene cone that’s tilted and angled to improve directionality and soundstaging. Every part of the woofer has been designed according to our low-loss principles, so even smaller amplifiers can combine with the PHANTOM E-80 to deliver a high-quality audio experience.
Wide dispersion
All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling. The PHANTOM E-80 also has two slide switches for fine-tuning off-axis performance.
