Description

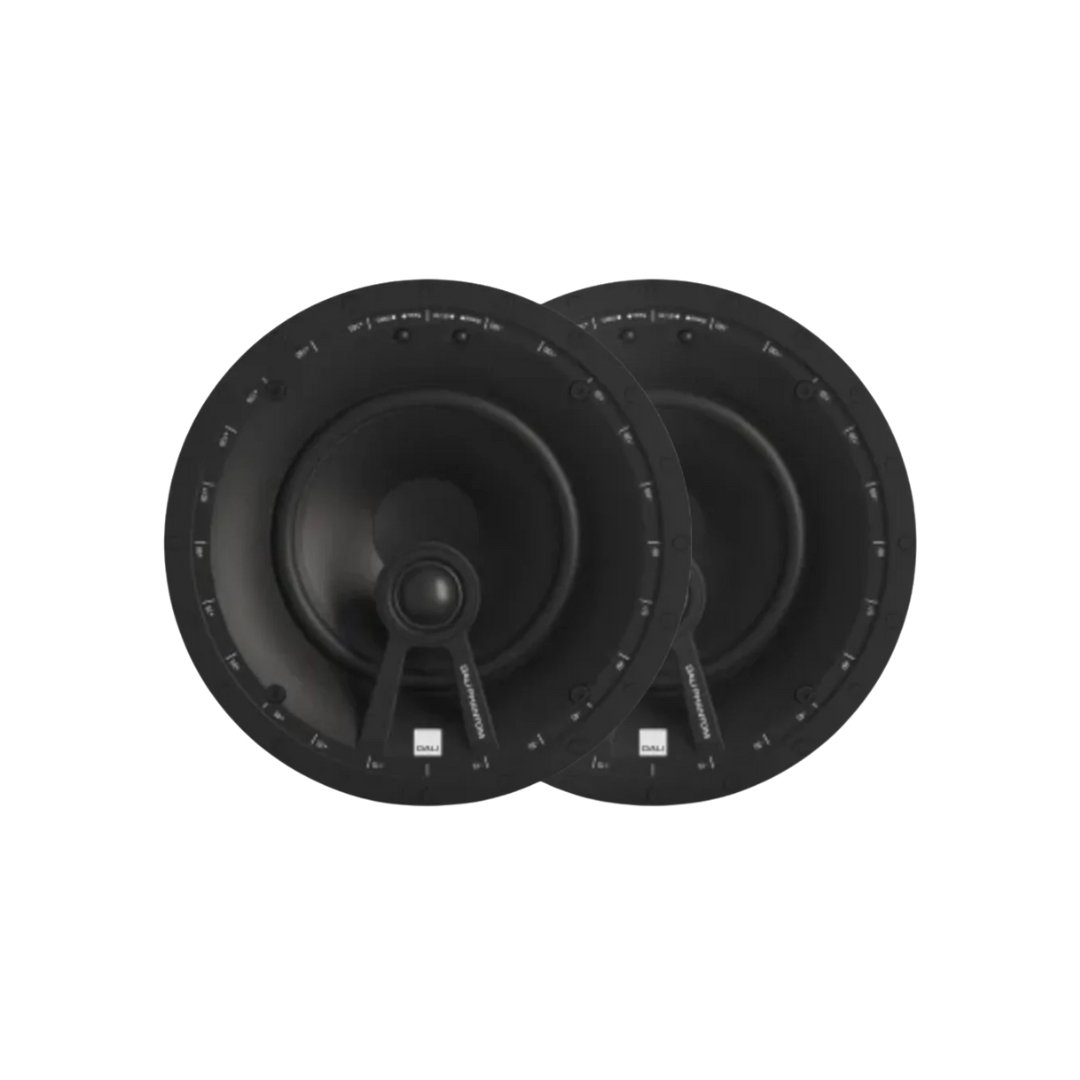

The DALI Phantom E-60 is an outstanding all-purpose in-ceiling speaker, delivering a full audio experience while remaining compact enough for discreet installation in any room. Perfect for pairing in a stereo setup in a kitchen or family room, it also performs excellently as a side or rear speaker in a larger home cinema. Though designed for in-ceiling use, the Phantom E-60 can also be installed in-wall, offering versatile placement options to suit your space and sound needs.
Warranty
1-year manufacturer’s warranty
Dali Phantom E-60 Key Features
- Wide dispersion – DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers
- Easy Installation – The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place
- Discreet Design – The thin magnetic front grilles integrate seamlessly into any home environment
- Functional Flexibility – The Phantom E speaker can be adjusted to deliver room-filling off-axis audio to almost any listening space
Benefits of Dali Phantom E-60 In-ceiling Speaker
A flexible all-rounder
The PHANTOM E-60 is the perfect all-round loudspeaker. Its compact size makes it easy to install and fine-tune using the compass positioning system, but it’s still big enough to deliver a complete audio experience. Pair it for a stereo setup in a kitchen or family room, or use it as a side or rear loudspeaker in a home cinema setup in a larger room. The PHANTOM E-60 is designed for in-ceiling use but can also be installed in-wall.
Design details
Thick edges around the PHANTOM E-60 baffle offer tight and secure mounting and improve the overall strength and rigidity of the speaker. In contrast, the dogleg mounting system makes installation a simple one-step action. At the front, the stylish and discreet grille design helps the PHANTOM E-60 integrate into any room.
High-quality crossover
Designed specifically for the PHANTOM E-60, the crossover components have been chosen for their audiophile quality. All internal wiring is optimised for the speaker design and is secured to eliminate the possibility of rattling. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.
Tweeter placement
The 25 mm soft dome tweeter module in the PHANTOM E-60 is fixed over the woofer in a composite housing mounted on an aeroplane-wing profile wishbone bracket. As well as reducing the size of the speaker, the wing design and off-centre placement of the tweeter help eliminate sound colouration normally associated with coaxial drivers. The tweeter’s positioning also helps the midrange and low frequencies blend gracefully with the high frequencies for a precise and natural overall performance, even at higher volumes.
Polypropylene woofer
To ensure the best balance between durability and great audio reproduction, the 6½” woofer features a polypropylene cone. The woofer is also tilted and angled to improve directionality and soundstaging. Every part of the woofer has been designed according to our low-loss principles, so even smaller amplifiers can combine with the PHANTOM E-60 to deliver a high-quality audio experience.
Wide dispersion
All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling. The PHANTOM E-60 also includes two slide switches for fine-tuning off-axis performance.
