Description
Give your speakers the power they deserve
Crown’s XLS 1502 2-channel power amplifier can put out 300 watts per channel at 8 ohms, 525 watts at 4 ohms, 775 watts at 2 ohms, and up to 1550 watts when bridged — enough to cleanly power a wide variety of loudspeakers. This highly efficient Class D amp employs internal heat sinks with forced-air cooling to keep the internal temperature under control, and an automated rear fan that kicks in when you’re pushing the amp hard.
Controls you’ll use

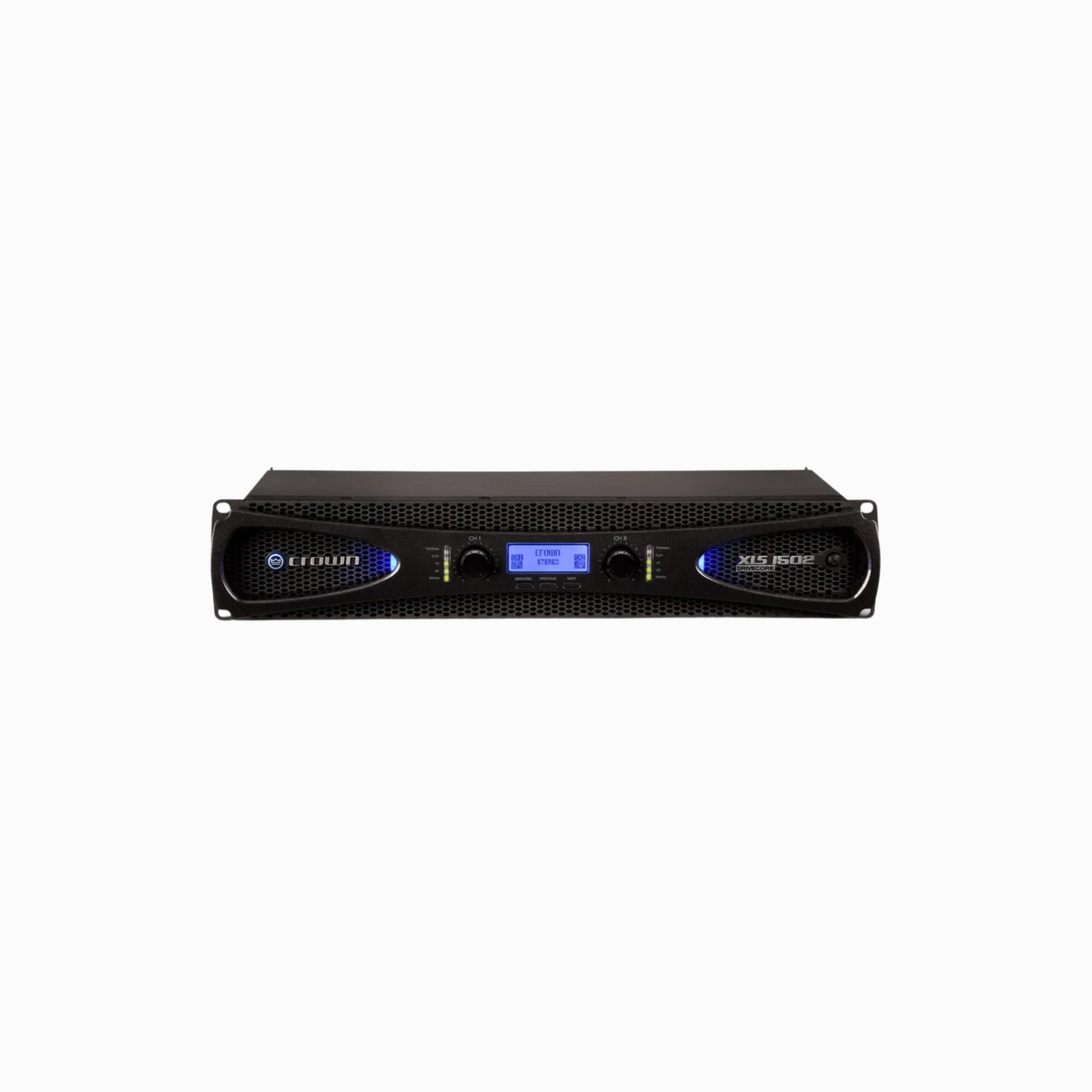

The amp’s front panel offers independent gain control knobs, LED level/clip indicators, an on/off switch, an LCD screen, and three menu control buttons. The LCD screen lets you configure the amp mode, set the limiter, and adjust the crossover configuration with the push of a few buttons. The rear of the XLS 1502 is a veritable treasure trove of connections — balanced XLR, 1/4″, and RCA inputs, so you can get creative with your audio sources. The 1/4″ line-level outputs let you add more amps to the mix. You’ll find binding posts and Neutrik Speakon® outputs for the speakers, plus a built-in circuit breaker to protect against overload.
Technology under the hood
Crown’s patented DriveCore technology allows their XLS amps to maintain high efficiency even when they’re being powered by untrustworthy AC. Unstable electrical loads typically introduce heavy noise into most Class D amps, but the DriveCore circuit keeps the distortion to practically zero. So even if you’ve got to plug in near a lighting rig or other backline gear, XLS amps wipe away interference so your signal always remains clean.
Built-in PureBand™ Crossover System
Are you working with subwoofers, multiple speakers, or floor monitors? You can maximize the XLS 1502’s energy by employing its integrated PureBand Crossover System to tailor the sound to fit each of your speakers. It lets you choose the crossover point just about anywhere between 50 and 3000 Hz, and gives you steep 24 dB/octave slopes for seamless transitions between different drivers. Your choice of three different crossover modes, high-pass, low-pass, and bandpass, lets you configure your system to nearly any situation or speaker setup, whether you need big-time bass or just need to hear the vocals clearly above the thrash and thunder. And the settings can all be adjusted right from the amp’s front panel.
Peakx Limiters keep you out of trouble
Crown’s Peak Limiters give you the confidence to push your system hard without shutting down the entire production. You’ll be able to push the volume up safely without fear of sonic distortion littering the audience’s ears or wrecking your speakers. Crown put independent Peakx Limiters on every channel, and they’re defeatable right from the front panel.
General Specifications:
- 2-channel power amplifier with built-in crossover
- power output:
- 300 watts x 2 at 8 ohms
- 525 watts x 2 at 4 ohms
- 775 watts x 2 at 2 ohms
- 1050 watts x 1 at 8 ohms in bridged mode
- 1550 watts x 1 at 4 ohms in bridged mode
- frequency response: 20-20,000 Hz (-1 dB)
- signal-to-noise ratio: 103 dB
- total harmonic distortion: 0.5% (20-20,000 Hz)
Features:
- DriveCore circuitry maintains Class D high efficiency with low noise
- independent right- and left-channel gain controls
- LCD screen with menu/prev/next buttons
- Sleep mode turns LCD screen off for less distraction
- Security mode prevents tampering
- rear panel circuit breaker/reset switch
- Defeatable Peakx Limiters for each channel
- PureBand Crossover System:
- Linkwitz-Riley 24dB/octave crossover filter
- crossover frequency range: 50-3,000 Hz, with points every 1.5 octave centers
- selectable filter types: low-pass, high-pass, and band-pass
- internal heat sinks with forced-air cooling
- flow-through ventilation from front to back, plus an automatic rear fan for critical temperatures
- short circuit, thermal, and current limiting protection
- front-panel LEDs indicate signal, -10dB and -20dB below clipping, and temperature
- integrated rack mount ears

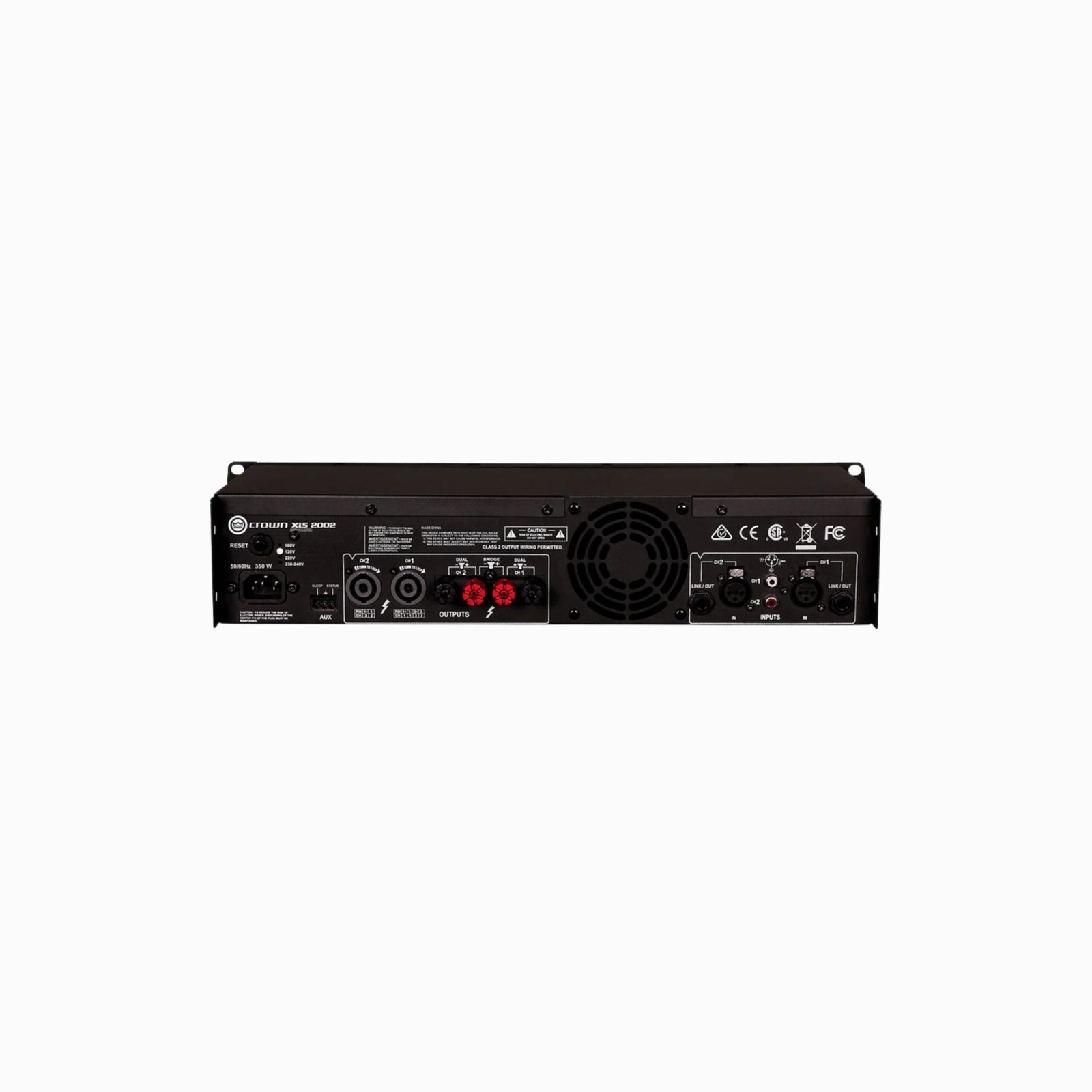

Connections:
- inputs: balanced XLR, 1/4″, and RCA
- outputs: two binding posts and two Neutrik Speakon
- 1/4″ line-level outputs can be used to send a signal to another amp
Other Information:
- weight: 8.6 lbs.
- 19″W x 3-1/2″H x 7-3/4″D (2 rack spaces)
- warranty: 6 years (3 years if purchased before 1/1/20)
