Cambridge Audio Topaz SR10 (v2) - Stereo Receiver

Key Specifications & Features

Power output: 85 W RMS per channel into 8 Ω. bhphotovideo.com+3Crutchfield+3linephaze.com+3
Frequency response: 5 Hz – 50 kHz (-1dB) data.heimkinowelt.at+2linephaze.com+2
THD (un-weighted): < 0.01% @ 1 kHz, at 80% of rated power; < 0.15% 20Hz-20kHz at 80% power. bhphotovideo.com+1
Signal-to-Noise Ratio (ref. 1 W): > 82 dB (un-weighted) Crutchfield+1
Load handling: Supports loudspeaker loads of 4-8 Ω. manuals.coolblue.nl+2linephaze.com+2
Built-in MM phono stage (so you can connect a turntable with a moving magnet cartridge). data.heimkinowelt.at+1
Includes built-in FM/AM tuner with RDS and 30 presets. ProHiFi India+2bhphotovideo.com+2
Sub-woofer output (in v2 variant) and twin speaker outputs (Speaker A & B) for flexibility. Reddit+2linephaze.com+2
Dimensions & weight: ~430 × 110 × 340 mm (W×H×D), weight ~8.1 kg. data.heimkinowelt.at+1
Build quality: Brushed aluminium front panel, rigid wrap-over lid for resonance control, low-flux toroidal transformer designed for audiophile performance. Jamsticks

Description

The SR10 boasts 85 watts of power, a built-in phono stage for connecting record players with Moving Magnet cartridges, a front panel 3.5mm input for iPod/MP3 players, built-in FM/AM radio with RDS and 30 presets, and four analog inputs for connecting all your music, AV, and audio sources.

Warranty:

1-year manufacturer’s warranty

Features:

Low-flux toroidal transformer
Dedicated subwoofer output
Switchable twin speaker outputs

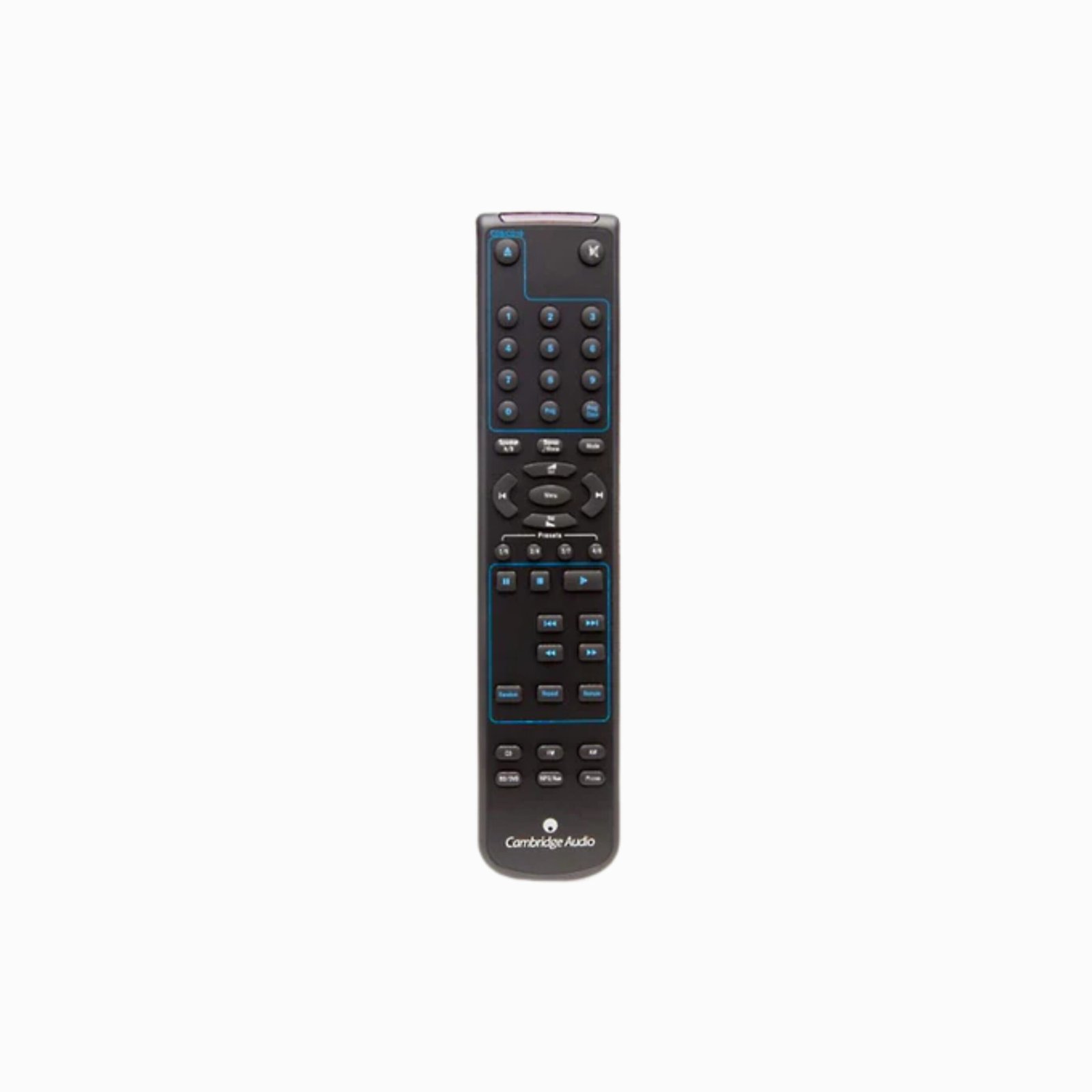

Included remote control also controls the Topaz-series CD10 CD player
Integrated MM phono stage
Detachable power cord
Built-in FM/AM tuner with 30 presets and RDS for FM stations
Brushed aluminum front panel with wrap-over lid assembly designed for resonance control

Stereo Amplifier: The Cambridge Audio SR10 stereo receiver employs a fully discrete, high-power, bipolar-transistor-based power amplifier rated at 85 watts RMS x 2 channels. The amplifier can handle impedances between 4 and 8 ohms.

A/B Speakers: The Cambridge Audio SR10 is equipped with A & B speaker terminals to connect two pairs of loudspeakers or bi-wire a single pair of loudspeakers. You can select which speaker outputs are heard – A speaker only, B speaker only, A+B speaker, or Off. The amplifier can support a 4-ohm load when driving only one pair of speakers. The amplifier can support an 8-ohm load when driving two pairs of speakers.

Rugged Chassis Design: The Cambridge Audio SR10 stereo receiver has been carefully designed with a brushed aluminum front panel, rigid metal chassis, and internal bracing to prevent resonance and improve sound quality.

Toroidal Transformer: The Cambridge Audio SR10 stereo receiver utilizes a custom low-flux toroidal transformer for audiophile performance.

Cooling Fan: The Cambridge Audio SR10 features a very quiet speed-controlled cooling fan to keep the receiver operating at a normal temperature for consistent performance and outstanding reliability.

Technical Specifications:

POWER OUTPUT	85W RMS into 8 Ohms (2-channels driven)

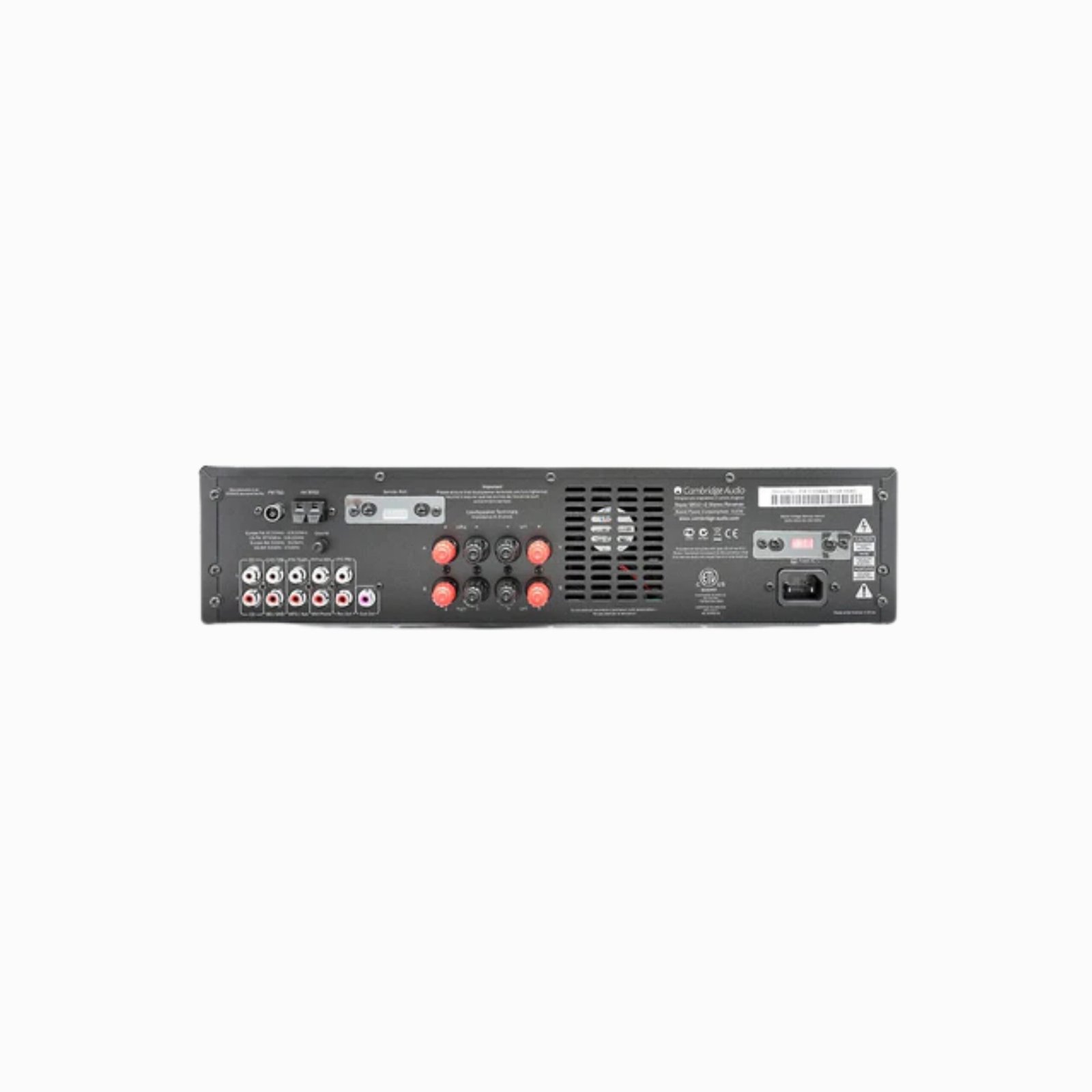

INPUTS/OUTPUTS	1x CD RCA input, 1x Tuner/DAB RCA input, 1x MP3/AUX RCA input, 1x MP3/AUX 3.5mm input (front panel), 1x BD/DVD RCA input, 1x Phono RCA input for Moving Magnet cartridges, 1x Rec Out RCA output, 1x Subwoofer output, 1x Headphone output
MAX. POWER CONSUMPTION	500 Watts
RADIO FUNCTION	FM/AM (EU and US bands), 30 presets, Radio Data System (RDS) for FM Stations
COLOURS	Black
DIMENSIONS (WXHXD)	430 x 110 x 340mm
WEIGHT	8.1Kg (17.8lbs)
