Cambridge Audio Evo 150 - Streaming Amplifier

Key Specifications & Features

Power output: 150 W per channel into 8 Ω. Auditorium+2The Absolute Sound+2

Amplification: Class-D “Hypex Ncore” module, tuned by Cambridge Audio. Cambridge Audio International+2Soundium+2

DAC: ESS Sabre ES9018K2M chip. The Absolute Sound+1

Streaming & connectivity:

Built-in support for WiFi (dual-band), Ethernet, full network streaming (Spotify Connect, TIDAL, Qobuz, Internet Radio, Chromecast built-in, AirPlay2) via Cambridge’s StreamMagic platform. Audio Concept+1
Bluetooth 4.2 with aptX / aptX HD support. Audio Concept+1
Digital inputs: USB-B, Optical (Toslink) ×2, Coaxial, HDMI ARC (for TV integration) in many spec sheets. Soundium+1
Analogue inputs: Line RCA, Balanced XLR, Moving-Magnet phono stage for turntables. Auditorium

Maximum supported formats: Includes high-resolution files (e.g., up to 32-bit/384 kHz via USB, DSD up to DSD256) in many specifications. Stereoindex

Physical size & weight: Approx 317 mm wide × 89 mm high × 352 mm deep, weight around 5.3 kg. stereophile.com+1

Description

An evolution in sound and style, the Evo 150 is a compact powerhouse. With 150 watts per channel and a reference quality DAC (Digital to Analogue Converter) built in, sound quality is of the first order. A comprehensive range of streaming options, via wi-fi, AirPlay, and Bluetooth, lets you stream music your way.

Warranty:

1-year manufacturer’s warranty

Features:

Simple to use, thrilling to listen to
Rich dynamics, the huge scale, and complete control mean inspiring sound
Compatible with every format, from vinyl to digital streaming and everything in between
Numerous digital and analog inputs for wide-ranging system possibilities
Perfected to work with the widest range of speakers
Powerful enough to drive two sets of speakers with no problem

All-in-one simplicity – just add speakers
Combining streaming smarts and high-class amplification in one box means Evo only needs wiring to mains power and to speakers to serve up the thrilling sound quality.
Streaming music from Evo means saying ‘goodbye’ to meters and meters of connection cables, and ‘hello’ to intuitive, straightforward functionality in one sleek, good-looking box.

Easy to set up, easy to use
It couldn’t be simpler. Plug Evo into the mains, and wire it to your speakers. Then fire up your favorite music streaming service on a smartphone, tablet, or wherever and connect to Evo using the app, Bluetooth, or Evo’s built-in streaming service support. Pick a tune, press ‘play’, and adjust the volume to your taste.

Great connectivity
Thanks to its suite of digital and analog inputs, Evo is ready for you to add your favorite sources – a turntable, say, or CD player – and build a wider system. Even video sources can join in – just connect your TV’s HDMI ARC output to Evo’s ARC input. No matter where your music’s coming from, Evo will make it sound its best.

Bluetooth convenience. HD sound quality
Nothing’s easier or simpler than streaming via Bluetooth. Evo takes it to the max by using aptX HD Bluetooth, which is wireless, high-definition music streaming with flawless transmission and incredibly realistic, convincing sound. Evo delivers all the wireless convenience you want, with none of the sonic compromises.

Free your headphones
As well as featuring a 3.5mm output for headphones, Evo is also a Bluetooth transmitter – so if you’d rather do your private listening on wireless headphones, Evo has you covered.

Great British Sound
Evo uses the very best components, such as ESS Sabre 32-bit high-resolution DACs – and then we bring every one of our 50+ years of audio know-how to bear. The result is the Great British Sound we are renowned for.

Complete control

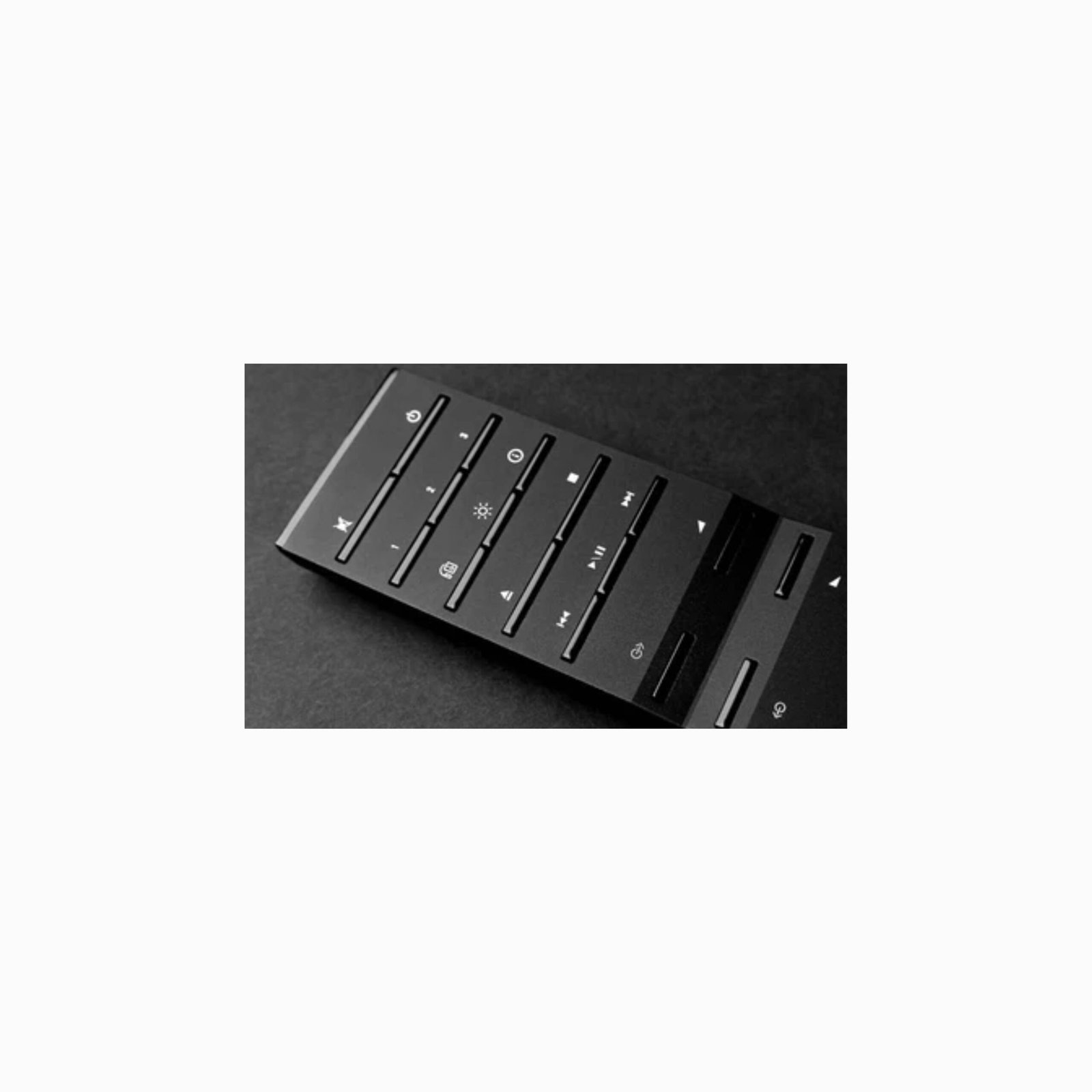

Evo is intuitive and straightforward to operate, no matter if you’re using its full-function remote control, its simple and elegant control app, or the physical controls and big, bright, detailed display on its fascia.

Neat and easy placement
Just 305mm wide, Evo will sit neatly wherever you need it to. But thanks to its beautiful design and all-around good looks, it deserves center-stage.

Great for record players
If you want to connect a turntable, Evo 150’s built-in phono stage is perfect.

Technical Specifications:

Power Output	150W into 8 Ohms
Audio Formats	ALAC, WAV, FLAC, AIFF, DSD (x256), WMA, MP3, AAC, HE AAC AAC+, OGG Vorbis
Amplifications	Class-D Hypex Ncore®
Outputs	Speakers A+B, 3.5mm headphone, Preamp Output, Subwoofer Output, Bluetooth: 4.2 A2DP/AVRCP supporting up to aptX HD
DAC	ESS Sabre ES9018K2M
Frequency Response	20Hz – 20kHz +0/-3dB
Ethernet	IEEE 802.3, 10 Base-T or 100 Base-T
Analogue Audio Inputs	1 x RCA, 1 x balanced XLR, 1 x Moving Magnet Phonostage
Max Power Consumption	700w
Standby Power Consumption	<0.5w
Dimensions(W X H X D)	305 x 90 x 305mm
Weight	5.3kg
