Cambridge Audio DACMagic Plus - Digital to Analogue Converter

Key Specifications & Features

The DacMagic Plus uses dual Wolfson WM8740 24-bit DAC chips in a dual differential configuration. Cambridge Audio International+2Crutchfield+2
Digital filter/upsampling: Uses an Analog Devices ADSP21261 DSP which up-samples to 24-bit/384 kHz. Crutchfield+1
Analogue output options: Balanced (XLR) and unbalanced (RCA) outputs. B&H Photo Video+1

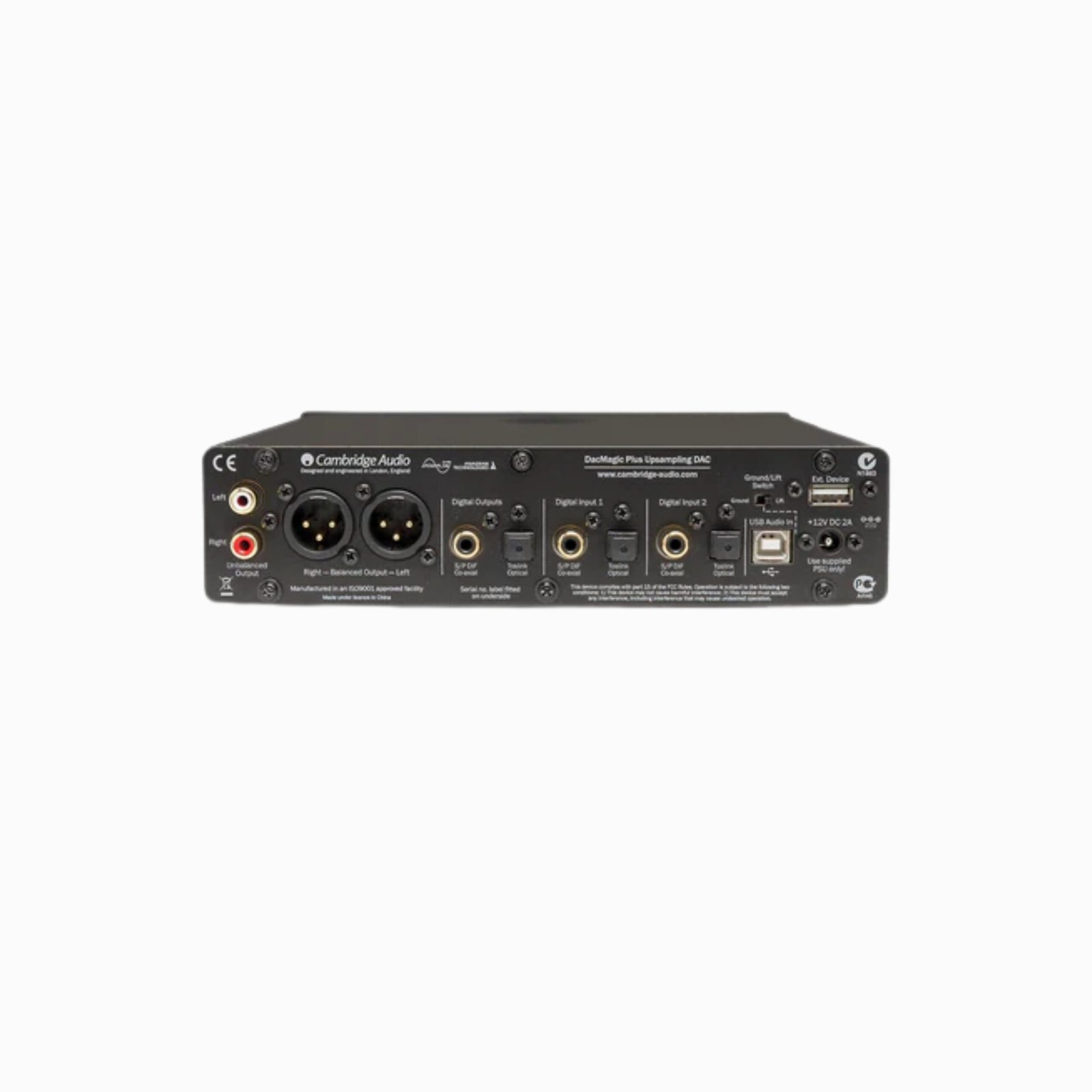

Rear panel inputs: USB (Type B) audio input (supports up to 24-bit/192 kHz), coaxial S/PDIF, TOSLINK optical digital inputs. Crutchfield+1
Output specs: Unbalanced output ~2.1 V rms; Balanced output ~4.2 V rms (2.1 V per phase) for the balanced configuration. ProHiFi India+1
Exceptional measured performance: THD <0.001% (1 kHz, 0 dBFS) and <0.002% (20 kHz, 0 dBFS); Signal-to-Noise Ratio ~-112 dBr. Crutchfield+1
Headphone output: The unit also offers a front-panel headphone output supporting 32 Ω-600 Ω headphones. ProHiFi India+1
Future/upgrade path: Has a USB port for optional Bluetooth dongle (BT100) allowing wireless streaming via aptX (if you add the dongle) via USB. ProHiFi India

Description

The DacMagic Plus has fantastic new features, including wireless device connectivity and stunning audio performance from music of all formats. Thanks to twin DACs, it instantly improves audio fidelity from all your favorite digital products, allowing you to make your computer, TV, Blu-ray player, and other devices a true part of your hi-fi system

Warranty:

1-year manufacturer’s warranty

Features:

DAC: Dual Wolfson WM8740 24-bit DACs.
Digital Filter: Analog Devices ADSP21261 DSP Up-sampling to 24-bit/384kHz.
Analogue Filter: 2-Pole Dual Differential Bessel Double Virtual Earth Balanced.
Frequency Response: 20Hz to 20kHz (±0.1dB)
THD @ 1Khz 0dBFs: <0.001% 24-bit.

PURE PROCESS
The DacMagic Plus works by taking a direct digital audio signal from your computer, TV, or another device – bypassing their built-in digital-to-analog converters. This signal is then carefully analyzed and upgraded using our ATF2 upsampling system. Once this process is complete, the DacMagic Plus outputs your music as a much purer analog signal straight to your amplifier.

Custom developed by Cambridge Audio’s dedicated team in the heart of London, DacMagic Plus is flexible and supports digital music of all formats. It even allows you to upgrade 24-bit music files stored on your PC for better-than-CD performance from your digital music collection. Watch the video above to find out why our proprietary ATF2 upsampling technology makes such a difference to the sound produced by our DACs.

WIRELESS CONNECTIVITY
By linking Cambridge Audio’s plug-and-play BT100 wireless audio receiver to the DacMagic Plus, you can also stream music wirelessly from your smartphone, tablet, laptop, or any gadget that supports Bluetooth*. Additionally, if your device supports the superior aptX CODEC Bluetooth encoding, you can stream lossless CD-quality music from your device to the DacMagic Plus.
*Optional BT100 audio receiver required

ADDITIONAL SERVICES
As well as controlling and playing music that’s stored on your computer or smartphone, streaming services like Spotify and Last FM can be shared with your hi-fi in stunning quality.

Technical Specifications:

DIGITAL TO ANALOGUE CONVERTERS	Dual Wolfson WM8740 24-bit DACs
DIGITAL FILTER	Analog Devices ADSP21261 DSP; upsampling to 24-bit/384kHz
ANALOGUE FILTER	2-Pole Dual Differential Bessel Double Virtual Earth Balanced
FREQUENCY RESPONSE	20Hz to 20kHz (±0.1dB)*
THD @ 1KHZ 0DBFS	<0.001% 24-bit
THD @ 1KHZ -10DBFS	<0.001%
THD @ 20KHZ 0DBFS	<0.002%
SIGNAL TO NOISE RATIO	-112dBr
TOTAL CORRELATED JITTER	<130pS
CROSSTALK @ 1KHZ	< -130dB
CROSSTALK @ 20KHZ	< -112dB
OUTPUT IMPEDANCE	<50 Ohms
MAX. OUTPUT LEVEL (UNBALANCED)	2.1V rms
MAX. OUTPUT LEVEL (BALANCED)	4.2V rms (2.1V per phase)
DIGITAL INPUT WORD WIDTHS SUPPORTED	16-24bit
DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz**, 192kHz
AUDIO OUTPUT UPSAMPLING	Fixed 24-bit/384kHz
MAX POWER CONSUMPTION	12W
DIMENSIONS (HXWXD)	52 x 215 x 191mm; (2.0 x 8.6 x 7.6”)
WEIGHT	1.2kg/2.6lbs
THD	at 1kHz 0dBFS 24-bit signal with 22kHz low pass filter = 0.001% at 20khz 0dBFS 24-bit signal with 80kHz low pass filter = 0.003%
S/N	-111dBrA
FREQUENCY RESPONSE	10Hz – 100kHz
RECOMMEND HEADPHONE IMPEDANCE	32 Ohm to 600 Ohm Steep filter disabled ** Digital 1 & 2 Inputs only
