Bowers & Wilkins CWM7.5 S2- 6 Inches, 3-Way In-Wall Speaker (Each)

Key Features

  • 3-Way In-Wall Speaker Design
    Dedicated drivers for bass, midrange, and treble deliver a full, balanced sound with rich low frequencies, clear mids, and detailed highs — ideal for music and home theatre audio.

  • 6-Inch Woofer Driver
    Provides a strong low-frequency foundation and natural midrange for engaging, full-range performance.

  • Dedicated Midrange Driver
    Ensures transparent, articulate midrange reproduction that enhances dialogue clarity and musical detail.

  • Decoupled Double-Dome Tweeter
    Produces smooth, extended high frequencies with excellent clarity and minimal distortion for refined high-end response.

  • Wide Sound Dispersion
    Engineered to radiate sound broadly throughout the listening area for consistent coverage and immersive audio.

  • Optimized Crossover Network
    Precisely balances transitions between drivers for coherent, seamless sound across the frequency range.

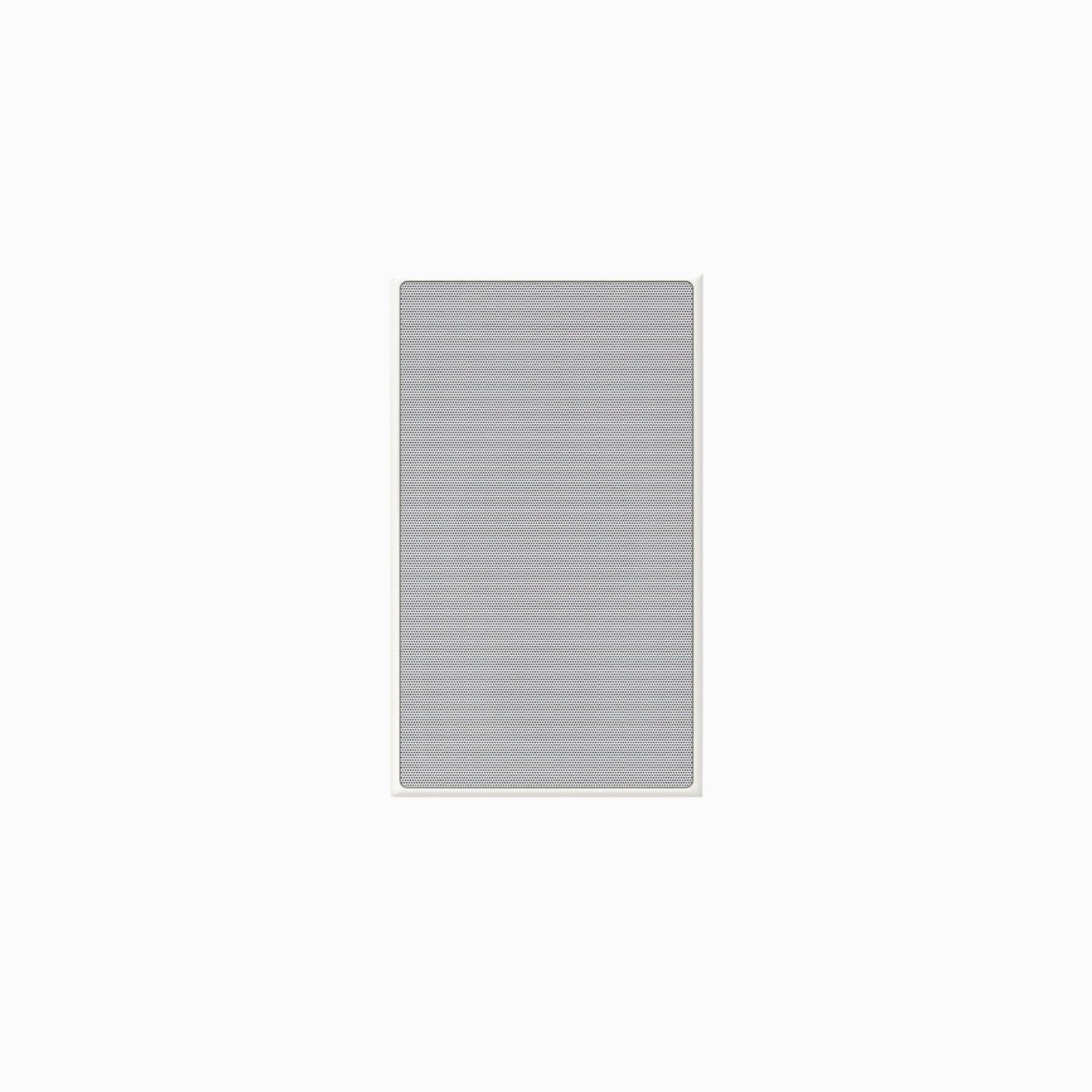

  • Low-Profile, Paintable Grille
    Sleek, unobtrusive grille integrates into walls and can be painted to match room décor for a clean, integrated look.

  • Flush-Mount Installation
    Designed for secure in-wall mounting with included hardware for a neat, flush finish.

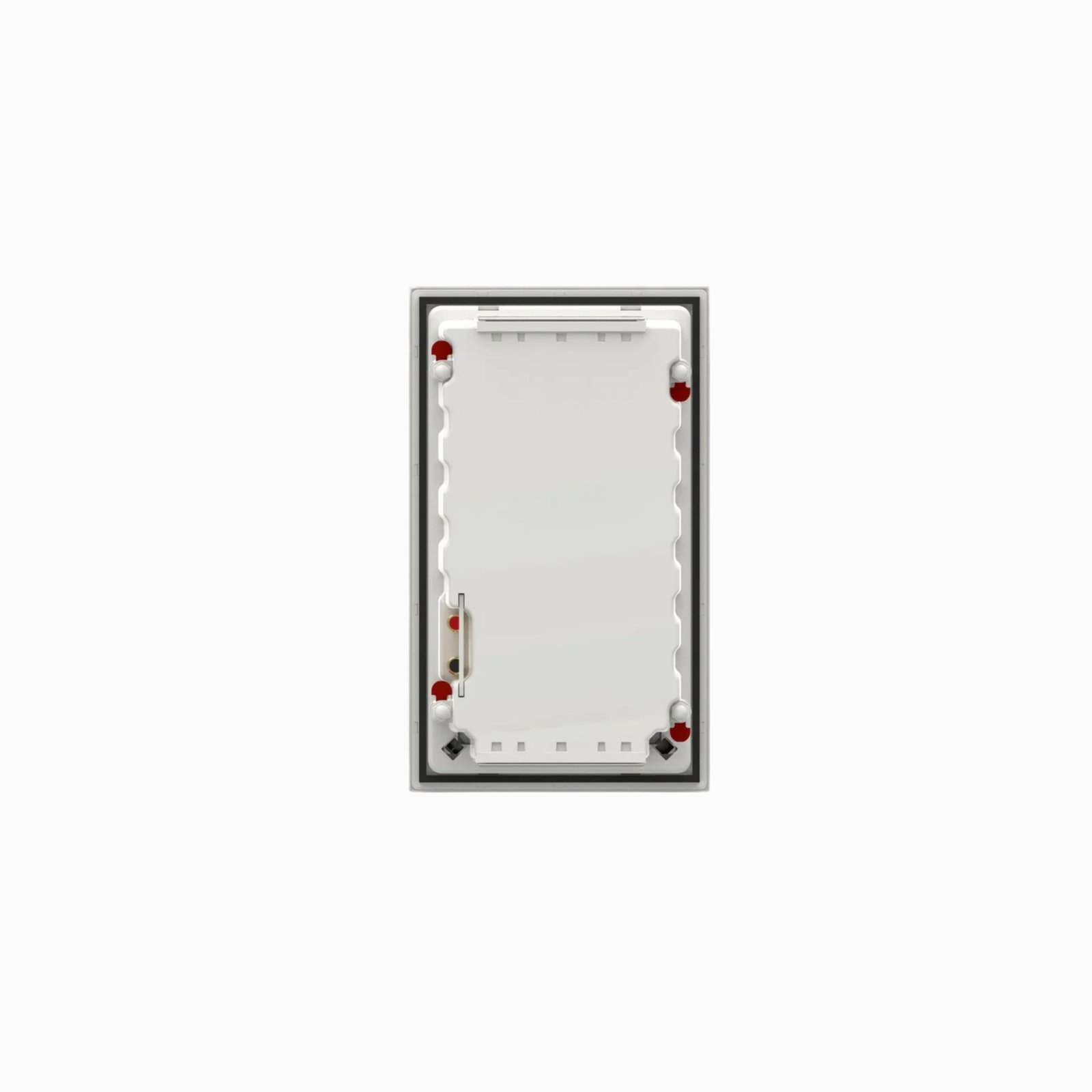

  • Rigid Back-Box Compatibility
    Can be paired with an optional back box to improve bass response and reduce sound transmission to adjacent rooms.

  • Durable Construction
    Built with quality materials for long-lasting, reliable performance.

  • Versatile Application
    Suitable for left, centre, or right channels in custom home theatre systems or as part of distributed audio installations, delivering refined, high-fidelity sound.

Description

Bowers & Wilkins CWM 7.5 S2

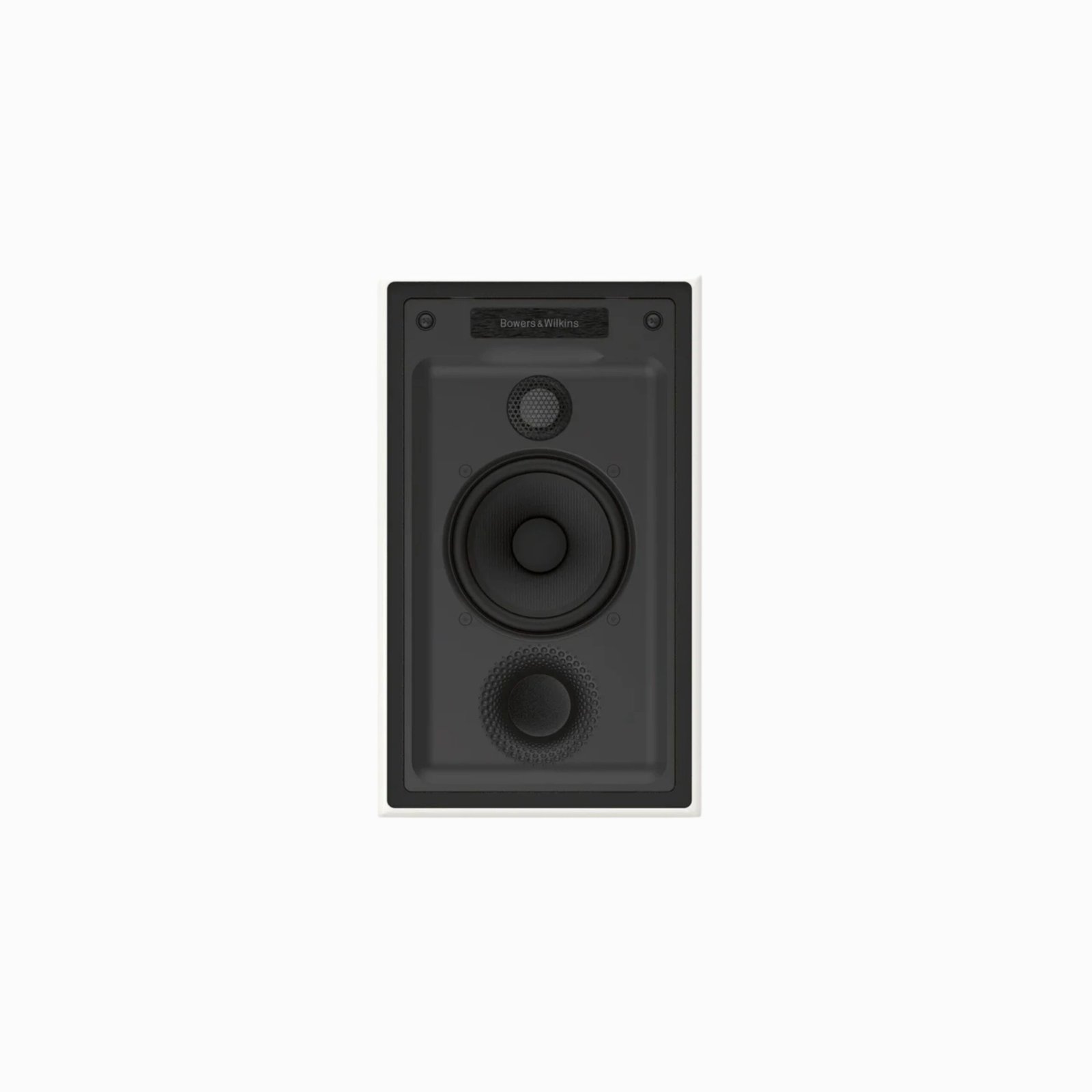

The CWM7.5 shares the acoustic configuration of the 707 S2 and like its sibling, it houses a 130mm (5in) bass/mid-range Continuum cone driver plus a 25mm (1in) Carbon Dome tweeter, coupled to a forward-firing FlowportTM for outstanding bass response from a relatively small footprint. It has a critically formed baffle constructed from glass-reinforced ABS plus its own integrated back box, ensuring retrofittable installation plus optimum performance. It’s an outstanding performer when used in stereo or multi-room installations, and is equally at home as the rear speaker in a larger theatre application.

  • 2-way in-wall system
  • 1″ Carbon Dome Tweeter
  • 1 x 5″ Continuum Cone Bass/Midrange
  • Flowport
  • 25 – 150W



 Specifications

Technical features
Carbon Dome tweeter / Continuum mid/bass / Flowport
Description
2-way in-wall system
Drive units
1x ø25mm (1 in) Carbon Dome high-frequency / 1x ø130mm (5 in) Continuum cone mid/bass
Frequency range (-6dB)
-6dB at 43Hz and 33kHz
Frequency Response -3dB
45Hz – 28kHz ±3dB
Sensitivity
86dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m) / <1% 90Hz – 33kHz / <0.5% 120Hz – 33kHz
Impedance Nominal
8Ohms (minimum 3.8Ohms)
Recommended amplifier power
25W – 150W into 8Ohms on unclipped program
UPC
714346332168
Series
700 Series, CI 700 Series
Distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz – 33kHz
<0.5% 120Hz – 33kHz
Drivers
1x ø25mm (1 in) Carbon Dome high-frequency
1x ø130mm (5 in) Continuum cone mid/bass
Frequency Response
45Hz – 28kHz ±3dB
Frequency Variance
-6dB at 43Hz and 33kHz
Impedance
8Ohms (minimum 3.8Ohms)
Sensitivity
86dB spl (2.83Vrms, 1m)
Total Amp Power
Recommended 25W – 150W into 8Ohms on unclipped program
