Bowers & Wilkins CCM8.5D - 2-Way In-Ceiling Speaker (Each)

Key Features

  • 2-Way In-Ceiling Speaker Design
    Combines a dedicated woofer and tweeter in a ceiling-mounted configuration to deliver balanced, full-range sound for music, movies, and general audio.

  • 8.5-Inch Woofer Driver
    Large low-frequency driver provides deeper bass and robust midrange performance for richer, more impactful sound from an in-ceiling speaker.

  • Decoupled Double-Dome Tweeter
    Produces smooth, extended high frequencies with excellent clarity and low distortion for refined treble detail.

  • Wide Sound Dispersion
    Engineered for broad and even sound coverage throughout the listening area, improving stereo imaging and immersion.

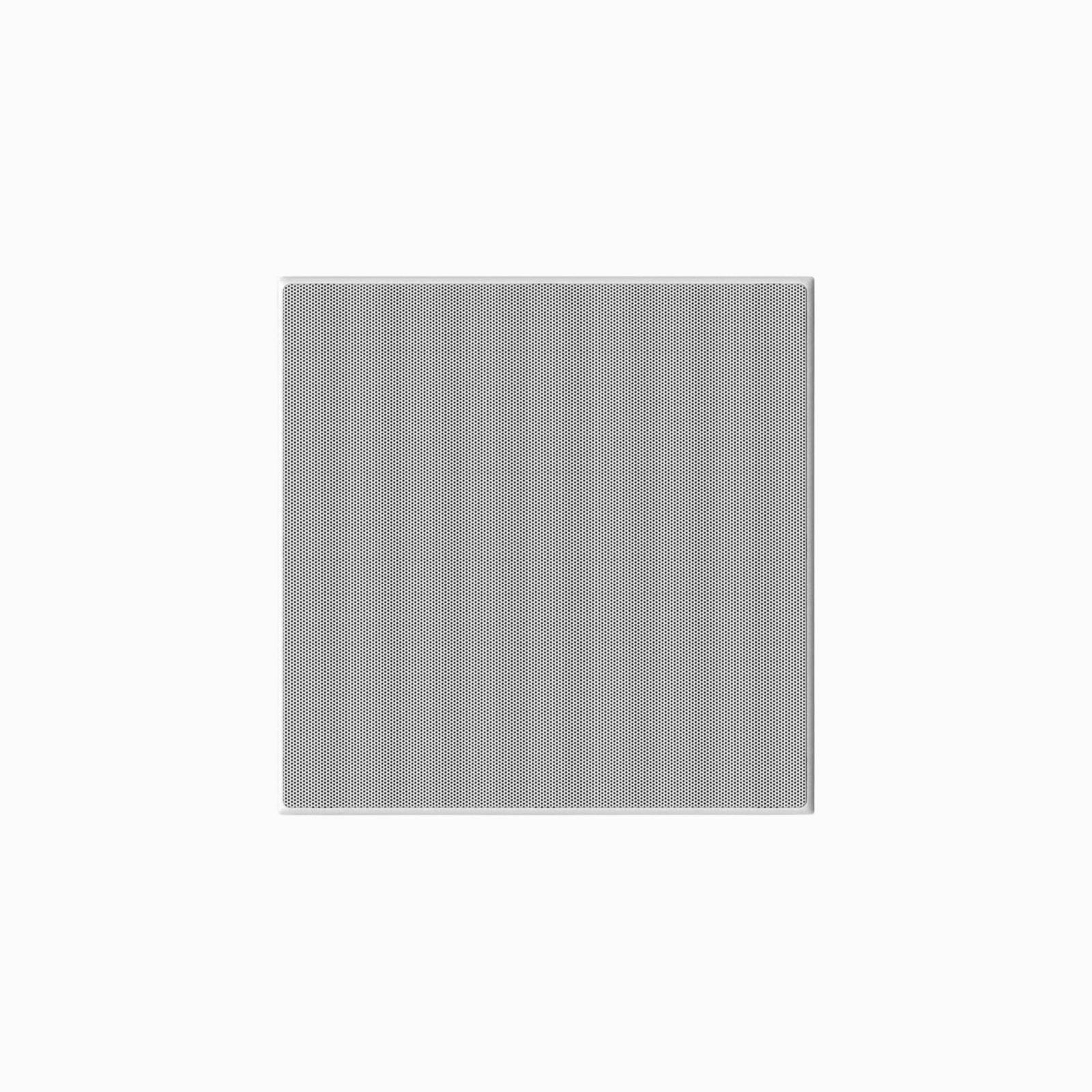

  • Low-Profile, Paintable Grille
    Sleek, unobtrusive grille blends into ceilings and can be painted to match décor for a clean, integrated look.

  • Optimized Crossover Network
    Precisely balances transitions between woofer and tweeter for coherent, natural sound across the frequency range.

  • Flush-Mount Installation
    Designed for secure in-ceiling installation with included hardware for a neat, flush finish.

  • Rigid Back-Box Compatibility
    Can be paired with an optional back box to enhance bass response and reduce sound transmission to adjacent areas.

  • Durable Construction
    Built from quality materials to ensure reliable, long-lasting performance in residential and commercial environments.

  • Versatile Application
    Ideal for whole-home audio, background music systems, or as main or surround channels in immersive home theatre installations.

Description

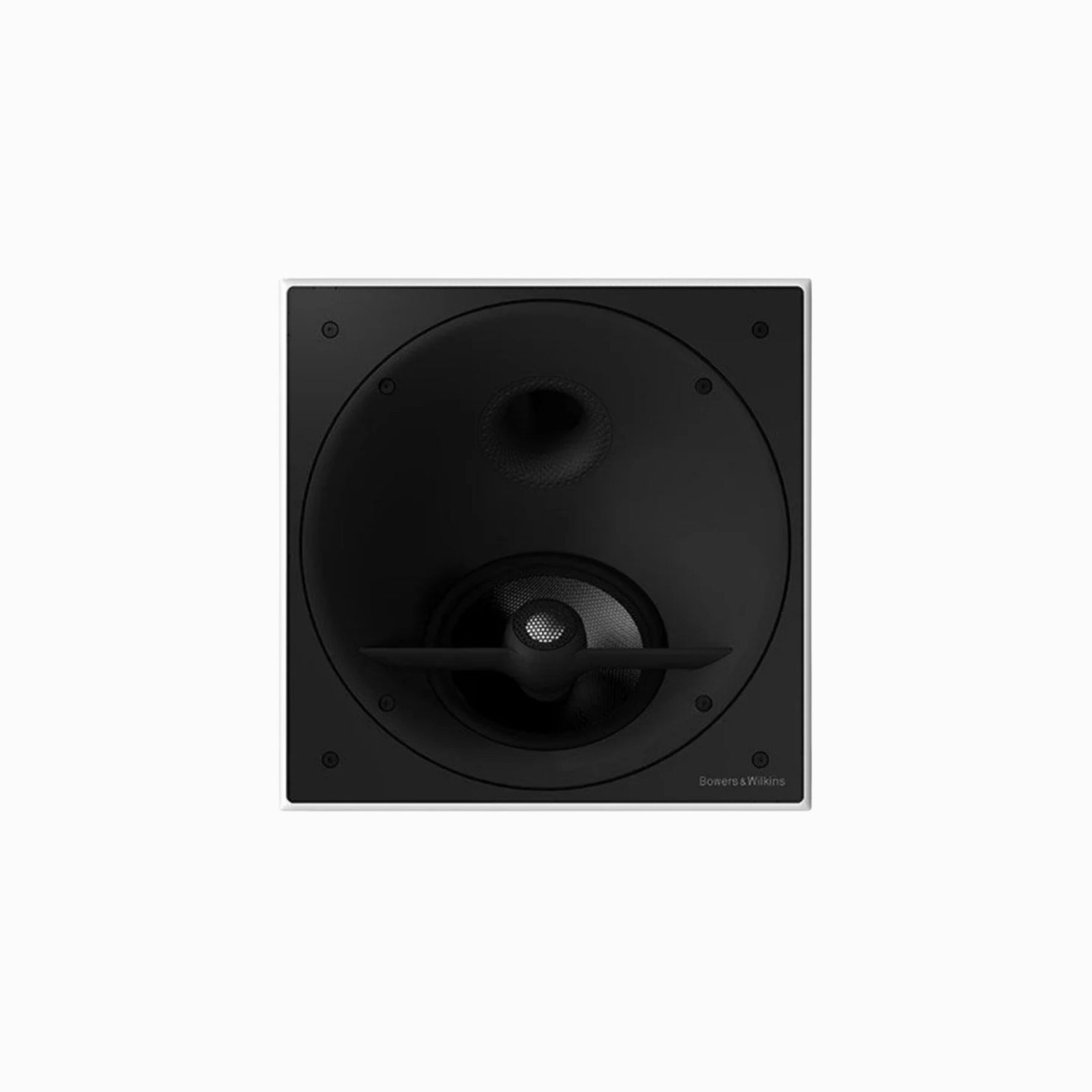

Bowers & Wilkins CCM8.5 D

CCM8.5 D is a two-way in-ceiling speaker. It features a decoupled Diamond dome 25mm (1 inch) tweeter and a single 180mm (7-inch) bass/mid Continuum driver. The drivers are located in a continuously rotatable mini-baffle which allows the user to ‘toe in’ the drivers for the best performance.

CCM8.5 D’s backbox is fully Matrix braced, for extra rigidity and improved performance. The backbox also includes bi-wirable cables that are guided to the terminal panel through tubes and connect to the baffle with a multi-pin connector. CCM8.5 D has also been developed to fit into existing back boxes enabling customers who purchased the original CCM8.5 to easily upgrade.

  • Aluminium Tweeter ‘wing’
  • Rotatable aluminum mini-baffle allows ‘toe-in’
  • Diamond Dome, Nautilus tube-loaded tweeter
  • Anti-resonance plug Flowport



 Specifications

Technical
Aluminum Tweeter ‘wing’
Rotatable aluminum
mini-baffle allows ‘toe-in’
Diamond Dome, Nautilus™ tube-loaded tweeter
Anti-resonance plug
Flowport™
Drive Units
1x ø25mm (1in) Diamond Dome
Nautilus™ tube-loaded tweeter
1x ø180mm (7in) Continuum cone bass
Midrange driver with anti-resonance plug
Frequency range (-6dB)
35Hz – 35kHz
Recommended Amplifier Power
120W
Sensitivity
88dB
Nominal Impedance
Frame (Width/Height)
351mm (13.8in)
Cut-Out (Width/Height)
331mm (13in)
Protrusion
8mm (0.3in)
Approximate Dimensions
Height: 13.8″
Width: 13.8″
Depth: 6.5″
Approximate Weight
Unit: 11.02 lbs
Shipping: 15 lbs
UPC
714346327904
Series
CI 800 Series
Warranty
2 Years
Amp Power Output
120W
Drivers
1x ø25mm (1in) Diamond Dome, Nautilus tube-loaded tweeter
1x ø180mm (7in) Continuum cone bass/ midrange driver with anti-resonance plug
Frequency Response
35Hz – 40kHz
Impedance
8Ohms
Midrange Drivers
1x mm (7in) Continuum cone bass/ midrange driver with anti-resonance plug
Sensitivity
88dB
Tweeter
Nautilus tube-loaded tweeter
