Bowers & Wilkins CCM664- 6 Inches, 2-Way In-Ceiling Speaker (Each)

Key Features

  • 2-Way In-Ceiling Speaker Design
    Combines a dedicated woofer and tweeter to deliver balanced, full-range audio suitable for music and home theatre applications.

  • 6-Inch Woofer Driver
    Provides clear midrange and solid low-frequency performance for natural, detailed sound.

  • Decoupled Double-Dome Tweeter
    Produces smooth, extended high frequencies with excellent clarity and minimal distortion.

  • Wide Sound Dispersion
    Engineered for broad, even coverage across the listening area when installed flush in ceilings.

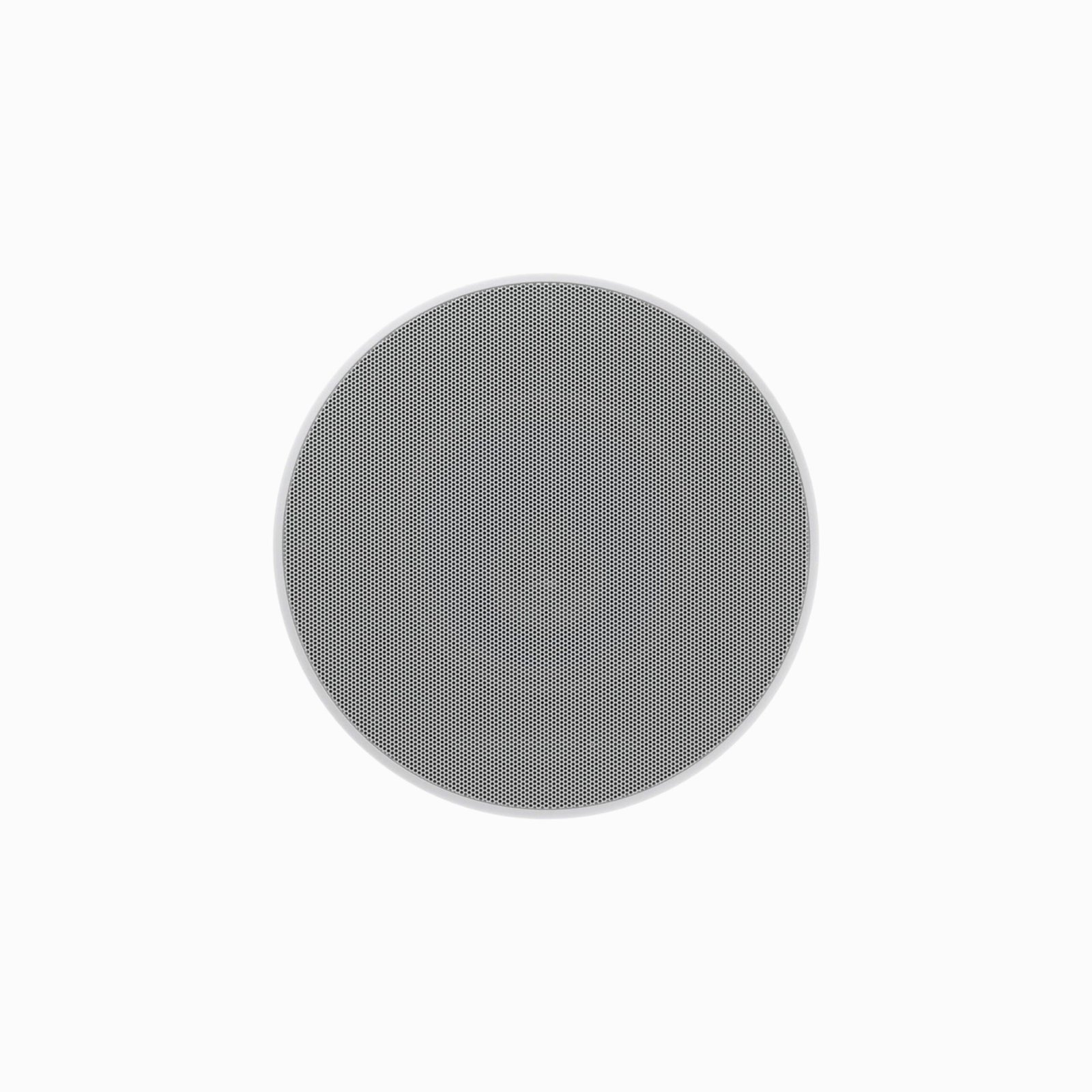

  • Paintable Low-Profile Grille
    Sleek, unobtrusive grille blends into ceilings and can be painted to match your room décor.

  • Optimized Crossover Network
    Designed for smooth transitions between drivers for coherent, balanced sound reproduction.

  • Rigid Back-Box Compatibility
    Can be used with an optional back box to improve bass response and reduce sound transmission to adjacent areas.

  • Flush-Mount Installation
    Easy installation with secure mounting hardware for a neat, flush finish.

  • Durable Construction
    Built to deliver reliable performance over time in residential or commercial audio environments.

  • Versatile Use
    Ideal for distributed audio systems, background music, or discreet main or surround channels in home theatre setups.

Description

Bowers & Wilkins CCM 664

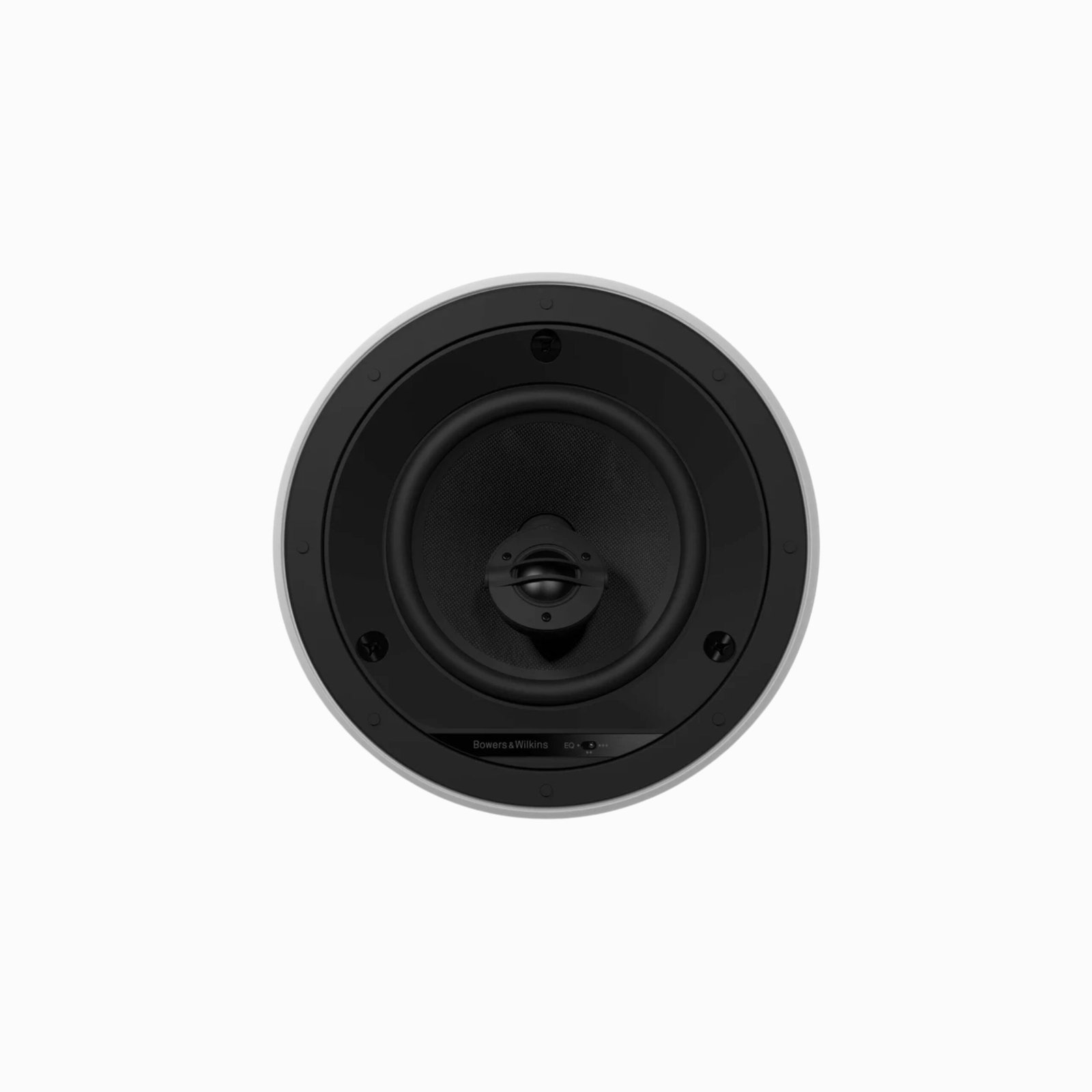

The CCM664 is a ceiling speaker distinguished by its adjustable tilt offset 25mm (1″) soft dome tweeter. It brings both a smoother and more detailed high-frequency performance to a package that also includes a woven glass fiber 150mm (6″) bass/midrange driver and a three-position EQ switch for a better off-axis response. CCM664 is a classically simple and cost-effective route to high-quality ceiling mount sound and is simple and quick to install.

Sold as a pair.

About the Bowers & Wilkins CCM664 In-Ceiling Speakers

The CCM664 is the first model in the series that has a tweeter you can aim at the listening area. All of the B&W models with a rotating tweeter even have an EQ switch to change the speaker’s response curve based on the angle. You have a setting for 0, 15, and 30-degree angles.

This model uses a 1” aluminum soft dome tweeter and B&W’s special black glass fiber cone for the 6” bass/midrange driver.

This is our most popular in-ceiling speaker at Audio Advice, as it has great sound for the money. The CCM664 can work very well as your Atmos height speakers when you want to stay under $600. We also see many people using them as the main surrounds in a discrete home theater system in family rooms.



 Specifications

Description
2-way in-ceiling system
Drive Units
1x ø25mm (1in) soft dome tweeter
1x ø150mm (6in) black glassfibre cone bass/midrange
Frequency Range (-6dB)
45Hz – 35kHz
Recommended Amp Power
25 – 130w
Sensitivity SPL (2.83V, 1m)
87dB
Impedance Nominal (min)
8 ohms (4.5 ohms)
Approximate Dimensions
Frame Dimensions
Frame Diameter: 9.5″
Depth Behind Surface: 5.2″
Cut-out Dimensions
Cut-out diameter: 8″
Protrusion: 0.2″
Pre-mount Kit
C6
Recommended Back Box
C6
Approximate Weight
Shipping: 10 lbs
UPC
714346311699
Series
CI 600 Series
Impedance
8Ohms (4.5Ohms)
Sensitivity
87dB
Total Amp Power
Recommended 25-130w (per channel)
