Bowers & Wilkins CCM662- 6 Inches, 2-Way In-Ceiling Speaker (Each)

Key Features

  • 2-Way In-Ceiling Speaker Design
    Combines a dedicated woofer and tweeter to provide balanced, full-range sound suitable for music and home theatre applications.

  • 6-Inch Woofer Driver
    Delivers clear and natural midrange with solid low-frequency performance for detailed audio reproduction.

  • Decoupled Double-Dome Tweeter
    Produces smooth, extended high frequencies with excellent clarity and minimal distortion.

  • Wide Sound Dispersion
    Designed to radiate sound broadly across the listening area for even coverage when installed in ceilings.

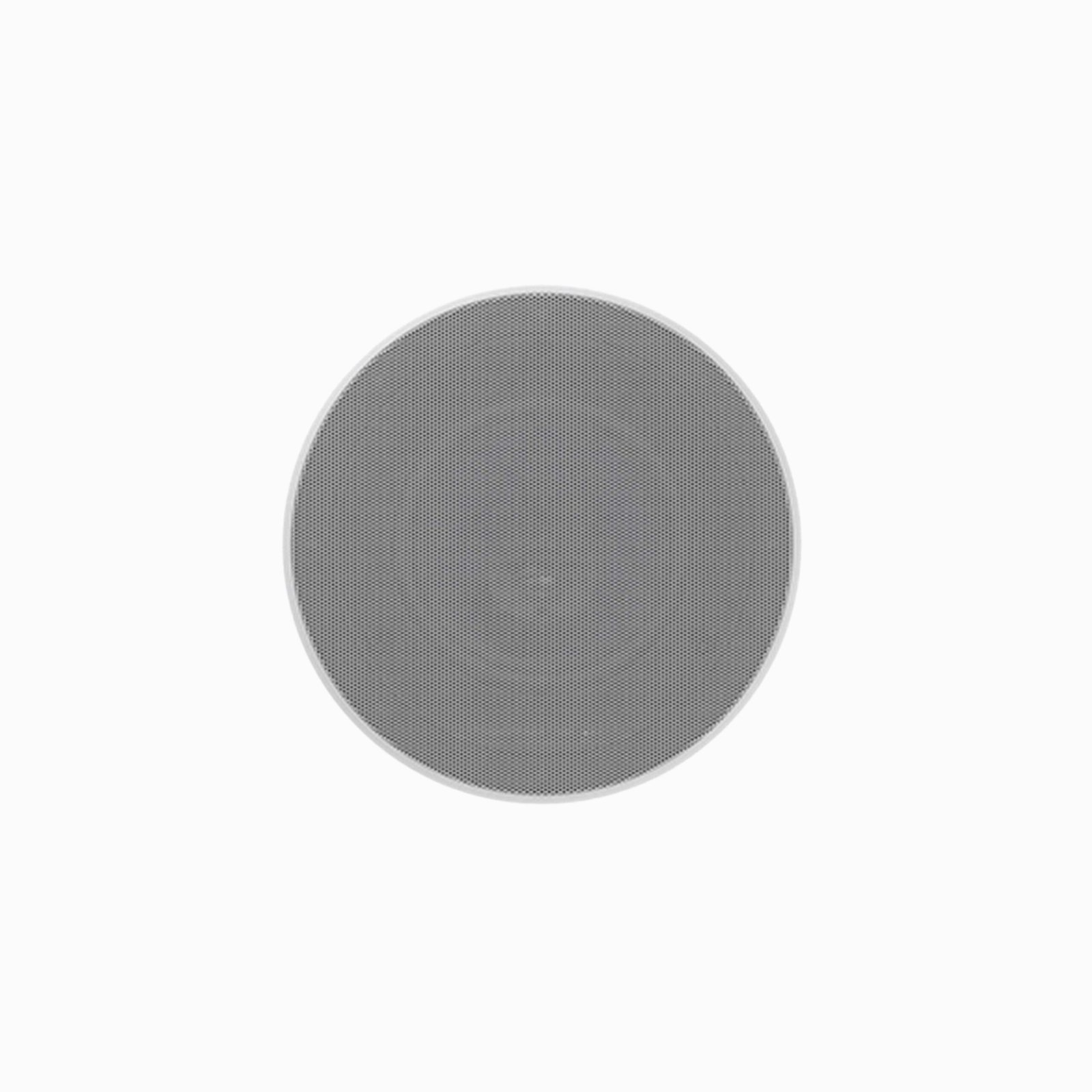

  • Low-Profile Grille
    Sleek, unobtrusive grille integrates seamlessly into ceilings for a minimalist look.

  • Paintable Finish
    Grille can be painted to match room décor for a discreet installation.

  • Optimized Crossover Network
    Ensures smooth transitions between woofer and tweeter for coherent, balanced sound.

  • Flush-Mount Installation
    Easy to install with secure mounting hardware for a clean, flush finish.

  • Durable Construction
    Built for reliable, long-term performance in residential or commercial audio environments.

  • Versatile Use
    Ideal for distributed audio systems, background music zones, or as discreet main or surround speakers in home theatre setups.

Description

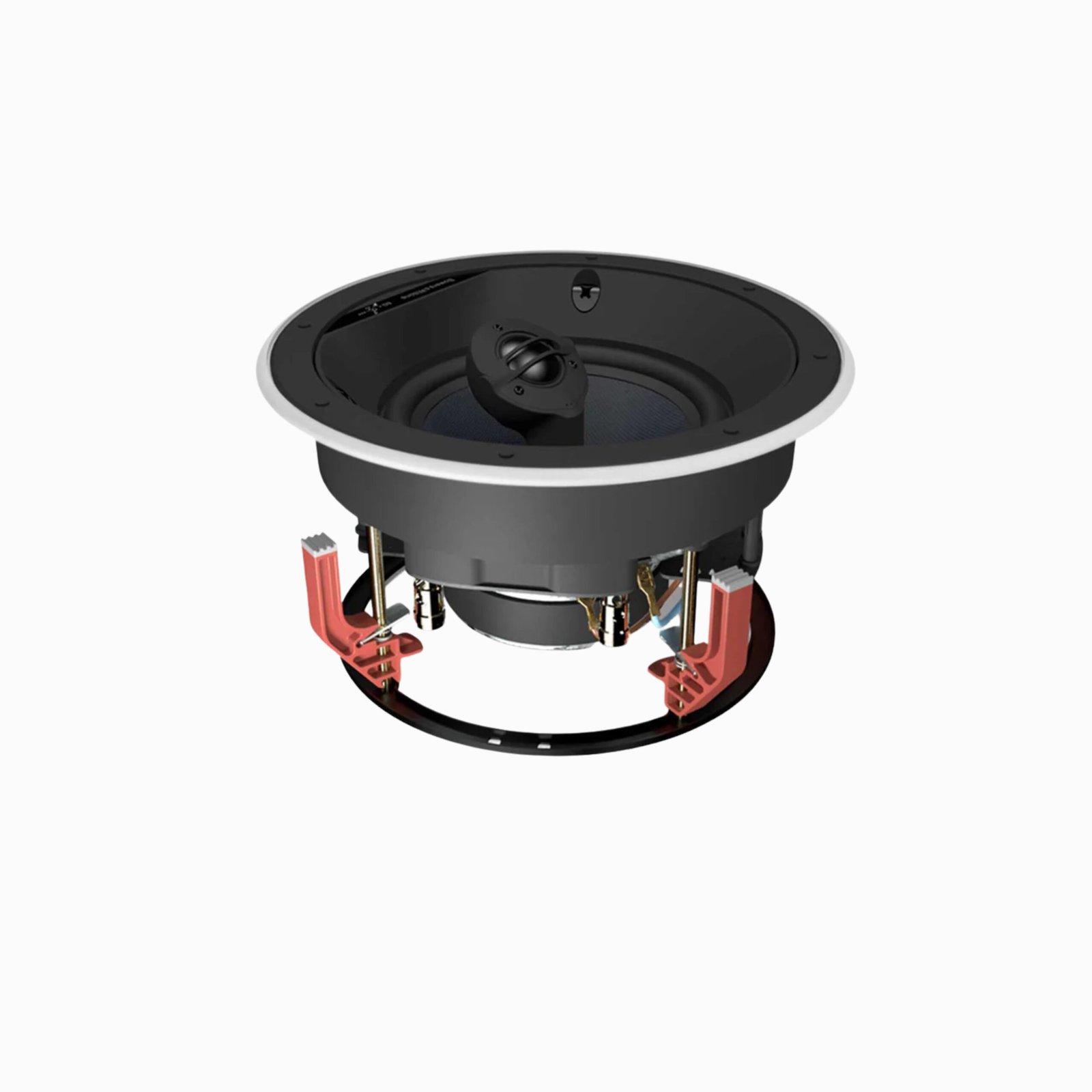

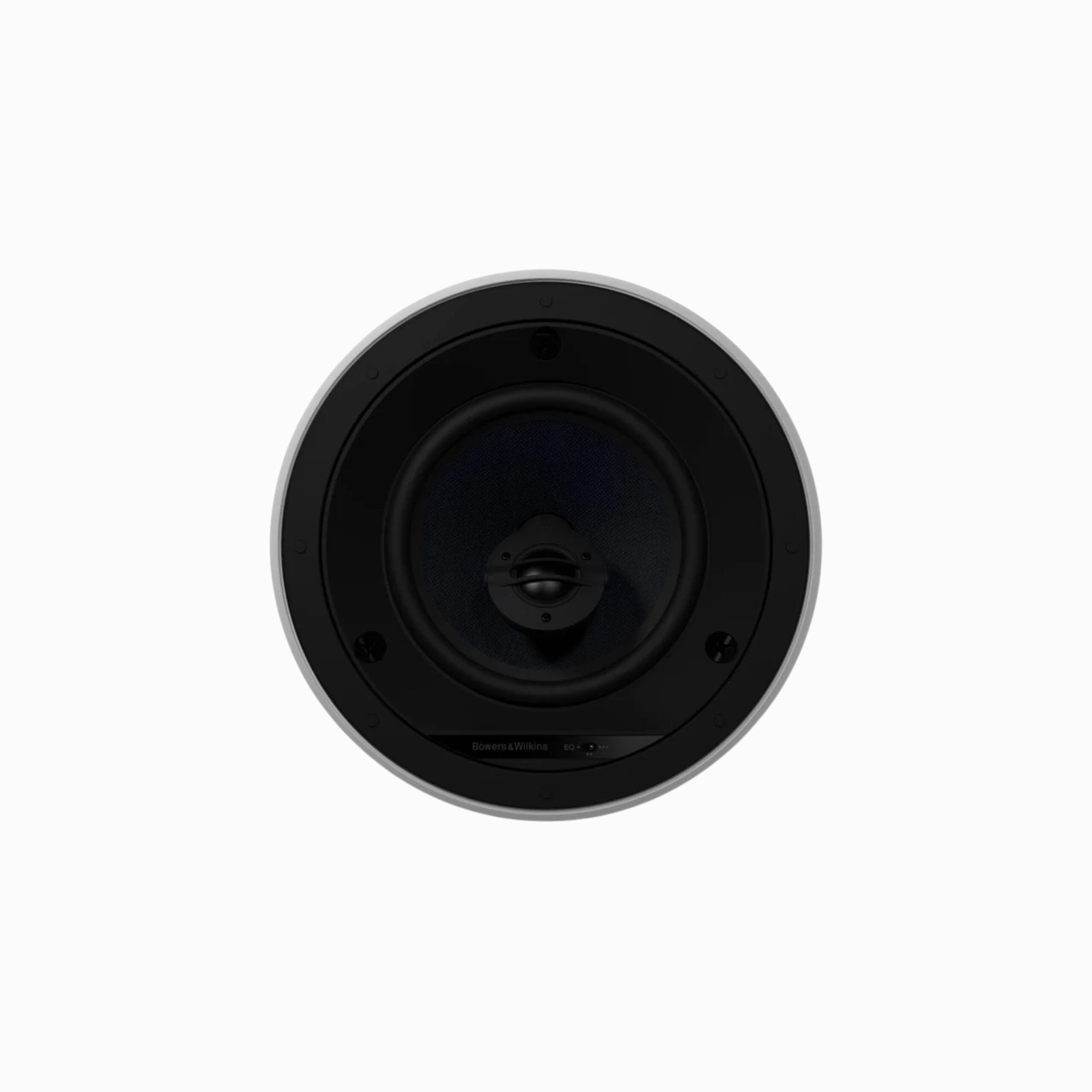

Bowers & Wilkins CCM 662

The top 6 in-ceiling speakers in the CI 600 series. This high-performance speaker features a Nautilus swirl-loaded 25mm (1in) aluminium dome tweeter that pivots for adjustable off-axis treble response.

The CCM662 is a true high-performance ceiling-mount speaker. The tweeter has a 25mm(1in) aluminum dome tweeter, and its housing pivots for an adjustable off-axis treble response. The die-cast chassis of the bass/ midrange driver provides extra rigidity, which results in a cleaner, faster bass, and a three-position EQ switch offers better off-axis response. With superior cross-over components along with gold-plated terminals, the CCM662 has an impressive maximum amp power of 150W. Its blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs and plug-and-play functionality, it is quick and easy to install.



 Specifications

Design
2-way in-ceiling system
Drive Units
1x ø25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter
1x ø150mm (6in) blue aramid fiber cone bass/midrange
Frequency Range (-6dB)
45Hz – 50kHz
Recommended Amp Power
25 – 150w
Sensitivity SPL (2.83V, 1m)
88dB
Impedance Nominal (min)
8 ohms (4.5 ohms)
Approximate Dimensions
Frame Dimensions
Frame Diameter: 9.5 ”
Depth Behind Surface: 5.2 “
Cut-out Dimensions
Cut-out diameter: 8 ”
Protrusion: 0.2 “
Pre-mount Kit
C6
Recommended Back Box
6C
Approximate Weight
Shipping: 10 lbs
UPC
714346311644
Series
CI 600 Series
Design
2-way in-ceiling system
Impedance
8Ohms (minimum 4.5Ohms)
Sensitivity
88 dB
Total Amp Power
Recommended 25 – 150w
