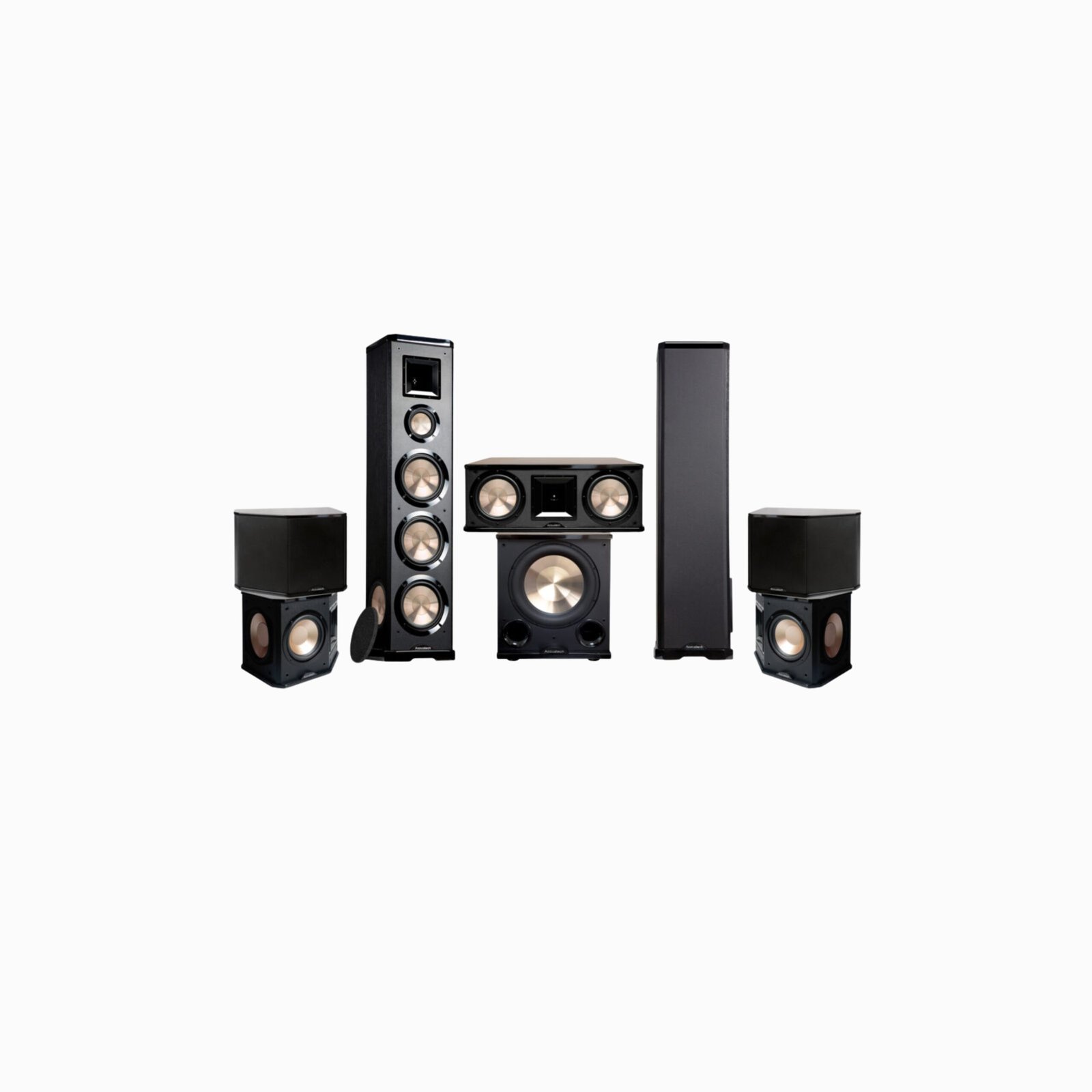

BIC America Acoustech PL-980 7.1 Home Theatre System

The top-of-the-line Acoustech 7.1 PL-980-12 system is designed and engineered to please even the most discriminating audiophiles! Unlike most horn floor speakers on the market, the PL-980s floor speakers incorporate a 3-way multi-driver design rather than a 2-way design for improved performance. Although many 2-way floor speakers offer outstanding performance, the PL-980’s 3-way design enhances and refines mid frequencies, which enables an extended soundstage, dynamic range and frequency response. Their imaging and lifelike sound is as if looking through the performance stage front to back, very much like what is experienced audibly and visually at a live performance.

Each PL-980 includes two high-power 8” active woofers to deliver low-frequency output. Two 8” passive radiators eliminate port noise while extending the bass even further. Closed back 5” midrange drivers prevent interference from the 8” woofers while delivering detailed, dimensional sound in the all-important 1000Hz – 5000Hz articulation frequency range.

The custom-designed and engineered 6.5” mid/high-frequency horn tweeters in this system produce lifelike sound rich in clarity and achieve staggering high output to 119 dB (live rock band levels). The PL-28II centre speaker is specially designed to recreate voices and centre effects in movies. For extra low bass extension, it includes two high-power 8″ woofers offering enhanced sound coverage of the listening area— regardless of where you’re seated. The PL-66 surrounds have angled cabinets to enable wide dispersion reflection throughout the room.

Completing the system, the top-rated 12” PL-200 II subwoofer is powered by a state-of-the-art BASH amplifier capable of delivering up to 1000-watt dynamic peak output. Its heavy-duty long-throw 12” woofer can move an impressive volume of air with exquisite control, even when being driven at the highest levels. Dual flared front ports enable an even transition of sound and dramatically boost deep bass frequencies, with a virtually flat response down to 20Hz. Wide port flares eliminate port noise, and heavy-duty cabinet bracing eliminates unwanted cabinet vibrations. The front porting also enables extra placement flexibility, including the option of being placed or built into a cabinet.

All Acoustech Platinum Series speakers come in elegant enclosures with hand-rubbed black lacquer tops and bottoms. This extra step ensures each cabinet has a deep gloss shine that is more scratch-resistant than most lacquer finishes on the market. Acoustech Series speakers also come with one of the longest warranties in the industry.

SYSTEM SPECIFICATIONS:

1 PL-980 Left and 1 PL-980 Right

  • Design: Three-way, six-driver tower speaker.
  • Frequency Response: 22Hz-23kHz
  • Sensitivity: 98dB
  • Drivers: Two high-power screen-pressed long-fibre 8″ active woofers, two 8″ passive woofers, one enclosed 5″ midrange, and one 6 1/2″ mid/high-frequency aluminium dome horn with neodymium magnet.
  • Gold-Plated Binding Posts
  • Recommended Power: 10-300 watts per channel RMS, 750 watts peak power
  • Impedance: Nominal 8 ohms
  • Dimensions: 47″H x 12 1/2″W x 11 5/8″D, Carton Dimensions: 17W x 15D x 51H
  • Weight: 60 lbs. (27kg.)
  • Warranty: Extended 8 Year parts (excludes sustained cosmetic damage)
  • Recommended Placement: Front of Speaker 18″ – 36″ from front of speaker to wall behind speaker. Typical placement is 24″ from the front of the speaker to the wall behind the speaker. Placement preference may vary with room size, room damping, and personal sound preferences.

1 PL-28II Centre Speaker

  • Design: Two-way centre speaker. Flush mount brackets included.
  • Frequency Response: 30Hz-23kHz
  • Sensitivity: 98dB
  • Drivers: Two high-power screen-pressed long-fibre 8″ woofers with heavy-duty surrounds, one 6 1/2″ mid/high frequency aluminium dome horn with neodymium magnet
  • Gold-Plated Binding Posts
  • Recommended Power: 10-225 watts per channel RMS, 500 watts peak power
  • Impedance: Nominal 8 ohms
  • Dimensions: 10″H x 25 1/4″W x 6 1/4″D
  • Weight: 28 lbs. (12.7 kg.)

2 Pair PL-66 Bookshelf/Surround Speakers

  • Design: Two-way three-driver bookshelf/surround speakers. Flush wall mounts included.
  • Frequency Response: 40Hz-20kHz
  • Sensitivity: 96dB @ 1 watt, 1 meter
  • Drivers: One 6 1/2″ high efficiency aluminium horn tweeter with w/neodymium magnet, one 6 1/2″ screen pressed long fibre woofer with heavy duty surround, one 5″ x 7″ passive radiator for extended bass output.
  • Gold-Plated Binding Posts
  • Recommended Power: 10-175 watts per channel
  • Impedance: 8 ohms
  • Dimensions: 10″H x 14″W x 7 1/4″D
  • Weight: 30 lbs. Pair (13.6 kg)

1 PL-200 II Subwoofer

  • Design: Front-firing 12″ long-throw powered subwoofer with dual flared front ports and state-of-the-art 1000-watt dynamic peak power BASH amplifier. AMPLIFIER FEATURES: Adjustable crossover (by-passable when adjusting crossover through a digital receiver), adjustable volume control, auto on/off with LED indicator and automatic signal sensing, gold-plated high-level inputs, both Dolby Pro Logic & Dolby Digital/DTS LFE inputs.
  • Frequency Response: 21Hz – 200Hz (+/- 3db)
  • Sensitivity: 110dB @ 30Hz
  • Drivers: Heavy-duty 12″ poly-injected woofer with high-power magnet and long excursion surround.
  • Recommended Power: Built-in-state-of-the-art BASH Amplifier, 1000 watts Dynamic Peak Output, 250 watts RMS Continuous
  • Dimensions: 17 1/4″H x 14 7/8″W x 19 1/2″D. Carton Dimensions: 24 x 19 x 21
  • Weight: 45 lbs.
