Description
To meet the expectations of the most demanding music lovers who pay particular attention to the final result of their audio system and who devote a large part of their leisure time to listening to music, we have created the monophonic power amplifier A1200.
Warranty:
1-year manufacturer’s warranty.
Features:
Respect for your sources

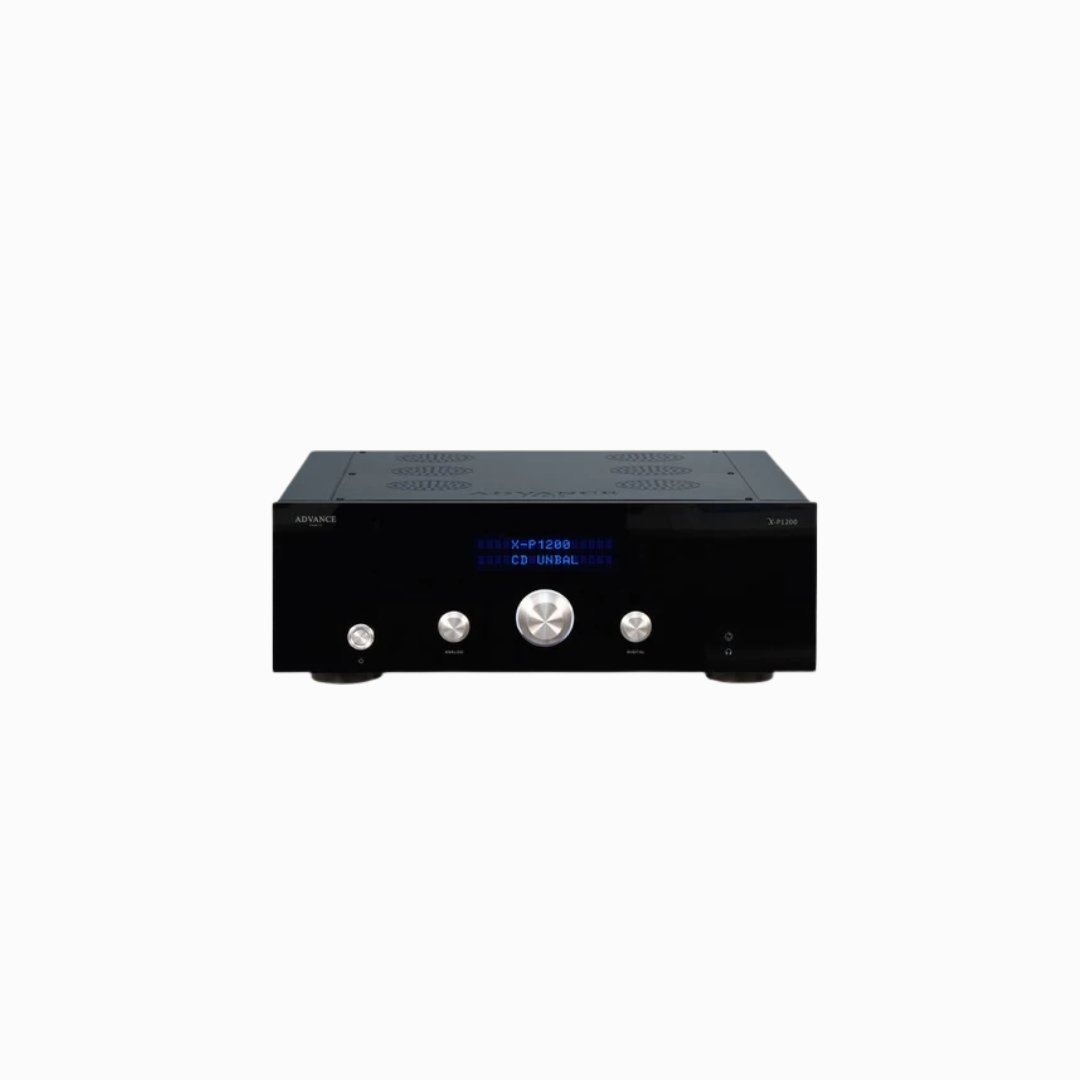

The new X-P1200 preamplifier is the showcase of our know-how. The reference stereo preamplifier is composed of two mono preamplifiers assembled in a single compartmentalized box to ensure complete isolation of the various circuits and preamplification stages.
This design ensures better channel separation (crosstalk) and therefore a better stereo effect.
Not only does your X-P1200 have independent right and left channel preamp circuits, but so do its power supplies. that we have chosen to make them independent through the use of two transformers.
The X-P1200 is equipped with 9 analog inputs, including 2 balanced XLR inputs, A USB B input (XMOS), 2 coaxial digital inputs, and 2 digital inputs. output side, you will have the choice between a balanced XLR-type output or an unbalanced RCA type. Everything has been thought out to make this preamp the benchmark for best audio systems: mains input with choke filtering and capacitors, two toroidal transformers with high current capacity, and filtering composed of 4 capacitors 12000uF / 150V.
The regulation is done by integrated circuits mounted on heat sinks. Concerning the switching of the inputs/outputs, it is done by a relay without loss of contact. The symmetrization of the cinch inputs and the desymmetrization are done using quality operational amplifiers of the Burr-Brown type.
The processing of digital sources is entrusted to an Analog Device AD-1955 converter. This converter is particularly suitable for high-end and SACD applications. The quality of the digital/analog decoding is of a very high level, with a signal-to-noise ratio of 123 dB and an audio quality at the top. It is comprised of a multi-bit sigma-delta modulator, high-performance digital interpolation filters, and a continuous-time differential current output DAC.
The playback of audio files from a PC or MAC computer is entrusted to XMOS, a reference solution in the field of quality audio reproduction.
Without a doubt, the X-P1200 will be associated with the X-A1200 mono unit for an exceptional hi-fi system.
Technical Specifications:
| Output level | 10.5 +/-0.5dB |
| Frequency response | 10Hz-150kHz |
| Distortion | <0,01% |
| Signal-to-noise ratio | ≥ 110 dB |
| Channel separation | ≥ 100 dB |
| Imped. unbalanced input | 23KΩ |
| Imped. balanced input | 35KΩ |
| IN LEVEL (CD/AUX) | < 500mV |
| Phono MM/MC input level | 48dB/64dB |
| audio receiver | CS8416 |
| AC input | 110-230V |
| consumption max. | ≤ 30W |
| Transformer | 2 |
| Width | 440 mm |
| Height | 155 mm |
| Depth | 430 mm |
| Net weight | 14,2 kg |
| Gross weight | 15,6 kg |
| DAC | AD1955 |
