Description

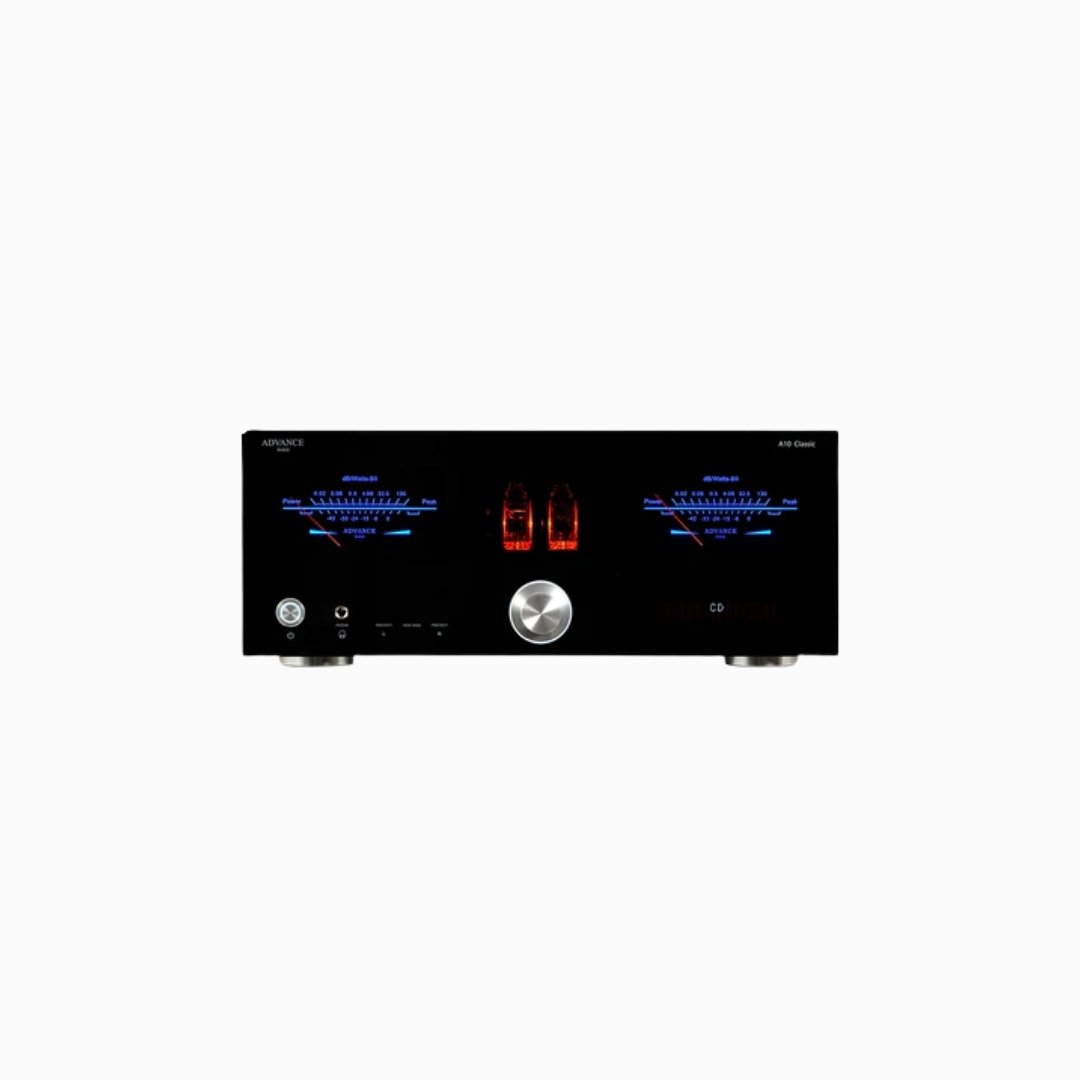

A Nod to the Past, A Leap into the Future: Inspired by the legendary X-i1100, known for its enchanting musicality, the A10 CLASSIC is a modern integrated amplifier that doesn’t just pay homage to its roots – it enhances them. Melding the charm of the past with the innovation of the future, this amplifier is a testament to timeless design and cutting-edge technology.
Power and Purity, Harmonized: At its heart lies an ECC81/12AT7 tube preamplifier, renowned for its warm, rich sound. This is seamlessly integrated with a robust 2x130W class AB push-pull amplifier, ensuring that every note is delivered with clarity and dynamism. The result? An audio experience that’s both powerful and pure, satisfying the most discerning of ears.
Simplicity Meets Sophistication: The A10 isn’t just about exceptional sound; it’s about making that sound accessible. A user-friendly microprocessor is effortlessly controlled via an intuitive encoder wheel. Whether it’s a long press or a short one, navigating through the myriad of functions is a breeze, letting you focus on what matters most – the music.

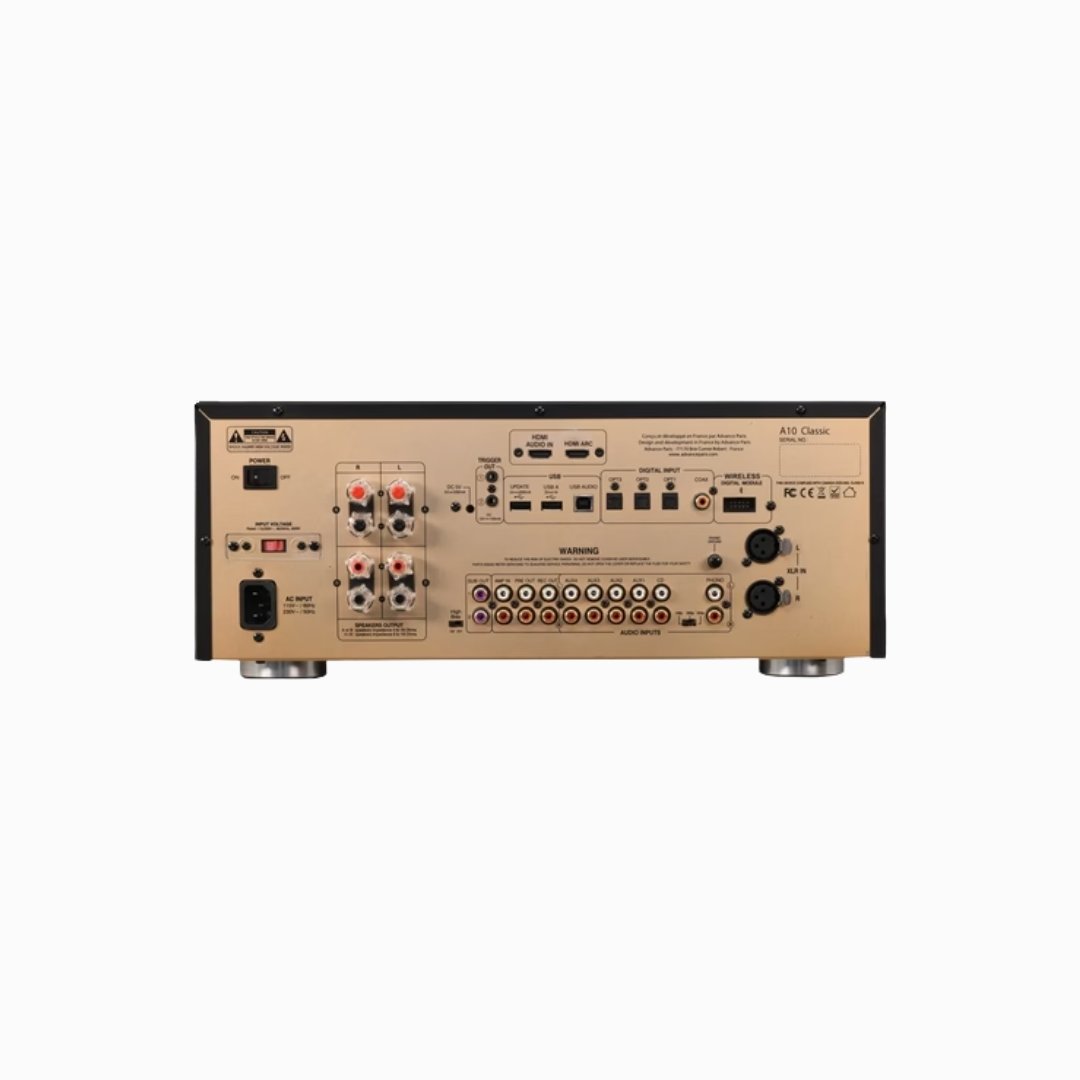

Connectivity at Your Fingertips: Versatility is key, and the A10 boasts a plethora of inputs to ensure all your devices are welcome. It features a 100 analog RCA with an MM phono offering three capacitance settings, a balanced XLR input, and three digital ins (including optical and USB). The optional aptX XFTB01 or aptX HD XFTB02 Bluetooth receiver adds wireless convenience, while dual HDMI inputs, including an HDMI ARC, cater to your visual media needs.
Customize Your Listening Experience: Tailor your audio with an array of settings. Adjust bass, treble, loudness, or opt for a direct bypass. The dual speaker connections (A, B, or A+B) ensure flexibility in setup, and the defeatable auto-standby mode adds an extra layer of convenience.
Expand Your Soundstage: Dual subwoofer outputs with selectable crossover frequencies allow for a more immersive, full-bodied bass experience. The fixed Record output caters to traditionalists with a penchant for cassettes or other recorders, while the High Bias switch at the rear unlocks Class A bias for an even more refined sound.
A Marvel of Musical Mastery: The A10 CLASSIC isn’t just an amplifier; it’s a gateway to aural ecstasy. With its impressive array of features and commitment to outstanding musical performance, it’s not just an amazing value – it’s an audiophile’s dream come true. Embrace the superstar of sound, and let the A10 CLASSIC redefine your listening experience.
Specifications:
| Output power 8Ω | 2 x 130W RMS |
|---|---|
| Output power 4Ω | 2 x 190W RMS |
| Bandwidth | (-3dB) 10Hz-35kHz |
| Tone | +/- 10 dB |
| Distortion | <0.1% |
| Signal-to-noise ratio | > 90 dB |
| Channel separation | > 70 dB |
| Impedance d’entrée | 47KΩ |
| Phono input impedance | 47KΩ |
| Lvl. amplifier input | < 300mV |
| Phono MM/MC input level | 2,5mV |
| Mains voltage | 115-230V |
| consumption max. | 400 |
| Transformer | 1 |
| Width | 430 mm |
| Height | 175 mm |
| Depth | 385 mm |
| Net weight | 14,5 kg. |
| Gross weight | 17 kg. |
| CD input | 1 |
| Tuner input | 1 |
| Auxiliary Input | 4 |
| RCA Analog Input | 1 |
| Record output | 1 |
| Output for Subwoofer | 1 |
| Amp-Preamp | Preamp Output |
| Optical input | 1 |
| USB-A input | 1 |
| USB-B input | 1 |
| Output Pair of speakers | 1 |
| 5 Volt Output WTX 500 | 1 |
| Settings | Treble, Balance, Bypass, Hi Bias Switch, Bass, Volume |
| VU-Meter | Yes |
| Tubes | Yes |
| DAC | SSE 9018 |
