The M-6200 approaches the concept of the power amplifier from a new vantage point. It achieves an unprecedented level of performance that again redefines what a monophonic power amplifier can be. Retaining the parallel arrangement of two completely identical amplification circuits, the M-6200 drastically lowers the noise floor and improves the damping factor. The parallel operation has the advantage of significantly bolstering output current capability, as well as enabling extremely low output impedance. Furthermore, improvements to the NFB circuit using remote sensing and other technological refinements result in a damping factor of over 1,000 and make the amplifier capable of delivering constant current down to extremely low impedance loads. In the input stage, parallel operation along with optimised gain allocation keeps noise levels to an absolute minimum, as illustrated by the astonishing S/N ratio of 127 dB at maximum gain and 133 dB at the -12 dB gain setting.

Warranty:

1-year manufacturer’s warranty

Features:

  • Two identical power amplifier units driven in parallel
  • The output stage features novel high-power transistor devices in a dual 8-parallel push-pull arrangement
  • Latest low-noise instrumentation amplifier technology
  • MCS+ circuit and current feedback topology in the amplification stage
  • Support for bridged use of two M-6200 units with even higher output power

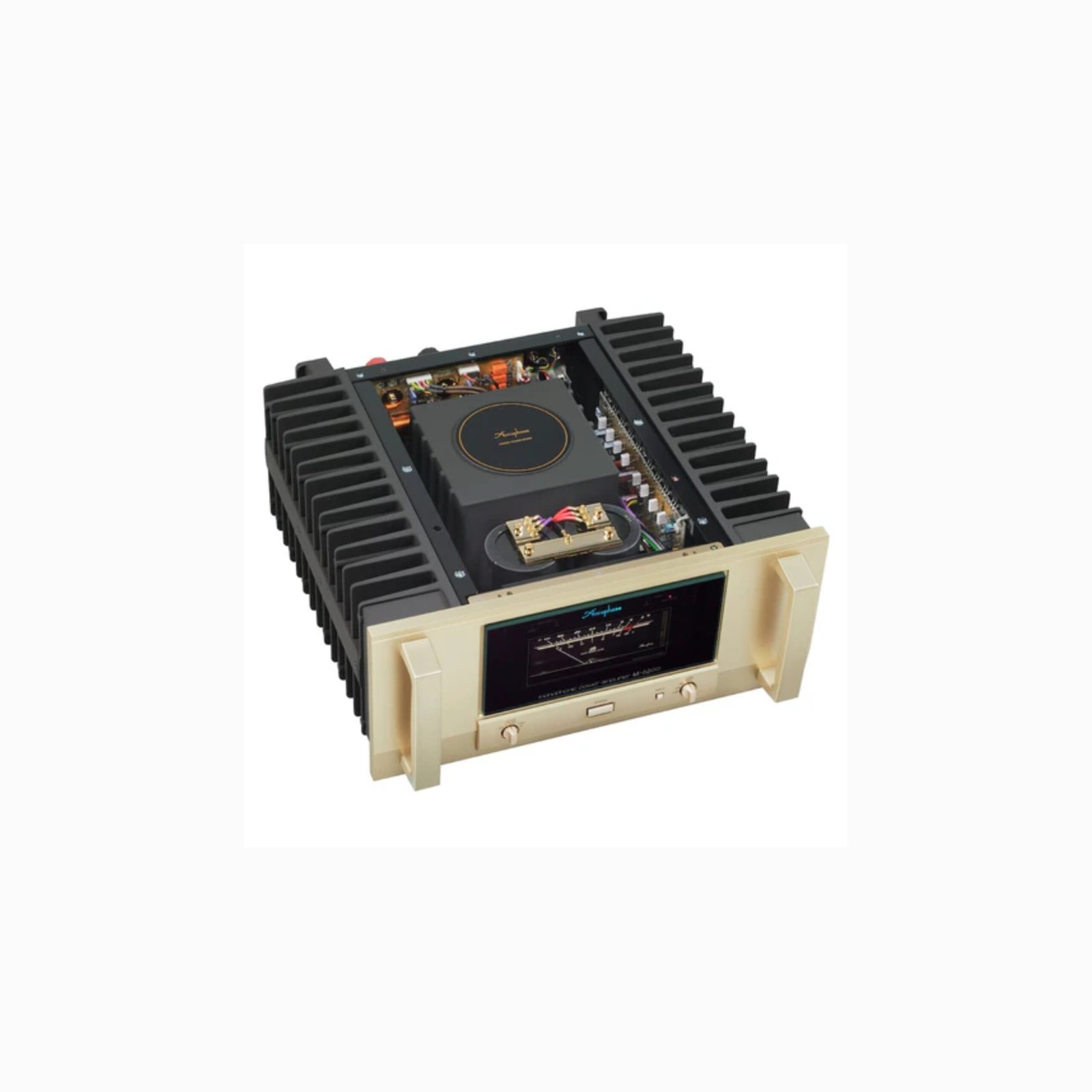

  • Strong power supply with a massive high-efficiency toroidal transformer and large filtering capacitors

Technical Specifications:

Continuous Average Output Power (20–20,000 Hz) 1200 watts per channel into 1 ohm, 600 watts per channel into 2 ohms, 300 watts per channel into 4 ohms, and 150 watts per channel into 8 ohms. Monophonic operation (bridged connection) – 2400 watts into 2 ohms, 1200 watts into 4 ohms, 600 watts into 8 ohms
Total Harmonic Distortion 0.05% with a 2-ohm load, 0.03% with a 4 to 16-ohm load.
Intermodulation Distortion 0.01%
Frequency Response At rated output: 20 – 20,000 Hz +0, -0.2 dB. At 1 watt output: 0.5 – 160,000 Hz +0, -3.0 dB
Gain 28.0 dB (with the GAIN selector at MAX)
Gain Selection MAX, -3 dB, -6 dB, -12 dB
Output Load impedance Continuous – 2 to 16 ohms. With music signal: 1 to 16 ohms
Damping Factor 500
Input Sensitivity (with 8-ohm load, GAIN selector in MAX position) 1.38 V for rated continuous average output. 0.11 V for 1-watt output
Input Impedance Balanced – 40 kilohms. Line – 20 kilohms
Signal-to-Noise Ratio (A-weighted, input shorted) 120 dB at a rated continuous average output
Output Level Meters –60 to +3 dB (dB/% indication), Logarithmic compression scale, Display illumination off switch, Peak hold time select : 3 seconds
Power Requirements AC 120 V/230 V, 50/60 Hz (Voltage as indicated on rear panel)
Power Consumption 180 watts idle. 550 watts by IEC 60065
Maximum Dimensions Width 465 mm, Height 220 mm, Depth 500 mm
Mass 38.5 kg net, 48.0 kg in the shipping carton
