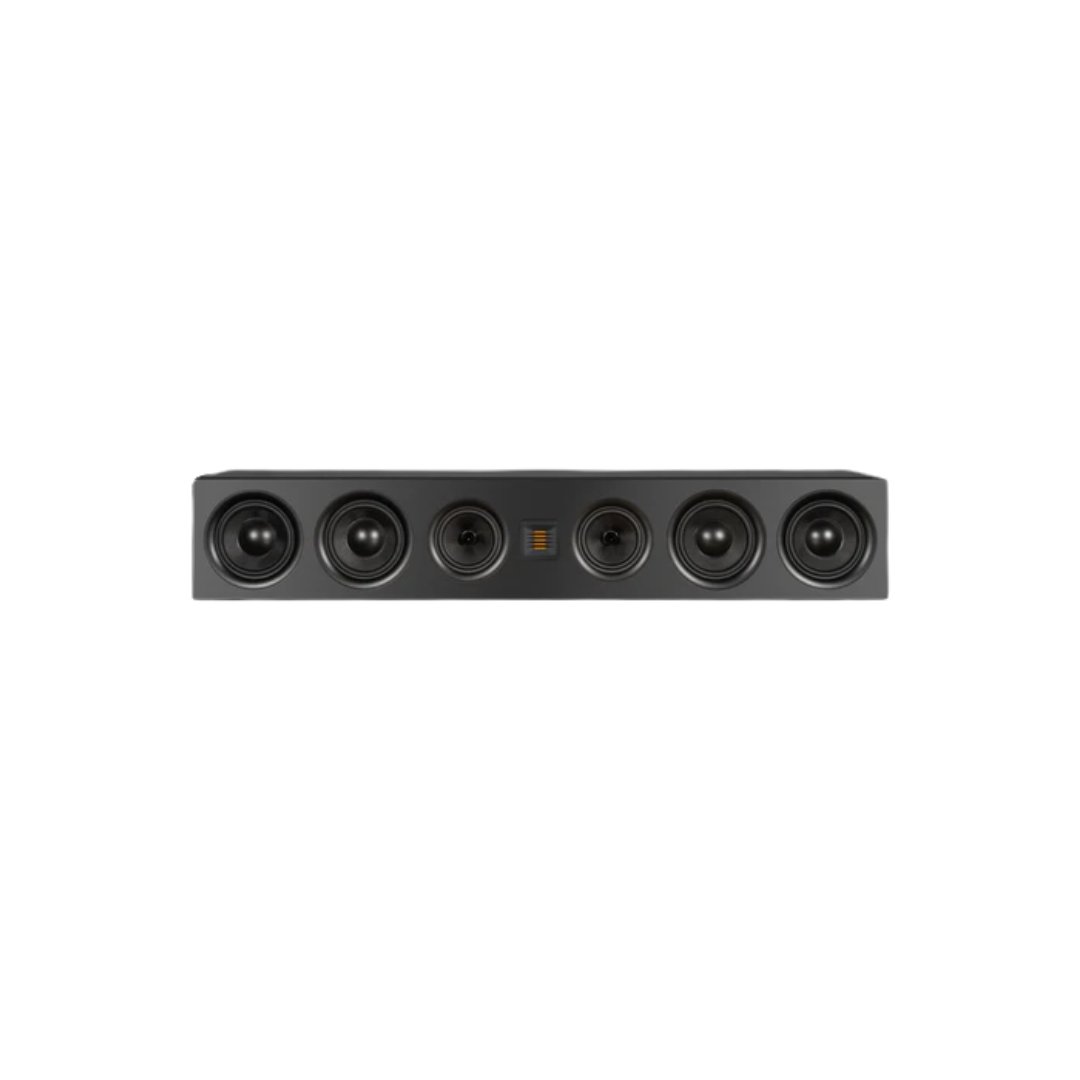

Emotiva Airmotiv XC3 Center Channel Speaker – Premium Home Theater Clarity

    • The Emotiva Airmotiv XC3 Center Channel Speaker is a large, high-performance center speaker designed for serious home theater setups. Here’s a full breakdown of its features, strengths, and things to consider:

       Key Specifications

      • System type: Three-way center channel loudspeaker, bass-reflex, with dual rear ports. AV Shack+2hifisystems.in+2

      • Drivers:
          • One 25 mm × 32 mm folded ribbon tweeter (high-output, Neo magnet type) Emotiva Audio Corporation+1
          • Two 5.25-inch (woven fiber) midrange drivers with aluminum voice coils, milled phase plugs, copper shorting ring, NBR surrounds AV Shack+1
          • Four 6-inch woven fiber woofers, long-throw motor design etc. AV Shack+1

      • Electrical/acoustic specs:
          • Sensitivity: ~ 90 dB (2.83 V / 1 m) AV Shack+1
          • Nominal impedance: 4 ohms, although the speaker is stated to be “safe” with amplifiers rated for 8 ohm loads. AV Shack+1
          • Frequency response: approx 40 Hz – 27 kHz (+/-3 dB) AV Shack+2hifisystems.in+2
          • Crossover frequencies: woofer⁄midrange ~ 370 Hz, midrange⁄tweeter ~ 2.8 kHz AV Shack+1
          • Power handling: ~ 250 W continuous / 500 W peak AV Shack+1

      • Physical / mechanical:
          • Dimensions (unboxed): ~ 9.25″ height × 51.25″ width × 12″ depth (Add ~0.25″ for the grille) AV Shack+2Emotiva Audio Corporation+2
          • Weight: around 64 lbs (~29 kg) unboxed. Emotiva Audio Corporation+1
          • Finish: Satin lacquer front baffle with textured vinyl on sides/rear; magnetically attached grill etc. Emotiva Audio Corporation+1

      • Additional design features:
          • Bi-amp or bi-wire capable via dual 5-way binding posts. AV Shack+1
          • Cabinet heavily braced, damped, with non-parallel walls for the midrange sub-enclosure to reduce internal reflections.

Description

The Airmotiv XC3: A High-Performance, Large Format, Three-Way Center Channel Speaker. It’s equipped with a 25mm x 32mm folded ribbon tweeter, dual 5.25” woven fiber midranges, and four 6” woofers, making it ideal for top-tier home theater systems in spacious rooms.  The XC3 delivers dynamic and authoritative sound, perfect for the center channel role.

Airmotiv X Loudspeakers: Redefining A Legacy

Introducing the Airmotiv X Loudspeakers – a blend of our best product design and high performance. These speakers are crafted for the ultimate audio goal: to convey the full sound spectrum with minimal distortion to bring out the best in any audio, from classical tunes to rock anthems and even blockbuster movies.

Transforming a basic electrical signal into a rich musical experience, your loudspeakers are crucial in any audio setup. They are the heart of music’s emotional impact. Quality speakers don’t just play sound; they create an immersive listening adventure.

Whether you’re an audiophile with a stereo system or seeking a top-tier home theater experience, Airmotiv X fits perfectly. We’ve meticulously merged superior technical prowess, exceptional sound clarity, stylish design, and value in Airmotiv X to create our best speakers yet.

New Airmotiv Aesthetics

Our new Airmotiv X loudspeakers feature a new modern design aesthetic. The cabinets on the towers are slender and graceful. The front panels feature a very gentle edge bevel, which is attractive and helps reduce diffraction. The magnetically attached grills, with their rounded corner details, finish the presentation. In addition to the elegant satin lacquer finish on the front panels, we’ve added smooth trim rings that conceal the driver mounting hardware and help control diffraction while giving the new Airmotiv X loudspeakers a more sophisticated and finished appearance.

Revamped Performance Design

The new Airmotiv X loudspeakers also feature new and improved touches, taking them to a higher level than ever before for Airmotiv. The new Airmotiv X Loudspeakers feature a rotatable folded ribbon tweeter with an improved waveguide, allowing users to configure the speaker to fit their specific system layout. The towers are structurally reinforced with internal window bracing and lined with thick Dacron for optimal sound dampening. Every speaker includes an internally mounted crossover and efficient wire routing, ensuring efficient performance and serviceability. The robust, over-one-inch-thick multi-layer front panel enhances rigidity. The driver layout is optimized for superior sound quality, complemented by non-parallel midrange walls to reduce internal reflections, delivering an exceptional acoustic experience.

Warranty:

1-year manufacturer’s warranty

Features:

  •  Air Motion Transformer (AMT) Tweeter – Faster, more detailed highs than traditional domes
  • Dual 6.5″ Woofers – Powerful mid-bass for dynamic movie soundtracks
  • 3-Way Design – Dedicated midrange driver for crystal-clear dialogue
  • Bass Reflex Port – Extended low-frequency response (down to 50Hz)
  • High Sensitivity (91dB) – Easier to drive with mid-range receivers
  • Magnetically Shielded – Safe placement near TVs/projectors
