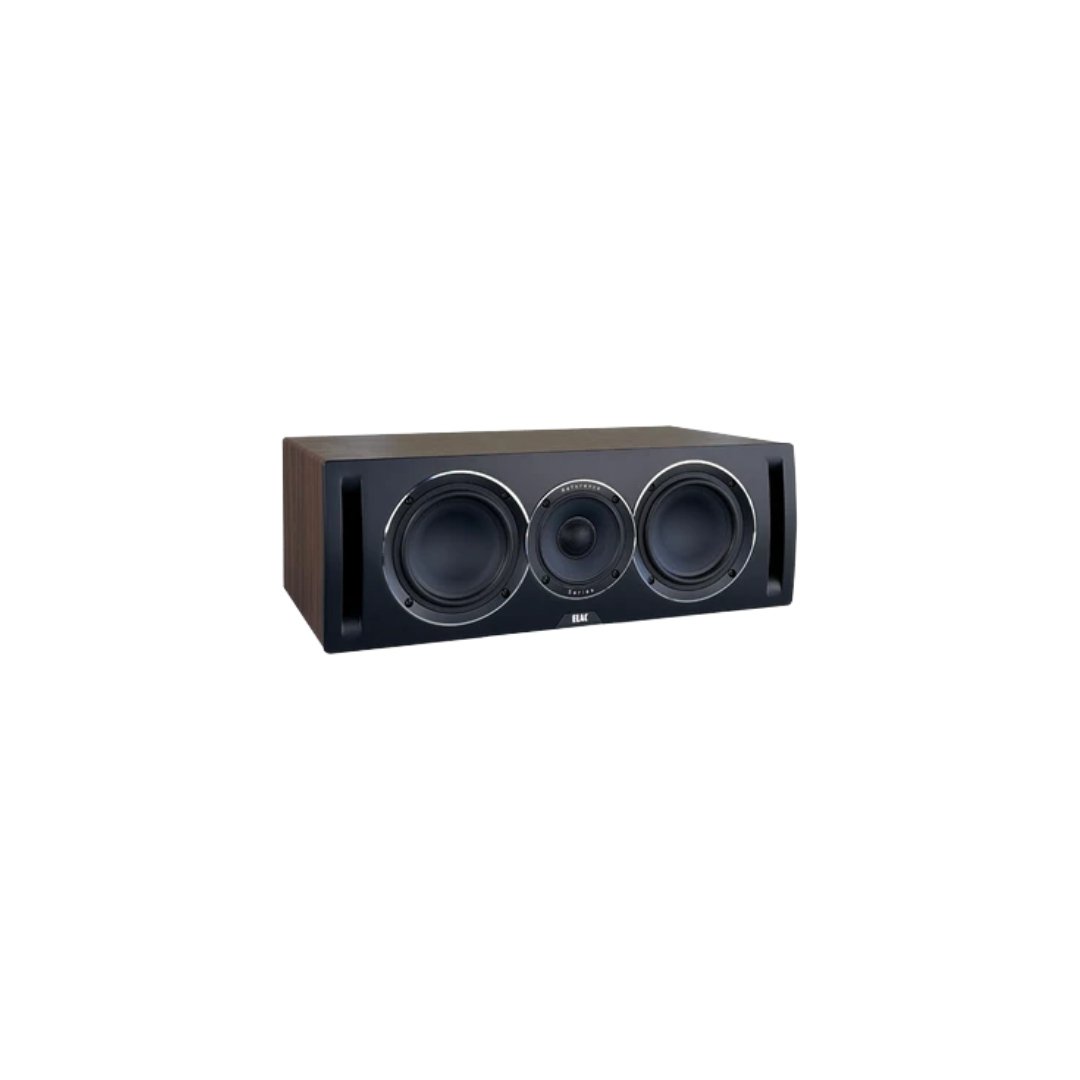

ELAC Uni-Fi Reference Center Speaker – UCR52

    • The ELAC Uni-Fi Reference UCR52 is a high-performance 3-way center channel speaker designed to deliver clear, lifelike dialogue and integrate seamlessly into home theater systems.

       Key Specifications

      • Speaker Type: 3-Way Bass Reflex

      • Frequency Response: 47 Hz – 35 kHz

      • Nominal Impedance: 6 Ω

      • Sensitivity: 85 dB (2.83V @ 1m)

      • Maximum Power Handling: 140 Watts

      • Crossover Frequencies: 240 Hz / 1.8 kHz

      • Drivers:

        • 1" Soft Dome Tweeter (Concentric Design)

        • 4" Aluminum Cone Midrange

        • 2 x 5.25" Aluminum Cone Woofers

      • Cabinet: CARB2 Rated MDF with Satin White or Satin Black finishes and Oak or Walnut sides

      • Ports: Dual Flared Slot Ports

      • Binding Posts: Bi-Wire 5-Way

      • Dimensions (WxHxD): 20.75" x 7.28" x 13.15"

      • Weight: 29.04 lbs (13.2 kg)

      • Finish Options: Satin White with Oak Sides, Satin Black with Walnut Sides

Description

More Than Just A New Uni-Fi Reference, Tweaked To Perfection

Designed to blend with traditional or contemporary styles, UniFi Reference brings significant acoustical and visual advancements to the category.

The new UniFi Reference series matches fresh visual elegance with unparalleled sound to bring you a new industry benchmark product.

Warranty:

2-year manufacturer’s warranty

Features:

  • 3x 5.25″ Aluminum Cone Woofers
  • 4″ Aluminum Cone Midrange
  • 1″ Concentric Soft-Dome Tweeter
  • 140W Maximum Power Handling
  • Bass-Reflex via Three Flared Ports
  • Dual 5-Way Binding Post Pairs
  • MDF Cabinet

New Concentric Driver
A wide-surround tweeter enhances its low and high frequency extension, allowing for improved blending with the midrange. An entirely new midrange driver with a large diameter voice coil, vented rear spider, and new neodymium magnet allows for better
excursion and control of midrange frequencies. A new cast chassis was designed to minimize reflections back to the cone, resulting in better clarity.

New Bass Driver
Drastically improving low-end reproduction, this newly developed bass driver features a single-piece compound curvature aluminum cone with a large rear vented magnet delivering improved linearity and better low frequency response than any previous Uni-Fi bookshelf speaker.

Dual Flared Slot Port
Our newly developed slot vents utilize both internal and external flares, allowing for lower noise and high bass output for improved low-frequency dynamics.
